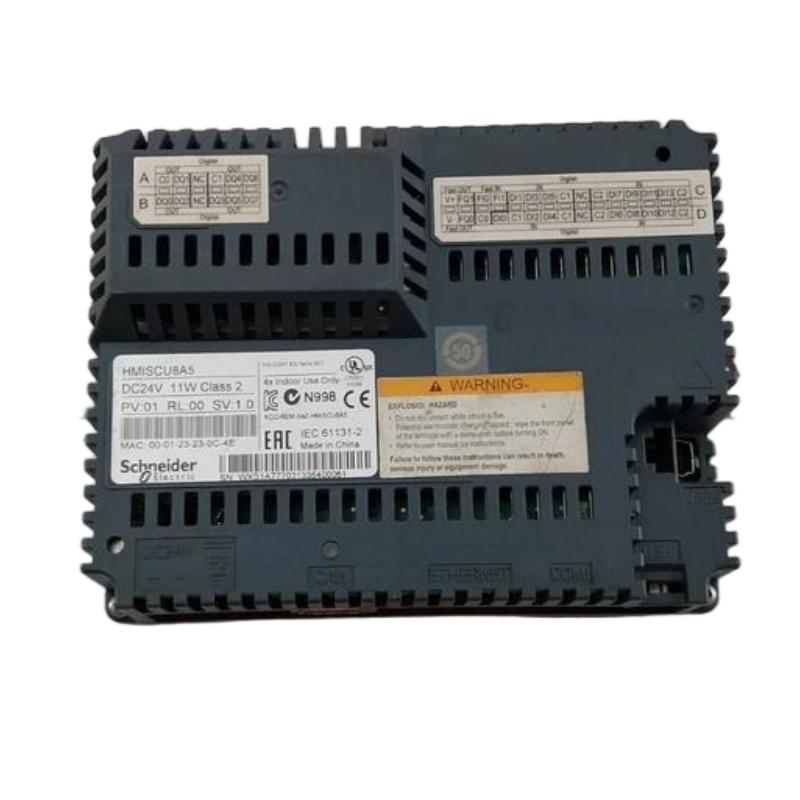

Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model Number | HMISCU8A5 |
| Product Name | Touch Controller Panel |
| Product Series | Harmony SCU |
| Product Type | Integrated HMI Touchscreen and Controller |
| Display Type | LED-Backlit Color TFT LCD |
| Display Size | 5.7 inches |
| Display Resolution | 320 × 240 pixels (QVGA) |
| Display Colors | 65,536 colors |
| Touch Technology | Analog Touch Panel |
| Backlight Service Life | Approximately 50,000 hours |
| Brightness Adjustment | 16 levels |
| Viewing Angle | 60° left, 60° right, 40° top, 60° bottom |
| Processor | RISC CPU |
| Processor Frequency | 333 MHz |
| Digital Inputs | 16 total: 14 standard inputs and 2 high-speed inputs |
| Digital Outputs | 10 total: 8 standard outputs and 2 high-speed outputs |
| Rated Supply Voltage | 24 V DC |
| Allowable Supply Voltage | 20.4–28.8 V DC |
| Power Consumption | 24 W |
| Inrush Current | 30 A |
| Power Interruption Immunity | 10 ms |
| Flash Memory | 128 MB NAND Flash |
| Internal Data Memory | 128 kB FRAM |
| Application Memory | 128 MB DRAM |
| Serial Communication | 1 × RJ45, RS-232/RS-485 |
| Ethernet Interface | 1 × RJ45, Ethernet TCP/IP |
| USB Interfaces | 1 × USB 2.0 Type-A; 1 × USB 2.0 Mini-B |
| Fieldbus Interface | CANopen Master, 9-pin SUB-D |
| Supported Communication | Modbus, Modbus TCP/IP, CANopen |
| Configuration Software | SoMachine; confirm compatibility with the existing project and software version |
| Operating Platform | Harmony SCU |
| Front Panel Protection | IP65f when correctly installed |
| Rear Panel Protection | IP20 |
| Operating Temperature | 0–50°C for horizontal installation; 0–40°C for vertical installation |
| Installation Type | Panel-mounted |
| Dimensions | 129.4 × 163 × 76.22 mm |
| Weight | 0.764 kg |
FAQ
1. What is the primary function of the Schneider HMISCU8A5 Touch Controller Panel?
The HMISCU8A5 combines a 5.7-inch touchscreen with a programmable controller. It provides an operator interface for monitoring machine status, displaying process values and alarms, and controlling connected equipment. Its integrated design helps reduce separate hardware requirements in industrial automation systems.

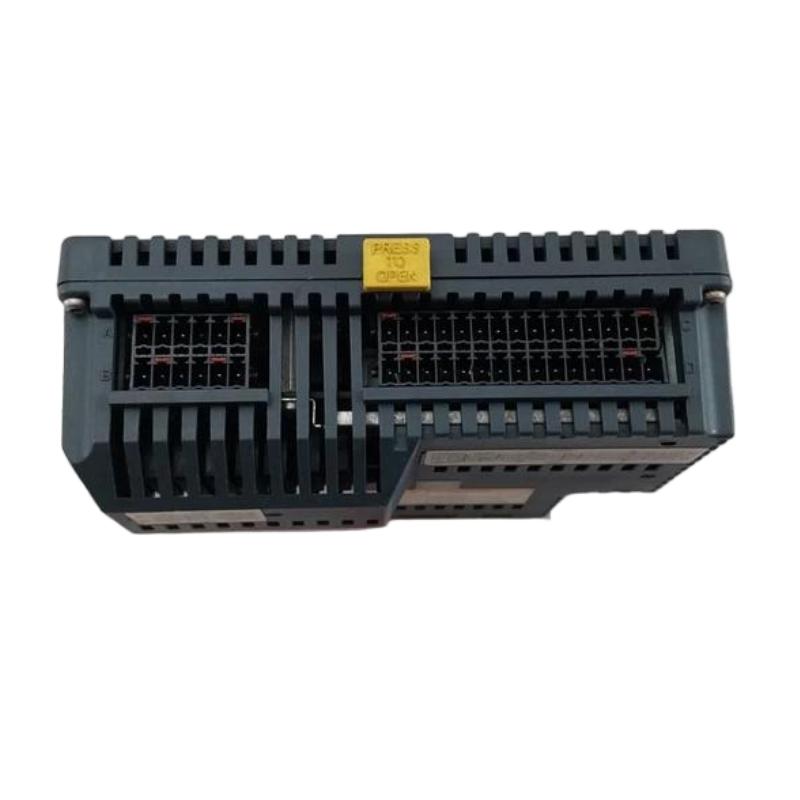

2. How many digital input and output channels does the HMISCU8A5 provide?
The HMISCU8A5 provides 16 digital inputs and 10 digital outputs. The input configuration includes 14 standard inputs and 2 high-speed inputs, while the output configuration includes 8 standard outputs and 2 high-speed outputs. Verify signal type, terminal assignment, and electrical limits before connecting field devices.
3. What power supply does the HMISCU8A5 require?
The controller requires a nominal 24 V DC supply, with an allowable operating range of 20.4–28.8 V DC. The power supply should accommodate startup current and the connected system load. Check polarity, grounding, wiring, and overcurrent protection before energizing the unit.

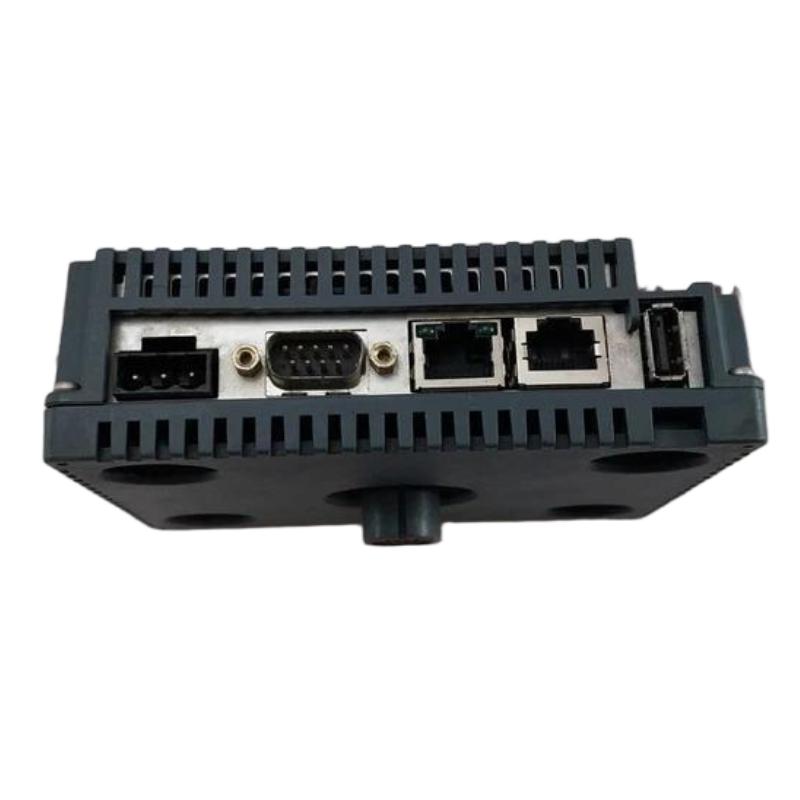

4. Which communication interfaces are available on the HMISCU8A5?
The HMISCU8A5 provides an RS-232/RS-485 serial interface, Ethernet TCP/IP, USB Type-A, USB Mini-B, and a CANopen Master interface. These connections support integration with compatible PLCs, drives, and other industrial devices. Communication parameters and supported protocols must be configured to match the connected equipment.
5. Which programming software is compatible with the HMISCU8A5?
The HMISCU8A5 is associated with Schneider Electric SoMachine software. Software compatibility depends on the device firmware, project version, and development environment. Before making program changes, back up the existing application and confirm that the selected software version supports the controller.
6. What should be checked if the HMISCU8A5 touchscreen does not respond?
Check the 24 V DC supply, controller startup status, and display condition. Inspect the panel installation and ensure that the touchscreen surface is clean and undamaged. If the display works but touch input remains unresponsive, review the device configuration and application status before considering hardware replacement.
7. How can communication faults on the HMISCU8A5 be diagnosed?
Start by checking cable connections, Ethernet link status, serial wiring, device addresses, baud rate, parity, and communication protocol settings. For network communication, verify IP address and subnet configuration. Review controller and connected-device diagnostics to identify whether the fault originates from wiring, configuration, or the remote device.
8. What precautions should be taken when replacing an HMISCU8A5?
Confirm the complete model number and compatibility with the existing application, I/O wiring, and communication network. Back up the controller program and HMI configuration before removing the unit. After replacement, verify power supply, input and output operation, communication links, alarms, and machine safety functions before returning the equipment to service.
