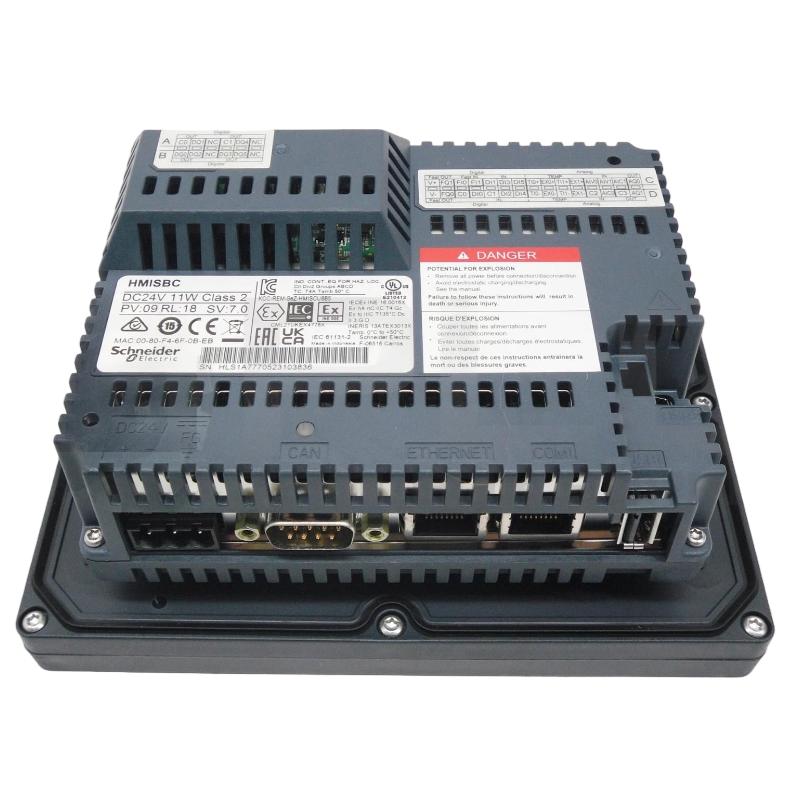

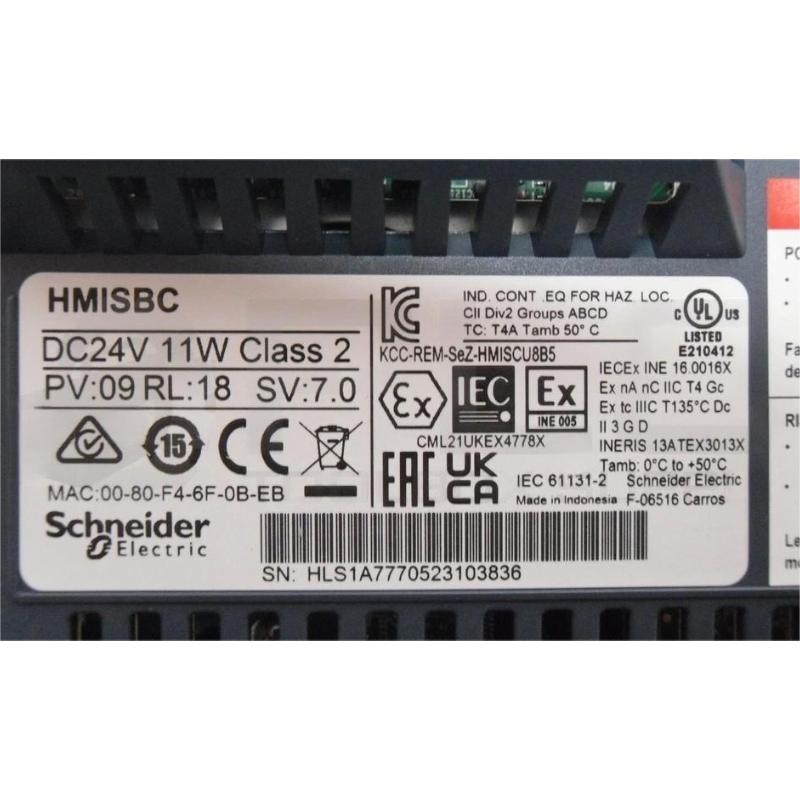

Schneider HMISCU8B5 Touch Controller Panel
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model Number | HMISCU8B5 |
| Product Name | 5.7-Inch Touch Controller Panel |
| Product Series | Harmony SCU |
| Product Type | Integrated HMI Touchscreen and Controller |
| Display Type | LED-Backlit Color TFT LCD |
| Display Size | 5.7 inches |
| Display Resolution | 320 × 240 pixels (QVGA) |
| Display Colors | 65,536 colors |
| Touch Technology | Analog Touch Panel |
| Backlight Service Life | Approximately 50,000 hours |
| Brightness Adjustment | 16 levels via touchscreen |
| Viewing Angle | 60° left, 60° right, 40° top, 60° bottom |
| Processor | RISC CPU |
| Processor Frequency | 333 MHz |
| Digital Inputs | 8 total, including 2 high-speed inputs |
| Digital Outputs | 8 total, including 2 high-speed outputs |
| Analog Inputs | 4 channels: 2 standard analog inputs and 2 temperature measurement inputs |
| Analog Outputs | 2 channels, 12-bit resolution plus sign |
| Rated Supply Voltage | 24 V DC |
| Allowable Supply Voltage | 20.4–28.8 V DC |
| Power Consumption | 24 W |
| Inrush Current | 30 A |
| Power Interruption Immunity | 10 ms |
| Flash Memory | 128 MB NAND Flash |
| Internal Data Memory | 128 kB FRAM |
| Application Memory | 128 MB DRAM |
| Serial Communication | 1 × RJ45, RS-232/RS-485 |
| Ethernet Interface | 1 × RJ45, Ethernet TCP/IP |
| USB Interfaces | 1 × USB 2.0 Type-A; 1 × USB 2.0 Mini-B |
| Fieldbus Interface | CANopen Master, 9-pin SUB-D |
| Supported Communication Protocols | Modbus, Modbus TCP/IP, CANopen |
| Configuration Software | SoMachine; confirm project and software-version compatibility |
| Operating Platform | Harmony SCU |
| Front Panel Protection | IP65f when correctly installed |
| Rear Panel Protection | IP20 |
| Operating Temperature | 0–50°C for horizontal installation; 0–40°C for vertical installation |
| Installation Type | Panel-mounted |
| Dimensions | 129.4 × 163 × 76.22 mm |
| Weight | 0.803 kg |
FAQ
1. What is the main function of the Schneider HMISCU8B5 Touch Controller Panel?
The HMISCU8B5 combines a 5.7-inch color touchscreen with a programmable controller. It allows operators to monitor machine conditions, view process values and alarms, and control connected equipment. The integrated design is suitable for compact industrial machines and applications requiring both HMI and controller functions.
2. How many I/O channels are available on the HMISCU8B5?
The HMISCU8B5 provides 8 digital inputs, 8 digital outputs, 4 analog inputs, and 2 analog outputs. The digital I/O includes high-speed channels, while the analog inputs support standard analog signals and temperature measurement. Check the terminal assignments and electrical specifications before connecting field devices.
3. What power supply is required for the HMISCU8B5?
The controller requires a nominal 24 V DC supply, with an allowable range of 20.4–28.8 V DC. The power supply must provide sufficient capacity for startup current and the connected system load. Verify polarity, grounding, wiring, and circuit protection before applying power.
4. Which communication interfaces does the HMISCU8B5 support?
The HMISCU8B5 provides RS-232/RS-485 serial communication, Ethernet TCP/IP, USB Type-A, USB Mini-B, and a CANopen Master interface. These interfaces support integration with compatible PLCs, drives, sensors, and other automation devices. Correct communication parameters and compatible protocols are essential for reliable data exchange.
5. Which software can be used to configure the HMISCU8B5?
The HMISCU8B5 is associated with Schneider Electric SoMachine software. The appropriate development environment depends on the existing project and software compatibility. Before modifying the application, back up the current program and confirm that the selected software version supports the device.
6. Can the HMISCU8B5 read temperature sensors?
Yes. Its analog input configuration includes temperature measurement channels. Supported sensor types include applicable RTDs and thermocouples, depending on the configured input mode. Confirm the sensor type, terminal assignment, wiring method, and channel settings before commissioning to prevent inaccurate readings or input errors.
7. What should be checked if the HMISCU8B5 displays incorrect analog values?
Check the sensor output type, signal range, wiring polarity, common terminals, and grounding. Confirm that the application uses the correct input channel and measurement mode. For temperature measurements, verify the selected sensor type. If the problem persists, test the sensor and wiring separately before diagnosing a controller hardware fault.
8. What should be verified after replacing an HMISCU8B5?
Confirm that the replacement model is correct and compatible with the existing application, I/O wiring, and communication network. Back up the original program and configuration before removal. After installation, test the touchscreen, communication interfaces, digital and analog I/O, alarms, and relevant safety functions before returning the machine to normal operation.
Schneider HMISCU8B5 Touch Controller Panel is in stock. Please contact us for a quick quote and competitive pricing.
