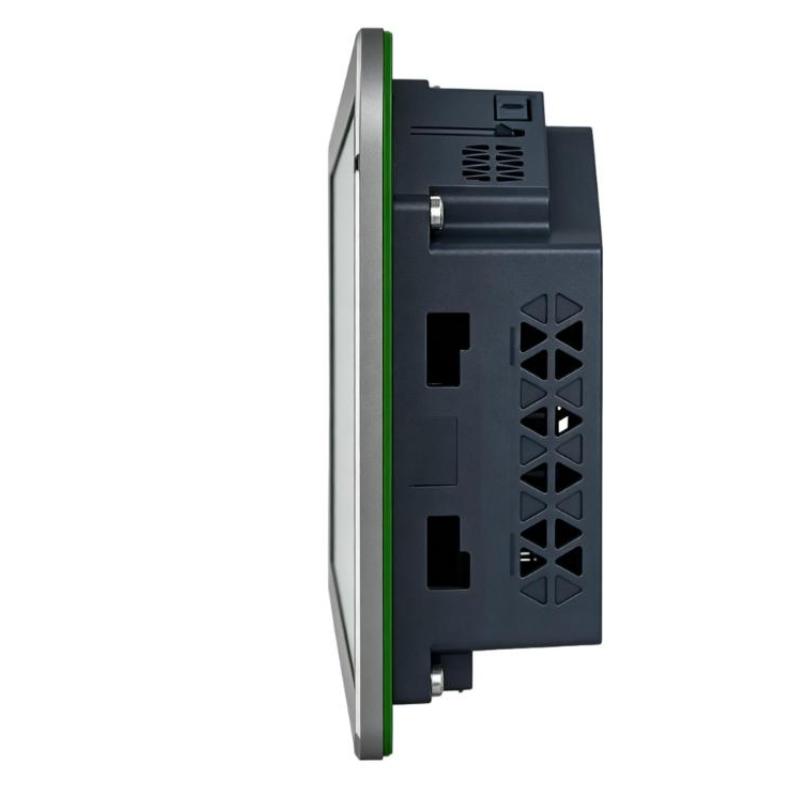

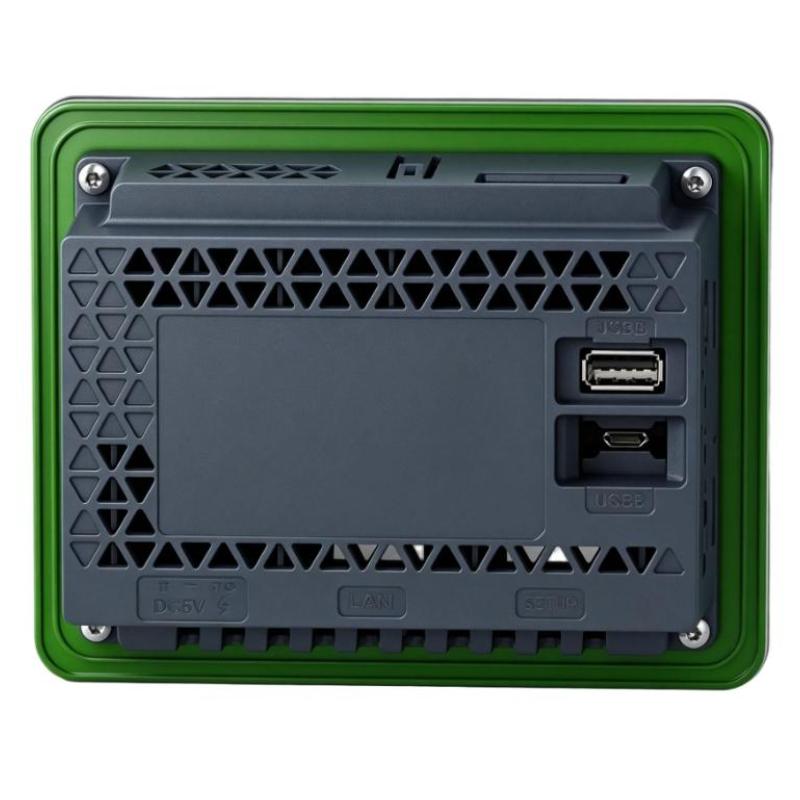

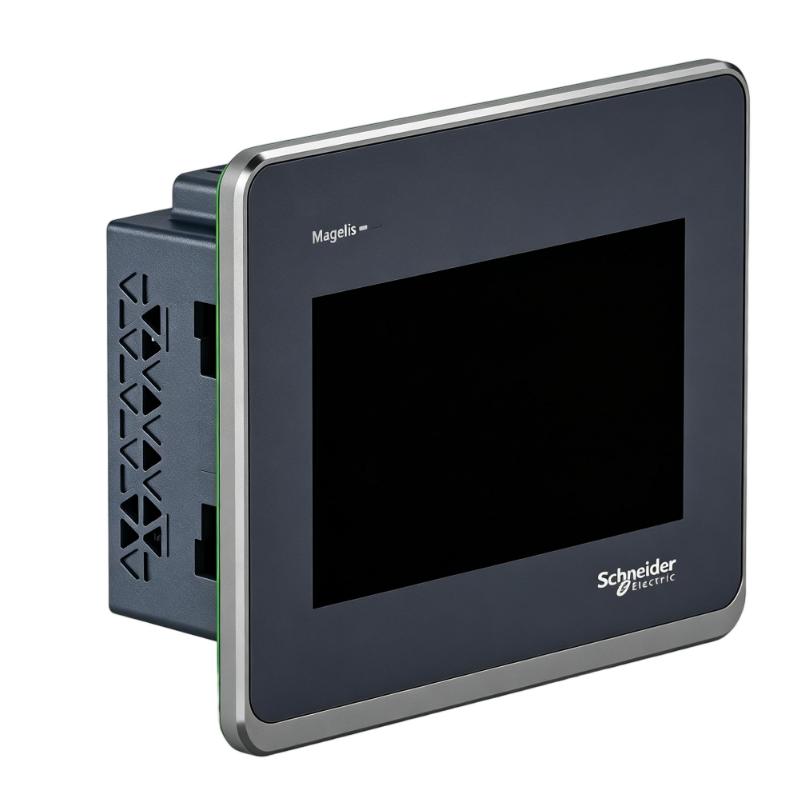

Schneider HMIST6200 4-Inch Touchscreen
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | HMIST6200 |
| Brand | Schneider Electric |
| Product Type | 4-Inch Touchscreen HMI |
| Product Series | Harmony ST6 |
| Display Size | 4 inch |
| Display Type | Color TFT LCD |
| Display Resolution | 480 × 272 pixels |
| Display Colors | 16 million colors |
| Touch Technology | Single-touch analog resistive |
| Processor | ARM Cortex-A8 |
| Processor Frequency | 800 MHz |
| Device Memory | 512 MB |
| User Data Memory | 128 MB |
| Backup Memory | 512 KB |
| Rated Supply Voltage | 24 V DC (±20%) |
| Power Consumption | 6.9 W |
| Communication Ports | 1 × Ethernet, 1 × Serial COM1 |
| Serial Communication | RS-232C / RS-485 |
| Ethernet Speed | 10/100 Mbps |
| USB Ports | 1 × USB 2.0 Type-A, 1 × USB 2.0 Micro-B |
| Supported Protocols | Modbus, Uni-TE, third-party protocols |
| Configuration Software | EcoStruxure Operator Terminal Expert |
| Maximum Application Pages | 200 |
| Backlight Lifespan | Up to 50,000 hours |
| Front Panel Material | Aluminum alloy |
| Enclosure Material | Polycarbonate (PC) |
| Front Panel Protection | IP65F |
| Rear Panel Protection | IP20 |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Relative Humidity | 10% to 90%, non-condensing |
| Dimensions | 108.5 × 134.5 × 43 mm |
| Weight | 0.4 kg |
FAQ
Q1: What is the primary function of the Schneider HMIST6200 touchscreen?
The HMIST6200 is a human-machine interface (HMI) designed to provide operators with a visual interface for monitoring equipment status, viewing process data, and controlling supported industrial automation systems.
Q2: Which software is used to configure the HMIST6200?
The HMIST6200 is configured using EcoStruxure Operator Terminal Expert. The software allows users to develop screen layouts, configure communication settings, and create operator functions for compatible automation equipment.
Q3: Which communication interfaces are available on the HMIST6200?
The unit provides one Ethernet port, one serial communication port, and USB Type-A and Micro-B interfaces. These connections support communication with compatible controllers and facilitate configuration or data transfer.
Q4: Does the HMIST6200 support communication with PLCs from different manufacturers?
Yes. The HMIST6200 supports Modbus, Uni-TE, and selected third-party communication protocols. Compatibility depends on the PLC model, the protocol driver, and the configuration of both devices.
Q5: What power supply does the HMIST6200 require?
The HMIST6200 operates on a 24 V DC supply with a permitted voltage range of 19.2–28.8 V DC. A regulated industrial power supply with suitable current capacity is recommended for stable operation.
Q6: What should be checked if the HMIST6200 cannot communicate with a PLC?
Check the communication cable, connector condition, PLC communication settings, and HMI configuration. For Ethernet connections, verify the IP address and subnet settings. For serial connections, confirm the interface type, baud rate, parity, and other communication parameters.
Q7: Can the HMIST6200 be used in industrial environments?
Yes. It is designed for industrial operator interfaces. The front panel provides IP65F protection when correctly installed, while the rear panel is rated IP20. The installation must comply with the specified temperature, humidity, and environmental limits.
Q8: What should be done if the HMIST6200 touchscreen does not respond correctly?
First, check the power supply and observe the status LED. Inspect the screen for contamination or physical damage, then restart the unit if the operating conditions permit. If the problem persists, check the application configuration and communication status. Persistent hardware faults should be evaluated by qualified maintenance personnel.
Schneider HMIST6200 4-Inch Touchscreen is in stock. Please contact us for a quick quote and competitive pricing.
