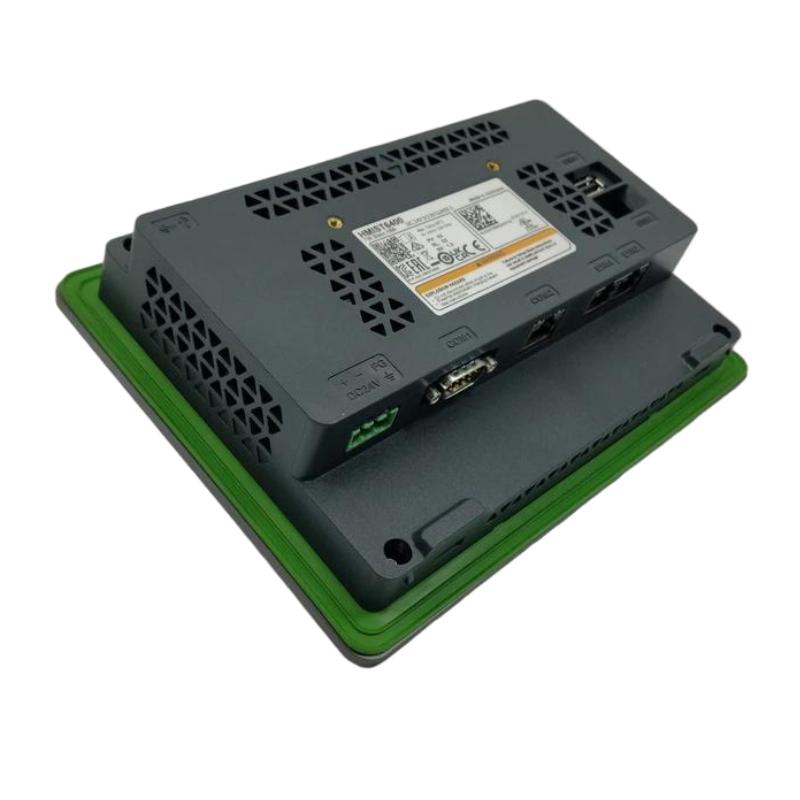

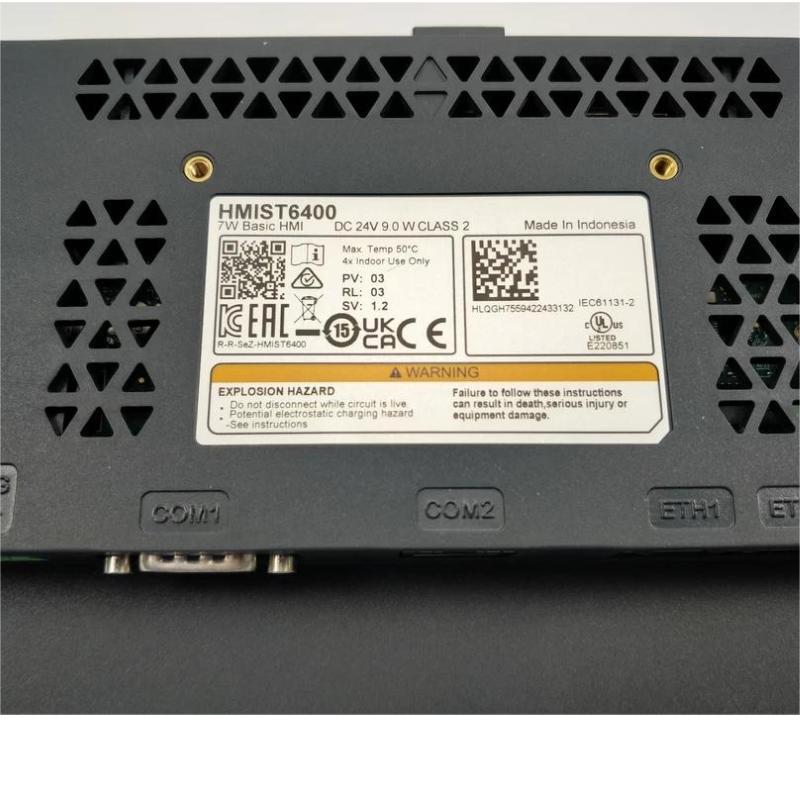

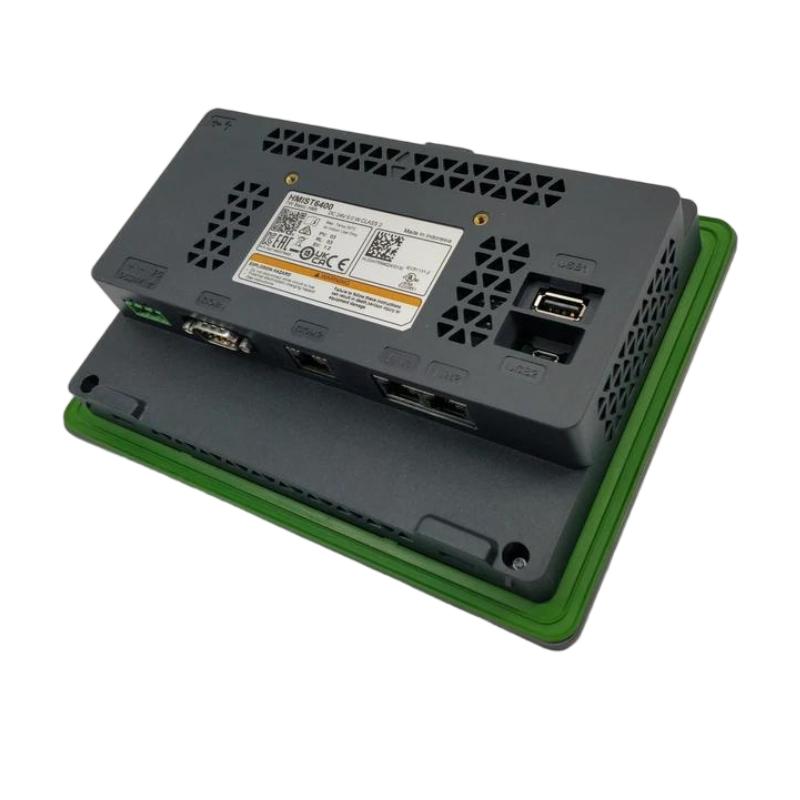

Schneider HMIST6400 Touch Panel Screen
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | HMIST6400 |
| Product Name | Touch Panel Screen |
| Product Series | Harmony ST6 |
| Product Type | Human-Machine Interface (HMI) Touch Panel |
| Display Size | 7-inch wide screen |
| Display Type | Colour TFT LCD |
| Display Resolution | 800 × 480 pixels (WVGA) |
| Display Colours | 16 million colours |
| Touch Technology | Single-touch analogue resistive touchscreen |
| Processor | ARM Cortex-A8 |
| Processor Frequency | 800 MHz |
| Application Software | EcoStruxure Operator Terminal Expert |
| Rated Supply Voltage | 24 V DC (±20%) |
| Power Consumption | 9 W |
| Ethernet Ports | 2 × Ethernet, 10/100BASE |
| Serial Communication | 2 × COM ports |
| USB Interfaces | USB host and USB device |
| Application Capacity | Up to 200 application pages |
| Backlight Type | White LED |
| Backlight Service Life | Approximately 50,000 hours under specified conditions |
| Brightness Adjustment | 16 levels |
| Supported Character Sets | ASCII, European characters, Simplified Chinese, Japanese, Korean and Traditional Chinese |
| Front Panel Protection | IP65F |
| Rear Panel Protection | IP20 |
| Operating Temperature | 0–50°C |
| Storage Temperature | -20–60°C |
| Installation Method | Panel mounting |
| Panel Cutout | 190 × 135 mm |
| Dimensions | 153 × 206 × 45 mm |
| Weight | 0.8 kg |
FAQ
Q1: What is the Schneider Electric HMIST6400 touch panel used for?
The HMIST6400 is a 7-inch human-machine interface (HMI) from the Harmony ST6 series. It allows operators to monitor equipment status, view process data, interact with control applications, and issue commands to compatible automation systems.
Q2: Which software is used to configure the HMIST6400?
The HMIST6400 uses EcoStruxure Operator Terminal Expert for application development and configuration. The project should be created using a compatible software version and transferred to the panel according to Schneider Electric’s programming and commissioning instructions.
Q3: What communication interfaces are available on the HMIST6400?
The panel provides two Ethernet ports, two COM ports, and USB host and device interfaces. These connections support integration with compatible PLCs, industrial networks, programming computers, and peripheral devices. The actual communication protocol depends on the connected equipment and application configuration.
Q4: Which PLC systems can communicate with the HMIST6400?
The HMIST6400 can communicate with supported PLCs and automation controllers through compatible communication drivers and interfaces. Before implementation, verify the PLC model, protocol, connection type, software driver, and communication parameters.
Q5: What power supply does the HMIST6400 require?
The panel operates on a nominal 24 V DC supply with a specified tolerance of ±20%. Use a suitable regulated power supply and follow the wiring instructions. Check polarity, grounding, protective measures, and startup current requirements before energizing the unit.
Q6: How should the HMIST6400 be installed in a control cabinet?
Prepare the panel cutout according to the manufacturer’s installation drawing, secure the HMI using the specified mounting hardware, and ensure that the installation surface is suitable. Allow adequate clearance for connectors, cables, ventilation, and maintenance. Follow the recommended grounding and wiring procedures.
Q7: What should be checked if the HMIST6400 screen does not respond to touch?
First, check whether the panel is powered correctly and whether the application has started successfully. Inspect the touchscreen surface for contamination or damage, review any system error messages, and restart the panel only when it is safe to do so. If the problem persists, consult the service documentation or arrange qualified technical inspection.
Q8: Can an HMIST6400 replace an existing HMI from another model or series?
Replacement is possible only after confirming compatibility. Check the panel cutout, mounting arrangement, supply voltage, communication interfaces, supported PLC protocols, application software, and project migration requirements. A similar screen size does not guarantee direct replacement, and the HMI application may need to be modified or recreated.
Schneider HMIST6400 Touch Panel Screen is in stock. Please contact us for a quick quote and competitive pricing.
