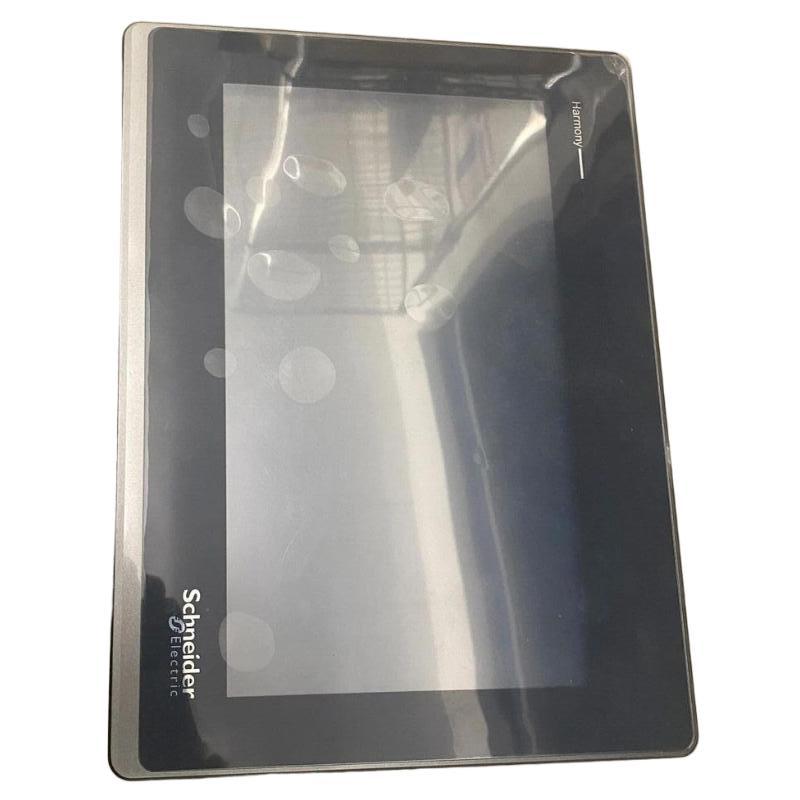

Schneider HMIST6500 Touch Panel Screen
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | HMIST6500 |
| Product Name | Touch Panel Screen |
| Product Series | Harmony ST6 |
| Product Type | Human-Machine Interface (HMI) Touch Panel |
| Display Size | 10.1-inch wide screen |
| Display Type | Colour TFT LCD |
| Display Resolution | 1024 × 600 pixels (WSVGA) |
| Display Colours | 16 million colours |
| Touch Technology | Single-touch analogue resistive touchscreen |
| Processor | ARM Cortex-A8 |
| Processor Frequency | 800 MHz |
| Device Memory | 1 GB |
| User Data Memory | 128 MB |
| Backup Memory | 512 KB |
| Application Software | EcoStruxure Operator Terminal Expert |
| Rated Supply Voltage | 24 V DC (±20%) |
| Maximum Power Consumption | 12.6 W |
| Ethernet Ports | 2 × 10/100BASE-T Ethernet |
| Serial Communication | 2 COM ports: COM1 (RS-232C) and COM2 (RS-485) |
| USB Interfaces | 1 × USB 2.0 Type-A host; 1 × USB 2.0 Micro-B device |
| Application Capacity | Up to 200 application pages |
| Backlight Type | White LED |
| Backlight Service Life | 50,000 hours or more under specified conditions |
| Brightness Adjustment | 16 levels |
| Front Panel Material | Aluminium alloy |
| Front Panel Protection | IP65F when correctly installed |
| Operating Temperature | 0–50°C |
| Storage Temperature | -20–60°C |
| Cooling Method | Natural air circulation |
| Installation Method | Panel mounting |
| Panel Cutout | 255 × 185 mm |
| Dimensions | 203 × 273 × 47 mm |
| Weight | 1.3 kg |
FAQ
Q1: What is the Schneider Electric HMIST6500 touch panel used for?
The HMIST6500 is a 10.1-inch HMI from the Harmony ST6 series. It provides an operator interface for industrial machinery, allowing users to monitor process values, view equipment status, operate control functions, and display alarms and production information.
Q2: Which software is required to program the HMIST6500?
The HMIST6500 uses EcoStruxure Operator Terminal Expert to develop and configure HMI applications. Use a compatible software version and verify the project settings before transferring the application to the panel.
Q3: Which communication interfaces are available on the HMIST6500?

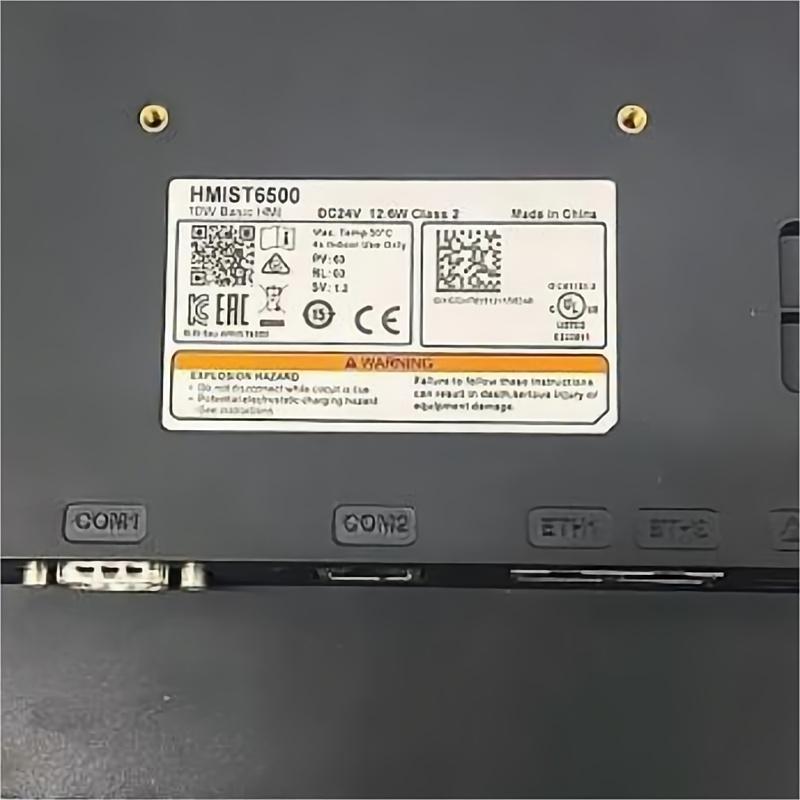

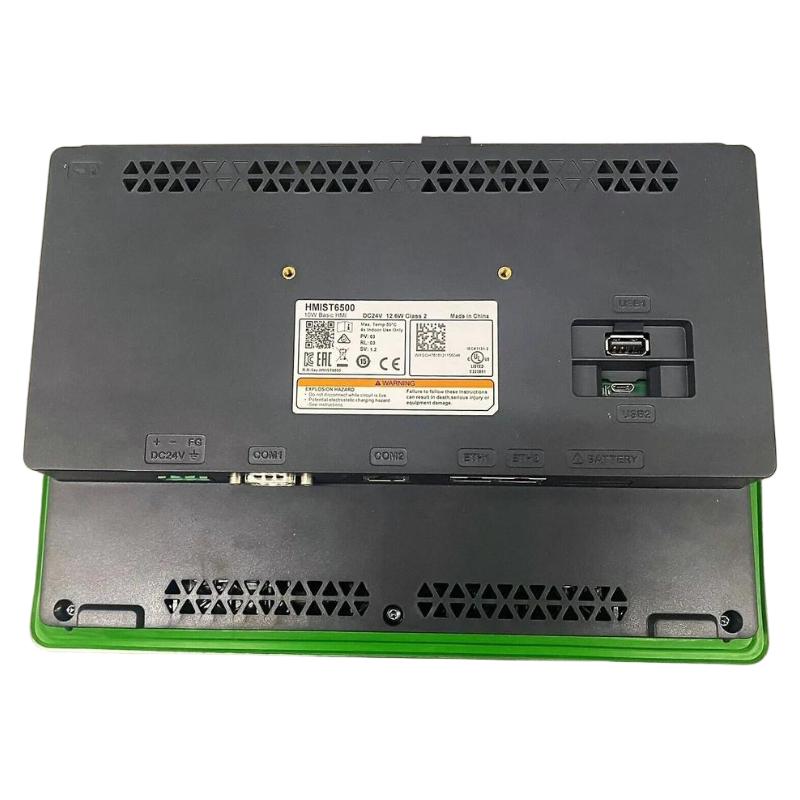

The panel provides two Ethernet ports, COM1 with RS-232C, COM2 with RS-485, a USB 2.0 Type-A host port, and a USB 2.0 Micro-B device port. These interfaces support communication with compatible PLCs, industrial devices, and engineering computers, depending on the selected protocol and configuration.
Q4: Can the HMIST6500 communicate with different PLC brands?
Communication depends on the PLC model, supported protocol, and available driver in the HMI configuration software. Before commissioning, verify protocol compatibility, serial communication settings or Ethernet parameters, and the addressing of PLC variables.
Q5: What power supply is required for the HMIST6500?
The HMIST6500 requires a nominal 24 V DC supply, with an input voltage range of 19.2–28.8 V DC. Its maximum power consumption is 12.6 W. Use a suitable power supply and follow the manufacturer’s wiring and grounding instructions.
Q6: How should the HMIST6500 be installed in a control cabinet?
Prepare the panel opening according to the specified cutout dimensions, secure the panel using the recommended mounting hardware, and check that the gasket is correctly seated. Ensure adequate space for wiring and natural air circulation. Follow the installation instructions to maintain the specified front-panel protection.
Q7: What should be checked if the HMIST6500 fails to communicate with a PLC?
Check the Ethernet cable or serial wiring, power supply, communication settings, PLC address, and selected protocol. Review HMI and PLC diagnostic messages, and verify that the correct communication driver and variable addresses are configured. If the fault persists, isolate the problem by testing the connection and reviewing the application configuration.
Q8: Can the HMIST6500 replace an existing HMI directly?
Direct replacement depends on the existing panel’s mounting dimensions, power requirements, communication interfaces, PLC compatibility, and application software. The original HMI project may require conversion or redevelopment. Confirm the replacement requirements and test the application before putting the machine back into service.
