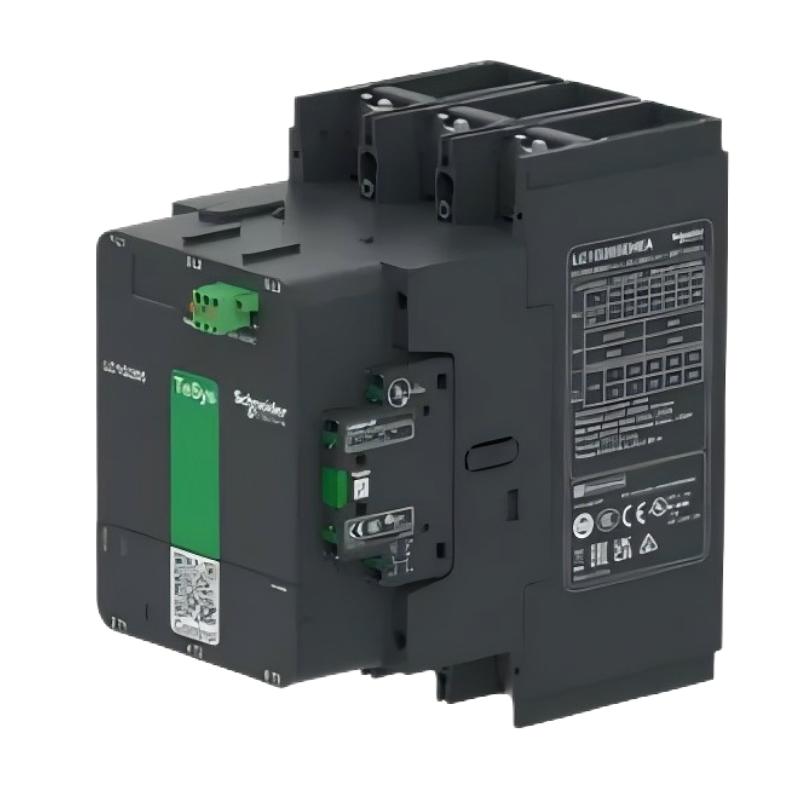

1. What applications is LC1G500EHEN suitable for?

LC1G500EHEN is designed for controlling high-power three-phase AC motors and is particularly suitable for demanding industrial applications where reliable motor starting and stopping are required. Typical applications include pumps, fans, compressors, conveyors, production machinery, material handling systems, HVAC equipment, and large industrial automation systems. It can be integrated into conventional motor starter circuits as well as PLC-based control systems. When used together with appropriate circuit protection and motor overload protection, it can form an important part of a complete motor control solution. The actual application should be evaluated according to the motor’s rated current, operating voltage, starting characteristics, switching frequency, and required utilization category.

2. What does the AC-3 utilization category mean for LC1G500EHEN?

The AC-3 utilization category is primarily associated with controlling squirrel-cage induction motors. During motor starting, the contactor must handle the significantly higher current drawn by the motor compared with its normal running current. Once the motor reaches its normal operating condition, the contactor continues to carry the motor’s operating current and can disconnect the motor under normal running conditions. Therefore, when selecting LC1G500EHEN for a particular motor, the engineer should not consider only the nominal current of the contactor. Motor power, supply voltage, operating current, starting method, operating frequency, and actual load characteristics should all be evaluated to ensure the contactor is properly matched to the application.

3. What is the coil control voltage of LC1G500EHEN?

LC1G500EHEN uses a wide-range control coil designed for 100–250 V AC/DC control power. This allows the contactor to be incorporated into different industrial control architectures where the available control voltage may vary. Before connecting the coil, the actual control supply should be checked against the identification and electrical specifications of the specific contactor. Incorrect coil voltage can result in unreliable operation, excessive heating, failure to close, or premature release. When the contactor is controlled by a PLC, relay, or automation controller, the output circuit should also be checked to ensure that it is electrically compatible with the contactor coil and capable of providing reliable switching under the expected operating conditions.

4. Can LC1G500EHEN be controlled directly by a PLC?

LC1G500EHEN can be incorporated into a PLC-controlled motor control system, but the PLC output should only be connected directly to the contactor coil when the PLC output specifications are confirmed to be suitable for the coil load. The control voltage, output current capability, switching characteristics, and protection requirements of the PLC output must be considered. In many industrial installations, an intermediate relay or interface device may be used between the PLC and the contactor. This arrangement can reduce the electrical load on the PLC output and provide additional isolation between the control system and the power switching circuit. The PLC program can then control the contactor through standard start, stop, interlock, emergency-stop, and motor protection logic.

5. What should be checked when installing and wiring LC1G500EHEN?

Installation should begin with verification of the motor’s rated voltage, rated current, power, starting method, and the electrical characteristics of the incoming power supply. The main power circuit should be wired according to the terminal identification provided for the contactor, with conductors and connection hardware appropriately rated for the expected current. Control wiring should be kept clearly separated and correctly identified to reduce the possibility of wiring errors. Terminal connections should be properly tightened because loose connections can increase contact resistance, generate localized heat, and eventually cause terminal or conductor damage. Before energizing the equipment, the complete circuit should be inspected for incorrect connections, short circuits, insulation problems, missing protective devices, and incorrect control logic. A controlled commissioning test should then be performed before placing the motor into continuous operation.

6. How should an LC1G500EHEN contactor that does not close be troubleshot?

If LC1G500EHEN does not close when a start command is issued, the first step is to verify whether the correct control voltage is actually reaching the coil. A voltage measurement should be performed at the coil terminals while the closing command is active. If the expected voltage is not present, the problem may be located in the PLC output, intermediate relay, control fuse, emergency-stop circuit, interlock circuit, push button, overload protection circuit, or another part of the control loop. If the correct voltage reaches the coil but the contactor still does not operate, the coil and mechanical operating mechanism should be inspected. Mechanical obstruction, contamination, component wear, or coil damage can prevent reliable operation. The troubleshooting process should also consider whether the contactor is being subjected to an unsuitable control voltage or abnormal operating conditions.

7. Why can LC1G500EHEN contacts become excessively hot during operation?

Excessive contact temperature can be caused by several factors, including excessive load current, loose power connections, increased contact resistance, worn contacts, unsuitable conductor sizing, or prolonged operation near the application’s maximum electrical load. A loose terminal connection is particularly important to investigate because it can create a localized high-resistance point that generates heat even when the overall circuit current appears normal. During troubleshooting, the operating current should be measured and compared with the expected motor load. The main terminals should also be inspected for signs of discoloration, overheating, oxidation, or mechanical looseness. If abnormal heating is concentrated around one terminal or contact path, the associated connection and contact condition should be investigated carefully rather than simply replacing the contactor without identifying the underlying cause.

8. Can frequent switching affect the service life of LC1G500EHEN?

Yes. Frequent switching can influence both the mechanical and electrical service life of a contactor. Every closing and opening operation produces mechanical movement, while switching an inductive motor load also subjects the main contacts to electrical stress. The actual service life depends on factors such as motor current, starting current, switching frequency, load characteristics, utilization category, environmental conditions, and the control method. Applications involving frequent motor starts and stops should therefore be evaluated based on the actual operating cycle rather than only the nominal contactor rating. Proper motor protection, suitable control logic, correct wiring, and regular inspection can help reduce unnecessary electrical and mechanical stress. If abnormal noise, delayed operation, contact welding, excessive heating, or inconsistent switching is observed, the contactor and the complete motor control circuit should be inspected promptly.
