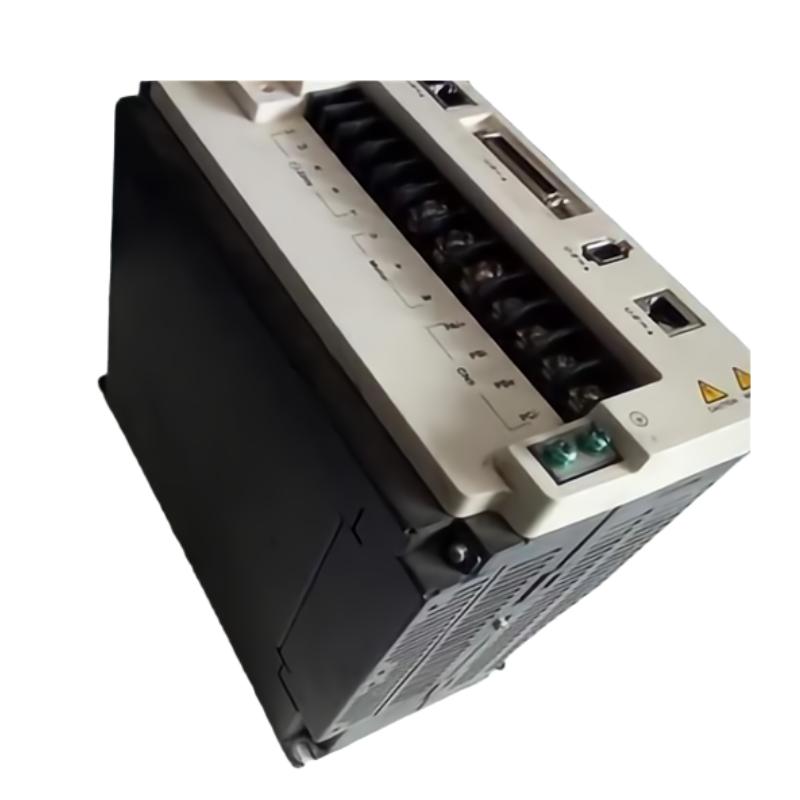

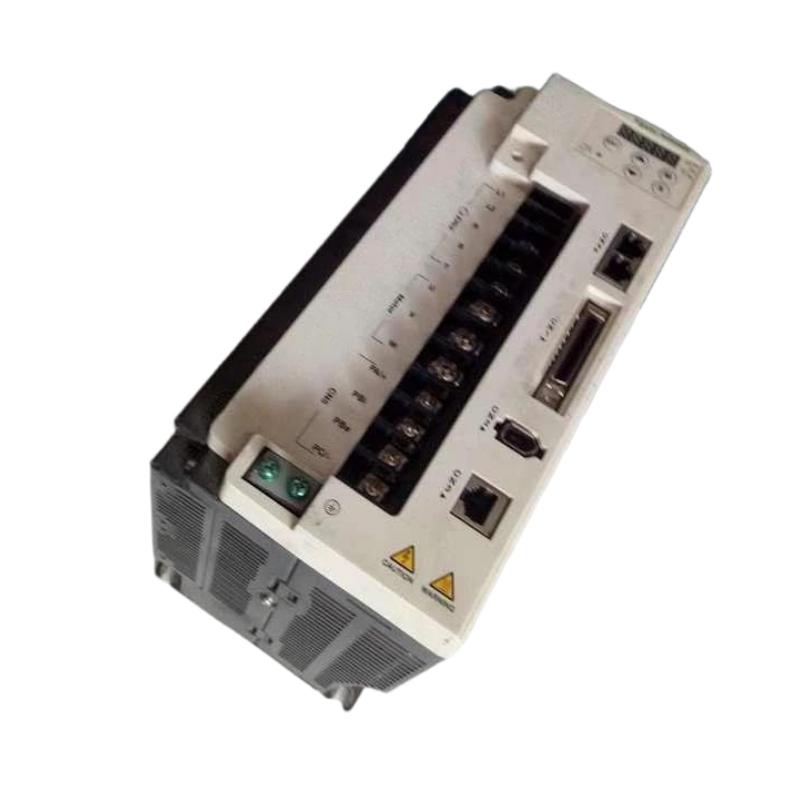

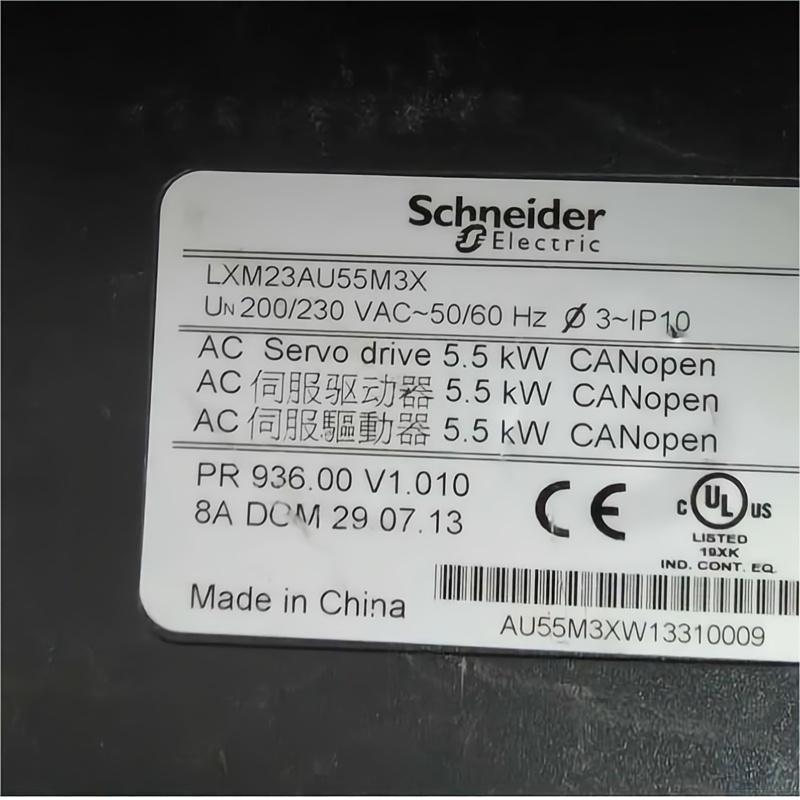

Schneider LXM23AU55M3X Motion Servo Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | LXM23AU55M3X |
| Product Type | Motion Servo Drive |
| Product Series | Lexium 23 Plus |
| Main Function | Servo motor speed, torque, and position control |
| Rated Power | 5.5 kW |
| Rated Supply Voltage | 220 V AC |
| Power Supply Type | Three-phase AC |
| Input Voltage Range | 170–255 V AC |
| Supply Frequency | 50/60 Hz |
| Network Frequency Limits | 47.5–63 Hz |
| Continuous Output Current | 40 A |
| Output Voltage | Up to the power supply voltage |
| Communication Interfaces | CANopen, CANmotion, Modbus |
| Communication Connector | RJ45 for CANopen/CANmotion |
| CANopen Transmission Rates | 125 kbps, 250 kbps, 500 kbps, 1 Mbps |
| Programmable Digital Inputs | 8 |
| Digital Input Voltage | 12–24 V DC |
| Digital Outputs | 5 logic outputs |
| Digital Output Voltage | 12–24 V DC |
| Analog Inputs | 2 voltage inputs: V_REF and T_REF |
| Analog Input Range | -10 to +10 V |
| Analog Input Impedance | 10 kΩ |
| Motor Feedback | Servo motor encoder feedback |
| Control Modes | Position, speed, torque, and CANopen control |
| Protection Functions | Overcurrent, overvoltage, undervoltage, overheating, overload, overspeed, and abnormal pulse command protection |
| Cooling Method | Integrated fan |
| Installation Position | Vertical |
| Electrical Connections | Terminal connections |
| Rated Leakage Current | Up to 3.5 mA |
| Operating Temperature | 0–55°C, subject to installation conditions |
| Dimensions | 123 × 245 × 216.5 mm |
| Weight | 4.2 kg |
| Product Status | Discontinued; confirm spare-part availability before ordering |
FAQ
Q1: What is the main function of the Schneider LXM23AU55M3X servo drive?
The Schneider Electric LXM23AU55M3X is a 5.5 kW AC servo drive in the Lexium 23 Plus series. It controls servo motor speed, torque, and position in automated machinery. Typical applications include industrial positioning systems, packaging equipment, material handling, and automated production lines requiring accurate motion control.
Q2: Which servo motors are compatible with the LXM23AU55M3X?
Motor compatibility depends on rated power, voltage, current, encoder feedback, and braking requirements. The drive is associated with suitable high-power servo motor configurations, including certain BCH series motors, but compatibility should be verified against the motor nameplate and official selection tables. Incorrect motor matching can cause alarms, unstable operation, or drive overload.
Q3: What power supply does the LXM23AU55M3X require?
The drive is designed for a nominal 220 V AC three-phase supply, with an input voltage range of 170–255 V AC. The supply frequency is 50/60 Hz. Before installation, verify the actual supply voltage, circuit protection, grounding, and cable ratings. Do not connect it to a higher-voltage supply unless explicitly supported by the product documentation.
Q4: How can the LXM23AU55M3X communicate with a PLC?
The model supports CANopen and CANmotion, with Modbus also listed among its communication interfaces. For CANopen integration, configure the node address, communication speed, control mode, and process data according to the PLC and drive documentation. Confirm the correct connector and wiring arrangement before commissioning.
Q5: Why does the servo drive power on but fail to start the motor?
Possible causes include an active alarm, missing servo-enable signal, incorrect control mode, invalid command source, wiring errors, encoder feedback problems, or an open safety interlock. Check the displayed fault code first, then verify the main supply, control signals, motor connections, feedback cable, and drive parameters. Disconnect power and follow the specified discharge procedure before inspecting wiring.
Q6: What should be checked if the LXM23AU55M3X frequently reports overcurrent or overload faults?
Check whether the motor is mechanically obstructed, the load exceeds the rated capacity, or acceleration and deceleration settings are too aggressive. Inspect motor cables for short circuits and verify that motor parameters are correctly configured. Also review the fault history and confirm that the drive, motor, and braking arrangement are suitable for the application.
Q7: What are the key installation requirements for this servo drive?
Install the drive vertically in a suitable electrical cabinet and maintain the ventilation clearances specified in the installation manual. Ensure reliable protective grounding and separate motor power cables from encoder and communication cables to reduce electrical interference. Use appropriately rated wiring and protection devices, and check terminal tightness before applying power.
Q8: Is the LXM23AU55M3X still available, and what should be considered when replacing it?
The LXM23AU55M3X has been discontinued, and Schneider Electric’s product information does not list a direct replacement. Availability may depend on remaining inventory or specialist spare-parts suppliers. Before selecting an alternative, compare rated power, current, supply voltage, communication protocols, motor feedback, braking requirements, mounting, and control parameters. A replacement should be validated before being installed in a production system.
