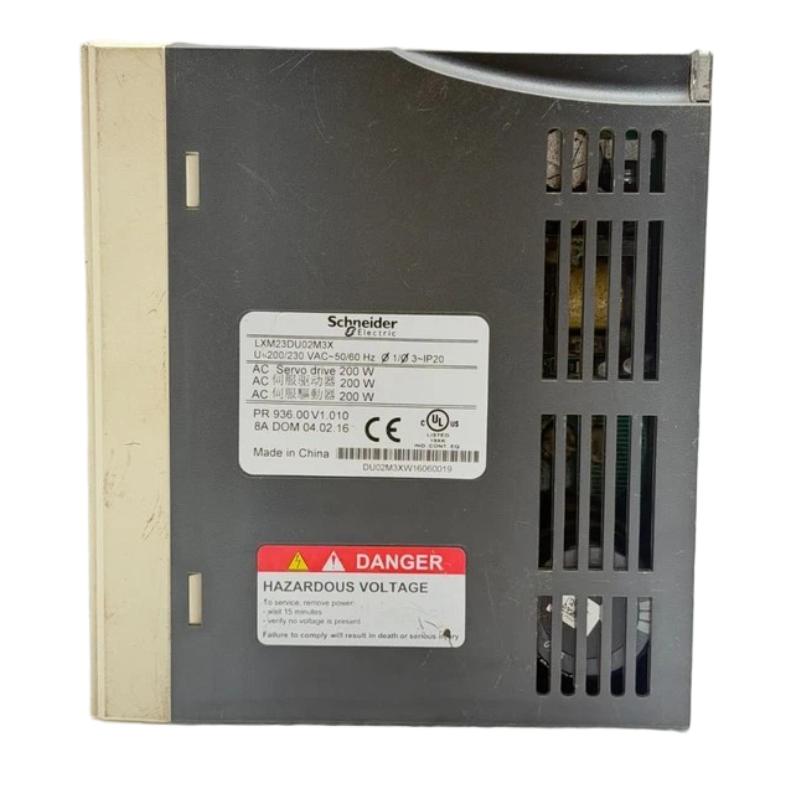

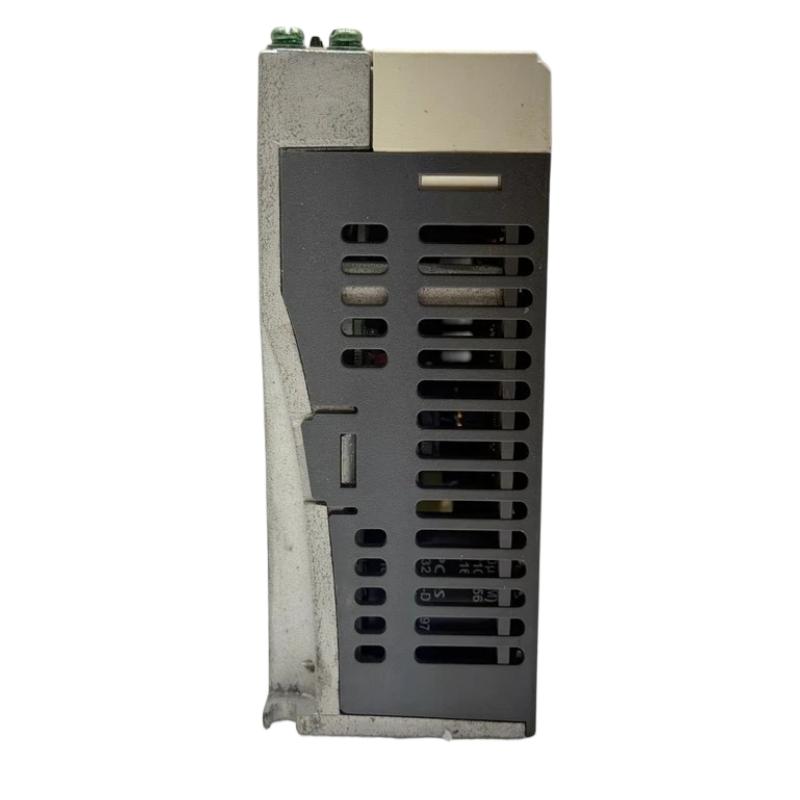

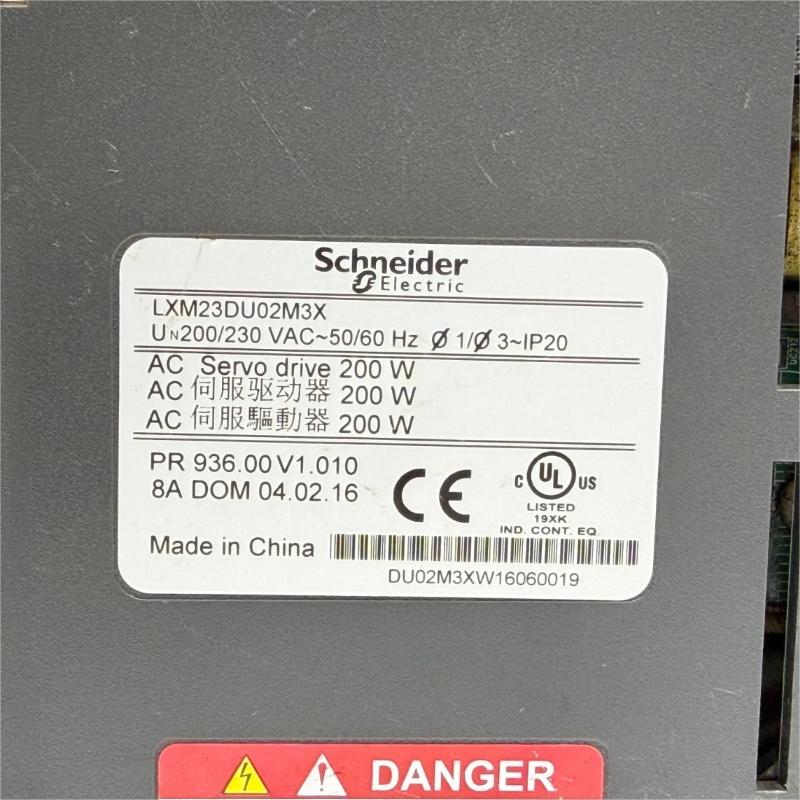

Schneider LXM23DU02M3X Motion Servo Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | LXM23DU02M3X |
| Product Type | Motion Servo Drive |
| Product Series | Lexium 23 Plus |
| Device Short Name | LXM23 |
| Rated Power | 200 W (0.2 kW) |
| Rated Supply Voltage | 220 V AC |
| Input Voltage Range | 200–255 V AC single-phase; 170–255 V AC three-phase |
| Supported Power Supply | Single-phase or three-phase AC |
| Supply Frequency | 50/60 Hz |
| Network Frequency Limits | 47.5–63 Hz |
| Continuous Output Current | 1.55 A |
| Output Voltage | Up to the power supply voltage |
| Communication Interface | Modbus RTU |
| Communication Connector | RJ45 (CN3) |
| Communication Method | Two-wire RS-485, multidrop |
| Digital Inputs | 8 programmable inputs |
| Digital Input Voltage | 12–24 V DC |
| Digital Outputs | 5 logic outputs |
| Digital Output Voltage | 12–24 V DC |
| Analog Inputs | 2 voltage inputs: V_REF and T_REF |
| Analog Input Range | -10 to +10 V |
| Analog Input Impedance | 10 kΩ |
| Feedback Type | Servo motor encoder feedback |
| Control Functions | Position, speed, and torque control |
| Protection Functions | Overcurrent, overvoltage, undervoltage, overheating, overload, overspeed, and output short-circuit protection |
| Cooling Method | Natural convection |
| Mounting Position | Vertical |
| Electrical Connections | Screw terminals |
| Protection Rating | IP20; upper section may provide IP41 with the specified protective cover |
| Operating Temperature | 0–55°C, subject to installation conditions |
| Dimensions | 60 × 162 × 146 mm |
| Weight | 1.7 kg |
| Product Status | Discontinued |
| Recommended Replacement | Schneider Electric Lexium 26 LXM26DU02M3X; verify application compatibility before replacement |
FAQ
Q1: What is the primary function of the Schneider LXM23DU02M3X servo drive?
The LXM23DU02M3X is a 200 W AC servo drive from the Lexium 23 Plus series. It regulates servo motor speed, torque, and position in compact automation systems. Typical applications include small positioning mechanisms, assembly equipment, packaging machinery, and automated material handling systems.
Q2: Which servo motors are compatible with the LXM23DU02M3X?
Compatibility depends on the motor’s rated power, voltage, current, encoder feedback, and braking requirements. The selected motor should match the drive’s 200 W rating and electrical specifications. Check the motor nameplate and Schneider Electric compatibility documentation before connecting a motor, as an incompatible combination may trigger faults or cause unstable operation.
Q3: What power supply is required for the LXM23DU02M3X?
The drive uses a nominal 220 V AC supply. Its specified input range is 200–255 V AC for single-phase operation and 170–255 V AC for three-phase operation. Verify the supply configuration, grounding, protective devices, and wiring against the product manual before energizing the equipment.
Q4: How does the LXM23DU02M3X communicate with a PLC?
The drive supports Modbus RTU communication through an RJ45 connector and a two-wire RS-485 interface. To establish communication, configure the baud rate, device address, parity, and other serial parameters to match the PLC. Confirm the applicable register map and control commands before commissioning.
Q5: Why does the servo motor fail to start even though the drive is powered on?
Common causes include a missing servo-enable signal, an active alarm, incorrect control mode, invalid command settings, encoder feedback errors, or incorrect motor wiring. Check the displayed fault code first, then verify the supply voltage, control signals, motor connections, feedback cable, and operating parameters. Disconnect power and follow the specified discharge procedure before handling wiring.
Q6: What causes repeated overcurrent or overload alarms on this servo drive?
Possible causes include excessive mechanical load, a jammed mechanism, unsuitable acceleration settings, incorrect motor parameters, or damaged motor cables. Inspect the mechanical system, review the alarm history, and confirm that the motor and drive are properly matched. Repeatedly resetting the alarm without identifying the cause may lead to further equipment damage.
Q7: What installation precautions should be followed for the LXM23DU02M3X?
Mount the drive vertically inside a suitable electrical cabinet and maintain sufficient clearance for natural convection. Ensure reliable protective grounding and keep motor power wiring separate from encoder and communication cables to reduce electromagnetic interference. Check terminal tightness, cable ratings, and protective devices before startup.
Q8: What replacement should be considered now that the LXM23DU02M3X is discontinued?
Schneider Electric identifies the Lexium 26 LXM26DU02M3X as a recommended replacement. However, replacement suitability must be confirmed for the specific application. Compare the power supply, motor compatibility, communication settings, control signals, mounting requirements, and parameter configuration before installation. Test the replacement thoroughly before returning the machine to production.
Schneider LXM23DU02M3X Motion Servo Drive is in stock. Please contact us for a quick quote and competitive pricing.
