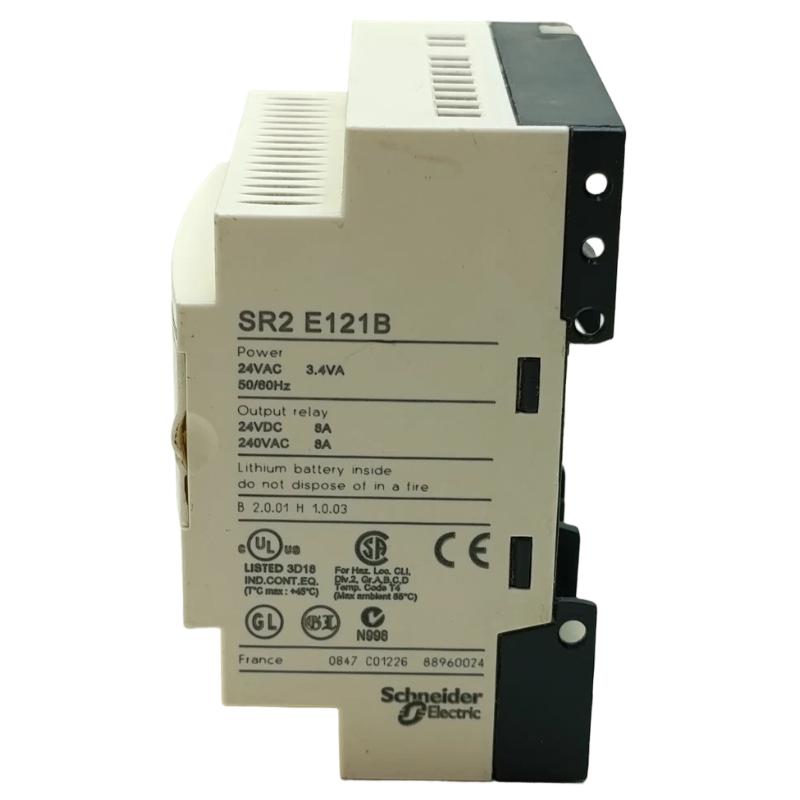

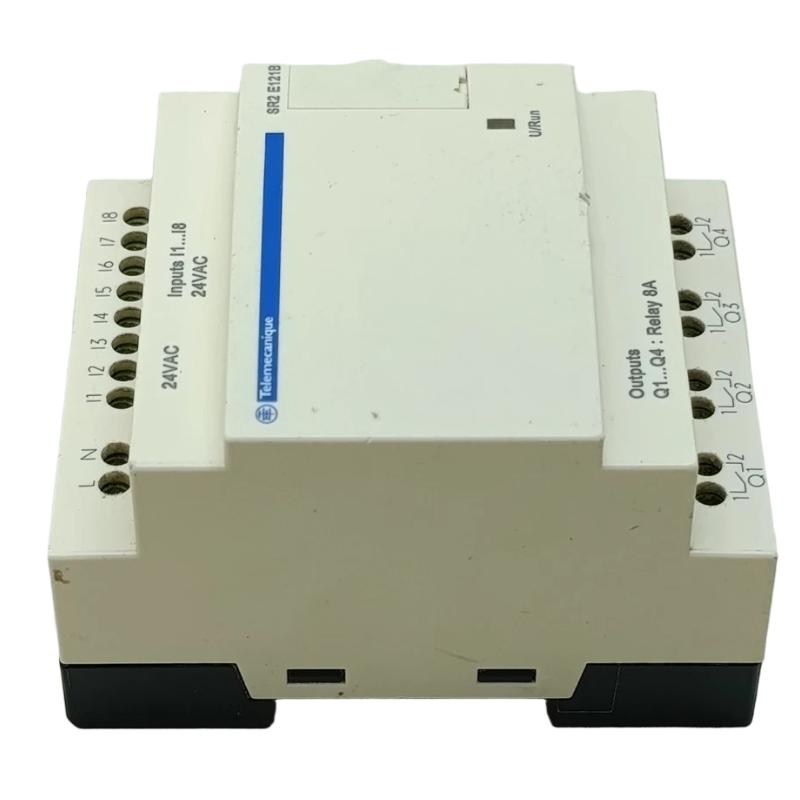

Schneider SR2E121B Compact Smart Relay
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Product Model | SR2E121B |
| Product Type | Compact Smart Relay |
| Product Series | Zelio Logic |
| Rated Supply Voltage | 24 V AC |
| Supply Voltage Range | 20.4–28.8 V AC |
| Supply Frequency | 50/60 Hz |
| Total I/O Points | 12 |
| Digital Inputs | 8 |
| Relay Outputs | 4 |
| Analog Inputs | 0 |
| Output Contact Type | Normally Open (NO) |
| Relay Output Voltage | 5–30 V DC / 24–250 V AC |
| Maximum Supply Current | 145 mA (without extension) |
| Power Consumption | 4 VA (without extension) |
| Programming Languages | Ladder Logic (LD), Function Block Diagram (FBD) |
| Maximum Program Capacity | 240 Ladder Logic lines / 500 FBD blocks |
| Typical Cycle Time | 6–90 ms |
| Integrated Clock | Yes |
| Local Display | No |
| Program Memory Backup | Up to 10 years at 25°C |

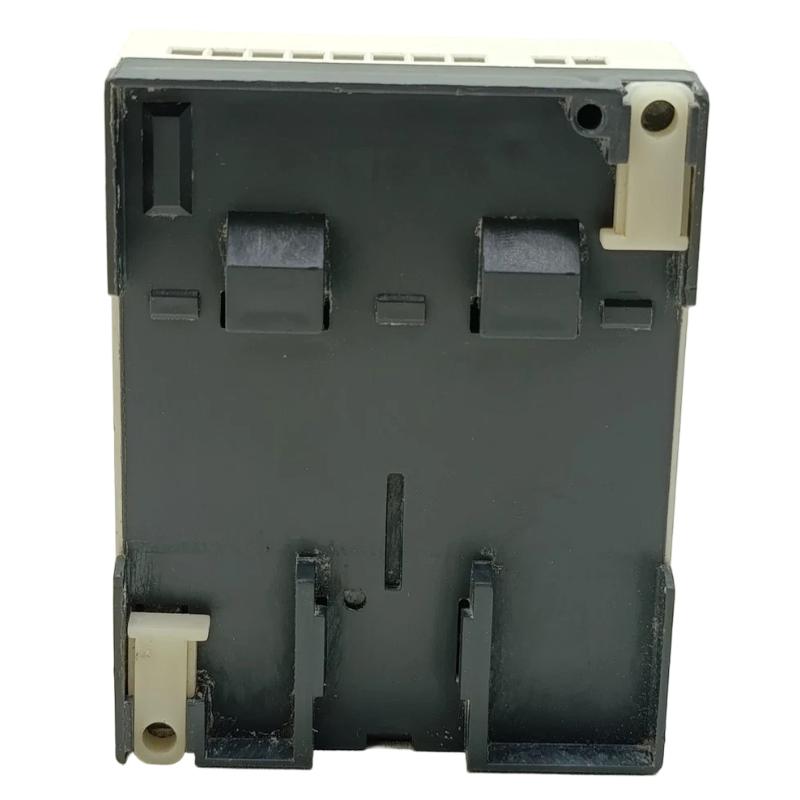

| Mounting Type | 35 mm DIN Rail or screw mounting |
| Dimensions | 107.6 × 71.2 × 59.5 mm |
| Weight | 0.22 kg |
FAQ
Q1: What is the main function of the Schneider SR2E121B Smart Relay?
A: The SR2E121B is a compact programmable relay designed for small-scale automation tasks. It can control equipment such as pumps, fans, lighting circuits, conveyors, and other machines using programmable logic.
Q2: What power supply does the SR2E121B require?
A: This model uses a nominal 24 V AC supply with an allowable voltage range of 20.4–28.8 V AC. The supply frequency is 50/60 Hz. A 24 V DC power supply should not be used as a substitute.
Q3: How many inputs and outputs does the SR2E121B provide?
A: The relay provides 12 I/O points in total, consisting of 8 discrete inputs and 4 relay outputs. It has no built-in analog inputs.
Q4: Which programming languages are supported?
A: The Zelio Logic platform supports Ladder Logic (LD) and Function Block Diagram (FBD) programming. The program can be developed using compatible Zelio Soft software.
Q5: Can the SR2E121B control AC and DC loads?
A: Yes. Its relay outputs can switch compatible AC and DC loads within their specified voltage and current ratings. Check the load type, inrush current, and contact rating before connecting motors, solenoids, or other inductive loads.
Q6: Does the SR2E121B have a built-in clock and program memory backup?
A: Yes. It includes a real-time clock for time-based control and scheduling. Its program memory backup can retain data for up to 10 years at 25°C under specified conditions.
Q7: Can the SR2E121B be expanded with additional I/O modules?
A: The SR2E121B is a compact smart relay. Do not assume it supports expansion modules. If the application requires additional inputs or outputs, check the Zelio Logic compatibility documentation and select a model designed for the required expansion.
Q8: What should be checked when replacing an existing SR2E121B?
A: Confirm the complete model number, 24 V AC supply requirement, I/O configuration, relay contact ratings, wiring arrangement, and program compatibility. After installation, verify the input signals, output operation, clock settings, and control sequence before returning the machine to service.
Schneider SR2E121B Compact Smart Relay is in stock. Please contact us for a quick quote and competitive pricing.
