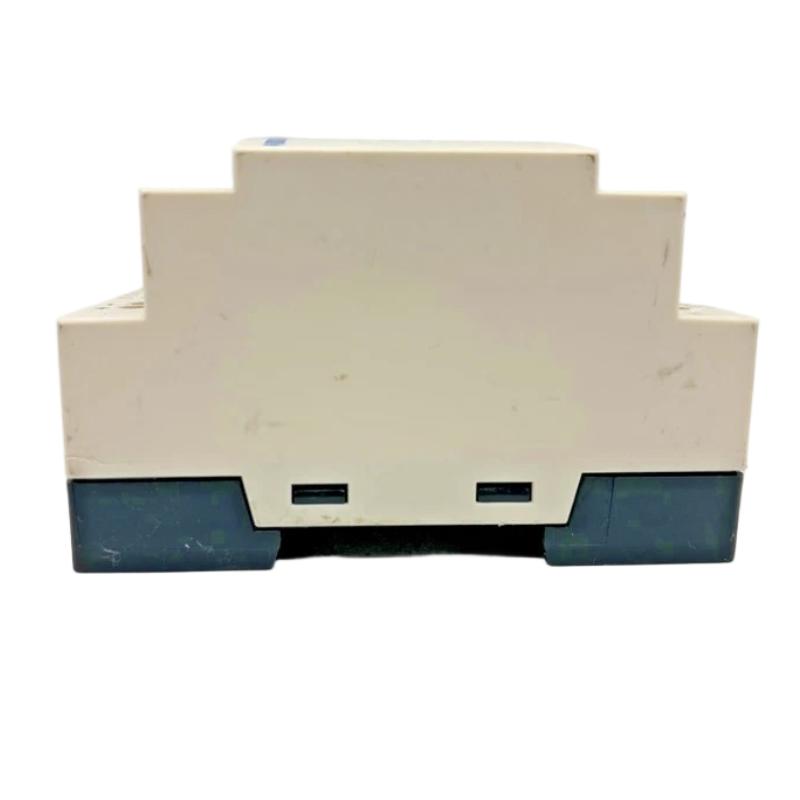

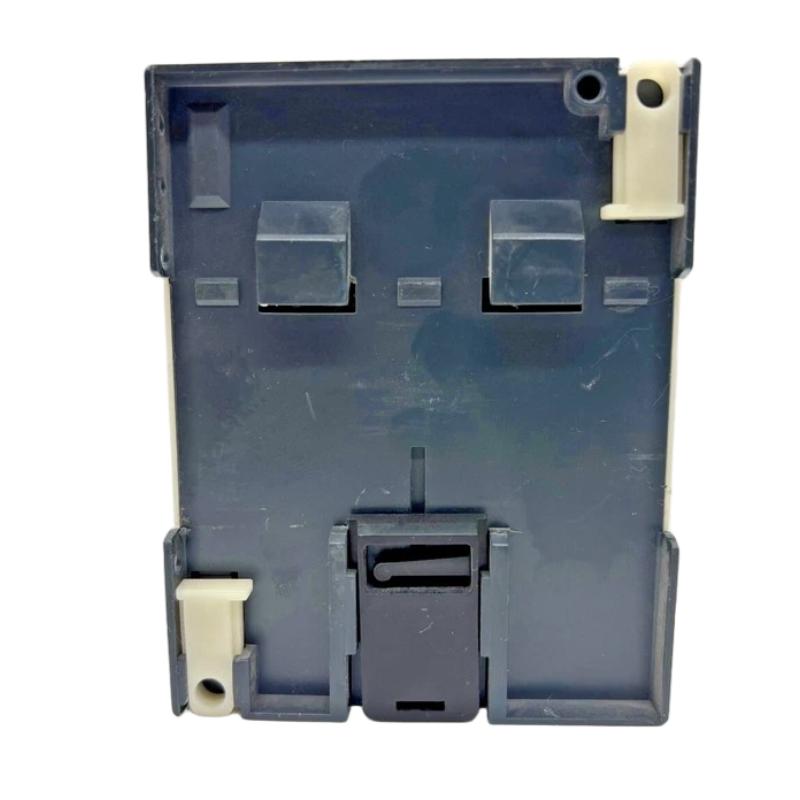

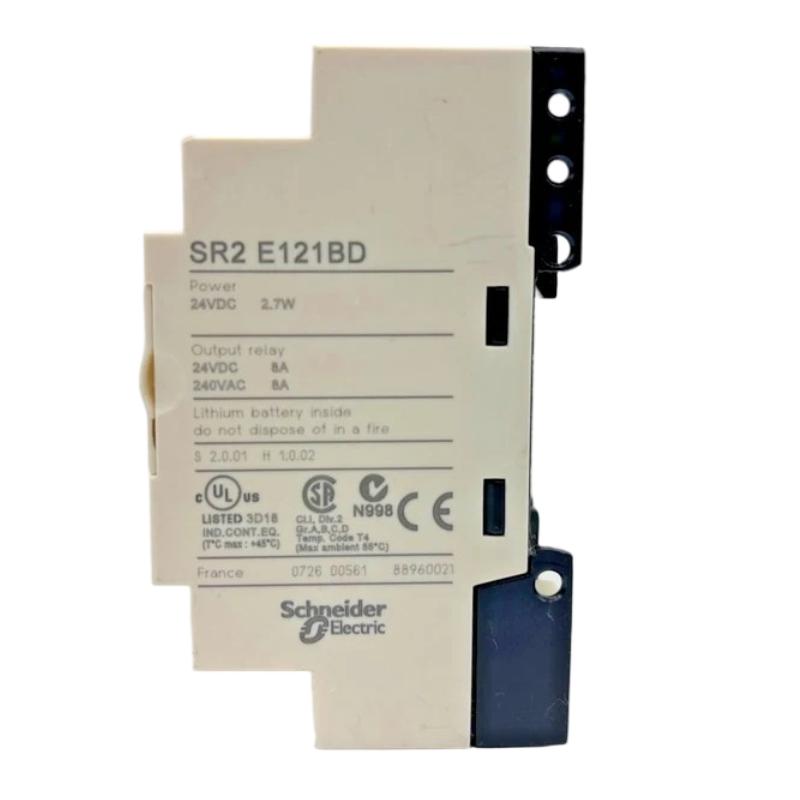

Schneider SR2E121BD Compact Smart Relay
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | SR2E121BD |
| Product Type | Compact Smart Relay |
| Product Series | Zelio Logic |
| Rated Supply Voltage | 24 V DC |
| Supply Voltage Range | 19.2–30 V DC |
| Total I/O Points | 12 |
| Digital Inputs | 8 |
| Analog Inputs | 4 (shared input channels, configurable according to application) |
| Relay Outputs | 4 |
| Output Contact Type | Normally Open (NO) |
| Relay Output Voltage | 24–250 V AC / 5–30 V DC |
| Maximum Supply Current | 100 mA (without extension) |
| Power Consumption | 3 W (without extension) |
| Programming Languages | Ladder Logic (LD) and Function Block Diagram (FBD) |
| Maximum Program Capacity | 240 ladder lines / 500 FBD blocks |
| Cycle Time | 6–90 ms |
| Integrated Clock | Yes |
| Display | No |
| Program Memory Backup | Up to 10 years at 25°C |
| Input Compatibility | 3-wire PNP proximity sensors |
| Mounting Type | 35 mm DIN Rail or screw mounting |
| Protection Rating | IP20 at terminals; IP40 at front panel |
| Operating Temperature | -20°C to +55°C, depending on installation conditions |
| Dimensions | 107.6 × 71.2 × 59.5 mm |
| Weight | 0.22 kg |
FAQ
Q1: What is the main function of the Schneider SR2E121BD Smart Relay?
A: The SR2E121BD is a programmable smart relay in the Zelio Logic range. It is designed for compact automation applications, including machine sequencing, pump control, lighting systems, and other small-scale control tasks.
Q2: What power supply does the SR2E121BD require?
A: It operates on a 24 V DC supply, with an allowable range of 19.2–30 V DC. The power supply must be correctly rated and connected with the proper polarity.
Q3: How many inputs and outputs does the SR2E121BD provide?
A: The relay has 8 discrete inputs and 4 relay outputs. Four input channels can also support analog functions, depending on the configuration. Check the terminal assignment and programming documentation before wiring sensors.
Q4: Which programming languages are supported?
A: The Zelio Logic platform supports Ladder Logic (LD) and Function Block Diagram (FBD). Compatible Zelio Soft software can be used to develop, test, and transfer control programs.
Q5: Can the relay outputs switch both AC and DC loads?
A: Yes. The relay outputs support specified AC and DC voltage ranges. The load current, inrush current, and contact ratings must be checked before connecting motors, solenoid valves, or other inductive loads. External protection may be necessary.
Q6: Does the SR2E121BD support scheduled control operations?
A: Yes. The integrated clock can be used for time-based automation, such as scheduled switching and operating sequences. Clock settings should be checked after installation or maintenance.
Q7: Can the SR2E121BD be expanded with additional I/O modules?
A: Do not assume that this compact model supports I/O expansion. If the application requires more inputs or outputs, consult the Zelio Logic compatibility documentation and select a model that meets the expansion requirements.
Q8: What should be checked when replacing an existing SR2E121BD?
A: Confirm the model number, 24 V DC supply, terminal arrangement, input and output configuration, relay contact ratings, and program compatibility. After replacement, test the sensor signals, output switching, clock settings, and control sequence before returning the equipment to service.
Schneider SR2E121BD Compact Smart Relay is in stock. Please contact us for a quick quote and competitive pricing.
