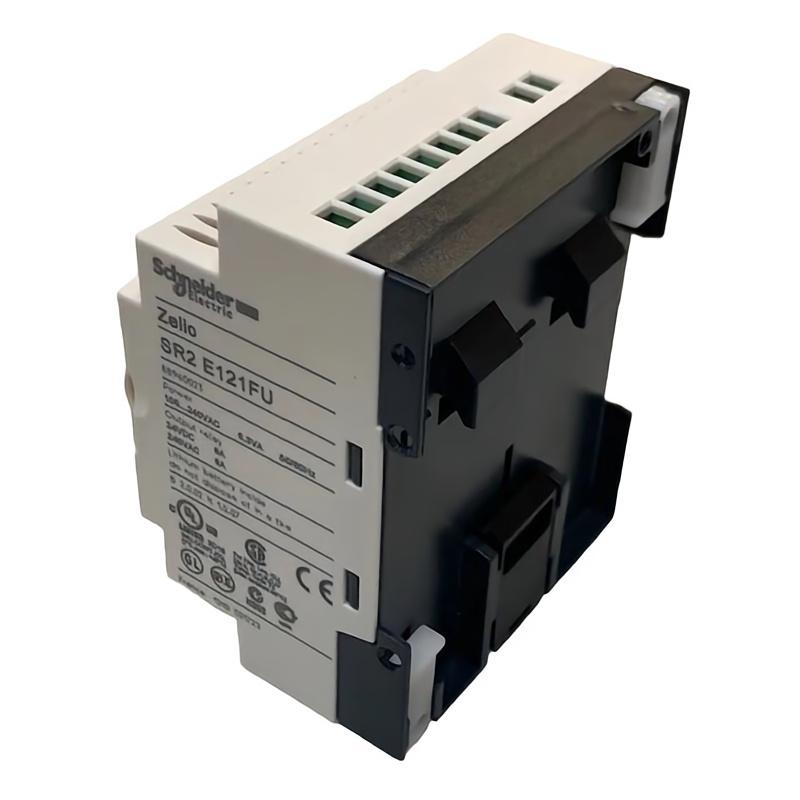

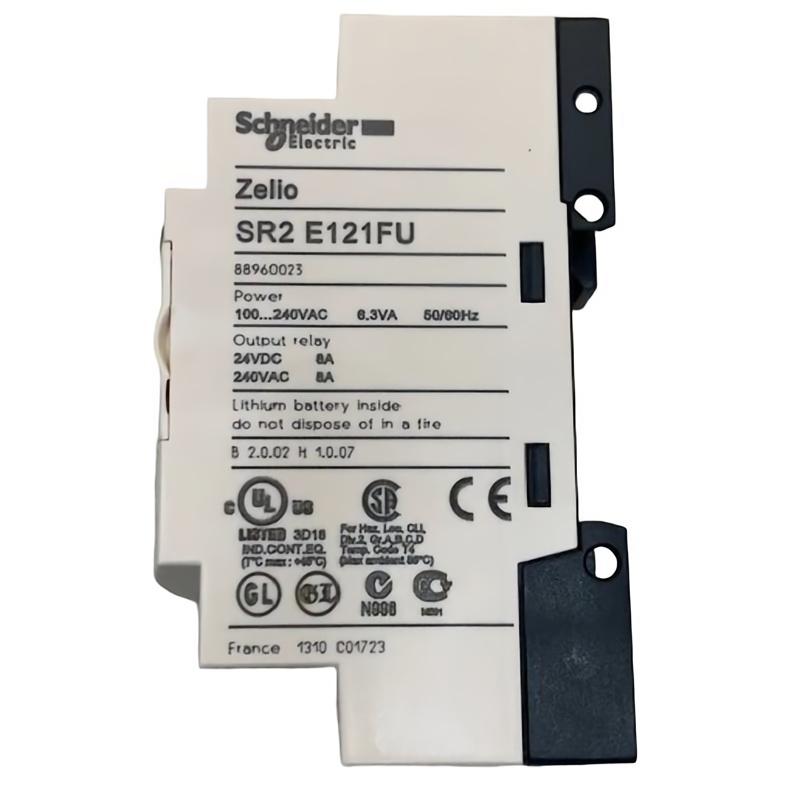

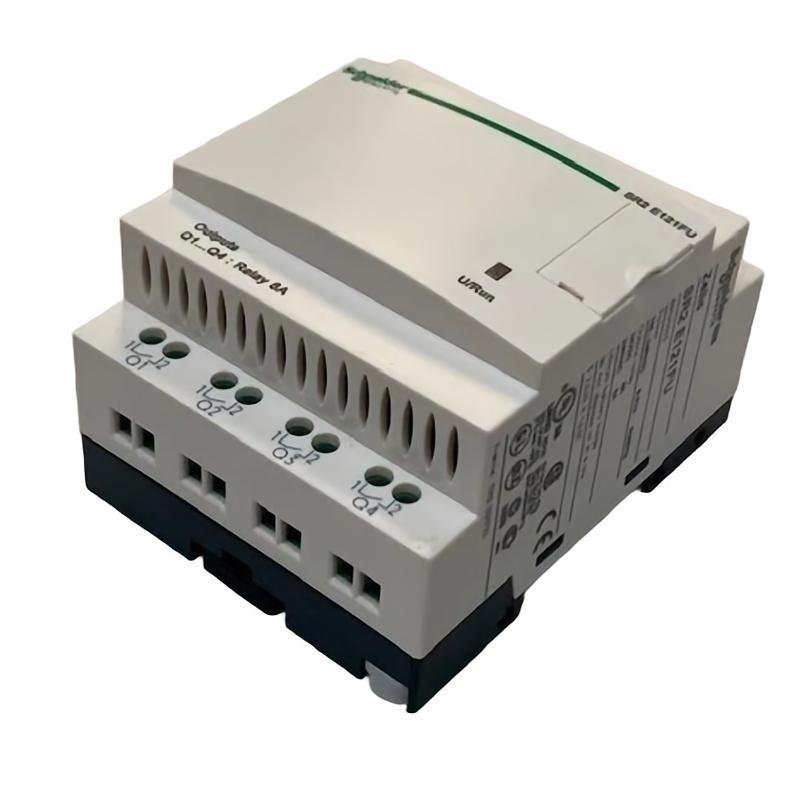

Schneider SR2E121FU Compact Smart Relay
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | SR2E121FU |
| Product Type | Compact Smart Relay |
| Product Series | Zelio Logic |
| Rated Supply Voltage | 100–240 V AC |
| Supply Voltage Range | 85–264 V AC |
| Supply Frequency | 50/60 Hz |
| Total I/O Points | 12 |
| Digital Inputs | 8 |
| Analog Inputs | 0 |
| Relay Outputs | 4 |
| Output Contact Type | Normally Open (NO) |
| Relay Output Voltage | 5–30 V DC / 24–250 V AC |
| Maximum Supply Current | 30 mA at 240 V AC; 80 mA at 100 V AC |
| Power Consumption | 7 VA (without extension) |
| Programming Languages | Ladder Logic (LD), Function Block Diagram (FBD) |
| Maximum Program Capacity | 240 ladder logic lines / 500 FBD blocks |
| Cycle Time | 6–90 ms |
| Integrated Clock | Yes |
| Local Display | No |
| Program Memory Backup | Up to 10 years at 25°C |
| Input Impedance | 350 kΩ |
| Output Thermal Current | 8 A for all four relay outputs combined |
| Isolation Voltage | 1,780 V |
| Mounting Type | 35 mm DIN rail or screw mounting |
| Protection Rating | IP20 at terminals; IP40 at front panel |
| Operating Temperature | -20°C to +55°C |
| Dimensions | 107.6 × 71.2 × 59.5 mm |
| Weight | 0.22 kg |
FAQ
Q1: What is the main function of the Schneider SR2E121FU Smart Relay?
A: The SR2E121FU is a programmable smart relay in the Zelio Logic series. It is designed for small-scale automation tasks such as pump control, lighting systems, machine sequencing, and basic industrial equipment control.
Q2: What power supply does the SR2E121FU require?
A: The relay operates on a 100–240 V AC rated supply, with an allowable range of 85–264 V AC at 50/60 Hz. The supply voltage must remain within the specified limits to ensure reliable operation.
Q3: How many inputs and outputs does the SR2E121FU provide?
A: The SR2E121FU provides 8 discrete inputs and 4 relay outputs, giving a total of 12 I/O points. It does not have built-in analog inputs.
Q4: Which programming languages are supported by this smart relay?
A: The Zelio Logic platform supports Ladder Logic (LD) and Function Block Diagram (FBD). Compatible Zelio Soft programming software can be used to create, test, and transfer control programs.
Q5: Can the SR2E121FU switch both AC and DC loads?
A: Yes. Its relay outputs can switch compatible AC and DC loads within their specified voltage and current ratings. Before connecting motors, solenoid valves, or other inductive loads, check the load current and contact ratings and provide suitable protection where required.
Q6: Does the SR2E121FU support time-based automation?
A: Yes. The integrated clock supports scheduled operations and time-dependent control logic. Clock settings should be checked during commissioning and after maintenance to ensure scheduled tasks run correctly.
Q7: Can the SR2E121FU be expanded with additional I/O modules?
A: The SR2E121FU is a compact smart relay and should not be assumed to support I/O expansion. If additional inputs or outputs are required, consult the Zelio Logic compatibility documentation and select a suitable model.
Q8: What should be checked when replacing an existing SR2E121FU?
A: Verify the complete model number, AC supply requirements, terminal layout, input and output configuration, relay contact ratings, and program compatibility. After installation, test the input signals, output switching, clock settings, and control sequence before returning the equipment to normal operation.
