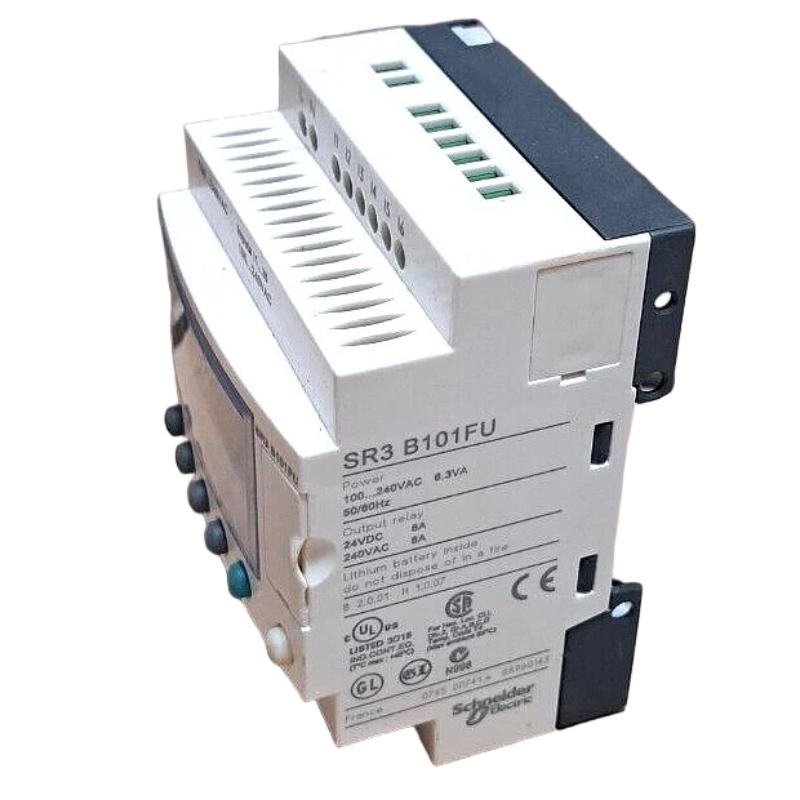

Schneider SR3B101FU Modular Intelligent Relay
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications

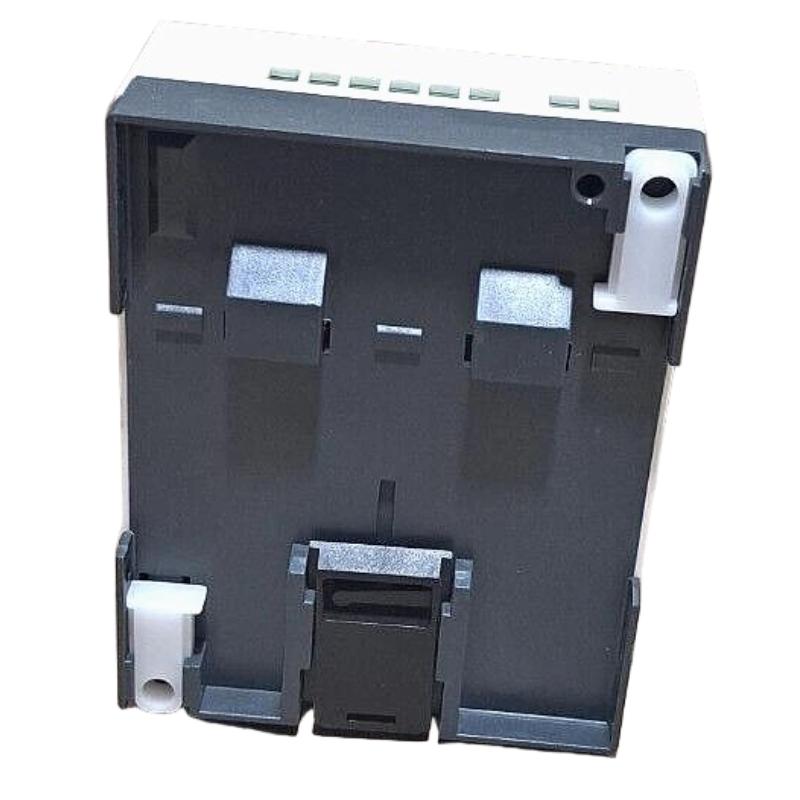

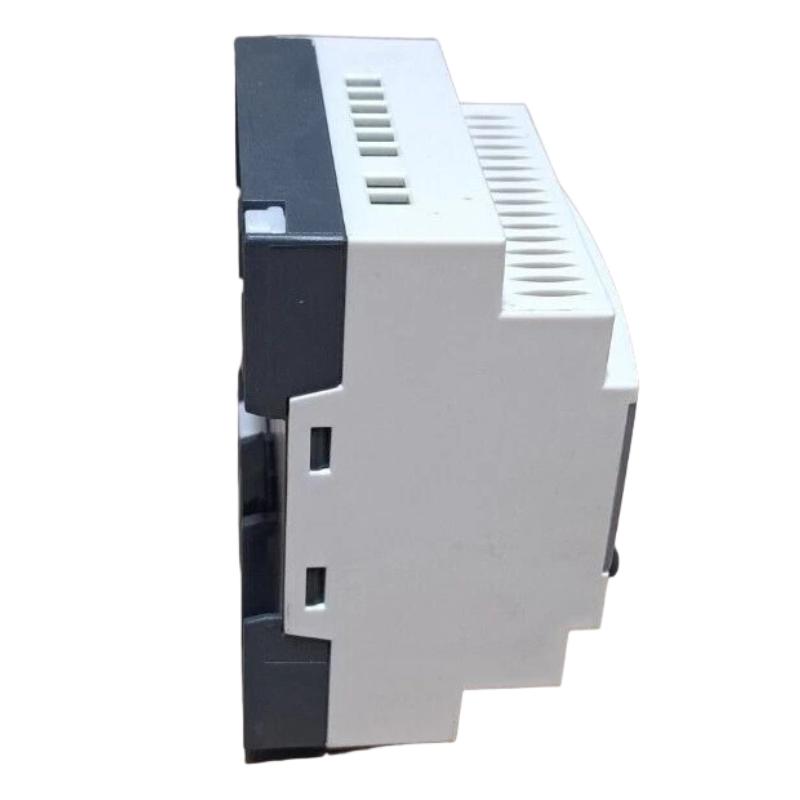

| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | SR3B101FU |
| Product Type | Modular Intelligent Relay |
| Product Series | Zelio Logic |
| Total I/O Points | 10 |
| Digital Inputs | 6 |
| Input Voltage | 100–240 V AC |
| Rated Supply Voltage | 100–240 V AC |
| Supply Voltage Range | 85–264 V AC |
| Supply Frequency | 50/60 Hz |
| Number of Outputs | 4 |
| Output Type | Relay |
| Output Contact Type | Normally Open (NO) |
| Output Voltage Range | 24–250 V AC; 5–30 V DC |
| Output Thermal Current | 8 A total for all four outputs |
| Programming Languages | Ladder Logic (LD), Function Block Diagram (FBD) |
| Display | Integrated LCD display |
| Real-Time Clock | Yes |
| Program Capacity | Up to 240 ladder logic lines or 500 FBD blocks |
| Program Backup | Up to 10 years at 25°C |
| Power Consumption | 7 VA without expansion modules; 12 VA with expansion modules |
| Expansion Capability | Compatible with selected Zelio Logic expansion modules |
| Mounting Type | 35 mm DIN rail or screw mounting |
| Protection Rating | IP40 front panel; IP20 terminal block |
| Operating Temperature | -20°C to +55°C |
| Dimensions | 107.6 × 71.2 × 59.5 mm |
| Weight | 0.25 kg |
FAQ
Q1: What is the main function of the Schneider SR3B101FU intelligent relay?
A: The SR3B101FU is a programmable smart relay designed for small-scale industrial automation. It can handle sequential operations, timing functions, counting tasks, and equipment control in applications such as machine automation and building control.
Q2: What power supply does the SR3B101FU require?
A: The SR3B101FU uses a 100–240 V AC supply and supports a voltage range of 85–264 V AC at 50/60 Hz. The supply must be connected according to the manufacturer’s wiring diagram.
Q3: What input signals does the SR3B101FU support?
A: This model has six discrete inputs designed for 100–240 V AC signals. It is intended for compatible AC control signals rather than direct connection to low-voltage DC sensors.
Q4: What are the output capabilities of the SR3B101FU?
A: The relay provides four normally open relay outputs. The specified output voltage ranges are 24–250 V AC and 5–30 V DC. The total thermal current rating is 8 A across all four outputs, so individual and combined load limits must be checked before wiring.
Q5: Which programming software is compatible with the SR3B101FU?
A: Schneider Electric Zelio Soft 2 is used to create, edit, and transfer programs for compatible Zelio Logic smart relays. Confirm the software version and communication cable compatibility before connecting the relay to a PC.
Q6: Can the SR3B101FU execute scheduled automation tasks?
A: Yes. Its integrated real-time clock supports time-based control, including scheduled switching and programmed operating sequences. The clock and application logic should be configured correctly for the intended schedule.
Q7: Can expansion modules be connected to the SR3B101FU?
A: The SR3B101FU supports selected Zelio Logic expansion modules. Check module compatibility and the permitted system configuration before adding extra I/O or other supported functions.
Q8: What should be checked when replacing an existing SR3B101FU?
A: Confirm the AC supply requirements, six-input and four-output configuration, relay contact ratings, program compatibility, and expansion-module setup. Before returning the system to service, verify the wiring and test the control logic under the intended operating conditions.
Schneider SR3B101FU Modular Intelligent Relay is in stock. Please contact us for a quick quote and competitive pricing.
