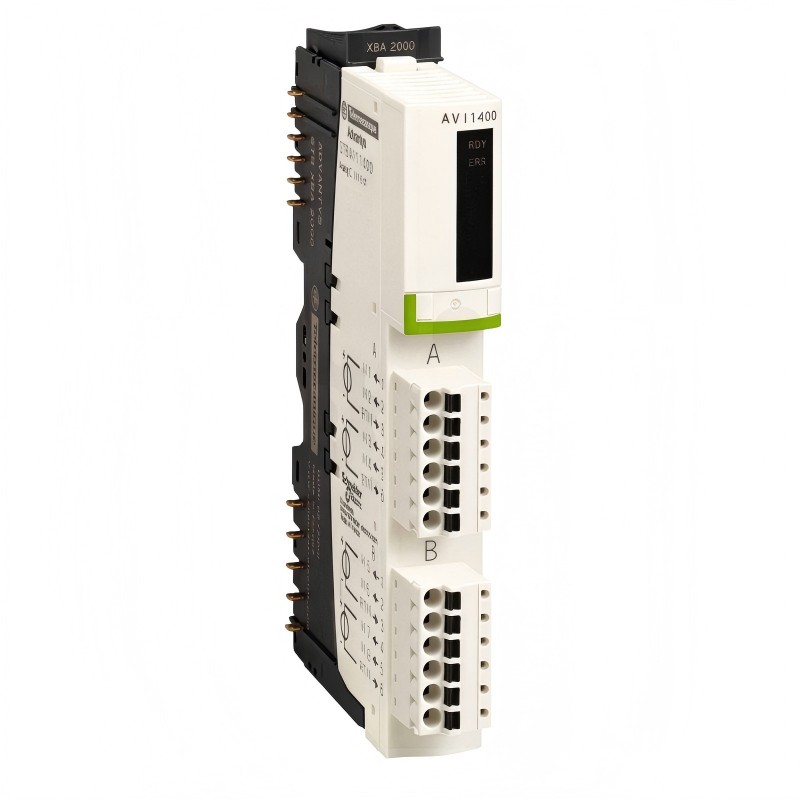

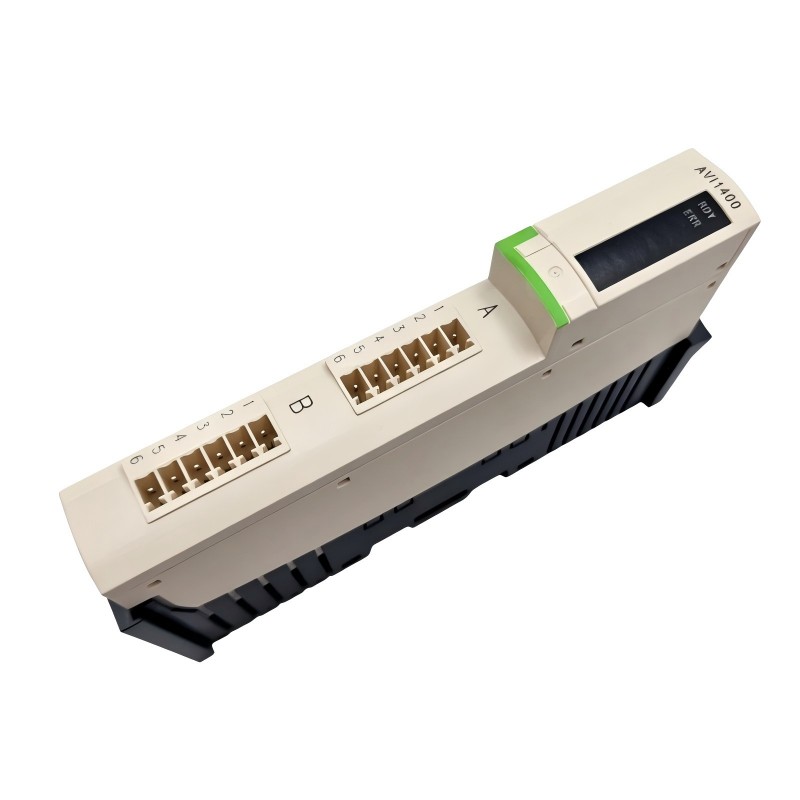

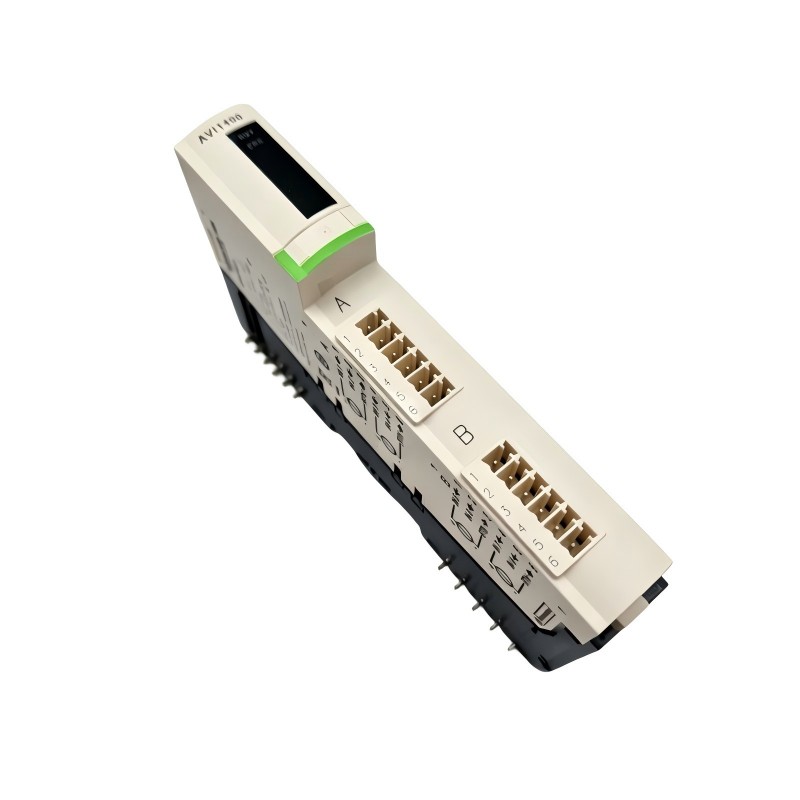

Schneider STBAVI1400K Standard Analog Input Kit
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | Schneider Electric |
| Model | STBAVI1400K |
| Product Type | Standard Analog Input Kit |
| Product Series | Modicon STB Distributed I/O System |
| Analog Input Module | STBAVI1400 |
| Number of Analog Inputs | 8 |
| Input Signal Types | ±10 V, ±5 V, 0–10 V, 0–5 V, 1–5 V DC |
| Input Resolution | 15 bits + sign |
| Input Impedance | 400 kΩ |
| Maximum Source Impedance | 1 kΩ |
| Input Filter | 25 Hz low-pass filter |
| Update Time | 22 ms |
| Absolute Maximum Input Voltage | 50 V DC |
| Absolute Accuracy Error | ±0.75% of full scale at 25°C |
| Integral Linearity | ±0.2% of full scale |
| Differential Linearity | Monotonic |
| Temperature Drift | ±0.01%/°C |
| Maximum Sensor Supply Current | 100 mA per input channel |
| Channel-to-Logic-Bus Insulation | 1500 V for 1 minute |
| Channel-to-Sensor-Bus Insulation | 30 V |
| Rated Supply Voltage | 24 V DC |
| Logic Bus Current Consumption | 90 mA at 5 V DC |
| Data Format | IEC 61131-2, EN 61131-2 |
| Cold Swapping | Supported |
| Hot-Swapping Fallback | Supported with standard NIMs, subject to system configuration |
| Fallback Status | State 0 with basic NIMs; user-configurable with standard NIMs |
| Addressing Requirement | 2 input words, according to the product datasheet |
| Mounting Base | STBXBA1000 |
| Compatible Power Distribution Modules | STBPDT3100 / STBPDT3105 |
| Kit Components | STBAVI1400 module, STBXBA1000 base, STBXTS1100 six-terminal screw connector, STBXTS2100 six-terminal spring-clamp connector |
| Status Indicators | Green RDY module-status LED and red ERR module-error LED |
| Protection Rating | IP20 |
| Overvoltage Category | II |
| Product Certifications | UL, CSA, FM Class 1 Division 2, ATEX Category 3G, CE and other applicable approvals |
| Dimensions | 18.4 × 128.3 × 70 mm |
| Weight | 0.454 kg |
| Product Lifecycle | Scheduled for discontinuation on December 1, 2027; standard service scheduled to end on December 31, 2035 |
| Recommended Replacement | NTSAMI0800K, subject to system compatibility verification |
FAQ
1. What is the main function of the Schneider STBAVI1400K Analog Input Kit?
The STBAVI1400K is designed to acquire analog voltage signals in a Modicon STB distributed I/O system. It converts field voltage measurements into digital values that a PLC or compatible controller can process. With eight input channels, it is suitable for industrial process monitoring, machine automation, and applications that require multiple analog measurements.
2. Which input voltage ranges does the STBAVI1400K support?
The module supports five voltage ranges: ±10 V, ±5 V, 0–10 V, 0–5 V, and 1–5 V DC. The correct range should be selected according to the connected sensor or transmitter and configured in the control system. Confirm the field device’s output specifications before commissioning.
3. What are the resolution and accuracy specifications of the STBAVI1400K?
The module provides 15-bit resolution plus a sign bit. Its specified absolute accuracy error is ±0.75% of full scale at 25°C, with integral linearity of ±0.2% of full scale and temperature drift of ±0.01%/°C. Actual measurement performance also depends on sensor accuracy, signal stability, wiring, and ambient temperature.
4. Can the STBAVI1400K directly measure 4–20 mA signals?
No. The STBAVI1400K is a voltage-input module and does not directly support 4–20 mA current signals. If a field transmitter uses a current output, use a suitable signal converter or select a compatible current-input module. Verify the complete signal path before connecting the device.
5. How should analog voltage sensors be wired to the STBAVI1400K?
Connect each sensor’s signal and return wires to the corresponding channel terminals according to the Schneider Electric wiring diagram. The kit includes screw-terminal and spring-clamp connector options. Check terminal assignments and polarity, use suitable cable shielding where required, and keep analog signal cables away from high-current power wiring to reduce interference.
6. What should be checked if the STBAVI1400K readings are unstable or incorrect?
First, verify the selected input range and confirm that the sensor output is within the configured limits. Then inspect terminal connections, signal return wiring, grounding, shielding, and the sensor’s output stability. If necessary, test the channel with a known voltage source and review the PLC’s I/O mapping and diagnostic information.
7. Which mounting base and power distribution modules are compatible with the STBAVI1400K?
The kit includes the STBAVI1400 module, STBXBA1000 mounting base, STBXTS1100 screw-terminal connector, and STBXTS2100 spring-clamp connector. Compatible power distribution modules include STBPDT3100 and STBPDT3105. Before installation, confirm the network interface module, power arrangement, and overall Modicon STB island configuration.
8. Is the STBAVI1400K discontinued, and what replacement should be considered?
Schneider Electric lists December 1, 2027, as the planned discontinuation date, with standard service scheduled to end on December 31, 2035. The manufacturer’s recommended replacement is NTSAMI0800K from the Modicon Edge I/O NTS range. Since this replacement belongs to a different I/O platform, verify controller compatibility, network architecture, wiring, configuration software, and input requirements before migration.
Schneider STBAVI1400K Standard Analog Input Kit is in stock. Please contact us for a quick quote and competitive pricing.
