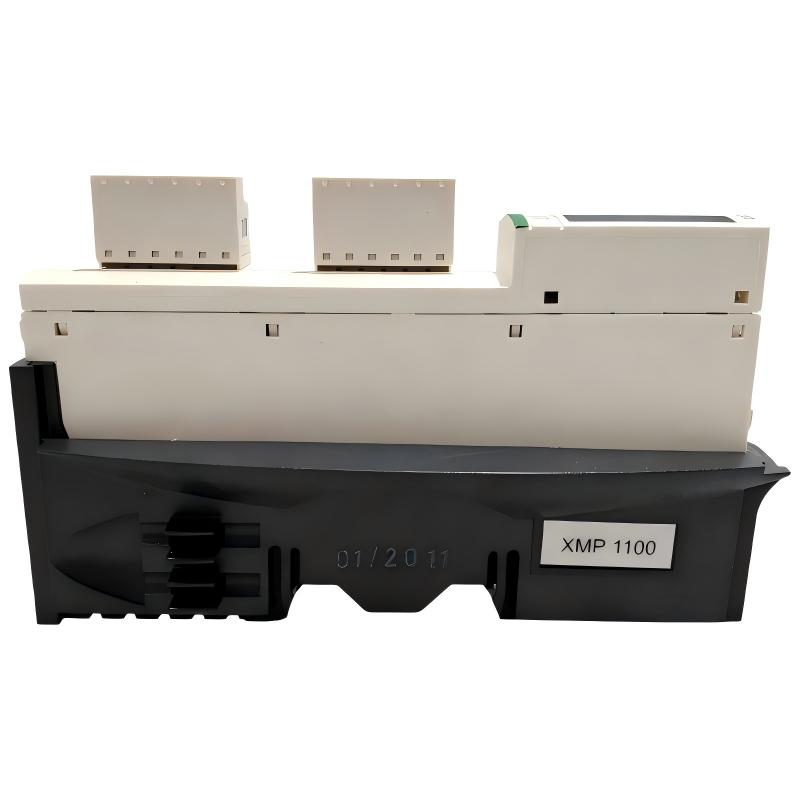

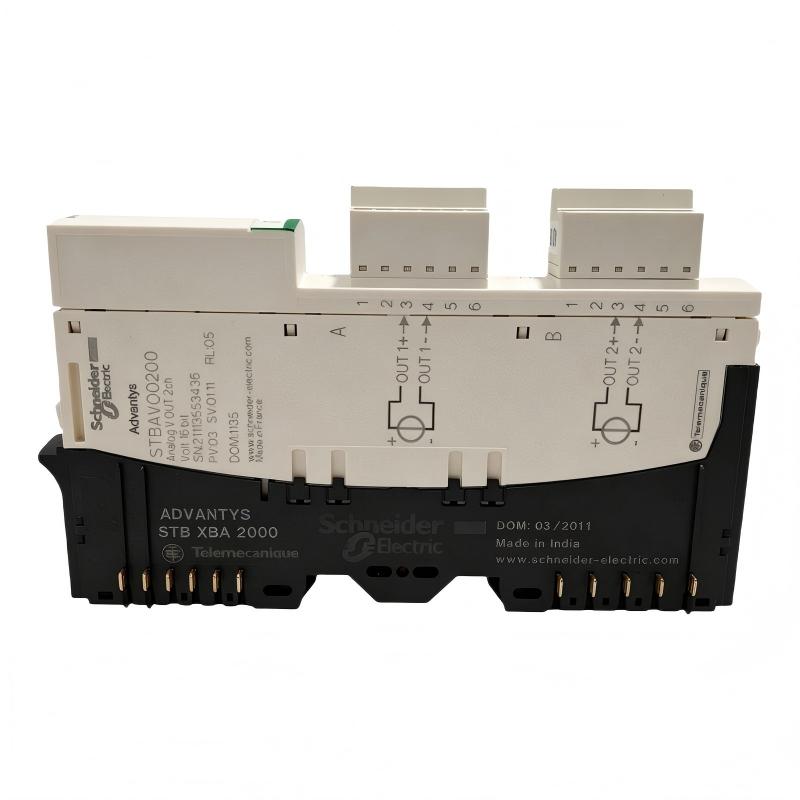

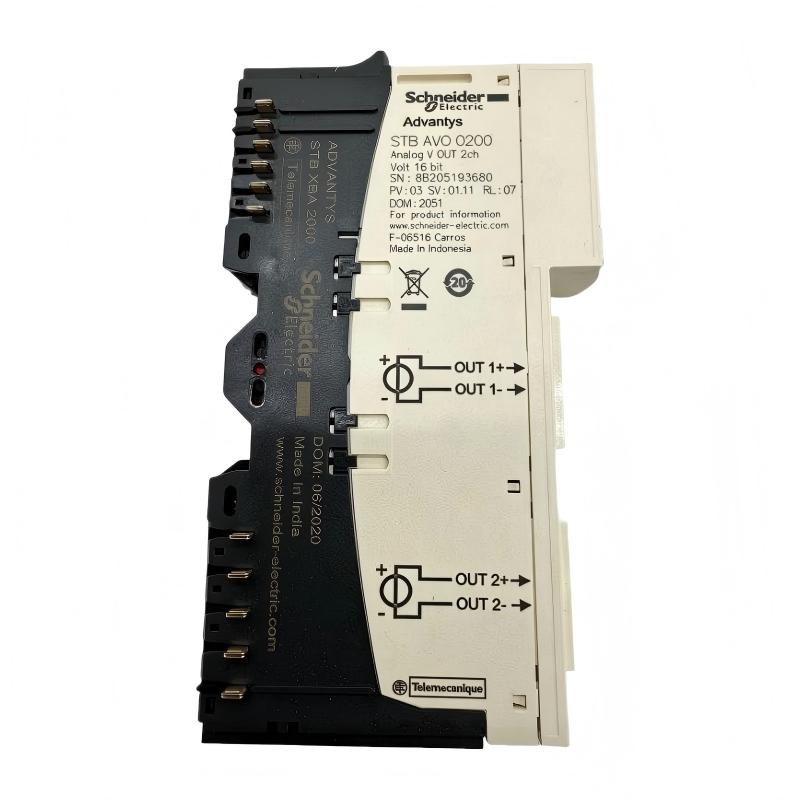

Schneider STBAVO0200 Standard Analog Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Name | Standard Analog Output Module |
| Model Number | STBAVO0200 |
| Product Series | Modicon Advantys STB |
| Product Type | Analog Output Module |
| Number of Analog Outputs | 2 |
| Output Signal Type | Voltage |
| Supported Output Ranges | ±10 V, ±5 V, 0–10 V, 0–5 V, 1–5 V DC |
| Resolution | 15 bits + sign |
| Rated Supply Voltage | 24 V DC |
| Logic Bus Current Consumption | 265 mA at 5 V DC |
| Analog Output Current | 150 mA |
| Response Time | Approximately 4 ms, plus settling time |
| Update Time | 8 ms |
| Output Protection | Short-circuit protection |
| Differential Linearity | Monotonic |
| Typical Absolute Accuracy | ±0.3% of full scale at 25°C |
| Temperature Drift | Typically ±0.01% of full scale per °C |
| Communication Compatibility | Modicon STB distributed I/O system |
| Mounting Base | STBXBA2000 |
| Connection Type | Six-terminal screw or spring-clamp connectors |
| Protection Rating | IP20 |
| Dimensions | 18.4 × 128.3 × 70 mm |
| Weight | 0.116 kg |
FAQ
Q1: What is the main function of the Schneider Electric STBAVO0200 Analog Output Module?
A: The STBAVO0200 converts digital output commands from a compatible Modicon STB control system into analog voltage signals. These signals can be used to control equipment such as variable-speed drives, control valves, and other devices that accept analog voltage references.
Q2: Which analog output ranges does the STBAVO0200 support?
A: The module supports five voltage ranges: ±10 V, ±5 V, 0–10 V, 0–5 V, and 1–5 V DC. The required range must be selected and configured according to the connected device and application requirements.
Q3: Why does the connected actuator fail to respond to the analog output signal?
A: Possible causes include incorrect channel wiring, an unsuitable output range, missing field power, incorrect controller configuration, or a fault in the connected actuator. Check the module status indicators, verify the output configuration, and measure the signal at the field terminals using an appropriate instrument.
Q4: How should an unstable or inaccurate analog output be diagnosed?
A: First, verify that the controller is sending the expected output value. Then inspect the wiring, grounding, terminal connections, and signal compatibility of the connected device. Electrical interference or an incorrect scaling configuration may also cause unstable readings. Use shielded twisted-pair wiring where appropriate and follow the system grounding requirements.
Q5: Which mounting base is compatible with the STBAVO0200?
A: The STBAVO0200 is designed for use with the STBXBA2000 mounting base. Confirm that the base, field wiring connectors, power distribution module, and network interface module are compatible with the existing Modicon STB installation before replacement.
Q6: Does the STBAVO0200 support hot swapping?
A: Hot swapping support depends on the network interface module and the system configuration. The module supports hot swapping with compatible standard network interface modules, but this should not be assumed for every installation. Follow the applicable system documentation and isolate power whenever required by the maintenance procedure.
Q7: What should be checked if the module reports a fault or stops producing output?
A: Check the RDY and ERR status indicators, controller diagnostics, power distribution, terminal connections, and output configuration. Confirm that the connected load is compatible and that no short circuit exists. If the fault persists after external causes have been eliminated, test the module using an approved maintenance procedure.
Q8: What should be verified before replacing the STBAVO0200?
A: Confirm the model number, mounting base, output range, wiring arrangement, network interface compatibility, and controller configuration. Record the existing settings before removal. After installation, verify both output channels, check the voltage signals under the intended operating conditions, and confirm that the connected actuators respond correctly before returning the system to service.
