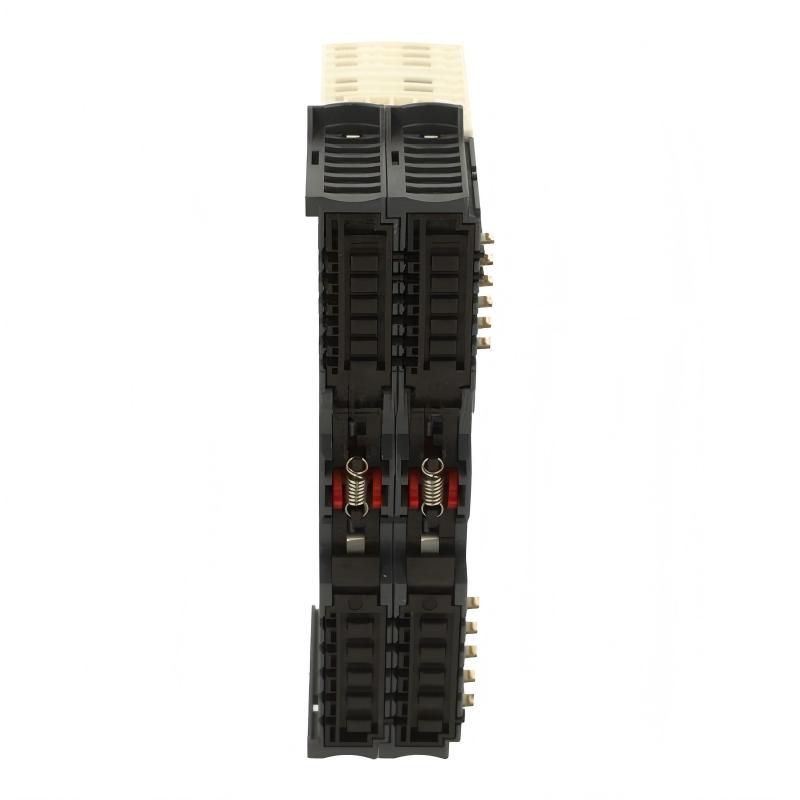

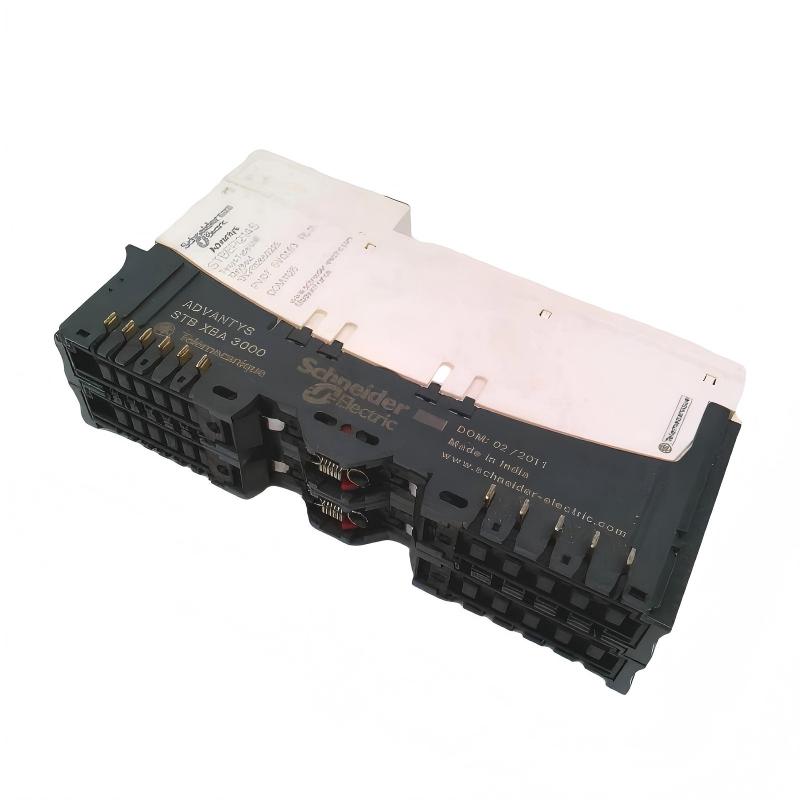

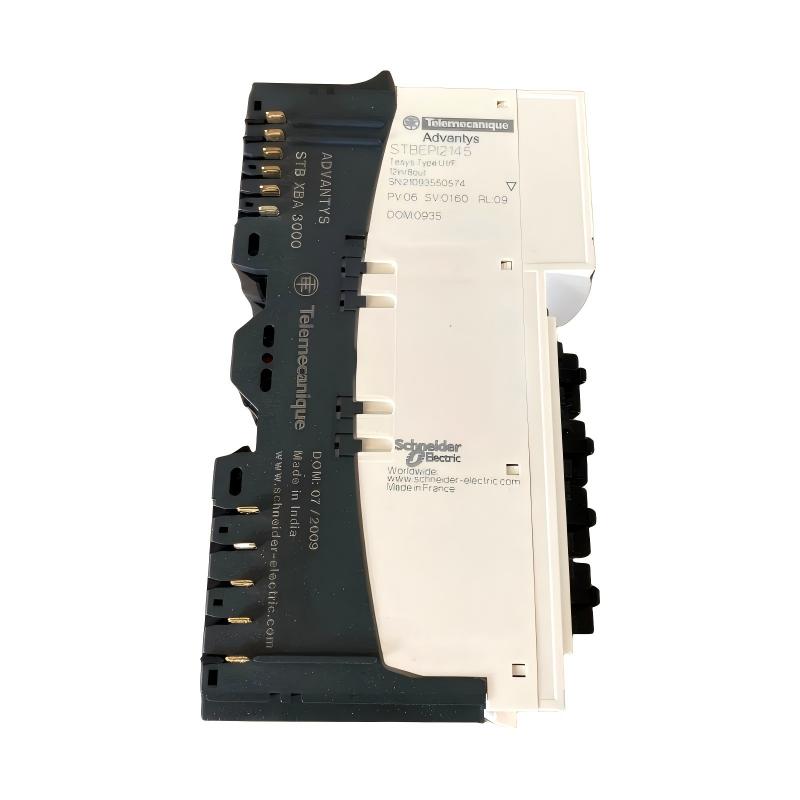

Schneider STBEPI2145K Parallel Interface Kit
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Name | Parallel Interface Kit |
| Model | STBEPI2145K |
| Product Range | Modicon STB Distributed I/O Solution |
| Product Type | Parallel Interface Kit |
| Applications | TeSys Quickfit, TeSys U |
| Number of Input Channels | 12 |
| Number of Output Channels | 8 |
| Total I/O Channels | 20 |
| Rated Supply Voltage | 24 V DC |
| Input Voltage | 24 V DC |
| Input Voltage Range — State 1 | 15–30 V DC |
| Input Voltage Range — State 0 | -3 to 5 V DC |
| Guaranteed Input Current — State 0 | ≤ 0.5 mA |
| Guaranteed Input Current — State 1 | ≥ 2 mA |
| Output Voltage | 24 V DC |
| Output Current | 80 mA per output at state 1 |
| Electrical Connections | 4 RJ45 connectors |
| Protection Features | Overload protection, short-circuit protection, resistor-limited input protection |
| Power Protection | Integrated time-delay 10 A fuse in the power distribution module |
| Current Consumption | ≤ 100 mA at 24 V DC for sensor bus; ≤ 220 mA at 24 V DC for actuator bus for 150 ms; 100 mA at 5 V DC for logic bus |
| Status Indicators | Green RDY LED, red ERR LED, green S1/S2 LEDs, green output status LEDs |
| Kit Components | STBEPI2145 module, STBXBA3000 mounting base, screw-type terminal connector, spring-clamp terminal connector |
| Compatible Power Distribution Modules | STBPDT3100, STBPDT3105 |
| Cold Swapping | Supported |
| Hot Swapping | Supported with compatible standard network interface modules |
| Fallback Status | State 0 with basic NIMs; user-configurable with standard NIMs |
| Protection Rating | IP20 |
| Dimensions | 28.1 × 128.3 × 170 mm |
| Weight | 0.165 kg |
FAQ
Q1: What is the main function of the Schneider Electric STBEPI2145K?
The STBEPI2145K is a parallel interface kit for the Modicon STB distributed I/O system. It provides 12 input channels and 8 output channels for interfacing automation control signals with compatible TeSys Quickfit and TeSys U equipment.
Q2: Which applications are suitable for the STBEPI2145K?
This kit is designed for automation systems using compatible TeSys motor control equipment. It can help connect control signals between a PLC-based distributed I/O system and supported motor starters or related devices. Compatibility should be verified against the existing system configuration.
Q3: Why are the input signals not being detected correctly?
Check that the input supply is 24 V DC and that the signal voltage falls within the specified input thresholds. A state 1 signal should be between 15 and 30 V DC, while a state 0 signal should be between -3 and 5 V DC. Also inspect the wiring, terminal connections, and connected equipment for loose contacts or incorrect polarity.
Q4: What should be checked if an output does not activate?
Confirm that the PLC output command is being issued and that the module has a valid power supply. Inspect the RJ45 connections, field wiring, and connected device. Check the RDY, ERR, and output status LEDs to help identify whether the problem relates to module operation, configuration, or the external circuit.
Q5: What do the RDY and ERR indicators mean?
The green RDY LED indicates the module’s operating status, while the red ERR LED signals a module error. The green S1 and S2 indicators show switch-position status, and the output LEDs indicate individual output states. If ERR is illuminated, review the controller diagnostics, network interface status, power distribution, and wiring before replacing the module.
Q6: Which components are required to install the STBEPI2145K?
The kit includes the STBEPI2145 interface module, STBXBA3000 mounting base, screw-type terminal connector, and spring-clamp terminal connector. It is designed for use with the compatible STBPDT3100 or STBPDT3105 power distribution module. Confirm the complete assembly and wiring arrangement before installation.
Q7: Can the STBEPI2145K be replaced while the system is running?
Cold swapping is supported, and hot swapping is supported with compatible standard network interface modules. The actual replacement procedure depends on the network interface module and system configuration. Follow the equipment manufacturer’s maintenance instructions and assess the impact on connected machinery before removing the module.
Q8: What should be checked before commissioning a replacement STBEPI2145K?
Verify the model number, mounting base, power distribution module, 24 V DC supply, and all input and output connections. Confirm that the controller and network interface are configured correctly. After installation, check the status LEDs and test all 12 input channels and 8 output channels under controlled operating conditions before returning the equipment to normal service.
Schneider STBEPI2145K Parallel Interface Kit is in stock. Please contact us for a quick quote and competitive pricing.
