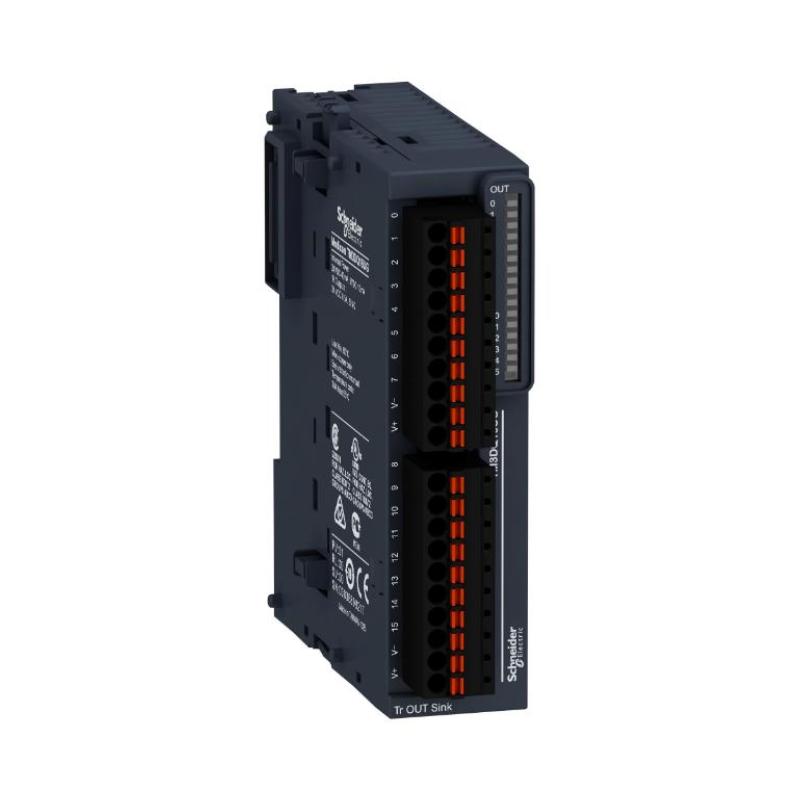

1. What is the primary function of the TM3DQ16UG expansion module?

The TM3DQ16UG is designed to extend the digital output capacity of a Modicon TM3 PLC system. It adds 16 transistor-based digital output channels, allowing the controller to operate a larger number of field devices such as relays, solenoids, contactors, and indicator lamps. In practical automation systems, this means engineers can scale machine functionality without upgrading the main PLC hardware, making it a cost-efficient and flexible solution for expanding control capabilities.

2. How does this module integrate into a Schneider PLC system?

The module connects directly to the PLC through the TM3 expansion bus. Once physically installed, it is automatically detected by the controller. Using Schneider Electric’s EcoStruxure Machine Expert software, engineers can configure and map the additional outputs into the control program. From a programming perspective, these outputs behave like native PLC I/O, meaning no additional communication protocol or gateway configuration is required.

3. What types of loads can be controlled by this module?

The TM3DQ16UG is intended for switching-type loads that operate in ON/OFF mode. Typical applications include solenoid valves, relay coils, contactors, signal lamps, and other discrete actuators. It is not designed for analog control or direct high-power load switching. In most industrial setups, it is used as a logic-level output interface that drives intermediate power devices rather than directly powering large loads.

4. Why are digital output expansion modules important in industrial automation?

Digital output expansion modules are essential because they allow control systems to scale efficiently. Instead of selecting a large PLC with excess unused capacity, engineers can start with a compact controller and add modules only when required. This modular approach reduces initial investment costs, simplifies system design, and enables incremental expansion as production requirements increase over time. It also improves maintainability by separating system functions into distinct hardware blocks.

5. What happens if communication on the TM3 bus is interrupted?

If the TM3 expansion bus communication is interrupted, the PLC will detect the loss of the module and generate a diagnostic fault. Depending on system configuration, the outputs may transition to a predefined safe state, such as turning OFF or holding the last known state. This behavior is critical for preventing unintended machine operation and ensuring process safety during communication failures.

6. Can multiple TM3 expansion modules be used together?

Yes, multiple TM3 expansion modules can be connected in a chain to increase I/O capacity. This allows systems to scale significantly without changing the main controller. However, system designers must consider power budget, total bus load, and communication timing constraints to ensure stable operation. Overloading the expansion chain may lead to slower response times or communication instability if not properly designed.

7. How reliable is this module in industrial environments?

The TM3DQ16UG is built for industrial environments and is designed to withstand electrical noise, temperature variation, and mechanical vibration commonly found in factory settings. It includes protection mechanisms for its output channels, helping reduce the risk of damage from short circuits or overload conditions. This makes it suitable for continuous operation in manufacturing and process automation systems.

8. Why is modular PLC expansion important in modern automation systems?

Modern automation systems demand flexibility because production requirements frequently change. Modular PLC expansion allows engineers to adjust system capacity without redesigning the entire control architecture. This reduces downtime, simplifies maintenance, and supports scalable machine design. It also enables standardized hardware platforms across different machine types, improving engineering efficiency and long-term system maintainability.
