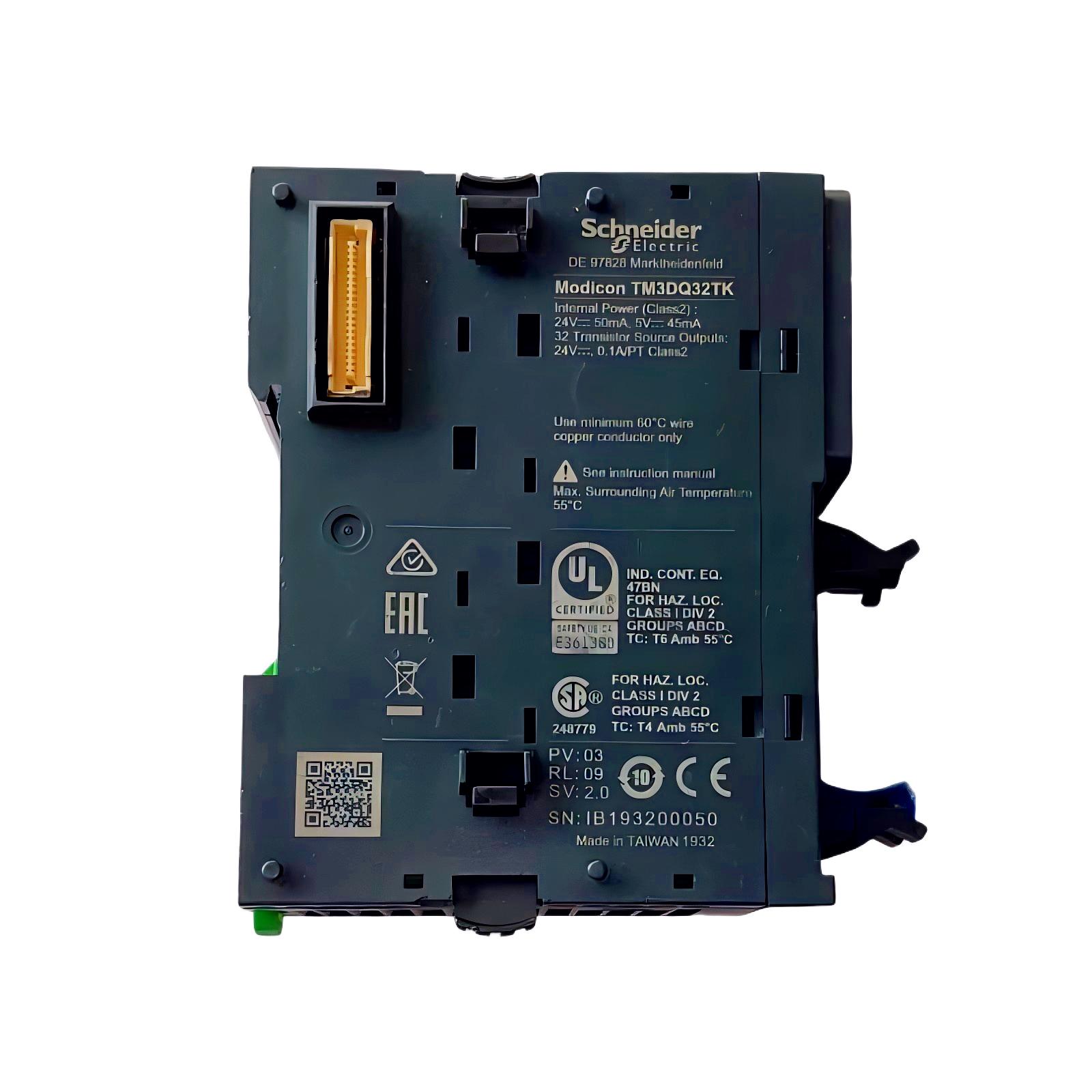

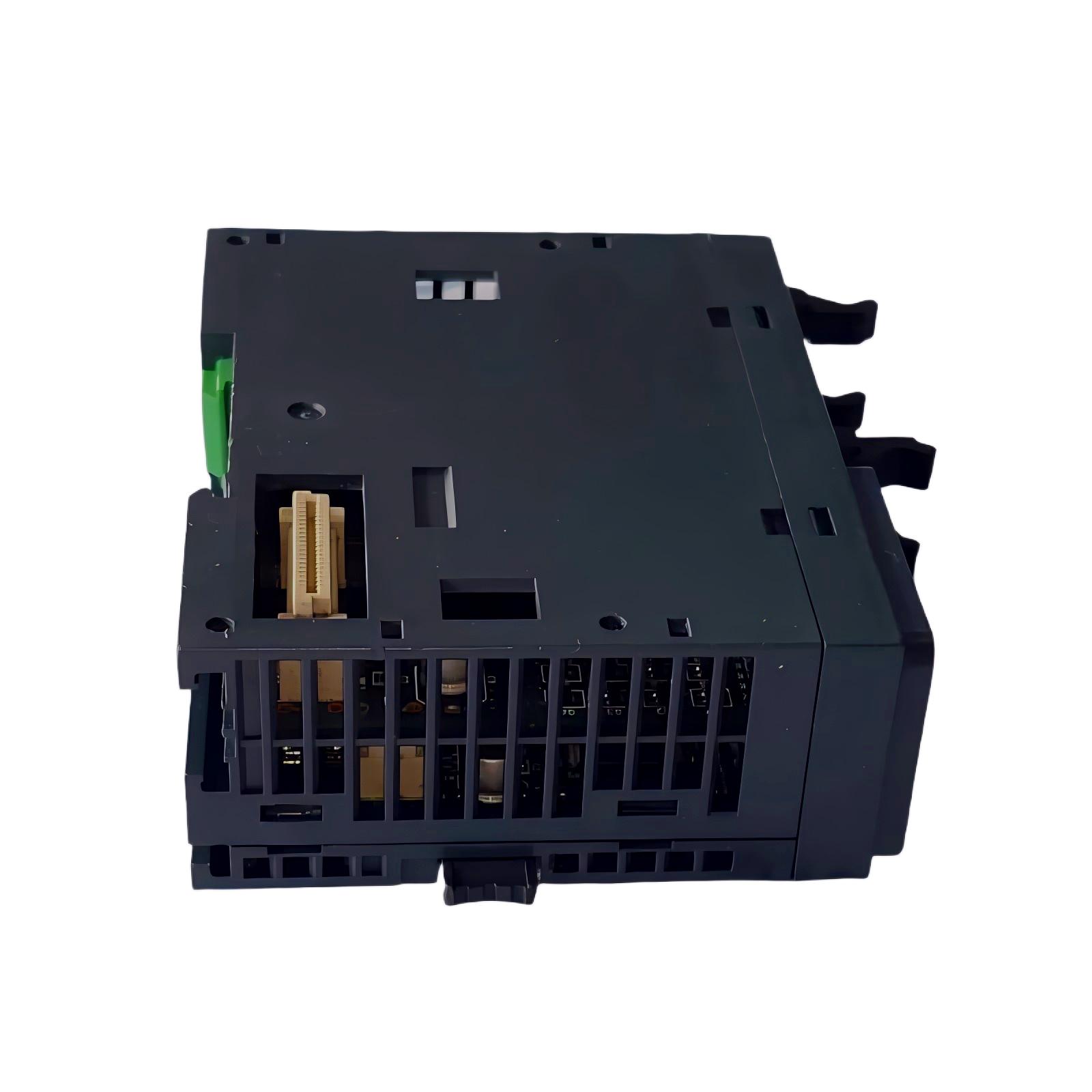

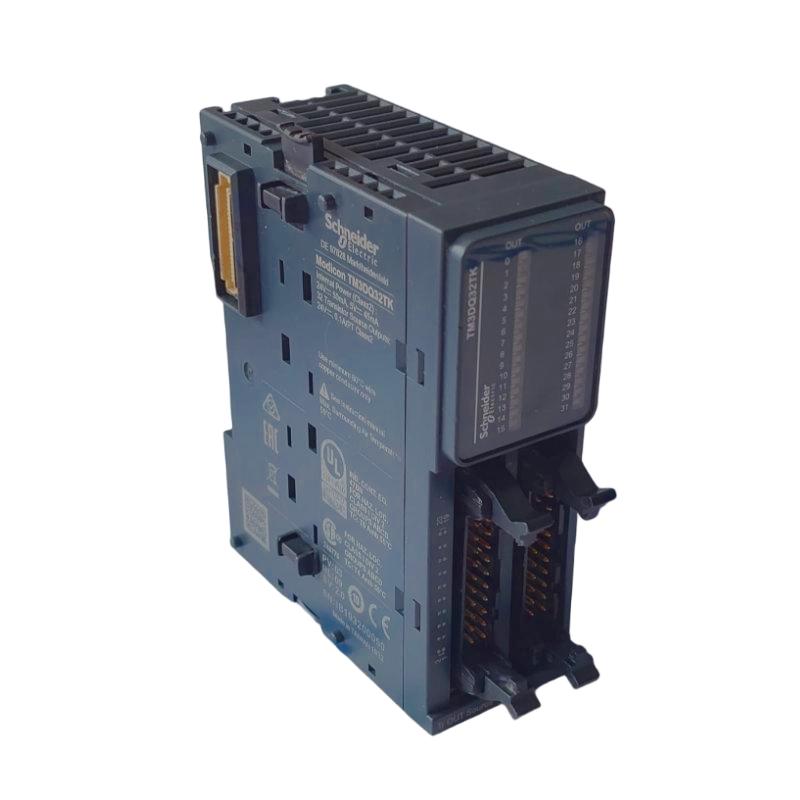

1. What is the main function of the TM3DQ32TK discrete output module?

The TM3DQ32TK is designed to significantly expand the number of digital outputs available in a Modicon TM3 PLC system. It provides 32 transistor-based output channels, allowing a single controller to operate a large number of field devices such as relays, solenoids, indicators, and actuators. This makes it particularly useful in applications where control density is high and multiple outputs are required within a compact automation system.

2. Why is a high-density output module important in industrial automation?

High-density output modules are essential because they reduce the need for multiple smaller modules, simplifying system design and saving space in control cabinets. Instead of installing several expansion units, engineers can use a single TM3DQ32TK module to handle a large number of outputs. This improves wiring efficiency, reduces installation complexity, and enhances overall system organization.

3. How does this module connect to a PLC system?

The module connects directly to the PLC through the TM3 expansion bus used in Schneider Electric Modicon systems. Once physically installed, it is automatically detected by the controller and configured through EcoStruxure Machine Expert software. After configuration, the 32 output channels are mapped into the PLC program and can be controlled just like built-in outputs.

4. What types of devices can be controlled using this module?

The TM3DQ32TK is suitable for controlling discrete ON/OFF devices such as relays, contactors, solenoid valves, signal lamps, and small motor starters. It is not designed for analog control or direct high-power load switching. In most applications, it acts as a control interface that drives intermediate switching devices rather than powering loads directly.

5. What advantages does this module provide compared to multiple smaller modules?

Using a single high-density module reduces wiring complexity and simplifies cabinet layout. It also minimizes communication overhead on the expansion bus and makes system diagnostics easier because all related outputs are grouped within one module. Additionally, it reduces installation time and improves maintainability, especially in systems with many output signals.

6. What happens if communication on the TM3 bus is interrupted?

If communication is interrupted, the PLC will detect the module loss and trigger a diagnostic fault. Depending on system configuration, outputs may either turn OFF or hold their last known state to ensure safe operation. This behavior helps prevent unintended machine movement and ensures the system enters a controlled safe condition during faults.

7. Can multiple TM3 expansion modules be used in the same system?

Yes, multiple TM3 modules can be combined in a single system to increase I/O capacity. However, system designers must consider total bus load, power availability, and response time to ensure stable operation. Proper system design ensures that even large distributed I/O configurations remain reliable and responsive.

8. Why is modular expansion important in modern PLC systems?

Modern automation systems require flexibility because production needs frequently change. Modular expansion allows engineers to scale systems gradually without replacing the main controller. This reduces cost, simplifies upgrades, and improves system adaptability. High-density modules like the TM3DQ32TK further enhance this concept by enabling more compact and efficient system designs.
