1. What is the Schneider TM3DQ16TG Discrete Output Module mainly used for?

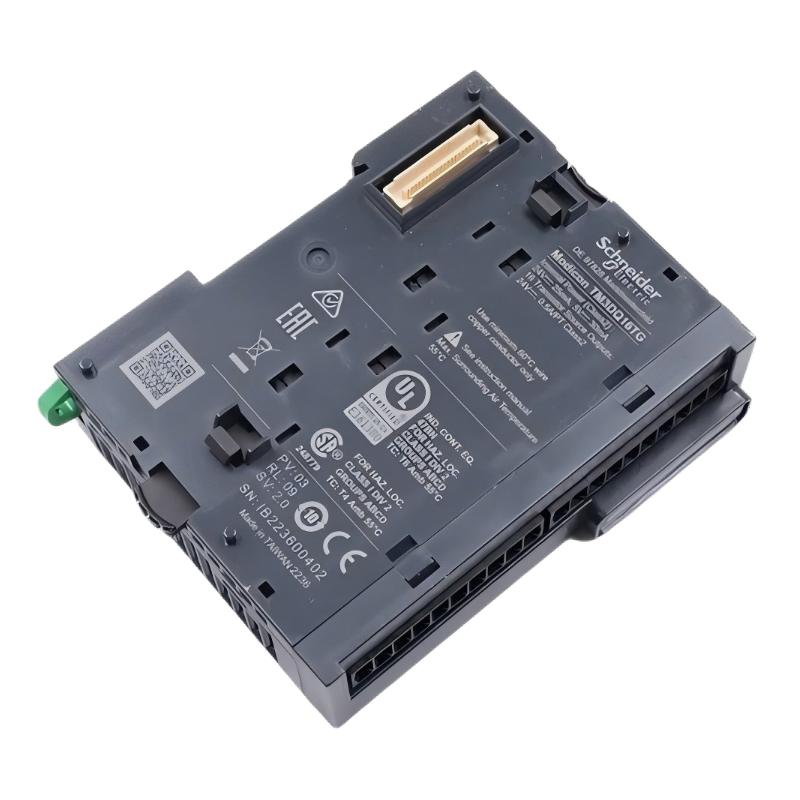

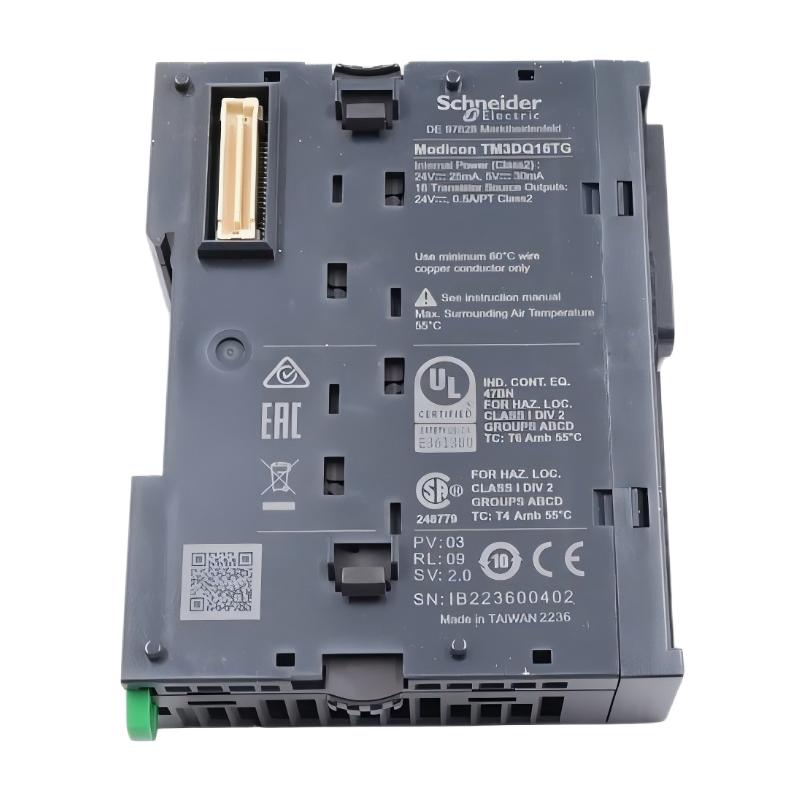

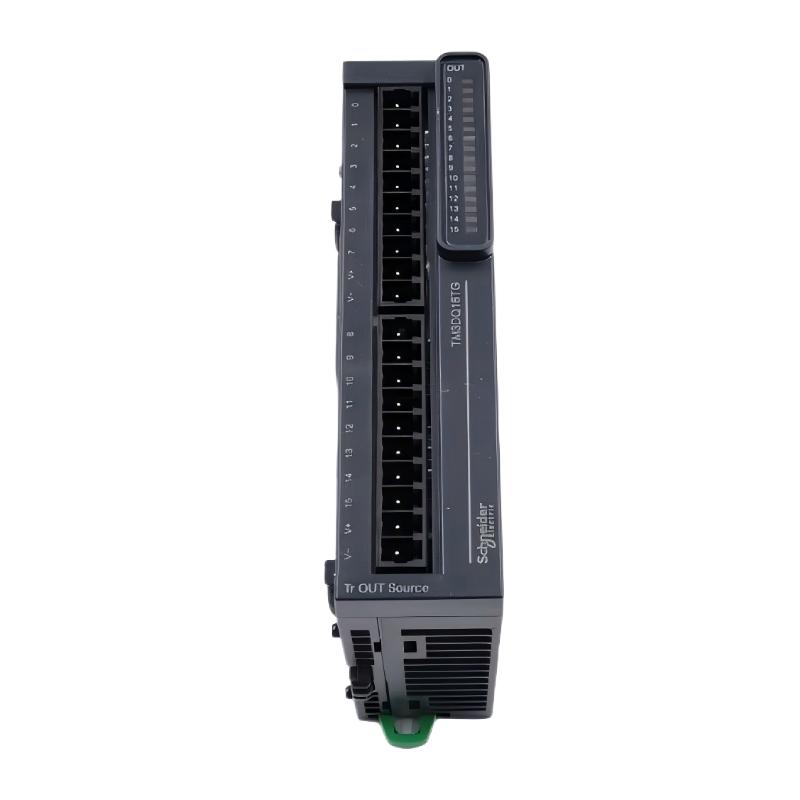

The Schneider TM3DQ16TG Discrete Output Module is a transistor digital output expansion module designed for Schneider Electric Modicon PLC systems. Its main purpose is to increase the number of available digital output points, allowing PLC controllers to operate more external devices in industrial automation applications.

The module receives control instructions from the PLC program and converts them into digital output signals to control connected equipment.

Compared with relay output modules, transistor output modules provide faster switching response and are suitable for applications requiring frequent switching operations.

The TM3DQ16TG is commonly used for controlling solenoid valves, relays, indicator lights, electronic control circuits, and other digital field devices in automation systems.

2. What are the main functions of the TM3DQ16TG module?

The TM3DQ16TG provides additional transistor digital output capability for Modicon PLC systems.

Its main functions include receiving PLC control commands, processing output signals, and transmitting switching signals to external devices.

The module allows automation systems to control multiple devices simultaneously, including actuators, valves, indicators, and electronic control components.

Because it uses transistor output technology, the module is suitable for applications requiring quick response and frequent switching cycles.

By expanding PLC output capacity, the TM3DQ16TG helps improve system flexibility and supports more complex automation control requirements.

3. What devices can be connected to the TM3DQ16TG?

The TM3DQ16TG can be connected to various industrial devices that require digital transistor control signals.

Typical connected devices include solenoid valves, signal lamps, intermediate relays, electronic actuators, control circuits, and other switching devices.

For example, in an automated production machine, the PLC can send control instructions through the TM3DQ16TG to activate pneumatic valves, control indicators, or operate machine functions.

The module is especially suitable for applications where fast and repeated output switching is required.

It provides a reliable connection between the PLC control system and field-level digital equipment.

4. What are the common causes of TM3DQ16TG output problems?

TM3DQ16TG output problems may be caused by incorrect PLC configuration, wiring issues, power supply problems, or external equipment faults.

Common causes include incorrect output address settings, damaged cables, loose terminal connections, incorrect PLC logic, and overloaded output circuits.

If a connected device does not respond, technicians should first verify whether the PLC program is sending the correct output command.

The next step is to check the module output status, wiring connections, and the condition of the connected device.

It is also important to confirm that the connected load matches the module output requirements to prevent abnormal operation.

5. How can the TM3DQ16TG output performance be maintained?

To maintain stable output performance, the TM3DQ16TG should be installed and configured correctly according to the automation system requirements.

The PLC program should correctly assign output addresses and control logic to ensure proper communication between the controller and field devices.

During installation, wiring should be properly connected, and signal lines should be protected from excessive electrical interference.

Regular inspection of output conditions, connected equipment, and PLC diagnostic information can help prevent unexpected failures.

Proper maintenance improves system reliability and extends the operational life of the automation system.

6. How can technicians troubleshoot a TM3DQ16TG output channel failure?

When a TM3DQ16TG output channel does not work correctly, technicians should first check whether the PLC program is generating the correct output command.

The next step is to verify that the PLC configuration recognizes the module and that the output address assignment is correct.

If the software configuration is normal, technicians should inspect terminal wiring, external power conditions, and the connected device.

The output status can be monitored through PLC diagnostic tools to determine whether the module is receiving the correct command.

By checking the control program, module configuration, wiring, and field equipment step by step, engineers can quickly locate the source of the problem.

7. What are the advantages of using the TM3DQ16TG in industrial automation systems?

The TM3DQ16TG provides fast and reliable digital output control for Modicon PLC-based automation systems.

Its transistor output design makes it suitable for applications requiring frequent switching operations and quick response times.

The module helps expand PLC control capacity while maintaining a compact and flexible system structure.

It can be easily integrated into existing Modicon PLC architectures, making it convenient for machine upgrades and automation system expansion.

The TM3DQ16TG is widely used in manufacturing equipment, production lines, and industrial control systems requiring efficient digital output management.

8. What should be checked before replacing a Schneider TM3DQ16TG module?

Before replacing the TM3DQ16TG, technicians should confirm that the replacement module is compatible with the existing Schneider Modicon PLC system.

The current output configuration, PLC program settings, wiring connections, and controlled devices should be documented before removing the original module.

After installation, engineers should verify that the PLC correctly recognizes the new module and that all output parameters are configured properly.

Each output channel should be tested to confirm that connected devices respond correctly to PLC commands.

A complete functional check should be completed before returning the automation system to normal operation.
