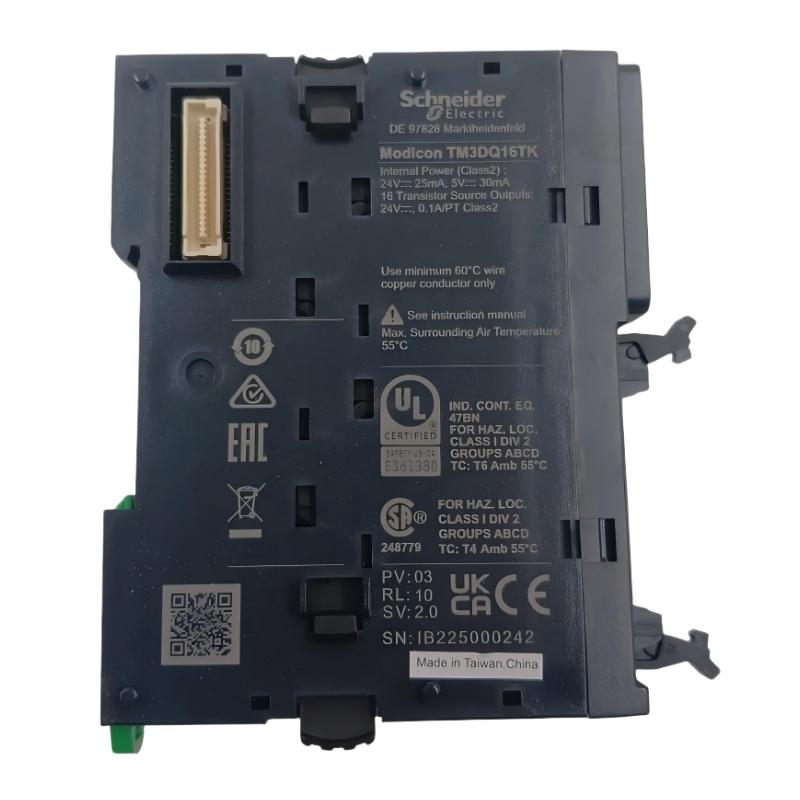

1. What is the Schneider TM3DQ16TK Discrete Output Module mainly used for?

The Schneider TM3DQ16TK Discrete Output Module is a digital output expansion module designed for Schneider Electric Modicon PLC systems. Its main purpose is to increase the number of available digital output points, allowing PLC controllers to operate more field devices in industrial automation applications.

The module receives control commands from the PLC program and converts them into digital output signals for controlling external equipment.

The TM3DQ16TK is commonly used for controlling solenoid valves, relays, contactors, indicator lamps, actuators, and other switching devices.

It is widely applied in automated machinery, production lines, packaging equipment, and manufacturing systems where multiple output control points are required.

2. What are the main functions of the TM3DQ16TK module?

The main function of the TM3DQ16TK is to expand the digital output capability of Modicon PLC systems.

The module receives logical control instructions from the PLC and sends switching signals through multiple output channels to external devices.

Its main applications include equipment start/stop control, actuator operation, alarm control, and automated process execution.

By increasing the number of available output points, the TM3DQ16TK allows automation systems to control more devices and perform more complex operations.

Its modular design also makes system expansion and future upgrades easier for engineers.

3. What devices can be connected to the TM3DQ16TK?

The TM3DQ16TK can be connected to various industrial devices that require digital switching control signals.

Common connected devices include solenoid valves, relays, contactors, alarm devices, indicator lamps, actuators, and other digital control equipment.

For example, in an automated machine, the PLC can use the TM3DQ16TK to control pneumatic valve operation, equipment status indicators, and auxiliary control circuits.

The module is suitable for automation systems requiring multiple output control points and centralized equipment management.

When integrated with Modicon PLC systems, the TM3DQ16TK provides reliable and stable field device control.

4. What are the common causes of TM3DQ16TK output problems?

Output problems in the TM3DQ16TK may be caused by PLC program errors, configuration issues, wiring faults, or external equipment failures.

Common causes include incorrect output address settings, PLC logic errors, loose terminal connections, damaged control cables, and faulty connected devices.

If a field device does not operate, technicians should first confirm that the PLC is sending the correct output command.

The next step is to check the module output status, external power supply, and device connections.

The output load should also be verified to ensure it matches the module requirements and does not cause abnormal operation.

By checking the PLC program, module status, wiring, and field devices step by step, engineers can quickly identify the problem source.

5. How can the operating stability of the TM3DQ16TK be improved?

To ensure long-term stable operation of the TM3DQ16TK, proper installation, configuration, and regular maintenance are required.

During system design, PLC output addresses should be correctly matched with the actual connected devices.

During installation, all terminal connections should be tightened properly, and control wiring should be arranged to minimize electromagnetic interference.

During operation, engineers should regularly check output status, PLC diagnostic information, and field equipment conditions.

Proper maintenance and timely fault handling help improve automation system reliability and reduce unexpected downtime.

6. How can technicians troubleshoot a TM3DQ16TK that cannot control external devices?

When the TM3DQ16TK cannot control external devices, technicians should first check whether the PLC program is running correctly and whether the output logic is being executed properly.

The next step is to verify that the PLC configuration recognizes the expansion module correctly.

If the PLC command is normal, engineers should inspect the module terminals, field power supply, and connected equipment.

The PLC monitoring function can also be used to check whether the output channel status changes according to the control program.

By checking the program logic, module configuration, wiring condition, and field equipment in sequence, troubleshooting time can be reduced.

7. What are the advantages of using the TM3DQ16TK in industrial automation systems?

The TM3DQ16TK provides additional digital output control capability for Modicon PLC systems, improving the automation level of industrial equipment.

Its multi-channel output design allows multiple devices to be controlled simultaneously, making it suitable for complex automation applications.

Compared with fixed control solutions, the modular structure of the TM3DQ16TK provides greater flexibility for system expansion and future upgrades.

The module can be easily integrated with Modicon PLC platforms to provide stable data processing and reliable equipment control.

Therefore, the TM3DQ16TK is suitable for machinery manufacturing, production line automation, packaging systems, and industrial control projects.

8. What should be checked before replacing a Schneider TM3DQ16TK module?

Before replacing the TM3DQ16TK, technicians should confirm that the new module is compatible with the existing Schneider Modicon PLC system.

The current output configuration, PLC parameters, device connections, and control logic should be recorded before removing the original module.

After installation, engineers should verify that the PLC correctly recognizes the module and that output addresses and control parameters are configured properly.

Each output channel should then be tested to confirm that connected devices operate according to the PLC program.

A complete system test should be completed before returning the automation equipment to normal production.
