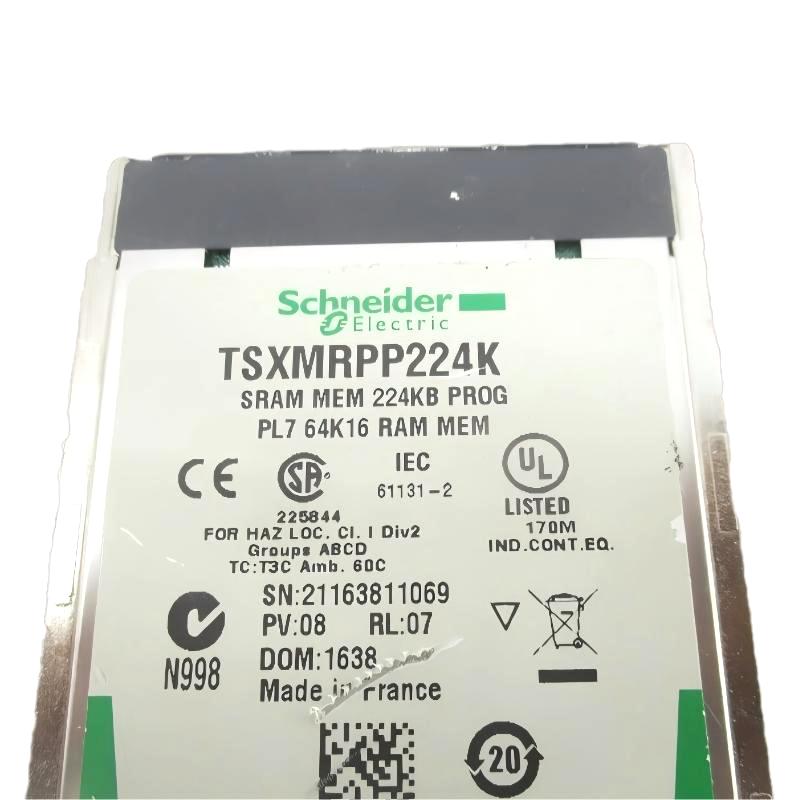

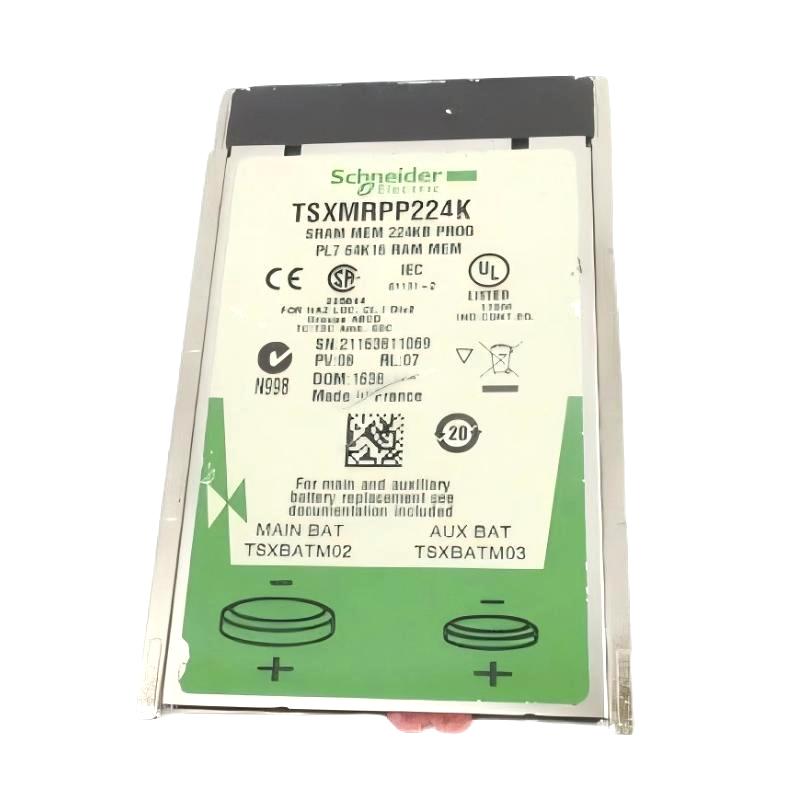

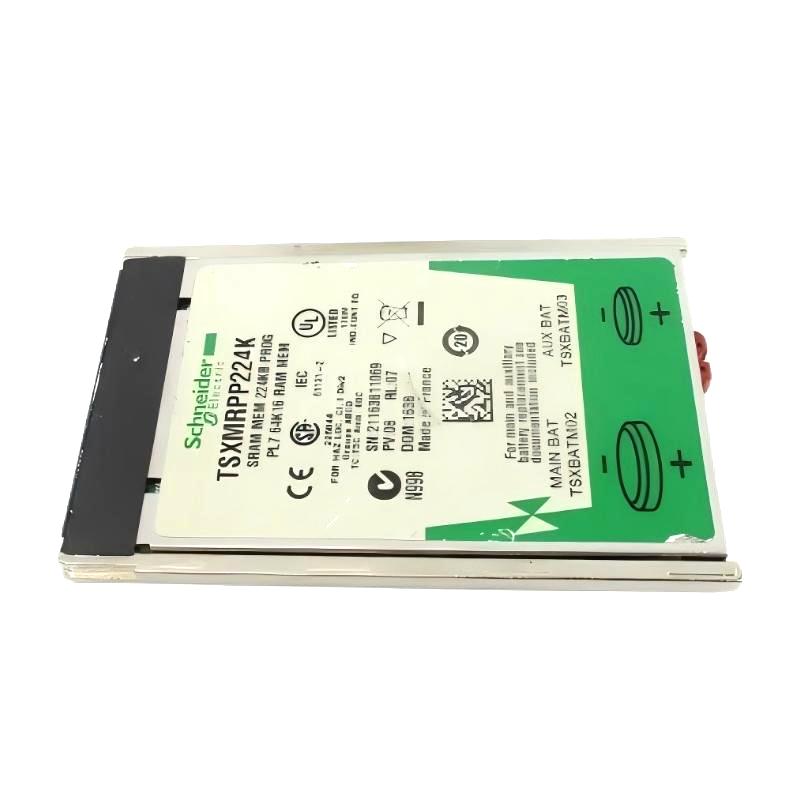

Schneider TSXMRPP224K SRAM Application Memory Extension
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Details |
|---|---|
| Product Model | TSXMRPP224K |
| Product Type | SRAM Application Memory Extension |
| Product Series | Schneider Modicon Premium PLC |
| Application Type | PLC program storage expansion and application data management |
| Module Function | Expands PLC application memory capacity for storing user programs, configuration parameters, application data, and system files |
| Memory Type | SRAM memory |
| Memory Capacity | 224 KB |
| Storage Function | Provides additional application memory space to improve PLC program storage and data management capability |
| Compatible System | Schneider Modicon Premium automation control system |
| Configuration Method | Managed through Schneider PLC programming software for program storage and memory configuration |
| Data Retention Function | Supports application program and data retention to improve system reliability |
| Application Range | PLC program expansion, equipment parameter storage, control logic backup, automation system upgrades |
| Installation Method | Installed in the dedicated memory expansion interface of Modicon Premium PLC |
| Data Access Method | Read and write access through PLC internal system interface |
| System Function | Supports application program storage, data file management, and control system expansion |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Protection Rating | IP20 |
| Dimension | 132 × 91 × 26 mm |
| Weight | 0.076 kg |
| Typical Applications | PLC program backup, equipment control parameter storage, production data management, automation system expansion |
| Applicable Industries | Manufacturing, machine automation, process control, energy, and industrial equipment control |
| Reliability Design | Designed for industrial PLC applications with stable program storage and reliable data management performance |
FAQ
1. What is the main function of the Schneider TSXMRPP224K SRAM Application Memory Extension?
The Schneider TSXMRPP224K is an SRAM application memory extension module designed for Schneider Modicon Premium PLC systems.
Its main purpose is to increase PLC application memory capacity, allowing users to store additional control programs, configuration parameters, application files, and operational data.
In industrial automation projects, more complex control tasks require additional memory resources. The TSXMRPP224K helps expand PLC storage capability and improves system flexibility.
This module is suitable for applications that require larger program storage capacity and enhanced PLC data management.
2. What types of data can be stored in the Schneider TSXMRPP224K?
The TSXMRPP224K is mainly used for storing PLC-related application data, including:
- User control programs
- Application configuration files
- Control parameters
- System settings
- Program backup files
In industrial equipment applications, engineers can save different operating configurations and control programs, allowing faster system adjustments and easier maintenance.
This improves equipment management efficiency and reduces the complexity of program handling.
3. How does the Schneider TSXMRPP224K work with Modicon Premium PLC systems?
The TSXMRPP224K connects to the Modicon Premium PLC through the dedicated memory expansion interface.
After installation, the PLC system recognizes the additional memory resource and allows engineers to manage stored programs and data through programming software.
Application programs, configuration files, and control data can be stored in the expanded memory area.
The module enables the PLC system to support more advanced automation applications while maintaining stable operation.
4. What are the common causes of storage problems in the Schneider TSXMRPP224K?
Common causes of TSXMRPP224K storage issues include:
- Incorrect module installation
- PLC configuration errors
- Interrupted program download
- Corrupted memory data
- PLC system compatibility problems
When storage problems occur, technicians should first confirm that the PLC correctly recognizes the memory extension module.
Then check application files, configuration settings, and data access operations through PLC programming software.
5. How should the Schneider TSXMRPP224K be installed correctly?
The TSXMRPP224K should be installed according to Schneider Modicon Premium PLC installation requirements.
The installation procedure generally includes:
- Confirming that the PLC model supports the memory extension module.
- Switching off system power.
- Installing the module into the designated memory interface.
- Checking that the module connection is secure.
- Verifying module status through PLC programming software.
The module should not be installed or removed while the system is powered.
Proper installation ensures reliable access to the expanded memory area.
6. How can faults in the Schneider TSXMRPP224K be diagnosed?
Troubleshooting the TSXMRPP224K requires both software diagnostics and hardware inspection.
Engineers should check:
- Module recognition status
- PLC diagnostic information
- Program storage condition
- Data access operation
If the module does not operate correctly, the installation connection, PLC compatibility, and system configuration should be reviewed.
A step-by-step troubleshooting process can quickly identify whether the issue is related to the memory module or system settings.
7. Why is the Schneider TSXMRPP224K important for industrial automation systems?
Industrial PLC systems need sufficient memory resources to execute control logic and store application information.
The TSXMRPP224K expands the application memory capacity of Modicon Premium PLC systems, allowing more complex control programs and data to be managed effectively.
It improves program management capability, simplifies system upgrades, and supports flexible equipment configuration.
In machine automation, production line control, and process automation applications, reliable memory expansion is important for maintaining continuous operation.
8. How can the reliability of the Schneider TSXMRPP224K be improved?
To ensure long-term reliable operation of the TSXMRPP224K, proper installation, regular maintenance, and effective data management are recommended.
Recommended practices include:
- Regularly backing up PLC programs and important data
- Checking PLC diagnostic information
- Avoiding unexpected power loss during data writing
- Maintaining stable control cabinet conditions
- Inspecting module connections periodically
Before modifying programs or updating stored data, backup procedures should be performed to prevent accidental data loss.
With correct operation and maintenance, the TSXMRPP224K can provide stable and reliable application memory expansion support for Schneider Modicon Premium PLC systems.
Schneider TSXMRPP224K SRAM Application Memory Extension is in stock. Please contact us for a quick quote and competitive pricing.
