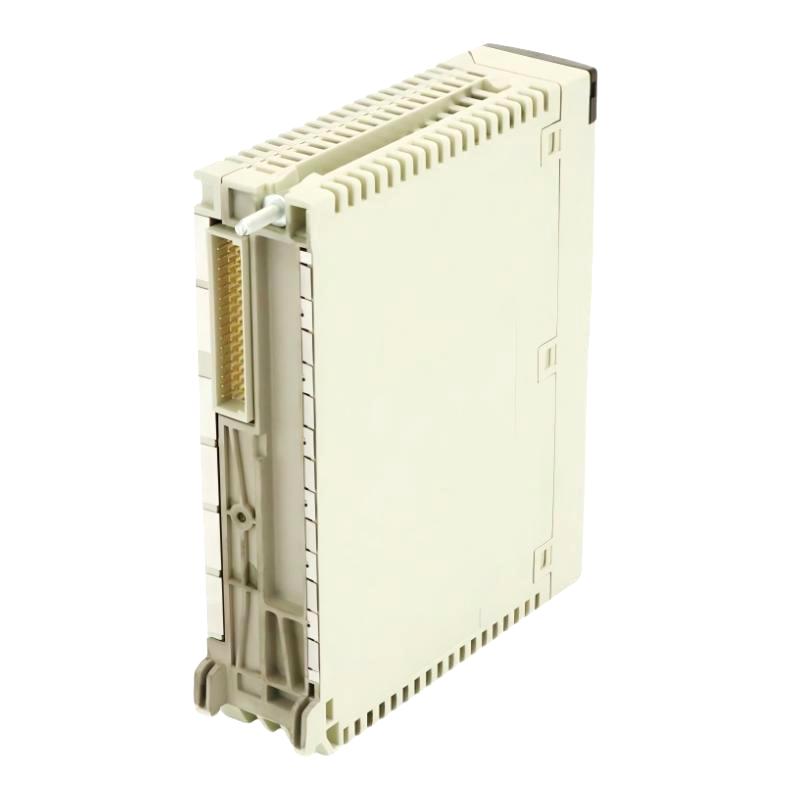

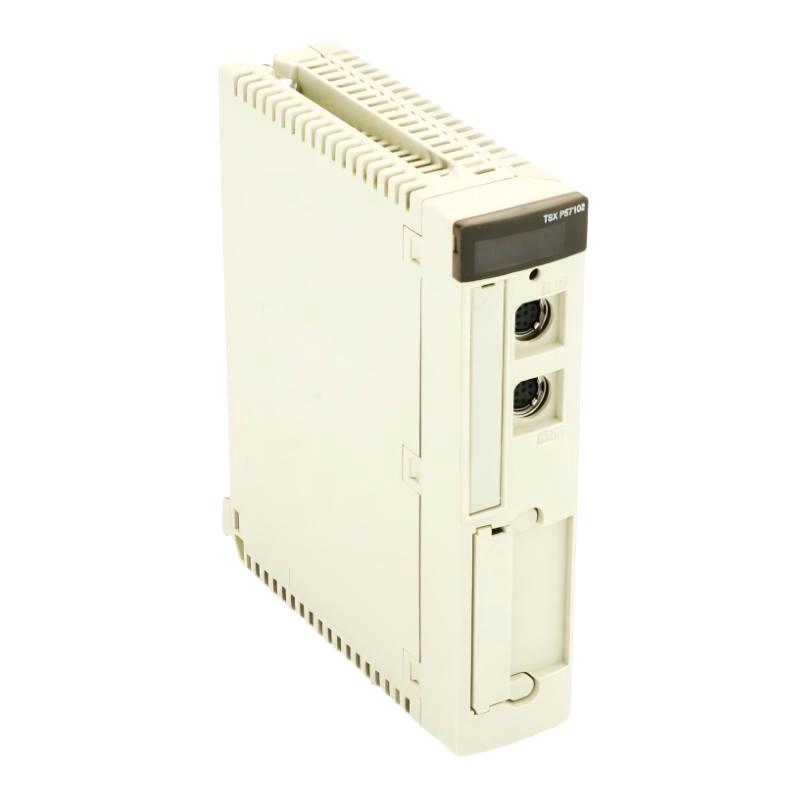

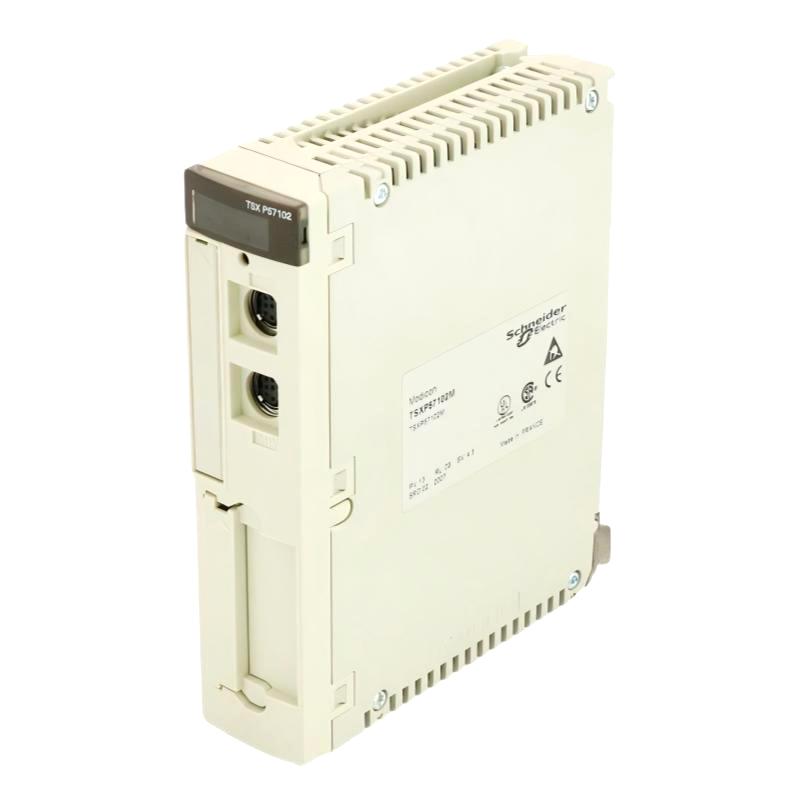

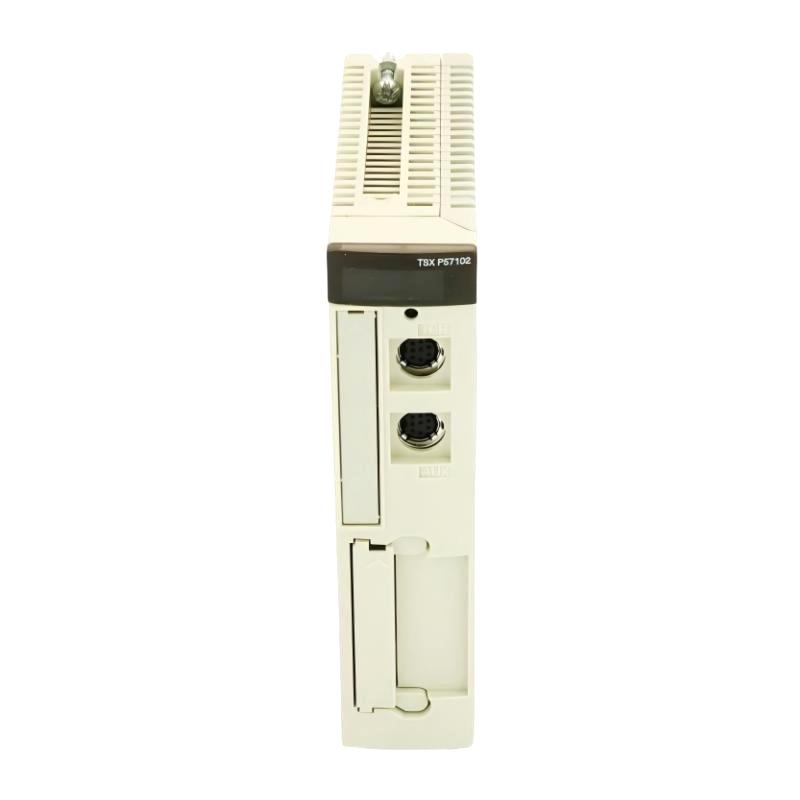

Schneider TSXP57102M Processor Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Details |
|---|---|
| Product Model | TSXP57102M |
| Product Type | Processor Module |
| Product Series | Schneider Modicon Premium PLC |
| Application Type | PLC central processing and automation control |
| Module Function | Executes user application programs, manages PLC operations, and coordinates communication and I/O processing |
| Processor Type | Premium PLC processor module |
| Processing Function | Program execution, task management, data processing, system diagnostics, and control operations |
| Memory Type | Internal processor memory with support for application program storage |
| Programming Method | Configured and programmed through Schneider PLC programming software |
| Compatible System | Schneider Modicon Premium automation platform |
| Communication Support | Supports communication with PLC network modules and automation devices |
| Data Management | Handles application data, system variables, and control parameters |
| Installation Method | Installed on Schneider Modicon Premium PLC rack |
| Operating Mode | Cyclic and event-driven PLC task execution |
| Diagnostic Function | Provides system monitoring, fault diagnostics, and operating status information |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Protection Rating | IP20 |
| Dimension | 260 × 180 × 95 mm |
| Weight | 0.61 kg |
| Typical Applications | Industrial automation control, machine control systems, production line management, and process control |
| Applicable Industries | Manufacturing, energy, transportation, machinery, and industrial process automation |
| Reliability Design | Designed for industrial PLC environments with stable processing performance and long-term operation reliability |
FAQ
1. What is the main function of the Schneider TSXP57102M Processor Module?
The Schneider TSXP57102M is a processor module designed for Schneider Modicon Premium PLC systems.
Its main function is to execute user application programs, process control logic, manage PLC tasks, and coordinate communication between different automation components.
As the central processing unit of the PLC system, the processor module determines the execution speed, control capability, and overall performance of the automation system.
It is widely used in industrial applications that require reliable and continuous control operations.
2. What tasks can the Schneider TSXP57102M perform in a PLC system?
The TSXP57102M performs several important PLC control tasks, including:
- Executing user programs;
- Managing PLC operation cycles;
- Processing input and output data;
- Handling communication tasks;
- Performing system diagnostics;
- Managing application variables.
By processing control logic and system data, the module allows automation equipment to operate according to programmed instructions.
It provides the core processing capability required for complex industrial control applications.
3. How does the Schneider TSXP57102M communicate with other PLC modules?
The TSXP57102M communicates with other components through the Modicon Premium PLC system architecture.
It exchanges data with I/O modules, communication modules, and other automation devices through the internal PLC system interface.
The processor manages communication tasks, processes received information, and sends control commands according to the user application program.
This ensures coordinated operation between different parts of the automation system.
4. What are the common causes of Schneider TSXP57102M processor faults?
Common causes of TSXP57102M processor problems include:
- Incorrect PLC configuration;
- Program errors;
- Communication failures;
- Power supply instability;
- Hardware connection problems;
- Excessive system load.
When a processor fault occurs, engineers should first check PLC diagnostic information and module status indicators.
Then verify application programs, system configuration, and communication settings to identify the source of the problem.
5. How should the Schneider TSXP57102M be installed correctly?
The TSXP57102M should be installed according to Schneider Modicon Premium PLC installation guidelines.
The installation process generally includes:
- Confirming compatibility with the PLC rack system.
- Switching off system power before installation.
- Installing the processor module into the correct rack position.
- Checking module connections.
- Downloading and verifying the PLC application program.
Proper installation ensures reliable communication between the processor and other PLC components.
6. How can faults in the Schneider TSXP57102M be diagnosed?
Fault diagnosis for the TSXP57102M requires checking both hardware and software conditions.
Engineers should review:
- PLC diagnostic messages;
- Processor operating status;
- Application program execution;
- Communication status;
- System configuration parameters.
Using Schneider PLC programming software, technicians can monitor processor status and identify abnormal operating conditions.
A systematic diagnostic process helps reduce downtime and improves troubleshooting efficiency.
7. Why is the Schneider TSXP57102M important in industrial automation systems?
The processor module is the core control component of a PLC system.
The TSXP57102M executes control programs, manages system operations, and coordinates communication between different automation devices.
In industrial applications such as manufacturing lines, machine control, and process automation, reliable processor performance is essential for maintaining stable production.
A high-performance processor module improves system responsiveness, control accuracy, and operational reliability.
8. How can the reliability of the Schneider TSXP57102M be improved?
To maintain reliable operation of the TSXP57102M, proper configuration, regular maintenance, and stable operating conditions are important.
Recommended practices include:
- Regularly backing up PLC programs;
- Checking diagnostic information;
- Maintaining stable power conditions;
- Verifying communication settings;
- Keeping PLC system configuration updated.
Before making program modifications, backup procedures should be completed to prevent unexpected data loss.
With proper maintenance and correct operation, the TSXP57102M can provide stable processing performance for Schneider Modicon Premium PLC systems.
Schneider TSXP57102M Processor Module is in stock. Please contact us for a quick quote and competitive pricing.
