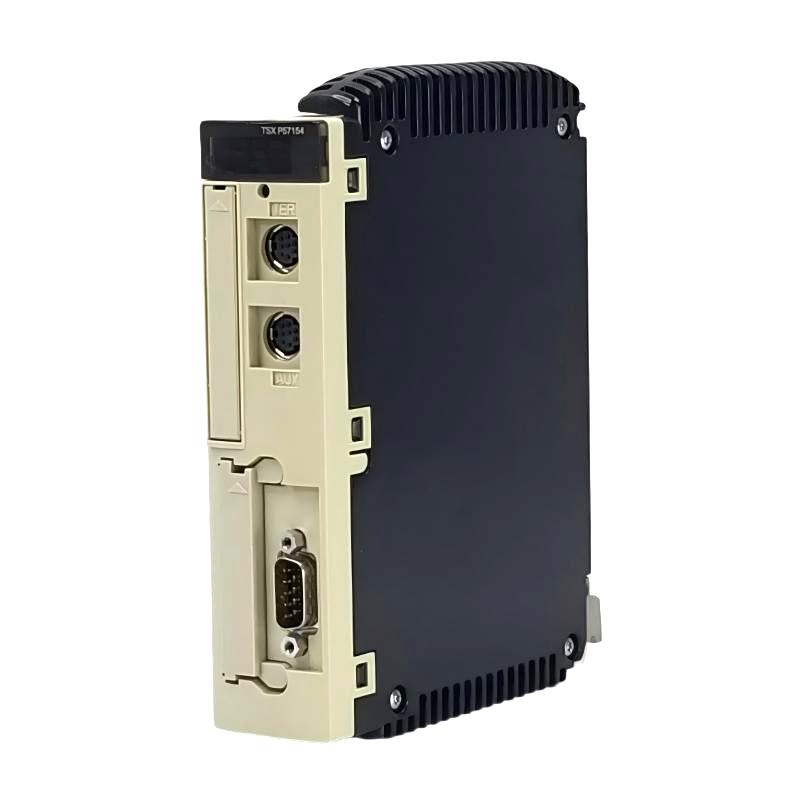

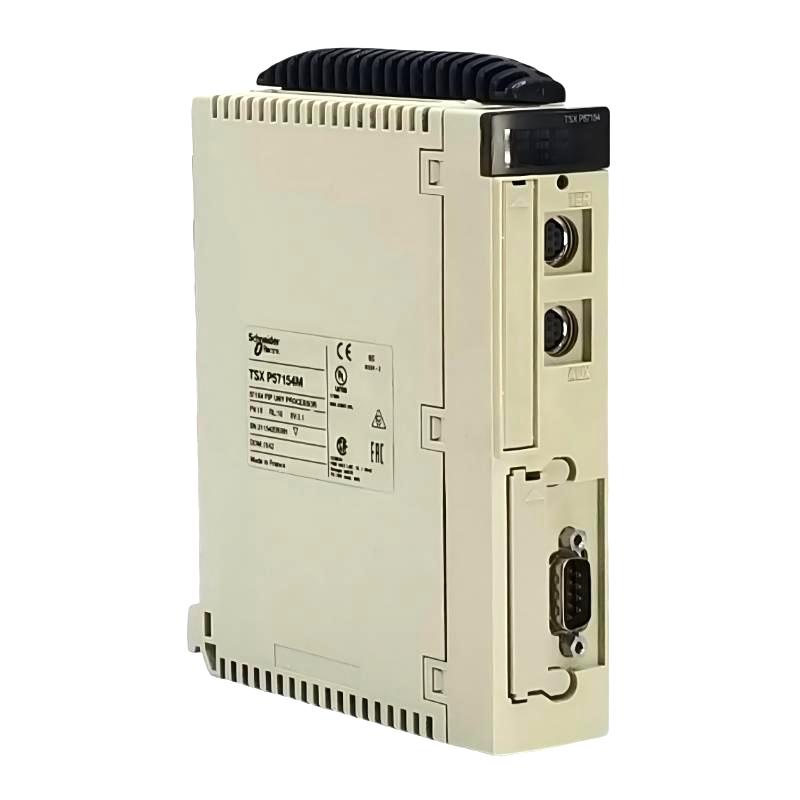

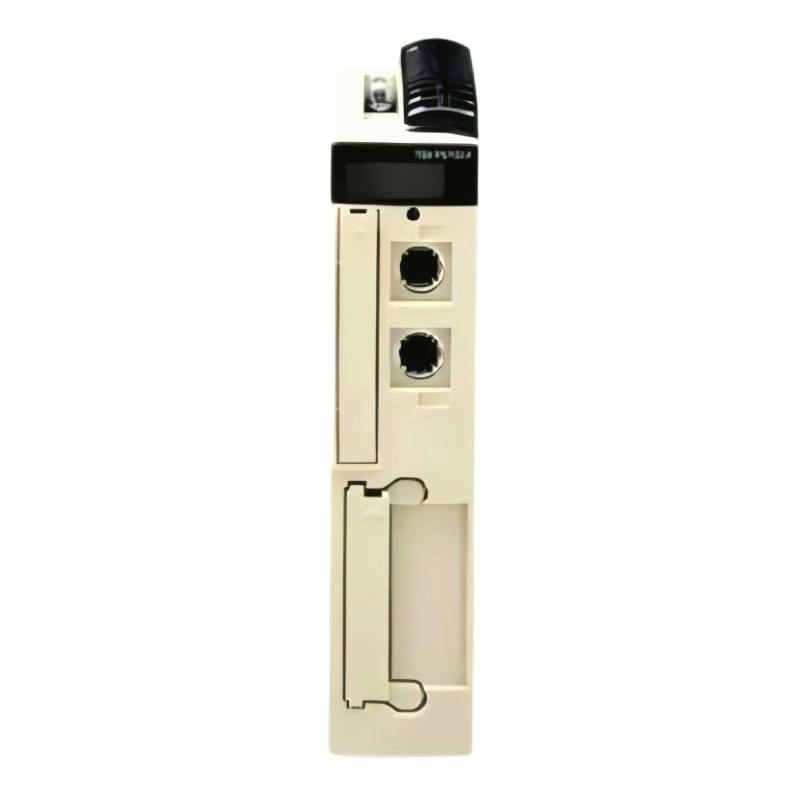

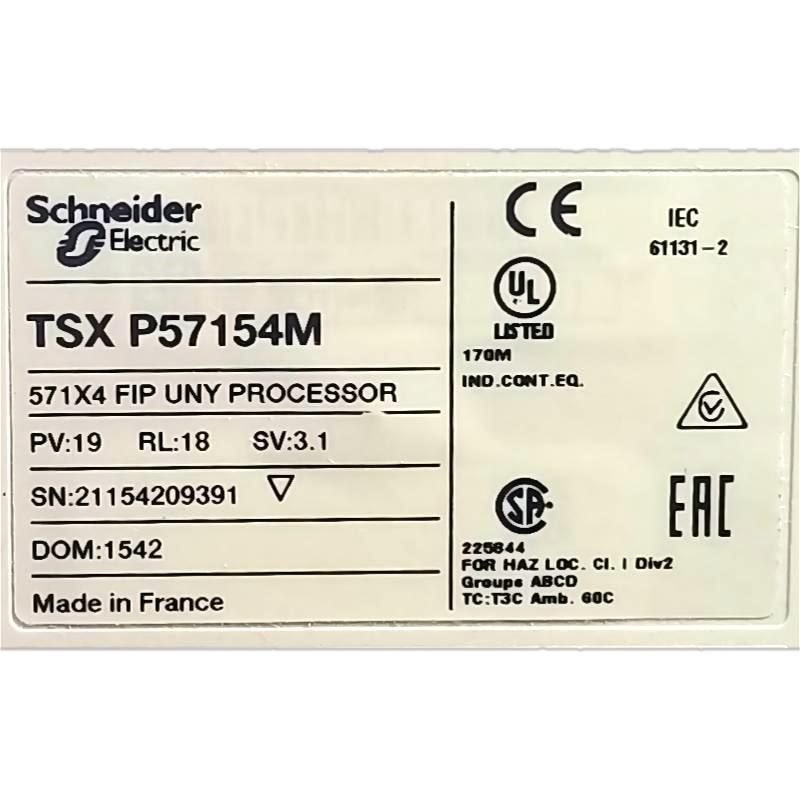

Schneider TSXP57154M Unity Processor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Details |
|---|---|
| Product Model | TSXP57154M |
| Product Type | Unity Processor |
| Product Series | Schneider Modicon Premium PLC |
| Application Type | PLC central processing, automation control, and program execution |
| Module Function | Executes user application programs, manages PLC tasks, processes control logic, and coordinates system communication and data processing |
| Processor Type | Modicon Premium Unity series processor |
| Programming Environment | Schneider Unity Pro / EcoStruxure Control Expert programming software |
| Processing Functions | Program execution, task management, data processing, system monitoring, and fault diagnosis |
| Memory Function | Supports user application programs, system data, and configuration parameter management |
| Compatible System | Schneider Modicon Premium automation control platform |
| Communication Support | Supports data exchange with PLC expansion modules, communication modules, and industrial devices |
| Data Management | Manages application variables, system status information, and control parameters |
| Installation Method | Installed on Modicon Premium PLC rack |
| Operating Mode | Supports cyclic scan tasks and event-triggered task execution |
| Diagnostic Function | Provides system status monitoring, error detection, and operating diagnostics |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Protection Rating | IP20 |
| Dimension | 260 × 180 × 55 mm |
| Weight | 0.42 kg |
| Typical Applications | Industrial automation control, machine control, production line management, and process control systems |
| Applicable Industries | Manufacturing, energy, transportation, machine automation, and industrial process control |
| Reliability Design | Designed for industrial control environments with stable processing performance and long-term operational reliability |
FAQ
1. What is the main function of the Schneider TSXP57154M Unity Processor?
The Schneider TSXP57154M is a Unity processor module designed for Schneider Modicon Premium PLC systems.
Its main function is to execute user application programs, process automation control logic, manage PLC operating tasks, and coordinate data exchange between different system modules.
As the core processing unit of the PLC system, the TSXP57154M determines the control capability and execution efficiency of the automation platform.
It is suitable for industrial applications requiring stable and continuous control performance.
2. Which programming environments are supported by the Schneider TSXP57154M?
The TSXP57154M supports Schneider Unity Pro and later EcoStruxure Control Expert programming environments.
Engineers can use these software platforms for:
- PLC program development;
- System configuration;
- Parameter setting;
- Online monitoring;
- Fault diagnosis.
The programming environment provides complete tools for PLC engineering, commissioning, and maintenance.
3. What tasks does the Schneider TSXP57154M perform in a PLC system?
The TSXP57154M performs essential PLC processing tasks, including:
- Executing user programs;
- Managing task cycles;
- Processing I/O data;
- Controlling communication processes;
- Performing system diagnostics.
The processor analyzes field data according to programmed logic and sends control commands to connected modules and devices.
This enables reliable and accurate operation of industrial automation equipment.
4. What are the common causes of Schneider TSXP57154M processor faults?
Common causes of TSXP57154M faults include:
- PLC program errors;
- Incorrect system configuration;
- Communication parameter problems;
- Unstable power supply;
- Expansion module connection issues;
- Software compatibility problems.
When a fault occurs, engineers should first review PLC diagnostic information and processor status.
Checking the application program, communication settings, and hardware configuration can help identify the root cause.
5. How should the Schneider TSXP57154M Unity Processor be installed correctly?
The TSXP57154M should be installed according to Schneider Modicon Premium PLC system installation guidelines.
The general installation steps include:
- Confirming compatibility between the processor and PLC system.
- Switching off system power.
- Installing the processor module in the correct rack position.
- Checking module connections.
- Downloading and verifying the PLC application program.
Proper installation ensures reliable communication between the processor and other PLC components.
6. How can Schneider TSXP57154M operating problems be diagnosed?
Troubleshooting the TSXP57154M requires both software analysis and hardware inspection.
Engineers should check:
- PLC diagnostic information;
- Processor operating status;
- Application program execution;
- Communication module status;
- System configuration parameters.
Using Unity Pro or EcoStruxure Control Expert software, technicians can monitor processor operation and quickly identify abnormal conditions.
7. Why is the Schneider TSXP57154M important for industrial automation systems?
The processor module is the core component of a PLC control system.
The TSXP57154M executes control programs, manages system tasks, and coordinates data communication between automation modules.
In production lines, machine automation, and process control applications, reliable processor performance improves system response speed, control accuracy, and operational stability.
It helps industrial systems achieve efficient and continuous automated operation.
8. How can the reliability of the Schneider TSXP57154M be improved?
To maintain long-term reliable operation of the TSXP57154M, proper configuration, regular maintenance, and correct operation are essential.
Recommended practices include:
- Regularly backing up PLC programs;
- Checking system diagnostic information;
- Maintaining software compatibility;
- Verifying communication parameters;
- Avoiding unexpected power interruptions.
Before modifying programs or system configurations, backup procedures should be completed to prevent unexpected system downtime.
With proper installation, configuration, and maintenance, the TSXP57154M can provide stable and reliable processing performance for Schneider Modicon Premium PLC systems.
Schneider TSXP57154M Unity Processor is in stock. Please contact us for a quick quote and competitive pricing.
