Technical Specifications

FAQ

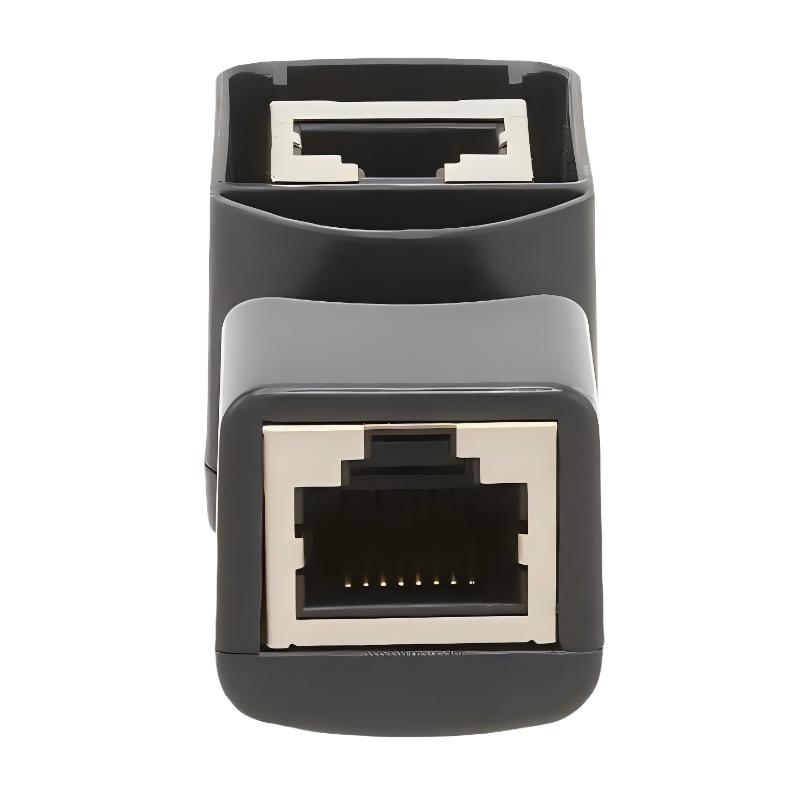

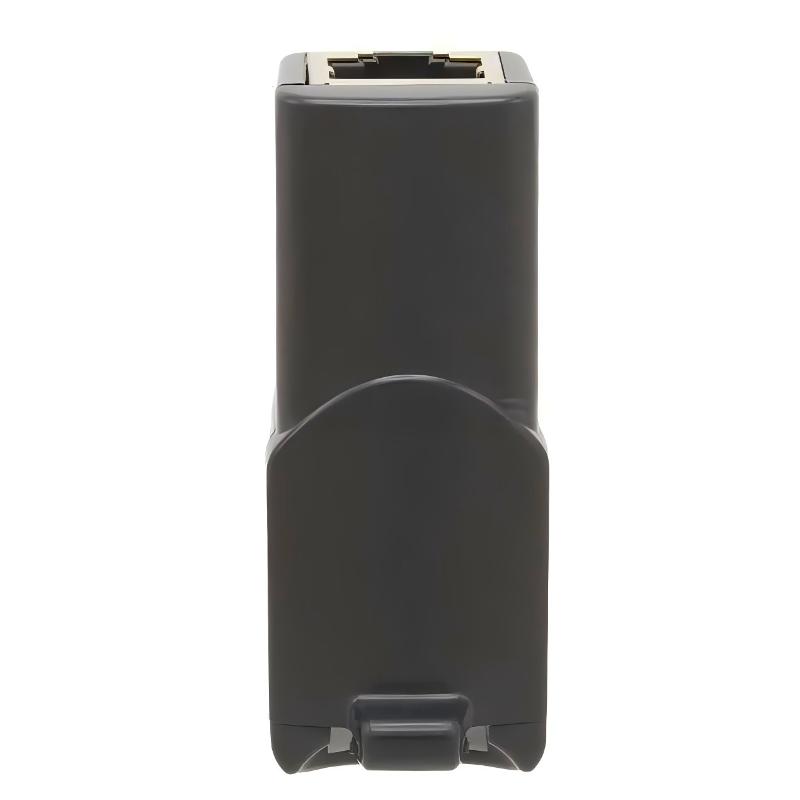

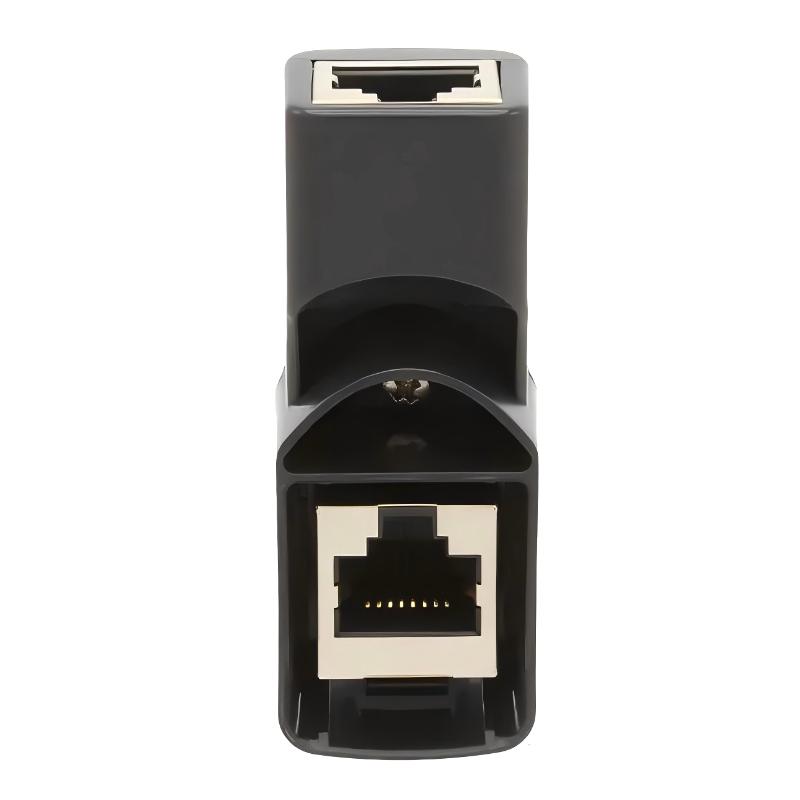

Q1: What is the main purpose of the Schneider VW3A1105 RJ45 Female-to-Female Adapter?

A: The VW3A1105 is designed to provide a simple and reliable way to extend or connect two RJ45 Ethernet cables in industrial automation systems. It acts as a straight-through coupler, allowing communication cables to be joined without re-terminating or replacing existing wiring. This is especially useful in control cabinets where space is limited or where existing cable routes need to be extended during commissioning, maintenance, or system upgrades.

Q2: Does this adapter modify or process Ethernet signals?

A: No, it does not perform any signal processing. The adapter is a passive device that only provides a physical connection between two RJ45 interfaces. It does not amplify, filter, or convert signals in any way. As a result, it maintains the original communication integrity as long as the connected cables and devices are properly installed and within specification.

Q3: Will using this adapter affect network performance or latency?

A: In normal industrial applications, the adapter does not introduce measurable latency or degrade network performance. Since it only provides a direct physical pass-through connection, the electrical signal travels through without processing delay. However, overall network performance still depends on cable quality, total cable length, and environmental conditions such as electromagnetic interference.

Q4: What types of industrial communication systems can it be used with?

A: The adapter is compatible with any system that uses RJ45-based Ethernet communication. This includes industrial protocols such as Modbus TCP, PROFINET, and EtherNet/IP, provided the connected devices support these protocols. It is commonly used in variable speed drives, PLC systems, industrial switches, and HMI communication networks.

Q5: Is any configuration or setup required before use?

A: No configuration is required. The VW3A1105 is completely plug-and-play. Users simply connect two RJ45 Ethernet cables into each end of the adapter, and communication is immediately established. This makes it highly suitable for fast installation and maintenance scenarios in industrial environments.

Q6: Can it be used in harsh industrial environments?

A: Yes, it is designed for industrial control cabinet environments where electromagnetic interference, vibration, and continuous operation are common. However, proper installation practices should still be followed, such as using shielded Ethernet cables and ensuring good grounding to maximize communication stability.

Q7: What installation considerations should be followed for reliable operation?

A: The adapter should be installed in a stable position where cables are not under mechanical stress. Excessive bending, pulling, or vibration on the connected Ethernet cables should be avoided. Proper cable management inside the control cabinet is important to ensure long-term reliability and prevent accidental disconnection.

Q8: Does this adapter support long-distance communication extension?

A: The adapter itself does not extend communication distance; it only joins two Ethernet cables. The total communication distance is still limited by Ethernet standards and the specifications of the connected devices. Therefore, system designers must ensure that the combined cable length remains within allowable limits for reliable communication performance.
