Technical Specifications

FAQ

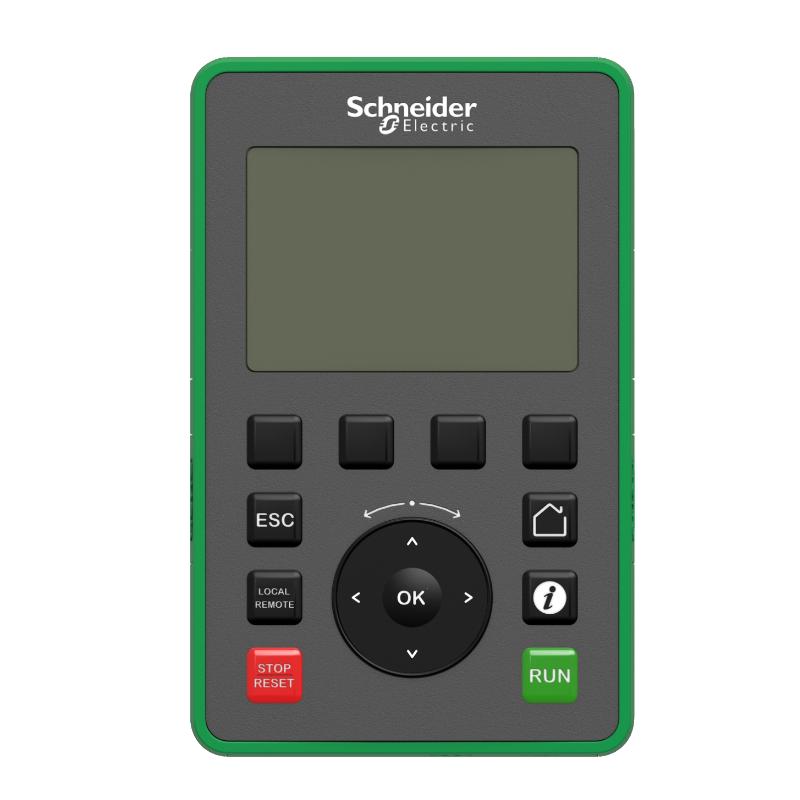

Q1: What is the main purpose of the Schneider VW3A1111 Graphic Display Terminal?

A: The VW3A1111 Graphic Display Terminal is designed to provide a local human-machine interface for Schneider Electric variable speed drives. It allows operators and maintenance personnel to configure drive parameters, monitor real-time operating conditions, and view diagnostic or alarm information directly at the equipment. Instead of relying on external software or remote tools, users can perform essential commissioning and troubleshooting tasks directly from the drive interface, which significantly improves efficiency during setup and maintenance.

Q2: Which equipment is this terminal compatible with?

A: This terminal is primarily designed for use with Schneider Electric Altivar series variable speed drives. It connects directly to the drive and serves as its dedicated local control and display interface. It is widely used in industrial automation systems where Altivar drives are deployed for motor control applications such as pumps, fans, conveyors, and process equipment.

Q3: Does the terminal require separate power supply or configuration?

A: No, the VW3A1111 does not require a separate power supply. It is powered directly through its connection to the drive unit. Once connected, it automatically communicates with the drive and becomes operational without additional configuration steps, making it a plug-and-operate interface for field technicians.

Q4: What kind of operations can be performed using this terminal?

A: The terminal supports a wide range of operational functions including parameter adjustment, motor control settings, drive configuration, alarm acknowledgment, fault history review, and real-time status monitoring. It is particularly useful during commissioning and maintenance, as it allows users to access all essential drive settings without external programming tools.

Q5: How does the graphical interface improve usability?

A: The graphical interface presents information in a structured and intuitive way, making it easier for operators to interpret drive status and configuration options. Instead of navigating complex numeric codes, users can view organized menus, icons, and text descriptions. This reduces training requirements and minimizes the risk of configuration errors during operation.

Q6: Is this terminal suitable for industrial environments?

A: Yes, it is specifically designed for industrial control cabinet environments. It can operate reliably in conditions where electrical noise, vibration, and continuous operation are common. However, proper installation inside a standard control cabinet is important to ensure long-term stability and protection from harsh external conditions.

Q7: Can multiple users access different levels of settings?

A: Yes, the terminal supports user access levels and parameter protection. This means that critical configuration settings can be restricted to authorized personnel only, while basic monitoring functions can remain accessible to general operators. This helps prevent unintended changes to important drive parameters and improves system safety.

Q8: What benefits does this terminal provide during maintenance?

A: During maintenance, the VW3A1111 significantly simplifies troubleshooting by providing direct access to fault codes, system status, and configuration parameters. Maintenance personnel can quickly identify issues, adjust settings, and verify system behavior without needing external diagnostic tools. This reduces downtime and improves overall maintenance efficiency in industrial operations.
