Technical Specifications

FAQ

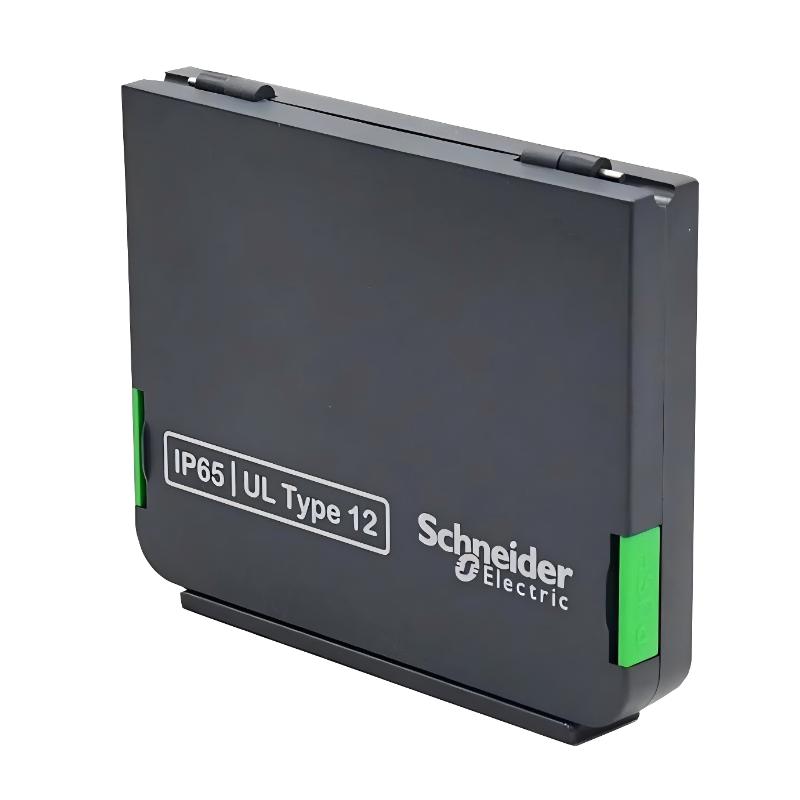

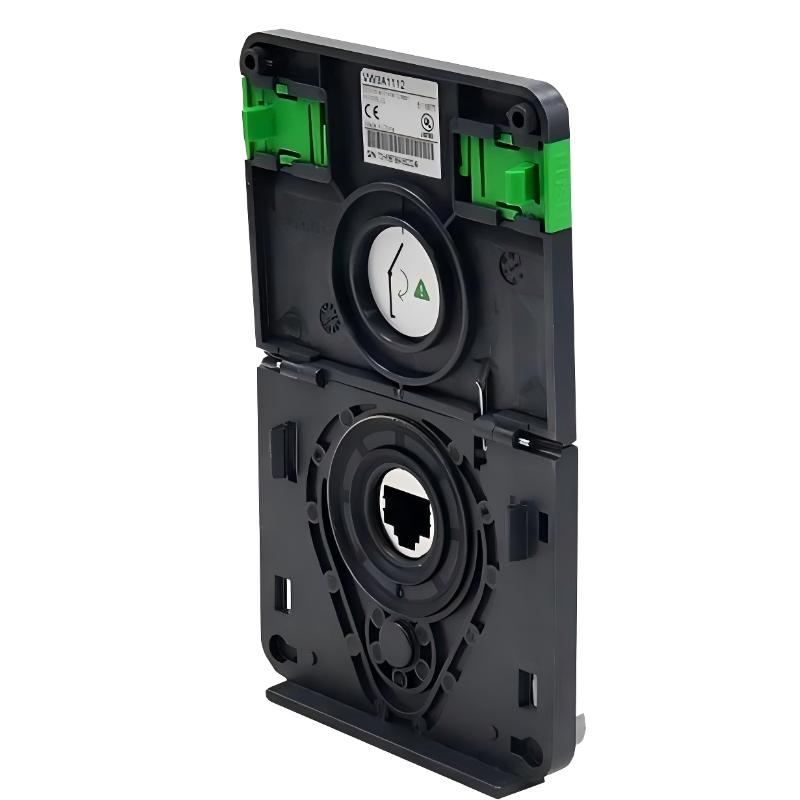

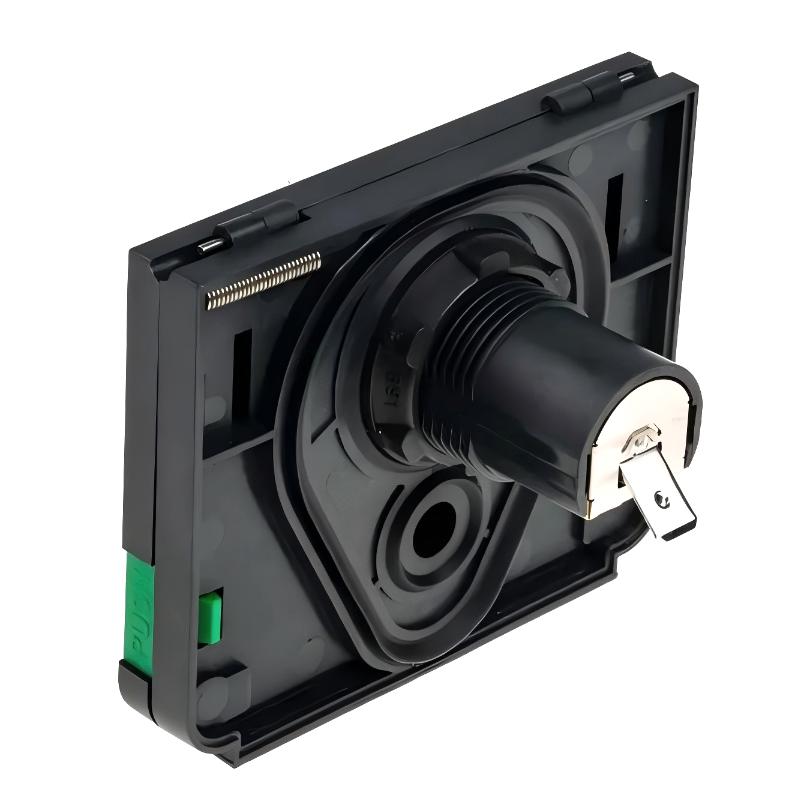

Q1: What is the main function of the Schneider VW3A1112 Door Installation Kit?

A: The VW3A1112 Door Installation Kit is designed to enable the installation of a drive’s operator interface or display unit directly onto the front door of a control cabinet. This allows operators to access drive information, adjust parameters, and monitor system status without opening the cabinet. In industrial environments, this improves both operational efficiency and safety by reducing direct exposure to internal electrical components while still maintaining full access to drive control functions.

Q2: Which systems or devices is this kit designed for?

A: This kit is primarily intended for Schneider Electric Altivar series variable speed drives and their associated human-machine interfaces. It provides a mechanical solution for relocating the drive’s control interface to the cabinet door while maintaining proper connection with the drive unit inside the enclosure. It is commonly used in motor control applications such as pumps, fans, conveyors, and process automation systems.

Q3: What are the advantages of door-mounted HMI installation?

A: Door-mounted installation significantly improves usability by allowing operators to interact with the system without opening the cabinet. This reduces the frequency of cabinet access, minimizes safety risks associated with electrical exposure, and speeds up troubleshooting and commissioning tasks. It also improves visibility of system status in real time, making operation more intuitive and efficient in industrial environments.

Q4: Does this installation kit affect electrical performance or communication?

A: No, the VW3A1112 is purely a mechanical accessory and does not influence the electrical characteristics, communication signals, or control performance of the drive system. It simply provides a physical mounting solution for relocating the interface, while all electrical connections remain unchanged and fully intact.

Q5: What installation considerations are important for reliable use?

A: Proper mechanical alignment and secure fastening are essential to ensure stable operation over time. The cabinet door must be rigid enough to support repeated operation, and cable routing between the drive and the door-mounted interface should be carefully managed to avoid excessive bending, tension, or wear caused by frequent door movement.

Q6: Is the kit suitable for harsh industrial environments?

A: Yes, it is designed for industrial control cabinet environments where vibration, electrical noise, and continuous operation are common. However, it should always be installed within a properly rated enclosure to ensure protection against environmental factors such as dust, humidity, and external mechanical impact.

Q7: Does the kit require maintenance after installation?

A: The kit itself is a passive mechanical structure and generally requires minimal maintenance. However, periodic inspection is recommended to ensure that mounting hardware remains tight and that cables connected to the interface are not experiencing mechanical stress due to repeated door opening and closing cycles.

Q8: What value does this solution bring to industrial system integration?

A: It enhances system ergonomics by centralizing the operator interface on the cabinet door, which improves accessibility and reduces the need for internal cabinet access. This leads to faster commissioning, easier troubleshooting, and improved operational safety. In complex automation systems, it also helps standardize operator interaction across multiple installations, improving consistency and efficiency.
