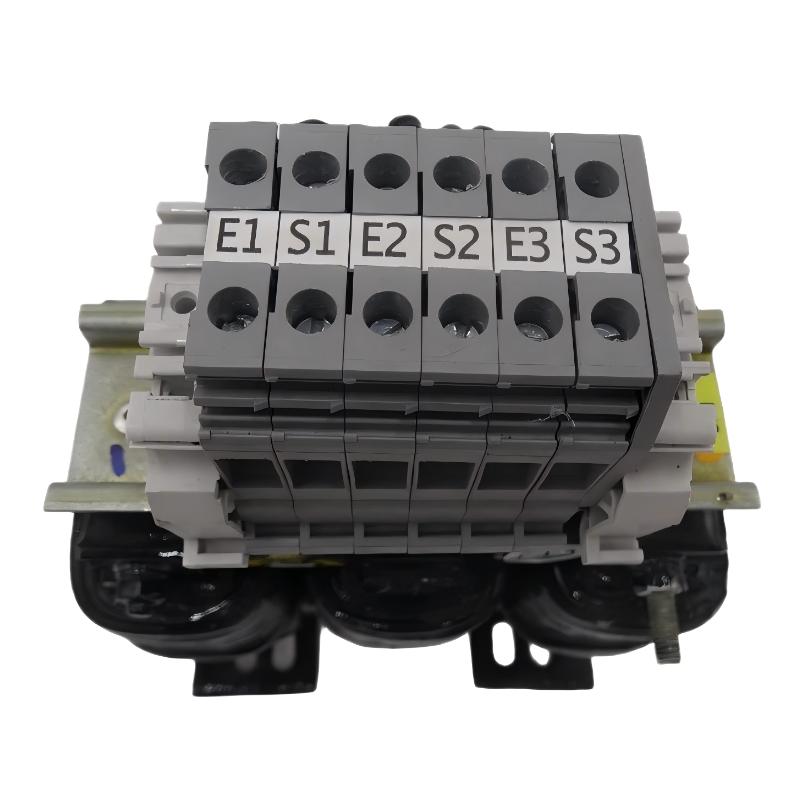

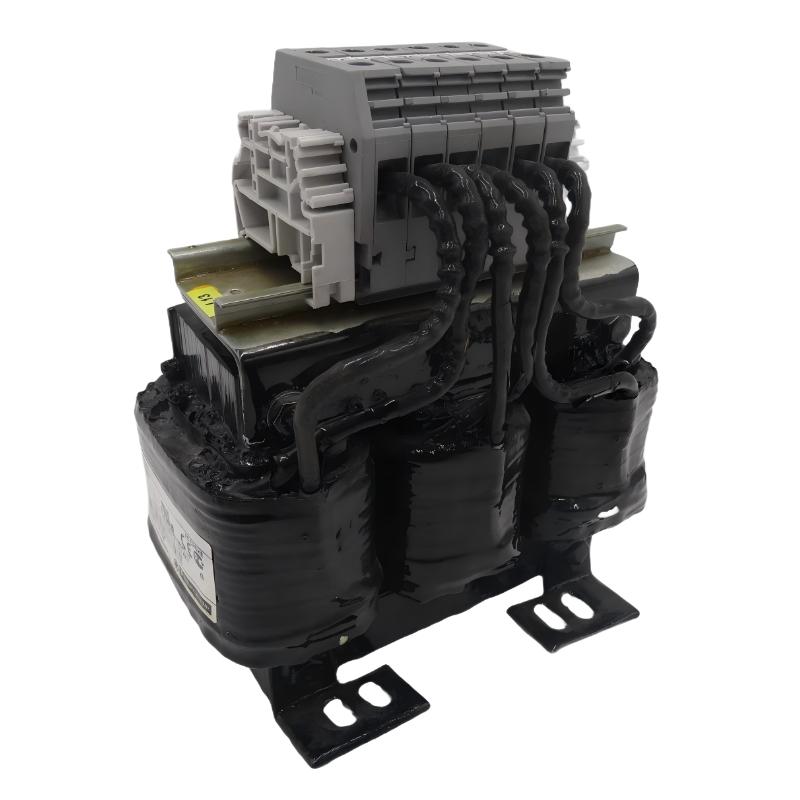

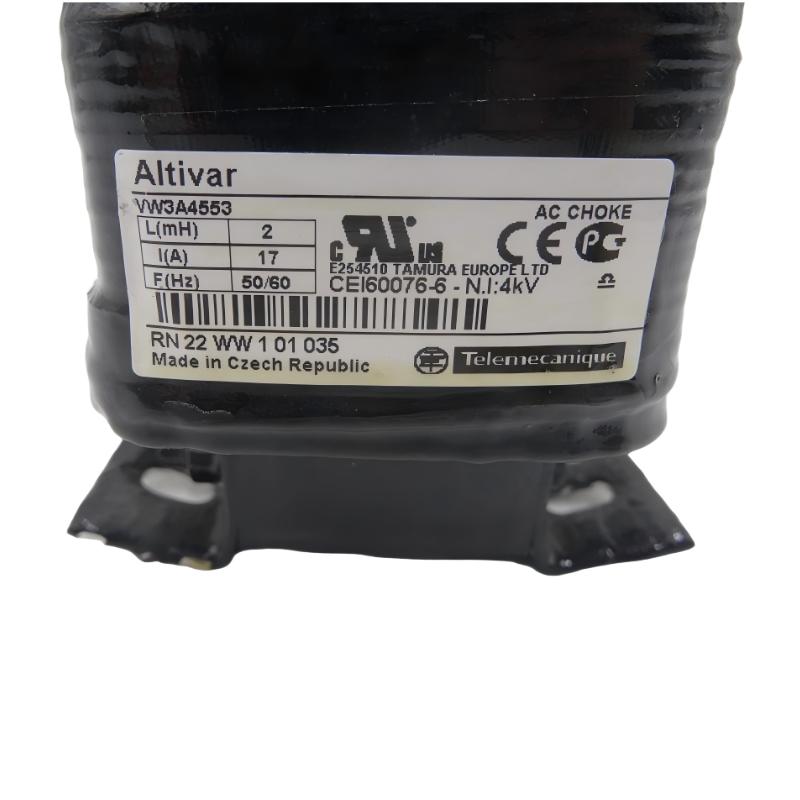

1. What is the main function of the VW3A4553 Line/Motor Choke?
The VW3A4553 is used as a line-side or motor-side choke in industrial motor drive systems. By adding inductance to the electrical circuit, the choke helps limit rapid changes in current and can reduce certain electrical disturbances and current peaks. In variable speed drive applications, it can improve the electrical operating conditions of the power or motor circuit and help reduce the influence of current fluctuations on other equipment connected to the system. Whether it should be installed on the line side or motor side depends on the overall drive configuration, motor characteristics, cable conditions, power quality requirements, and the intended electrical function. The two installation positions should not be treated as interchangeable without checking the system requirements.

2. Can the VW3A4553 be installed on the input side of a variable speed drive?
When the application requires a line-side choke, the VW3A4553 can be used as part of the input-side arrangement of a suitable drive system. When installed on the line side, the choke can help improve the input current characteristics of the drive and reduce certain current disturbances between the drive and the upstream power network. Before installation, the choke’s rated current, voltage, frequency, and connection requirements should be checked against the variable speed drive and the electrical system. The upstream circuit protection should also be correctly selected. The installation position should be determined from the complete electrical design rather than simply based on the physical appearance or model number of the choke.

3. What is the purpose of using the VW3A4553 on the motor side?
When installed on the motor side, the choke can help improve the electrical conditions between the variable speed drive and the motor. The output of a variable speed drive contains rapidly switching voltage components, and certain installations may require additional inductive impedance to reduce their influence on the motor circuit. This can be particularly relevant in systems with long motor cables, specific motor requirements, or increased sensitivity to electrical interference. A motor-side choke can help reduce certain high-frequency electrical effects and improve the operating conditions seen by the motor. The actual effect depends on factors such as drive switching characteristics, motor cable length, motor type, grounding arrangement, and the overall design of the drive system.

4. Which parameters should be checked when using the VW3A4553 with a variable speed drive?
The choke’s rated current, voltage, frequency, and intended installation position should be checked carefully before connecting it to a variable speed drive. The rated current of the choke must be suitable for the motor’s normal operating current and the actual load conditions. If the current exceeds the appropriate rating for an extended period, excessive heating may occur and the reliability of the component may be affected. The wiring between the drive, choke, and motor must also follow the intended circuit configuration. For motor-side applications, motor cable length and drive output characteristics should be considered. If the system has significant current distortion, electrical interference, or power-quality problems, measurements should be performed before selecting additional filtering or inductive components.

5. How should heat dissipation be managed when installing the VW3A4553?
A choke produces some power losses and heat during normal operation, so adequate ventilation and heat dissipation should be provided during installation. The component should be installed with sufficient clearance around it according to the applicable installation requirements, and its natural cooling paths should not be blocked. It should also be positioned appropriately relative to other high-temperature components inside the control cabinet. When several variable speed drives, chokes, contactors, or other power devices are installed together, the cabinet layout should prevent excessive heat concentration. After commissioning, the operating temperature can be checked under normal load. If the temperature is significantly higher than expected, the actual load current, ambient temperature, cabinet ventilation, electrical connections, and component selection should all be investigated.

6. What should be checked if the VW3A4553 produces excessive noise or vibration?
A choke may produce a certain level of electromagnetic noise during normal operation, but unusual humming, vibration, or a sudden increase in noise should be investigated. First, check whether the operating current is within the expected range and whether the variable speed drive is producing abnormal current fluctuations. The mechanical mounting should then be inspected to ensure that all fixing points are secure and that the choke is not experiencing mechanical resonance. Electrical terminals and cable connections should also be checked for proper tightening. If abnormal noise is accompanied by excessive temperature, unusual odor, insulation problems, or drive protection trips, the system should be stopped and inspected further. Continued operation under abnormal conditions may increase stress on the choke and other components in the drive system.

7. Can the VW3A4553 solve all harmonic problems in a variable speed drive system?
No. A line or motor choke can help improve certain current characteristics and reduce specific electrical disturbances, but it should not be considered a complete solution for every harmonic problem. Harmonic distortion is affected by the variable speed drive topology, load characteristics, source impedance, electrical system capacity, and other nonlinear loads connected to the same network. If significant harmonic distortion is suspected, the electrical system should first be measured to identify the magnitude and main sources of the harmonics. Based on the measurement results, an appropriate combination of chokes, harmonic filters, passive filters, active filters, or other power-quality equipment may be required. In systems containing multiple drives, the combined effect of several nonlinear loads should also be considered rather than evaluating one drive in isolation.

8. What should be checked when installing or replacing the VW3A4553?
Before installing or replacing the VW3A4553, the associated drive system should be safely stopped and electrically isolated in accordance with the applicable site safety procedures. When removing an existing component, the original wiring arrangement and installation position should be recorded to prevent incorrect reconnection. Before installation, verify the model, electrical ratings, terminals, and intended connection method. The component should also be inspected for mechanical damage that may have occurred during transportation or storage. After installation, all electrical connections should be checked for secure termination, and cable insulation and grounding conditions should be verified. During the first startup, monitor operating current, temperature, abnormal noise, vibration, and variable speed drive status. Once stable operation has been confirmed, the system can gradually be returned to its normal operating load.
