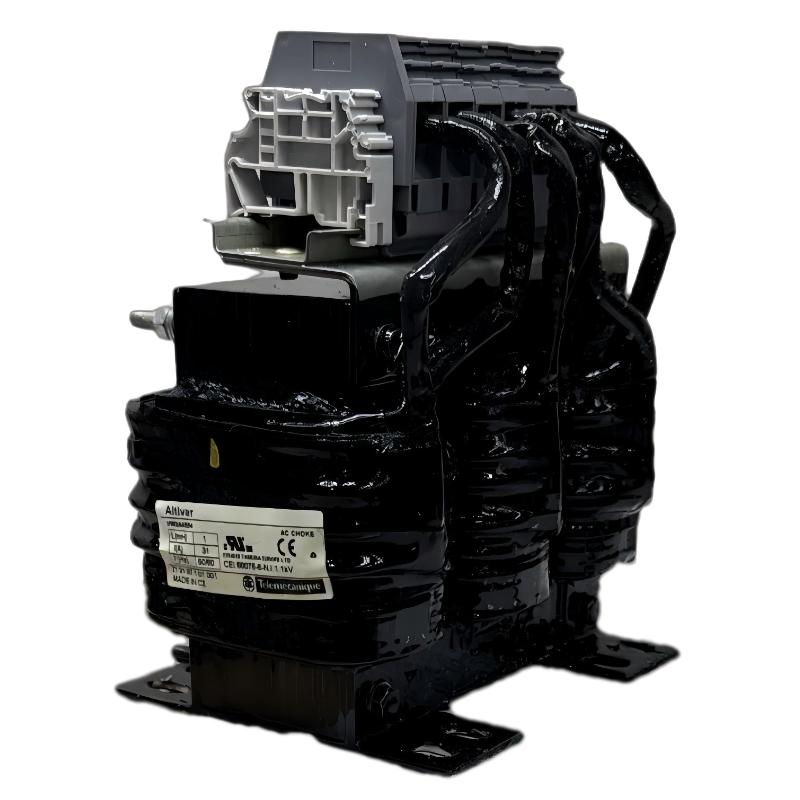

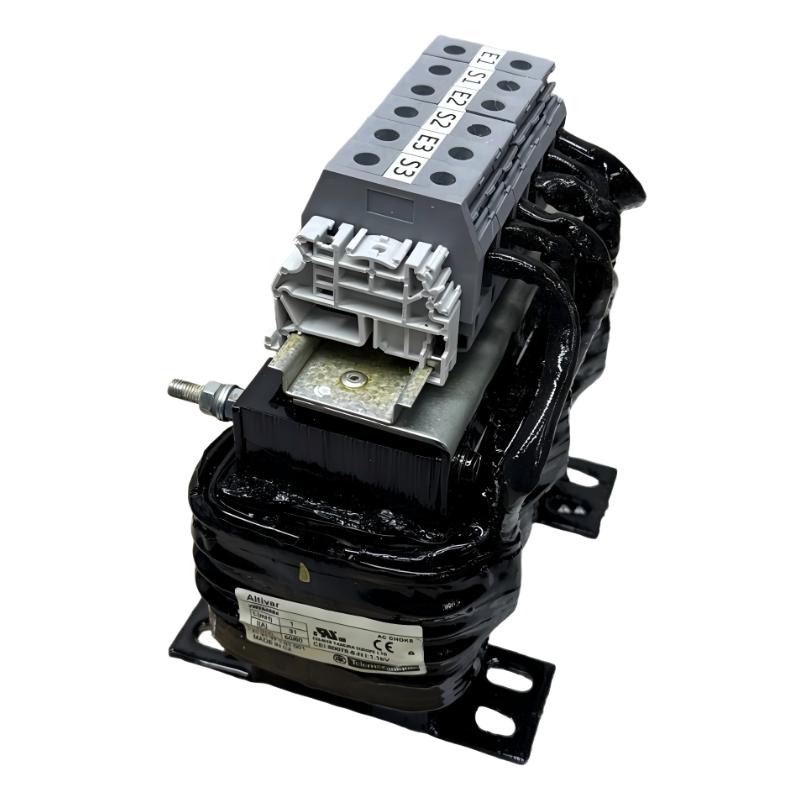

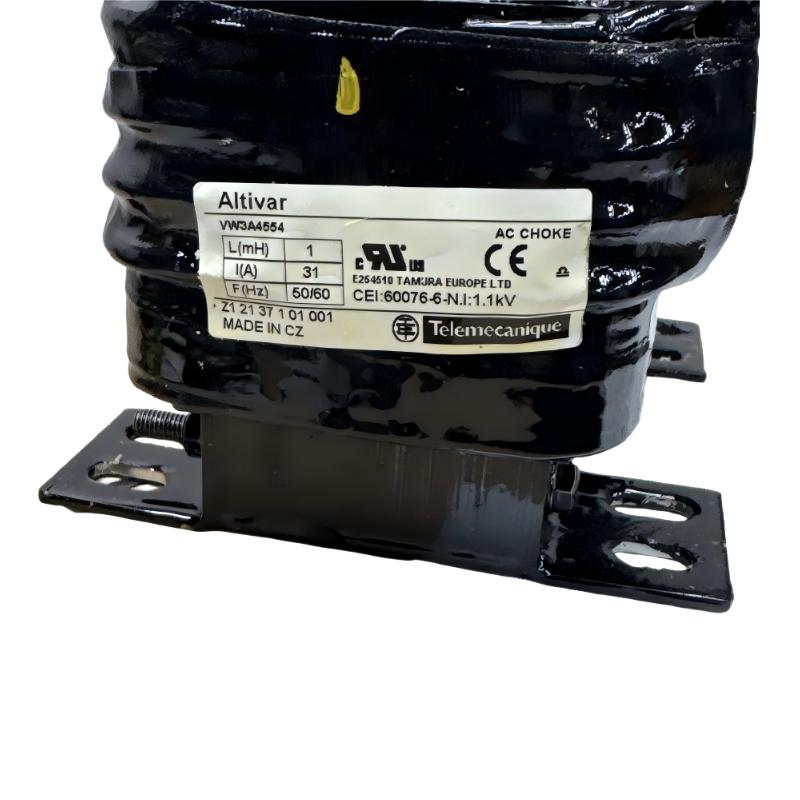

1. What is the main function of the VW3A4554 Line/Motor Choke?
The VW3A4554 is a line/motor choke designed for use in industrial motor drive systems. Its main function is to introduce additional inductive impedance into the electrical circuit, helping limit rapid current changes and reduce certain electrical disturbances. Depending on the system configuration, it can be used on either the line side or motor side of a suitable drive system. On the line side, it can help improve the electrical conditions between the drive and the incoming power supply. On the motor side, it can help reduce the influence of rapid output current and voltage changes on the motor circuit. The correct application depends on the drive configuration, motor characteristics, cable arrangement, and electrical system requirements.

2. What should be considered when selecting the VW3A4554 for a variable speed drive?
The most important factors are the drive system voltage, operating current, frequency, motor characteristics, and intended installation position. The choke must have an appropriate electrical rating for the actual operating conditions. The motor’s rated current should be compared with the applicable choke rating, while the drive’s input or output characteristics should also be considered. For motor-side applications, motor cable length can be particularly important because longer cables may increase the electrical stress between the drive and motor. The load type should also be considered because high-inertia or frequently starting loads can create different operating conditions from continuously running loads. Proper selection should therefore be based on the complete drive system rather than one electrical parameter alone.

3. Can the VW3A4554 be installed on the input side of a variable speed drive?
When the electrical design requires a line-side choke, the VW3A4554 can be used in an appropriate drive input circuit. A line-side choke can help reduce certain current disturbances and improve the electrical interaction between the variable speed drive and the upstream power supply. Before installation, the supply voltage, operating current, frequency, and connection arrangement must be checked to ensure compatibility. The upstream circuit breaker, fuses, contactors, and cables should also be correctly selected. The choke should be installed according to the intended electrical configuration, with correct phase connections and secure terminals. It should not be connected to the input side simply because it is physically suitable; the electrical function required by the system must be confirmed first.

4. What benefits can the VW3A4554 provide when installed on the motor side?
When installed between a variable speed drive and a motor, the VW3A4554 can help improve the electrical conditions of the motor circuit by adding inductive impedance. This can be useful in applications where rapid switching effects from the drive may have a greater influence on the motor or motor cable. It can help reduce certain current and voltage variations and may improve the operating environment of the motor-side circuit. This type of application can be especially relevant when long motor cables or particular motor characteristics are present. However, the choke does not replace all forms of motor protection or output filtering. The complete motor circuit, including cable length, motor insulation characteristics, drive settings, grounding, and switching frequency, should be evaluated when determining whether a motor-side choke is appropriate.

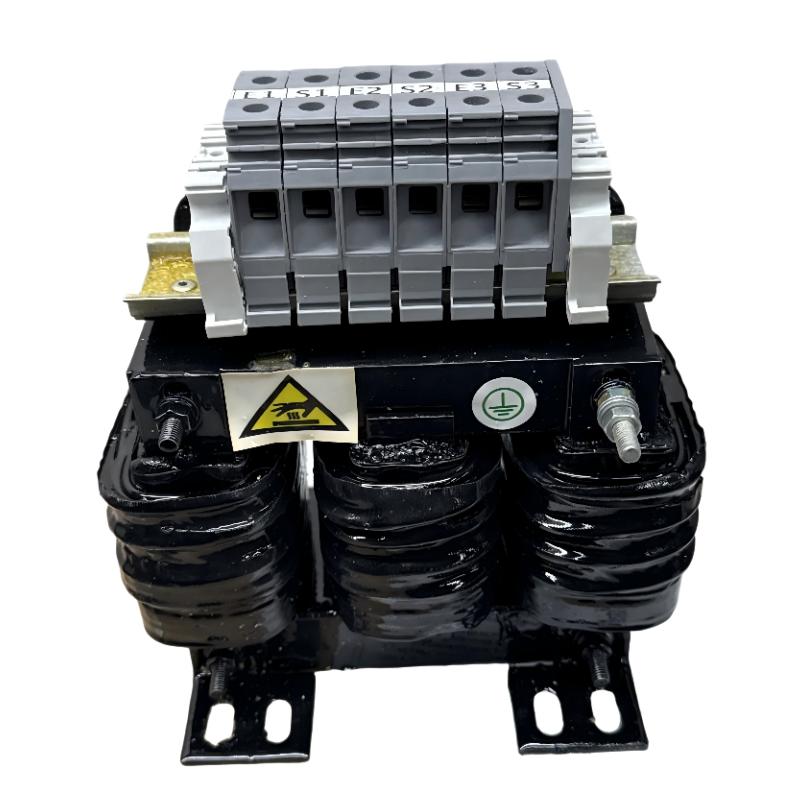

5. How should the VW3A4554 be installed inside a control cabinet?
The VW3A4554 should be securely fixed inside the control cabinet using an appropriate mounting arrangement and should be positioned so that natural cooling is not restricted. Adequate spacing should be maintained around the component to allow heat generated during operation to dissipate effectively. It should not be installed directly against other high-temperature components if this could cause excessive local heating. The electrical cables should also be routed carefully to avoid unnecessary mechanical stress on the terminals. All phase connections must be correctly identified and securely tightened. After installation, the mechanical fixing and electrical connections should be checked before energizing the system. A well-organized cabinet layout can also make future inspection and maintenance easier.

6. What can cause the VW3A4554 to become excessively hot during operation?
Excessive temperature can be caused by several factors, including operating current that is too high, insufficient cabinet ventilation, high ambient temperature, incorrect electrical selection, or poor electrical connections. The first step should be to measure the actual operating current and compare it with the appropriate rating of the choke. If the current is within the expected range, the cabinet temperature and cooling conditions should then be checked. Loose terminals can also create additional electrical losses and localized heating, so all connections should be inspected carefully. If the component is repeatedly operating at an unusually high temperature despite normal current and adequate ventilation, the complete drive configuration should be reviewed to determine whether the selected choke is suitable for the actual application.

7. Can the VW3A4554 eliminate harmonics from a drive system?
The VW3A4554 can help improve certain current characteristics, but it should not be considered a complete harmonic elimination solution. Variable speed drives naturally produce harmonic components because of their power conversion process, and the overall harmonic level depends on the drive topology, load, electrical network impedance, and other nonlinear equipment connected to the same supply. A line/motor choke may reduce certain current disturbances and can contribute to improved power quality, but severe harmonic problems may require dedicated harmonic filtering equipment. If harmonic distortion is a concern, measurements should be taken under actual operating conditions to determine the magnitude and frequency of the distortion. The appropriate combination of line chokes, filters, or other power-quality solutions can then be selected based on the measured results.
