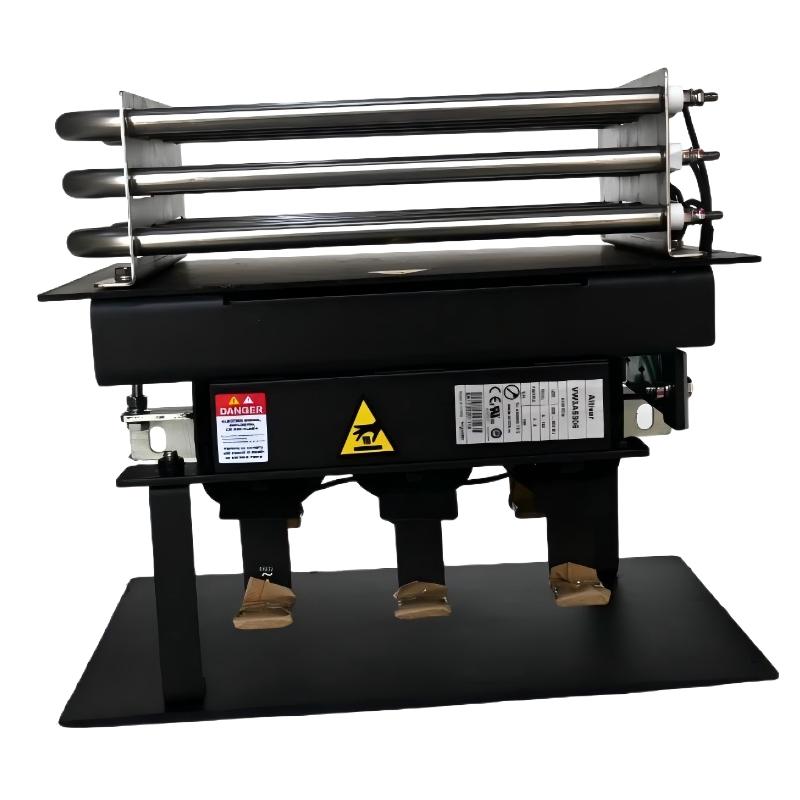

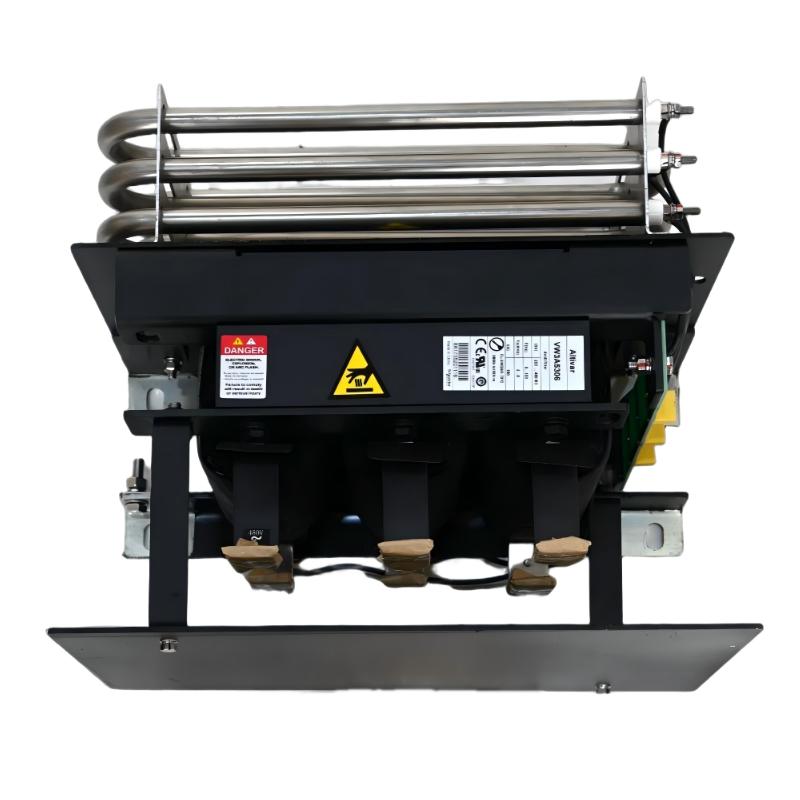

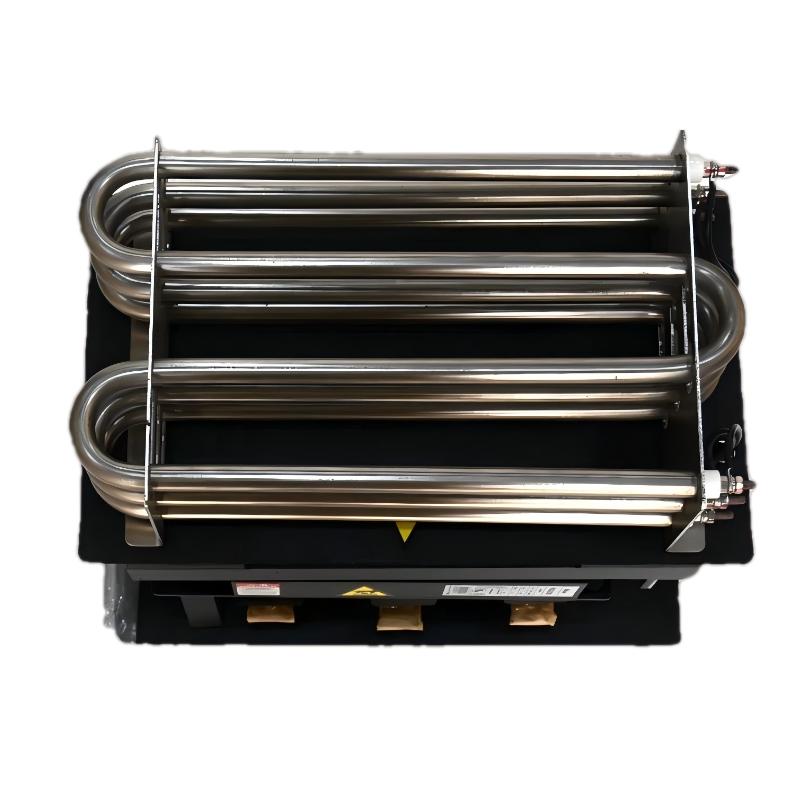

1. What is the main function of the VW3A5306 dv/dt Filter?
The VW3A5306 is an output-side dv/dt filter designed for variable speed drive systems. Its main purpose is to reduce the rate at which the drive output voltage changes and help limit the electrical stress applied to the motor. Modern variable speed drives use high-speed switching technology to control motor speed and torque, which can produce rapid voltage transitions at the drive output. Under certain conditions, particularly with long motor cables, these voltage transitions can result in increased voltage peaks and electrical stress at the motor terminals. The VW3A5306 helps moderate these effects and provides a more suitable electrical environment for the motor and motor cable.

2. Where should the VW3A5306 be installed?
The VW3A5306 should be installed on the output side of the variable speed drive, between the drive and the motor. The drive output is connected to the filter input, while the filter output is connected to the motor. It should not be installed on the incoming power supply side of the variable speed drive because its intended function is to condition the drive’s output waveform. Correct installation is important for achieving the expected filtering performance. The three-phase connections must follow the terminal markings, and the power cables should be properly selected and securely connected. Before installation, the complete drive, filter, motor, and cable arrangement should be reviewed to ensure that the filter is being used in the appropriate position.

3. Why is a dv/dt filter useful in a variable speed drive system?
A dv/dt filter is useful because the output of a variable speed drive contains rapidly changing voltage pulses. These pulses are a normal part of PWM motor control, but they can create additional electrical stress depending on the motor, cable length, grounding arrangement, and drive switching characteristics. A high dv/dt can contribute to increased voltage stress at the motor terminals and place additional demands on motor insulation. By reducing the rate of voltage change, the VW3A5306 helps moderate these effects. This can improve the operating conditions of the motor circuit and reduce the possibility of problems associated with excessive voltage transitions, particularly in applications where the motor is located some distance from the drive.

4. Can the VW3A5306 be used with long motor cables?
The VW3A5306 can be used in drive systems where longer motor cable lengths create increased electrical stress, provided that the complete system remains within the applicable electrical and installation limits. Long motor cables have distributed capacitance and inductance, which can interact with the fast switching waveform generated by the variable speed drive. This interaction can produce voltage reflections and increase the peak voltage seen at the motor terminals. A dv/dt filter reduces the speed of the voltage transitions and can therefore help control these effects. However, installing a filter does not mean that motor cable length can be increased without restriction. The allowable cable length depends on the drive, motor, cable construction, grounding, installation method, and system configuration.

5. How does the VW3A5306 help protect motor insulation?
The VW3A5306 can reduce the electrical stress placed on motor insulation by moderating rapid voltage transitions generated by the variable speed drive. When a PWM drive switches rapidly, voltage pulses travel through the motor cable toward the motor. Depending on cable length and electrical characteristics, these pulses can create higher voltage peaks at the motor terminals. Repeated exposure to high electrical stress can contribute to insulation aging over time. By reducing dv/dt and moderating certain voltage peaks, the filter helps provide a less severe electrical environment for the motor insulation system. It should still be used together with a motor that is properly rated for variable speed drive operation and installed according to the applicable motor and drive requirements.

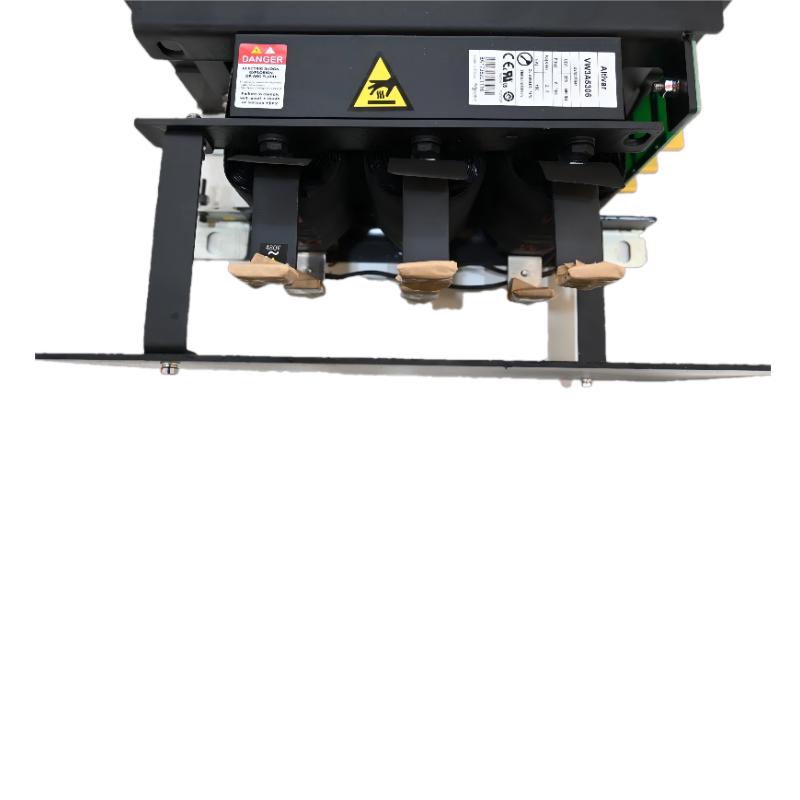

6. What should be checked when wiring the VW3A5306?
Before wiring the VW3A5306, the variable speed drive should be safely stopped, isolated, and verified as de-energized. The filter must be connected on the drive output side, with the drive-side and motor-side terminals correctly identified. The three phases should be connected according to the terminal markings and the approved electrical design. Power cables must be appropriately rated for the voltage and current of the application, and all terminals should be securely tightened. The grounding arrangement should also be checked carefully. After wiring, inspect the complete circuit for loose connections, damaged insulation, incorrect phase connections, and possible short circuits. Initial commissioning should include monitoring the drive output current, motor operation, filter temperature, and any drive protection alarms.

7. What can cause excessive heating of the VW3A5306 during operation?
Excessive heating can result from several conditions, including excessive operating current, overload, insufficient ventilation, high ambient temperature, poor electrical connections, or an unsuitable application. The first step should be to verify the actual current flowing through the filter and compare it with the applicable system requirements. If the current is normal, inspect the control cabinet ventilation and ensure that heat can dissipate effectively. Loose terminals can create additional electrical resistance and localized heating, so all power connections should be checked. The surrounding equipment should also be inspected to determine whether another heat-generating component is increasing the local temperature. If abnormal heating continues despite normal current and adequate ventilation, the complete drive and motor configuration should be reviewed.

8. How should the VW3A5306 be troubleshot if the motor drive system develops a fault?
