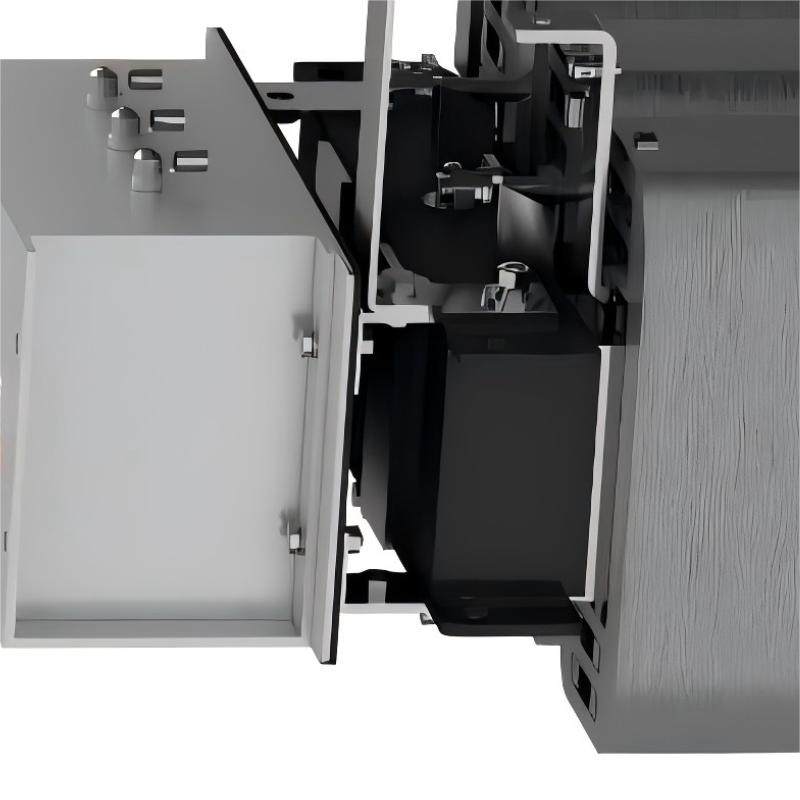

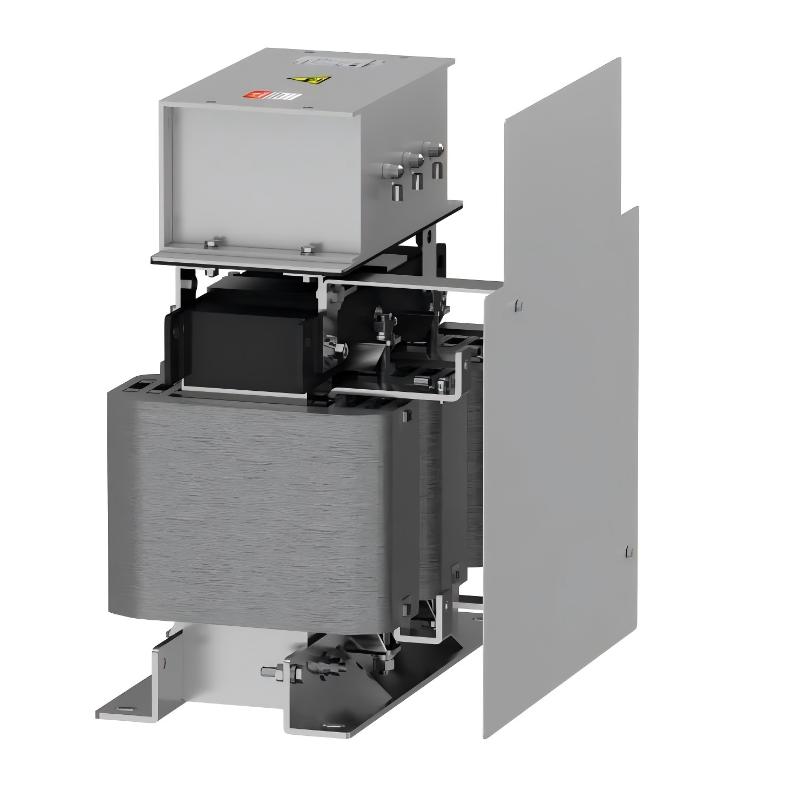

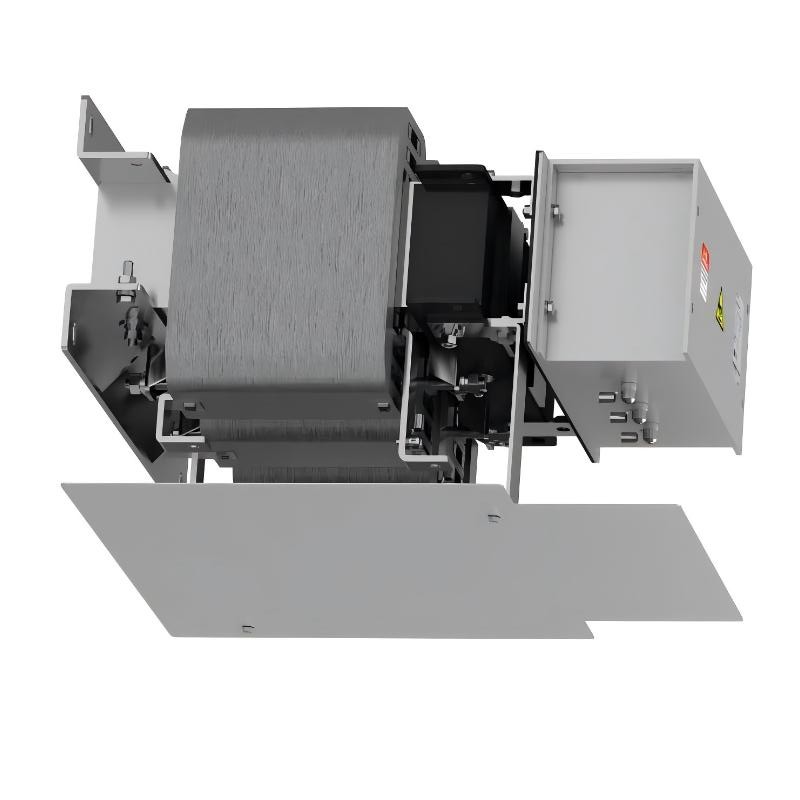

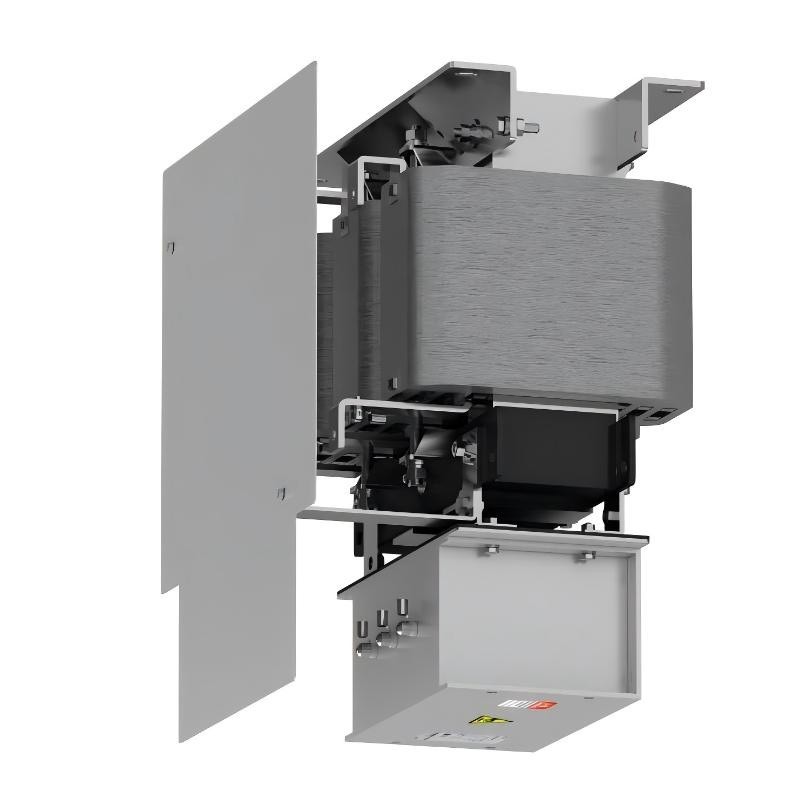

1. What is the main function of the VW3A5406 Sinus Filter?
The VW3A5406 is a sinusoidal output filter designed for installation between a variable speed drive and the motor. Its primary purpose is to improve the drive output waveform by reducing the high-frequency components and rapid voltage transitions generated by PWM switching. Compared with a conventional dv/dt filter, a sinus filter provides a more significant improvement to the motor-side voltage waveform, producing an output that is much closer to a sinusoidal waveform. This can reduce electrical stress on the motor, improve motor operating conditions, and reduce the effects of high-frequency voltage pulses. It is particularly useful in applications where the motor is located far from the drive or where motor insulation and output waveform quality are important considerations.

2. Where should the VW3A5406 be installed in a drive system?
The VW3A5406 should be installed between the output of the variable speed drive and the motor. The typical connection is from the three-phase drive output to the filter input, followed by the filter output to the motor. It should not be installed on the incoming power supply side of the drive because its purpose is to filter the PWM waveform generated by the drive output. During installation, the input and output sides of the filter must be correctly identified, and all three-phase power connections must follow the terminal markings. Because the filter directly affects the electrical waveform delivered to the motor, its position, wiring, grounding, and overall system configuration should be verified before commissioning.

3. What is the difference between the VW3A5406 Sinus Filter and a dv/dt filter?
A dv/dt filter primarily reduces the rate of change of the drive output voltage and helps limit rapid voltage transitions and motor-side electrical stress. A sinus filter provides a more comprehensive filtering effect by significantly smoothing the PWM output waveform and reducing high-frequency components and voltage peaks. The VW3A5406 therefore provides a motor-side waveform that is closer to a conventional sinusoidal voltage. This can be beneficial when the application requires improved motor voltage quality, reduced insulation stress, or better performance with long motor cables. The appropriate filter type should be selected according to the drive, motor, cable length, operating conditions, and specific electrical requirements of the installation.

4. Why is the VW3A5406 suitable for long motor cable applications?
Long motor cables have distributed capacitance, inductance, and impedance characteristics that interact with the fast PWM pulses generated by a variable speed drive. These interactions can produce voltage reflections, increased voltage peaks, and high-frequency electrical disturbances at the motor terminals. The VW3A5406 filters the drive output and reduces these rapidly changing voltage components, providing a smoother waveform to the motor. This helps reduce the electrical effects associated with long cable runs and can improve the operating conditions of the motor. The actual permissible cable length must still be determined according to the drive, motor, cable specifications, grounding arrangement, installation method, and overall system requirements. A sinus filter does not mean that motor cable length can be increased without limitation.

5. What benefits does the VW3A5406 provide to the motor?
The VW3A5406 improves the voltage waveform supplied to the motor and reduces high-frequency components and rapid voltage transitions associated with PWM drive output. A smoother motor-side waveform can reduce electrical stress on the motor insulation system and may also reduce certain high-frequency electrical noise effects. These benefits can be particularly important in long motor cable applications, where voltage reflection can increase motor terminal voltage peaks. The sinusoidal output can also provide improved operating conditions for certain motors used with variable speed drives. However, the motor must still be correctly selected for the applicable voltage, frequency, load, and insulation requirements. The filter is intended to complement proper motor selection rather than replace it.

6. What installation and wiring precautions should be followed for the VW3A5406?
Before installation, the variable speed drive and associated equipment should be safely stopped, isolated, and verified as de-energized according to the applicable electrical safety procedures. The VW3A5406 must be installed between the drive output and motor, with the filter input and output sides correctly identified. The three-phase power connections must follow the terminal markings, and all terminals should be securely tightened. Appropriate power cables should be selected according to the system voltage and operating current, and the grounding connection must be properly established. After wiring, inspect the complete circuit for loose terminals, insulation damage, incorrect connections, and grounding problems. During initial commissioning, gradually increase the load while monitoring drive output current, motor operation, and filter temperature to confirm stable system operation.

7. What should be checked if the VW3A5406 becomes excessively hot during operation?
A sinus filter produces some power loss and heat during normal operation, so a certain amount of temperature rise is expected. If the operating temperature becomes unusually high, the actual operating current and load should be checked first to determine whether the system is experiencing continuous overload. The ambient temperature and ventilation conditions should then be inspected to make sure heat can dissipate effectively. Loose power terminals can also increase contact resistance and cause localized heating, so all electrical connections should be checked carefully. If the current, ambient temperature, and connections are normal but excessive heating continues, the drive output settings, motor load, and compatibility between the filter and the complete drive system should be reviewed. Continuous operation under abnormal temperature conditions should be avoided until the cause has been identified.

8. How should the VW3A5406 be troubleshot if the motor operates abnormally?
If the motor fails to start, develops excessive current, produces unusual noise, or operates unstably after the VW3A5406 is installed, the filter input and output wiring should be checked first. Verify that all three phases are correctly connected and that there are no open circuits, short circuits, or loose terminals. The variable speed drive should then be checked for overcurrent, overvoltage, or other protection alarms and its fault history should be reviewed. The motor cable, grounding arrangement, and motor insulation should also be inspected. For the filter itself, check for excessive temperature, unusual noise, physical damage, or other visible abnormalities. If the wiring and hardware are normal, review the drive output frequency, carrier frequency, motor parameters, load conditions, and filter compatibility. Troubleshooting should consider the drive, sinus filter, motor cable, and motor as one complete system rather than replacing a single component without identifying the actual cause.
