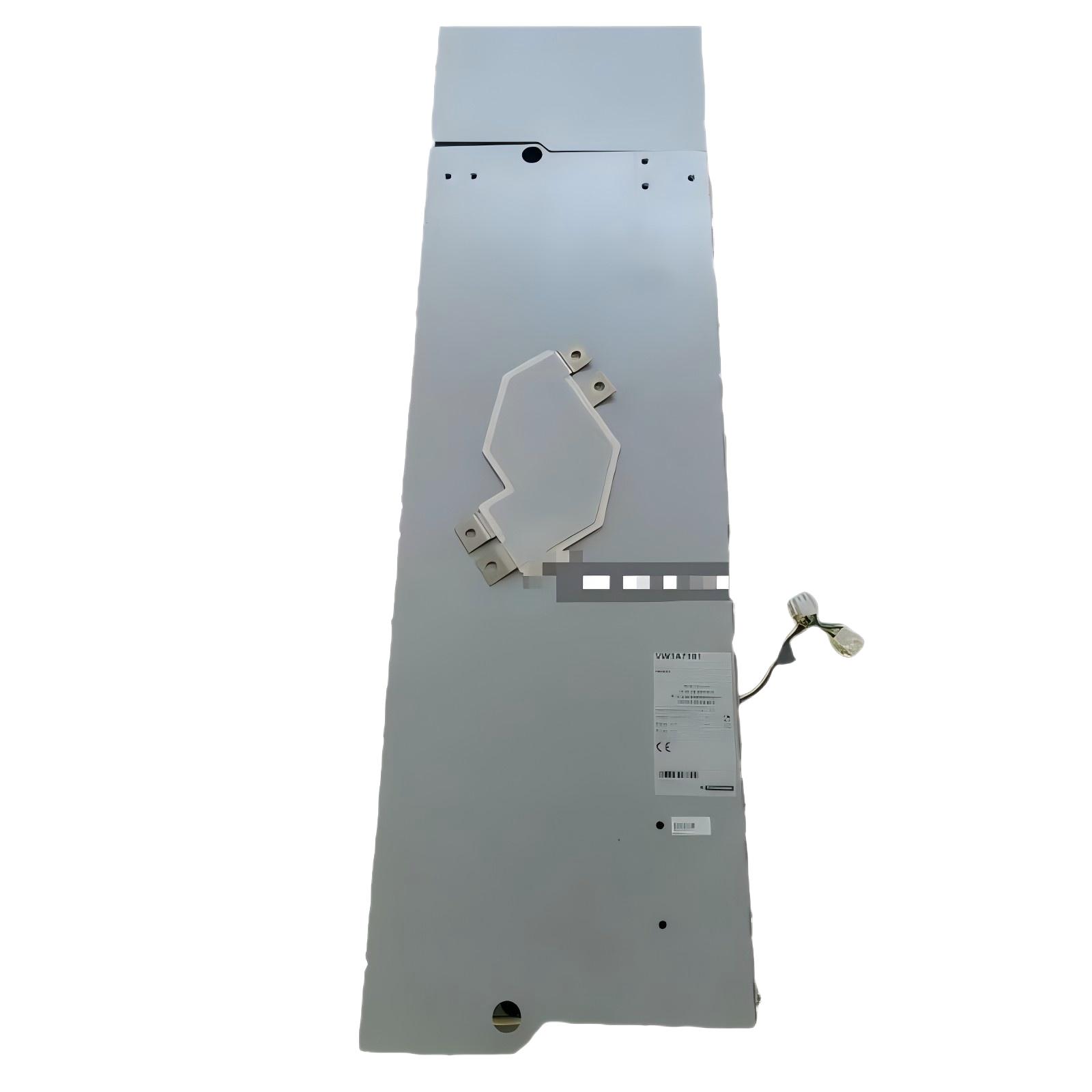

1. What is the main function of VW3A7101 in a variable speed drive system?
VW3A7101 is designed to manage regenerative energy generated by a motor during deceleration, rapid stopping, or other braking conditions. When a motor changes from motoring operation to regenerative operation, the electrical energy returned from the motor causes the DC bus voltage of the drive to increase. If this energy cannot be absorbed by the normal drive system, the DC bus voltage may rise beyond its permissible level and cause a DC overvoltage fault. VW3A7101 provides a controlled path for this excess energy to be transferred to an external braking resistor, where the electrical energy is converted into heat. This allows the drive to achieve faster and more controlled deceleration and is particularly useful for high-inertia machinery, frequent stopping applications, lifting equipment, conveyors, centrifuges, and other industrial systems requiring dynamic braking.

2. What is the maximum braking power of VW3A7101?

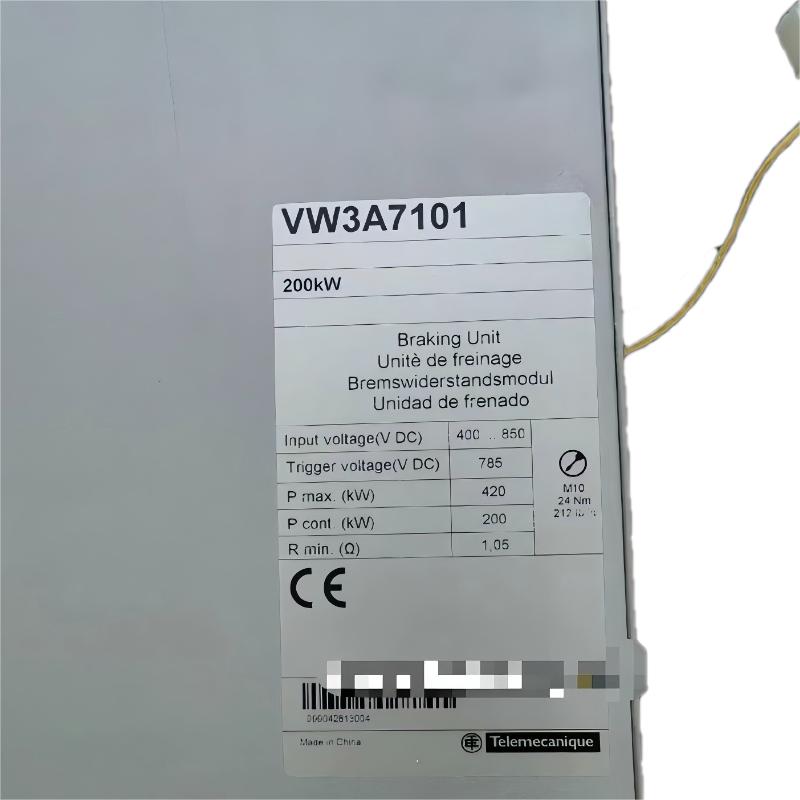

The maximum braking power of VW3A7101 is 420 kW under the specified operating conditions. However, 420 kW should not be considered as a continuous braking rating. The allowable braking power depends on the duty cycle and the amount of time that regenerative energy must be dissipated. For example, the unit can support approximately 420 kW at a 5% duty cycle, 320 kW at a 15% duty cycle, and 250 kW at a 50% duty cycle. When selecting the braking unit and resistor for an actual installation, engineers should evaluate motor power, load inertia, deceleration time, stopping frequency, and the expected regenerative energy. Correctly matching these factors is important because excessive or continuous braking can produce significant thermal stress on the braking system.

3. What braking resistor should be used with VW3A7101?
The minimum permitted braking resistor value for VW3A7101 is 1.05 Ω. The selected resistor should not have a resistance value below this limit because a resistance that is too low can result in excessive braking current and place excessive electrical stress on the braking unit and DC bus circuit. In addition to resistance value, the resistor must have sufficient power and thermal capacity for the actual braking duty cycle. A resistor that satisfies the resistance requirement but has insufficient thermal capacity may overheat during repeated braking operations. For demanding applications, the resistor selection should therefore be based on both instantaneous braking power and average energy dissipation over the complete operating cycle.

4. At what DC voltage does VW3A7101 activate its braking function?
VW3A7101 has a braking activation threshold of approximately 785 V DC ±1%. During regenerative operation, the motor returns energy to the drive’s DC bus, causing the DC bus voltage to increase. When the voltage reaches the specified braking threshold, the braking unit operates to direct the excess energy toward the braking resistor. This prevents the DC bus voltage from continuing to rise during deceleration. The maximum DC bus voltage is specified as 850 V DC, so correct operation of the braking unit is important for maintaining the voltage within an acceptable range. Incorrect wiring, an unsuitable braking resistor, or insufficient braking capacity can prevent the system from handling regenerative energy properly and may result in DC overvoltage faults.

5. How does the thermal protection of VW3A7101 work?
VW3A7101 incorporates thermal protection using a thermal probe to monitor temperature conditions. During braking, regenerative electrical energy is converted into heat through the braking resistor, and this process can generate substantial thermal loading. The braking unit and resistor therefore require suitable ventilation and sufficient heat dissipation. The thermal protection system helps prevent operation from continuing under excessively high temperature conditions. However, thermal protection should not be considered a replacement for proper system design. Engineers should also evaluate ambient temperature, enclosure ventilation, installation conditions, braking frequency, average braking power, and resistor thermal capacity. If the system repeatedly approaches its thermal limits, the braking duty cycle or cooling arrangement should be reviewed.

6. Which Schneider Electric drive series can be used with VW3A7101?
VW3A7101 is intended for use with selected high-power Schneider Electric Altivar drive systems, including Altivar 61, Altivar 61Q, Altivar 71, Altivar 71Q, and applicable Altivar Process ATV900 configurations. Compatibility should always be checked against the specific drive model, voltage class, power rating, and application requirements before installation. The braking unit is not selected solely according to motor power. The drive’s DC bus characteristics, regenerative energy, required deceleration performance, braking resistor specifications, and operating duty must also be considered. For a new installation, the complete drive, braking unit, braking resistor, motor, and load should be evaluated as one braking system rather than treating the braking unit as an independent component.

7. What should be considered when connecting VW3A7101 to the braking resistor?
The connection between VW3A7101 and the braking resistor is a critical part of the braking system because high current can flow through this circuit during regenerative braking. The specified braking resistor connection uses 2 × 95 mm² conductors, and the actual installation should follow the applicable electrical and installation requirements. The cables must have adequate current-carrying capacity, insulation performance, and temperature resistance for the expected braking conditions. Connections should also be properly tightened to minimize contact resistance and localized heating. Cable routing should be planned to reduce unnecessary heat accumulation and to maintain appropriate separation from sensitive control or signal wiring. Before commissioning, the complete braking circuit should be inspected for correct connections, appropriate resistor value, secure terminals, and signs of insulation damage or overheating.

8. How can a VW3A7101 braking fault be diagnosed systematically?
When VW3A7101 does not provide the expected braking performance, troubleshooting should begin with the DC bus voltage and the operating condition of the drive. First, determine whether the DC bus voltage actually rises during deceleration and whether it reaches the braking activation threshold. Next, verify the drive configuration and braking-related parameters to ensure that the braking function is correctly enabled and configured for the application. The wiring between the drive, VW3A7101, and braking resistor should then be inspected carefully, including terminal connections, cable condition, conductor sizing, and circuit continuity. The resistance of the external braking resistor should also be measured after ensuring that the system is safely isolated, and the measured value should be checked against the specified minimum resistance. If the electrical circuit is correct, inspect the thermal protection status and look for evidence of resistor overheating or insufficient ventilation. For repeated DC overvoltage faults, the braking capacity should be compared with the actual load inertia, deceleration time, stopping frequency, and duty cycle. This systematic approach helps distinguish electrical connection problems from incorrect parameter settings, insufficient braking capacity, or thermal limitations.
