1. What is VW3A8306D30 used for in a Modbus communication system?

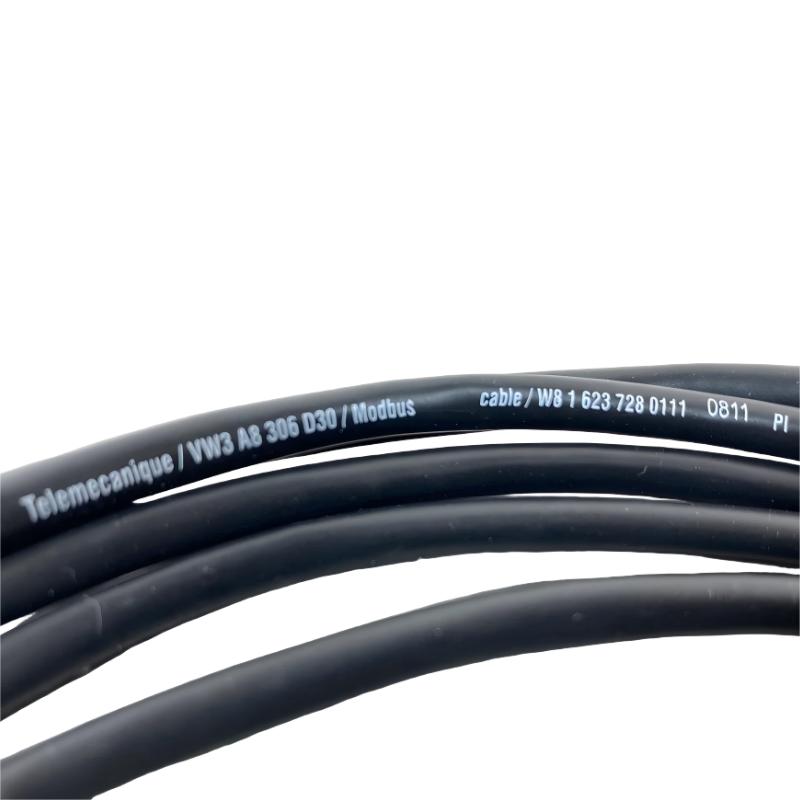

VW3A8306D30 is a dedicated communication connecting cable designed for Modbus serial link applications. It provides a convenient physical connection between compatible equipment using an RJ45 communication interface and equipment requiring individual wire termination. The cable configuration allows the RJ45 connector to be connected directly to the appropriate communication port, while the free-wire end can be connected to the corresponding terminals of another Modbus device. This makes it useful in industrial automation systems involving variable speed drives, soft starters, controllers, and other Modbus-compatible equipment. By using a dedicated connecting cable, installation can be simplified and the possibility of incorrect cable assembly can be reduced.

2. What type of connector does VW3A8306D30 use?

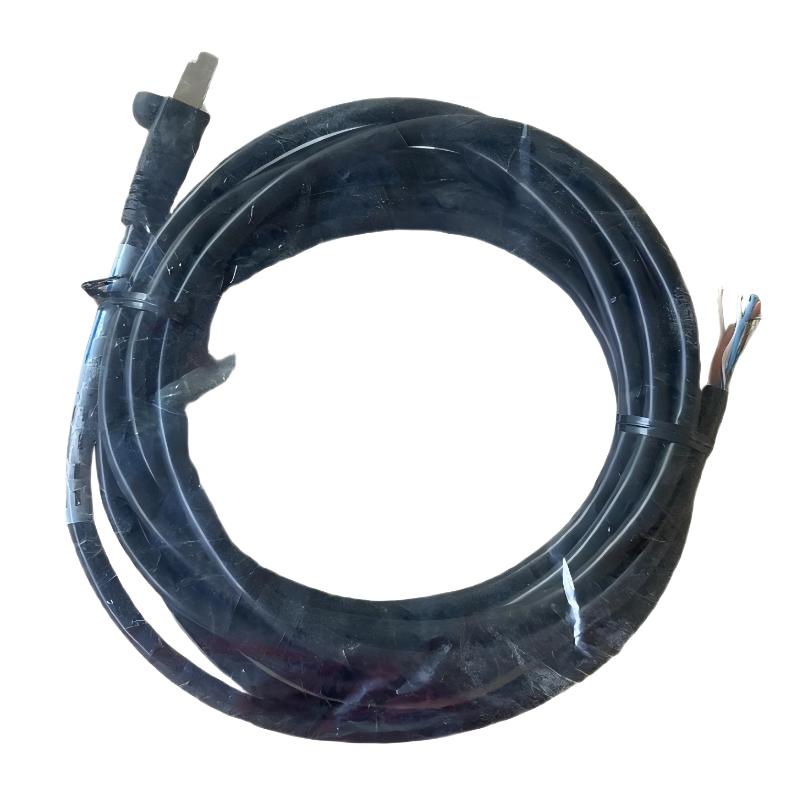

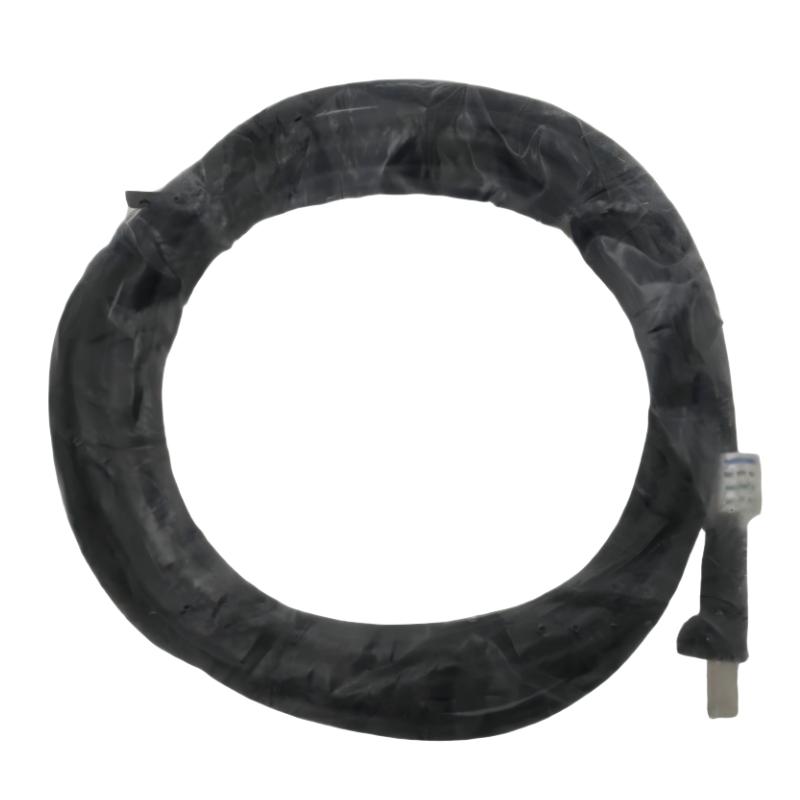

VW3A8306D30 uses a male RJ45 connector on one end and individual free wires on the other end. The RJ45 side is intended to connect to a compatible communication port, while the open-wire side provides direct access to the individual communication conductors. This configuration is particularly useful when the two devices in a Modbus network use different physical connection methods. During installation, the RJ45 connector should be fully inserted and secured in the corresponding communication port. The free wires must then be connected according to the terminal assignment of the specific device. The terminal configuration should always be verified before commissioning because terminal naming and wiring arrangements can differ between equipment models.

3. Which communication protocol is VW3A8306D30 designed for?
VW3A8306D30 is designed primarily for Modbus serial communication and is suitable for RS485-based industrial communication systems. The cable provides the physical connection for transmitting Modbus communication signals between compatible devices. It does not perform protocol conversion, signal amplification, or data processing by itself. Reliable communication therefore depends not only on the cable connection but also on correct configuration of the connected devices. Parameters such as slave address, baud rate, parity, stop bits, and communication mode must be configured consistently between the Modbus master and connected slave devices. Correct RS485 polarity and appropriate network topology are also important for stable communication.

4. How should the free wires of VW3A8306D30 be connected?
The free-wire end of VW3A8306D30 must be connected according to the communication terminal assignment of the equipment being connected. For a typical RS485 Modbus connection, the differential communication conductors must be connected to the corresponding D+ and D− or D1 and D0 terminals. Where required by the equipment, the signal reference conductor should also be connected to the appropriate common terminal. Schneider Electric equipment can use different terminal naming conventions, so the exact wiring diagram for the specific device should be checked before making the connection. Incorrect polarity of the RS485 communication conductors can prevent communication even when all other parameters are correctly configured. After wiring, each terminal should be checked for secure mechanical contact and correct conductor placement.

5. Can VW3A8306D30 be used with Schneider Electric Altivar drives?
VW3A8306D30 is intended for compatible Schneider Electric equipment, including applicable Altivar drive systems using the corresponding Modbus communication interface. It can be useful when a drive with an RJ45 communication port needs to be connected to another Modbus device or a control system using individual communication terminals. Before installation, the exact drive model and communication interface should be checked to confirm compatibility. The cable only provides the physical communication path, so the drive and the other Modbus device must still be configured with compatible communication settings. Addressing, baud rate, parity, stop bits, and master/slave configuration should be verified during commissioning.

6. What should be checked if Modbus communication fails after installing VW3A8306D30?
If communication fails after installing VW3A8306D30, troubleshooting should begin with the physical connection. First, check that the RJ45 connector is correctly inserted and that the free wires are securely connected to the correct terminals. The RS485 differential signal polarity should be checked carefully because reversing the communication conductors can result in complete loss of communication. Next, verify the Modbus communication settings of all connected devices, including baud rate, parity, stop bits, and device address. If several devices are connected to the same RS485 network, the network topology and termination should also be checked. Cable continuity, loose terminals, damaged conductors, electrical interference, and incorrect grounding should also be considered if communication remains unstable.

7. Can the cable be used to connect an RJ45 communication port to a terminal block?
Yes. The RJ45-to-free-wire configuration of VW3A8306D30 makes it suitable for applications where one side of the communication link uses an RJ45 port and the other side requires individual wire connections. The free conductors can be terminated directly on a terminal block or communication terminals according to the wiring requirements of the connected equipment. This can be particularly useful in industrial control cabinets where Modbus communication terminals are provided separately from the main equipment connector. The installer should verify the electrical assignment of every conductor before connection rather than relying solely on the physical appearance of the connector or assuming that all RJ45 ports have identical pin assignments.

8. What installation precautions should be followed when using VW3A8306D30 in an industrial automation system?
The cable should be installed carefully to maintain reliable communication in the electrically noisy environment commonly found in industrial automation systems. Communication wiring should be routed away from high-voltage power cables, motor cables, contactors, switching devices, and other sources of electromagnetic interference wherever possible. The RJ45 connector should not be subjected to excessive pulling, twisting, or mechanical stress. The free-wire terminals should be properly secured to prevent intermittent connections caused by vibration or loose contacts. Before commissioning, verify the conductor assignment, RS485 polarity, communication parameters, and cable continuity. For larger Modbus networks, the overall RS485 topology and termination should also be reviewed. Proper installation is especially important when the cable is used near variable frequency drives, because high-frequency switching noise can otherwise cause communication errors, intermittent data loss, or unstable network operation.
