1. What is the Schneider VW3M8D1AR50 used for?

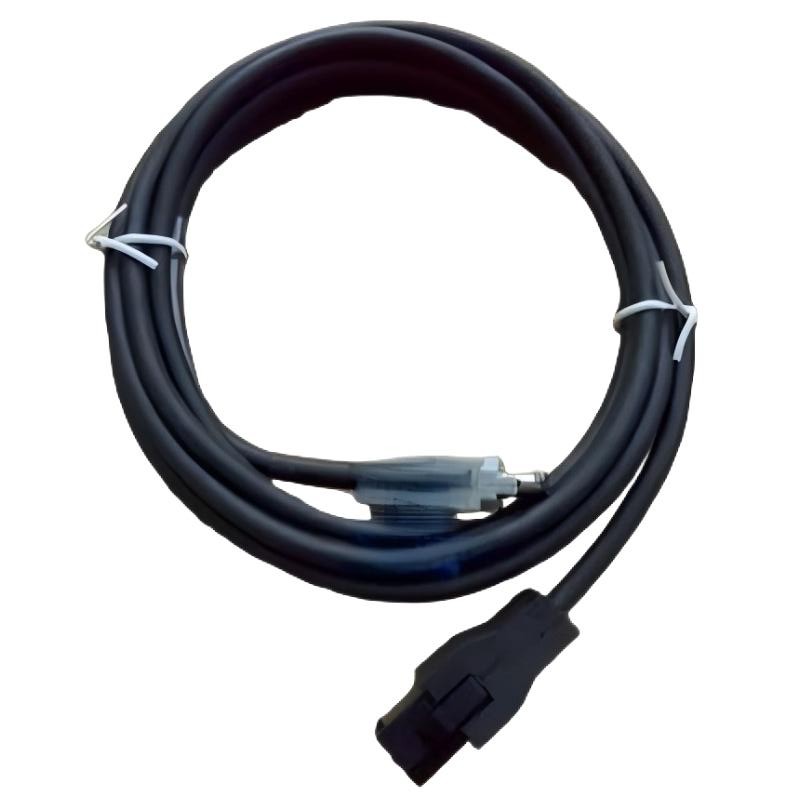

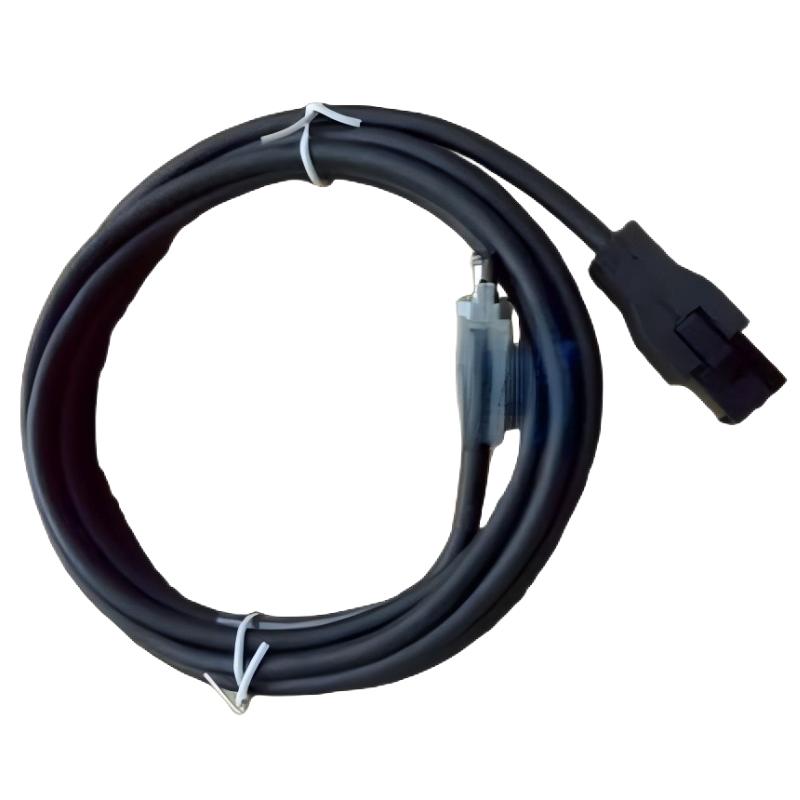

The VW3M8D1AR50 is a dedicated shielded encoder cable designed for BCH2 series servo motors with SinCos single-turn encoders. It provides the feedback connection between the servo motor and a compatible Lexium 28 servo drive. The encoder feedback allows the drive to monitor the actual motor position and operating condition and use this information for closed-loop motion control. Stable encoder feedback is important for accurate positioning, speed regulation, and reliable servo operation. The cable should therefore be selected according to the exact motor, encoder, and drive configuration rather than being treated as a general-purpose signal cable.

2. Which servo motors and drives are compatible with the VW3M8D1AR50?

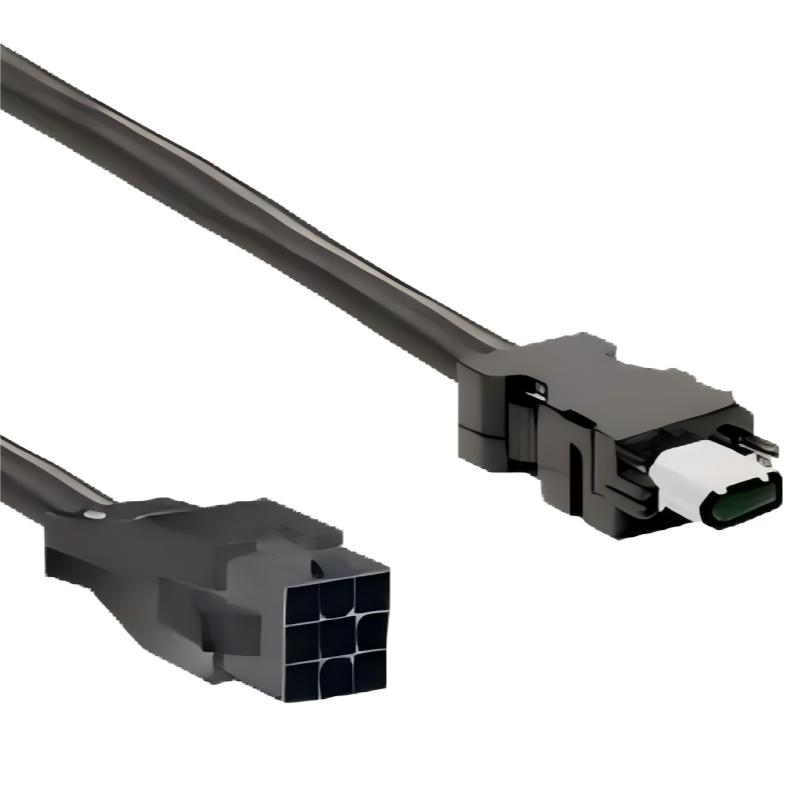

The VW3M8D1AR50 is designed for BCH2.B, BCH2.D, and BCH2.F servo motors and is compatible with the Lexium 28 drive family. It is intended for BCH2 motors equipped with a SinCos single-turn encoder. The cable has specific connection arrangements, including a 6-pin FireWire connector and a 9-pin Molex connector, so compatibility should be confirmed before installation. A cable with a similar appearance or identical length should not automatically be considered a suitable replacement because encoder signal configurations and connector assignments can differ between servo systems.

3. What is the cable length of the VW3M8D1AR50?
The VW3M8D1AR50 has a cable length of 5 meters. This provides greater installation flexibility when the BCH2 servo motor and Lexium 28 servo drive are positioned farther apart within an automation machine. During installation, the cable should be routed according to the actual machine structure without excessive pulling or unnecessary loops. It should also be protected from sharp edges, repeated bending, crushing, and contact with moving mechanical parts. Proper cable routing helps reduce mechanical stress and supports stable encoder feedback during long-term operation.

4. Why does the VW3M8D1AR50 use a shielded construction?
The VW3M8D1AR50 uses a shielded construction because encoder feedback signals can be affected by electromagnetic interference in industrial environments. Servo motors, power cables, switching equipment, contactors, and other electrical devices can generate electrical noise that may interfere with sensitive feedback signals. The shield helps reduce the influence of external interference and supports more reliable signal transmission. Correct installation is equally important. The shielding and grounding should be handled according to the servo system requirements, and the encoder cable should preferably be routed separately from high-power motor cables where practical.

5. What should be checked if the servo drive reports an encoder fault?
If an encoder-related alarm occurs, first check both ends of the VW3M8D1AR50 and make sure the connectors are completely inserted and securely fixed. Inspect the connector contacts for contamination, looseness, oxidation, or physical damage. The cable itself should also be checked for cuts, crushing, abrasion, excessive bending, or other mechanical damage. If the cable appears normal, the BCH2 motor encoder and the Lexium 28 drive feedback interface should be inspected as well. The drive alarm history can provide useful information about when the fault occurred. For intermittent problems, special attention should be given to whether the alarm appears during motor movement or machine vibration.

6. Can a standard signal cable be used instead of the VW3M8D1AR50?
A standard signal cable should not be used as a direct replacement unless its complete electrical and mechanical compatibility has been confirmed. The VW3M8D1AR50 is specifically designed for BCH2 motors with SinCos single-turn encoders and has a defined conductor configuration, shielding structure, and connector arrangement. A general-purpose cable may have different signal characteristics, shielding performance, conductor configuration, or connector assignments. Using an unsuitable replacement could result in encoder alarms, unstable feedback, positioning errors, or abnormal servo operation. When selecting an alternative, the encoder type, signal configuration, connectors, cable construction, and compatibility with the Lexium 28 system should all be verified.

7. How can an intermittent VW3M8D1AR50 cable fault be diagnosed?
Intermittent encoder faults require careful inspection because the problem may not be visible when the machine is stationary. Start by checking the two connectors and verifying that they are properly seated and locked. Then inspect the complete cable route for excessive bending, mechanical friction, crushing, vibration, or pulling. If the servo operates normally when stationary but generates an encoder alarm during movement, the cable and connectors should receive particular attention. Internal conductor damage or unstable contact may only become apparent when the cable moves. The servo drive alarm history, motor encoder condition, and drive feedback interface should also be checked so that a cable fault is not confused with a motor or drive fault.

8. What should be considered when replacing the VW3M8D1AR50?
When replacing the VW3M8D1AR50, first confirm that the replacement is suitable for the BCH2.B, BCH2.D, or BCH2.F servo motor and the corresponding Lexium 28 drive. The SinCos single-turn encoder configuration and both connector interfaces should be verified before installation. It is also important to determine why the original cable failed. Repeated bending, mechanical abrasion, excessive pulling, vibration, poor routing, loose connectors, or electromagnetic interference can contribute to encoder cable problems. If the original installation issue is not corrected, the replacement cable may experience the same failure. After installation, confirm that both connectors are secure, the shielding is properly handled, and the cable route is free from excessive mechanical stress. A controlled servo test should then be performed to verify stable encoder feedback and normal motor operation.
