1. What is the Schneider VW3M8D1AR50TK used for?

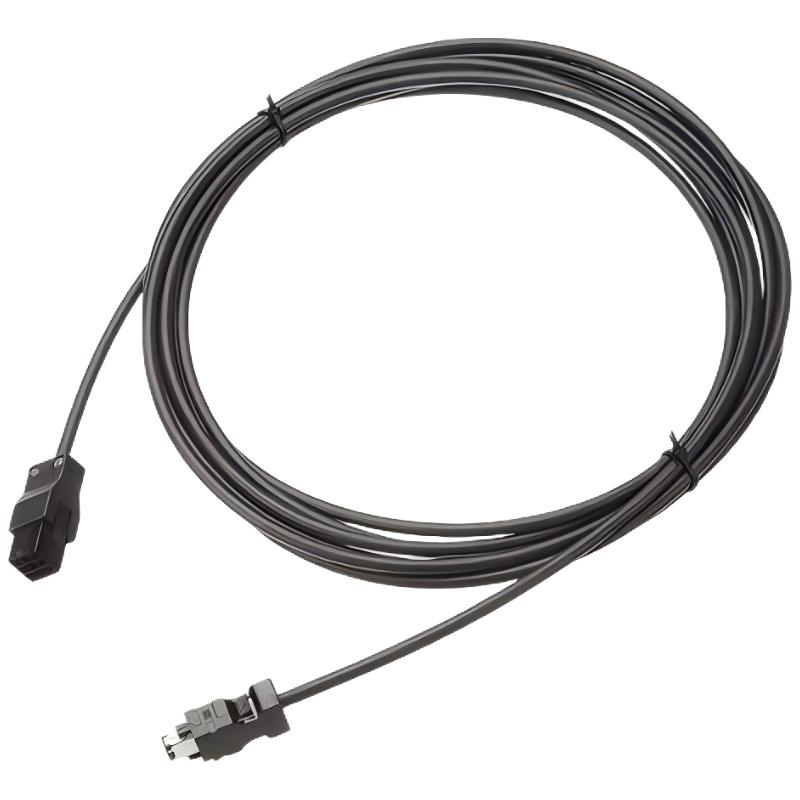

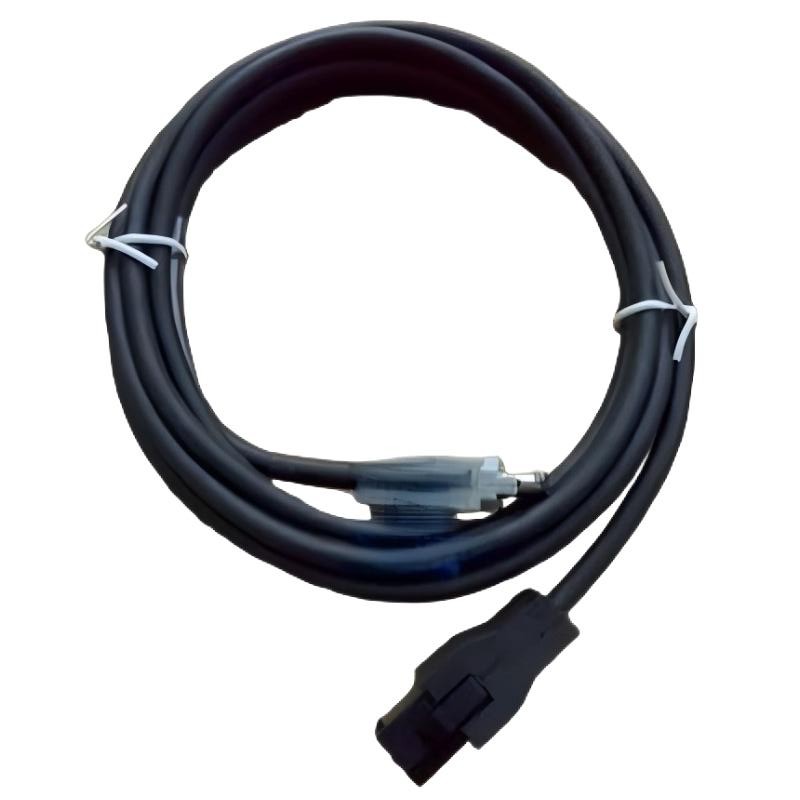

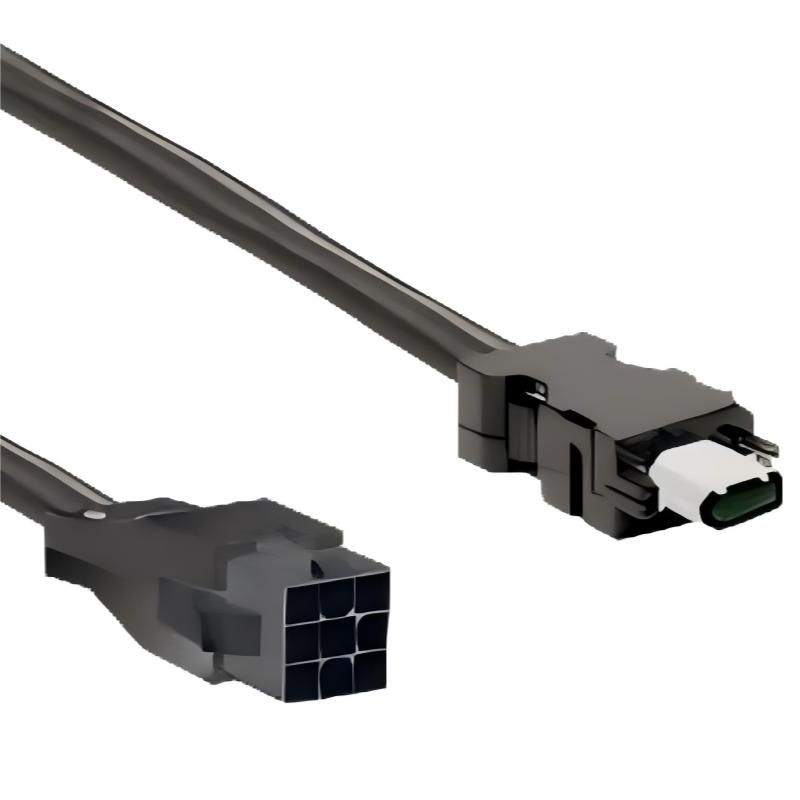

The VW3M8D1AR50TK is a shielded encoder cable designed for connecting compatible BCH2.B, BCH2.D, and BCH2.F servo motors to a Lexium 28 servo drive. It is used to transmit encoder feedback signals through the servo system’s CN2 interface. The feedback information allows the drive to monitor the actual motor position and operating condition and use this information for closed-loop motion control. Reliable encoder feedback is important for accurate positioning, stable speed regulation, and normal servo operation. The cable is therefore an important part of the servo feedback circuit and should be matched to the correct motor and drive configuration.

2. Which servo motors are compatible with the VW3M8D1AR50TK?
The VW3M8D1AR50TK is intended for BCH2.B, BCH2.D, and BCH2.F series servo motors and is used with Lexium 28 servo drive systems. It is designed specifically for the encoder connection of these motor configurations, so compatibility should be confirmed before installation or replacement. The exact servo motor model, encoder configuration, drive model, and connector arrangement should be checked rather than relying only on the physical appearance of the cable. Using a cable with a similar connector or cable length does not necessarily guarantee correct signal compatibility.

3. What is the cable length of the VW3M8D1AR50TK?
The VW3M8D1AR50TK has a cable length of 5 meters. This provides additional flexibility when the servo motor and control cabinet or servo drive are installed at a greater distance within an automation machine. During installation, the cable should be routed according to the machine structure without excessive pulling or unnecessary bending. It should also be kept away from sharp edges and moving components that could cause repeated abrasion. Proper routing helps reduce mechanical stress and supports stable encoder feedback during continuous operation.

4. Why is the VW3M8D1AR50TK shielded?
The VW3M8D1AR50TK uses a shielded construction to help protect encoder feedback signals from electromagnetic interference. Servo systems are often installed near motor power cables, switching equipment, contactors, and other electrical devices that can generate electrical noise. Interference can affect sensitive encoder feedback signals and may result in unstable feedback, positioning errors, or encoder-related drive alarms. The shielded construction helps reduce the influence of external interference when the cable is correctly installed. Proper grounding and shield termination are also important, and the encoder cable should be routed appropriately in relation to high-power cables.

5. What should be checked if an encoder alarm occurs when using the VW3M8D1AR50TK?
If an encoder alarm occurs, first check both ends of the VW3M8D1AR50TK and make sure the connectors are fully inserted and securely fixed. Inspect the connector contacts for looseness, contamination, oxidation, or physical damage. The cable should also be checked for crushing, abrasion, excessive bending, cuts, or other signs of mechanical stress. If the cable appears normal, the encoder on the BCH2 servo motor and the CN2 feedback interface of the Lexium 28 drive should also be inspected. Reviewing the drive alarm history can help identify the operating conditions under which the fault occurred. If the problem is intermittent, particular attention should be given to cable movement and machine vibration.

6. Can the VW3M8D1AR50TK be replaced with an ordinary encoder cable?
An ordinary encoder cable should not be used as a direct replacement without confirming complete compatibility. The VW3M8D1AR50TK has a specific conductor configuration, shielding structure, connector arrangement, and signal application intended for the BCH2 servo motor and Lexium 28 system. A general-purpose cable may have different electrical characteristics or shielding performance and may not correctly support the required encoder feedback signals. An unsuitable replacement can lead to encoder alarms, unstable feedback, positioning problems, or abnormal servo operation. If an alternative cable is being considered, its conductor configuration, shielding, connectors, signal characteristics, and compatibility with the complete servo system should be verified first.

7. How can an intermittent VW3M8D1AR50TK cable fault be diagnosed?
Intermittent cable faults can be difficult to identify because the cable may appear normal when the machine is stationary. Begin by checking both connectors and confirming that they are properly seated and secured. Then inspect the entire cable route for excessive bending, pulling, abrasion, crushing, vibration, or contact with moving parts. If the servo operates normally when stationary but generates an encoder alarm during movement, the cable and connectors should be inspected particularly carefully. Internal conductor damage or unstable connector contact may only become apparent when the cable is moving. The drive alarm history, servo motor encoder, and CN2 interface should also be checked so that a cable problem is not confused with a motor or drive fault.

8. What should be considered when replacing the VW3M8D1AR50TK?
When replacing the VW3M8D1AR50TK, first confirm that the replacement cable is suitable for the BCH2.B, BCH2.D, or BCH2.F servo motor and the corresponding Lexium 28 drive. Check the connector configuration and ensure that both ends can be securely connected to the intended interfaces. It is also important to determine why the original cable failed. Common installation-related factors include repeated bending, mechanical friction, excessive pulling, vibration, poor routing, loose connections, and electromagnetic interference. These conditions should be corrected before installing the replacement cable. After installation, check the connector locking, cable routing, and shielding connection, then perform a controlled servo test to verify stable encoder feedback and normal motor operation.
