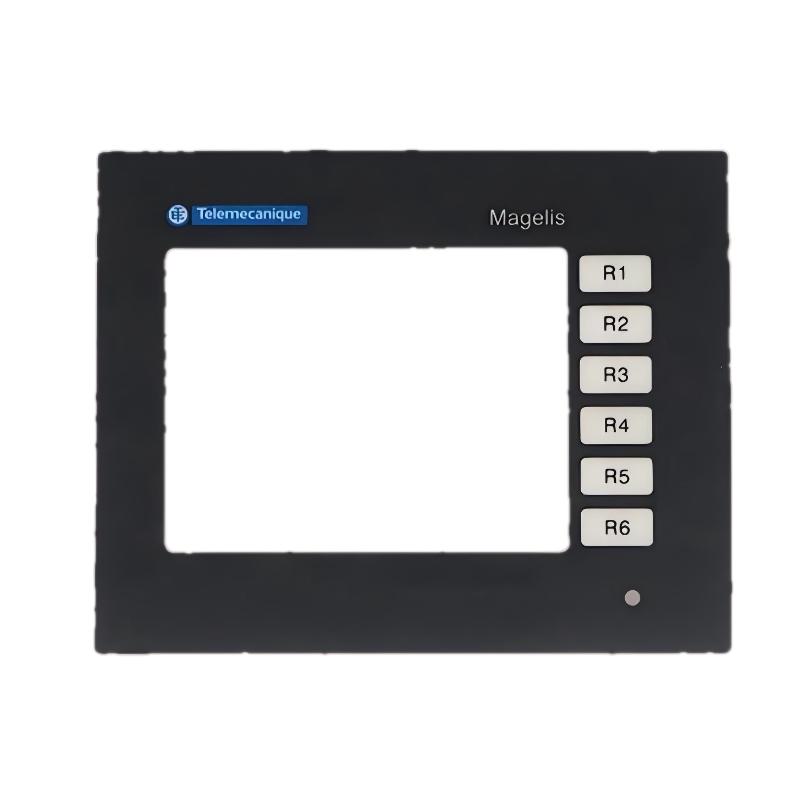

1. What type of industrial HMI is XBTGT1100?

XBTGT1100 is an advanced touchscreen panel from the Magelis XBTGT series, designed for human-machine interaction, equipment status monitoring, parameter adjustment, and basic machine operation. It features a 3.8-inch STN LCD with a 320 × 240 QVGA resolution, providing a compact interface for displaying machine status, alarm information, process values, and operating commands. The analog resistive touchscreen allows operators to select buttons and enter data directly from the panel. As an earlier-generation industrial HMI, XBTGT1100 has more limited display and processing capabilities than newer color TFT HMIs, but it remains relevant for maintenance and replacement of existing automation systems where the original HMI architecture needs to be preserved.

2. What power supply does XBTGT1100 require?

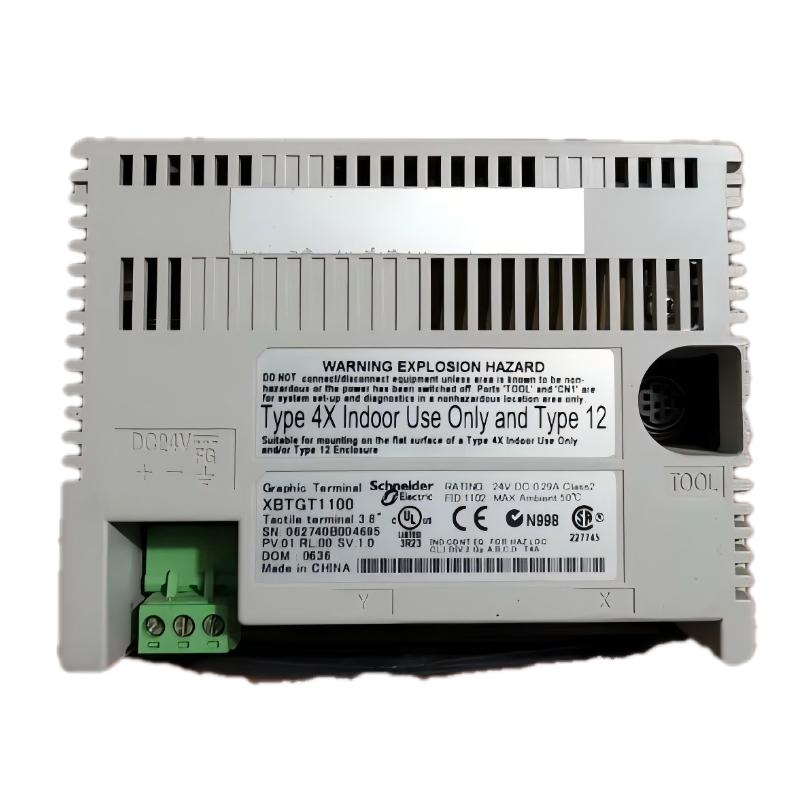

XBTGT1100 operates from a 24 V DC power supply with an allowable voltage range of 19.2–28.8 V DC. A stable industrial DC power source should be used, and the polarity of the power connection must be verified before energizing the panel. The power supply should also have sufficient capacity for the HMI and other devices connected to the same control circuit. If the panel experiences unexpected restarts, display interruptions, touchscreen problems, or unstable operation, the actual voltage at the HMI power terminals should be measured while the system is running. Long cables, undersized conductors, loose terminals, overloaded power supplies, and voltage fluctuations caused by other high-power equipment can all affect HMI operation, making power quality an important part of troubleshooting.

3. What communication interfaces are supported by XBTGT1100?

XBTGT1100 supports RS232C, RS422, and RS485 serial communication, allowing it to connect with compatible PLCs and industrial controllers. The appropriate communication method depends on the interface and protocol supported by the connected automation equipment. Each serial interface has different wiring requirements, so the correct cable and signal assignment must be used during installation. When troubleshooting communication problems, the baud rate, data format, parity, stop bits, station address, and PLC communication protocol should also be checked. For RS485 applications, particular attention should be given to device addressing and bus wiring because duplicate addresses, incorrect polarity, poor termination, or loose connections can cause unstable communication. XBTGT1100 does not provide Ethernet communication, so PLC connections must use the supported serial communication methods.

4. Which software is used to configure XBTGT1100?

XBTGT1100 is configured using Vijeo Designer, which allows engineers to develop HMI screens and configure communication with PLCs and other controllers. The software can be used to create touch buttons, numerical displays, alarm screens, status indicators, data-entry fields, and other operator functions. The appropriate communication driver must be selected according to the connected PLC and communication protocol. After the application is completed, it can be transferred to the XBTGT1100 through a compatible communication connection. For existing industrial installations, keeping a backup of the original Vijeo Designer project, communication parameters, and HMI configuration is highly recommended. A complete project backup can significantly simplify recovery when the panel needs to be repaired, replaced, or recommissioned.

5. How should XBTGT1100 be troubleshot if it cannot communicate with a PLC?

If XBTGT1100 cannot communicate with a PLC, troubleshooting should begin by confirming which serial communication interface is being used and checking the physical wiring. RS232C, RS422, and RS485 use different signal configurations, so the communication cable must match the selected interface. After confirming the wiring, check the baud rate, data bits, parity, stop bits, station address, and PLC communication protocol on both sides. For RS485 systems, also check for duplicate station addresses, incorrect signal polarity, broken connections, or problems with the communication bus. If the HMI and PLC parameters are correct, verify that the PLC communication port is operating normally and that the controller is in the appropriate operating state. Intermittent communication faults may also be caused by electromagnetic interference, poor grounding, damaged cables, or loose terminals, particularly in industrial environments containing motors, drives, contactors, and other switching equipment.

6. What should be checked if the XBTGT1100 touchscreen does not respond correctly?

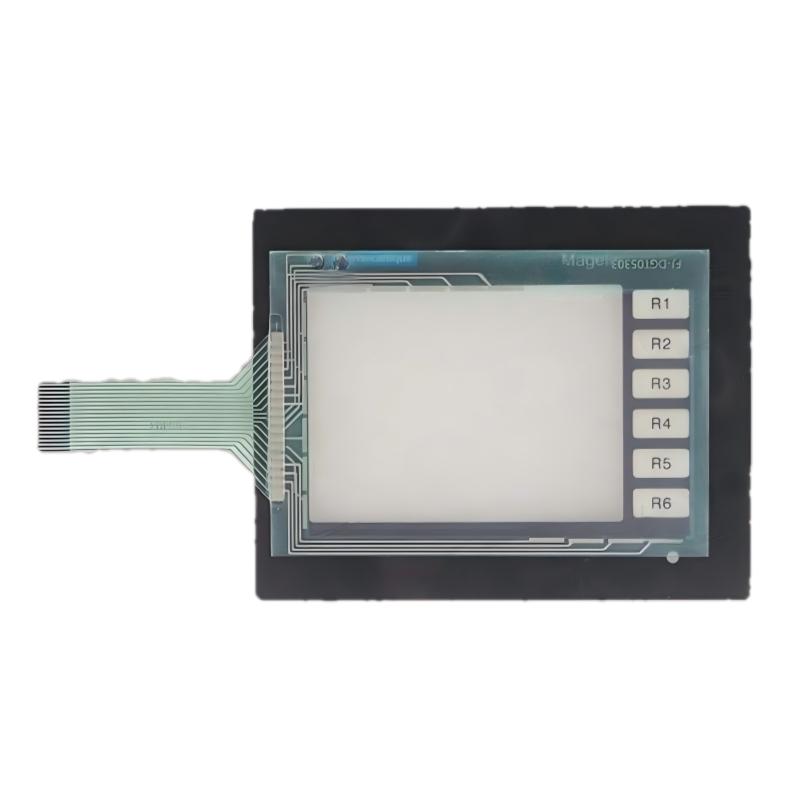

When XBTGT1100 has an unresponsive touchscreen, inaccurate touch positioning, or buttons that cannot be operated, first determine whether the problem affects the entire screen or only specific objects. If the display is functioning normally but only certain buttons fail to respond, the Vijeo Designer application should be checked to determine whether the relevant touch objects are correctly configured or disabled by application logic. If the entire touchscreen is unresponsive, the power supply, HMI operating status, and touchscreen hardware should be inspected. Because XBTGT1100 uses an analog resistive touchscreen, oil, moisture, dust, and other contamination on the touch surface can affect operation. If the touch position is inaccurate, touchscreen calibration should also be checked. Sharp tools should never be used to operate the panel because they may permanently damage the resistive touch layer.

7. What should be checked if the XBTGT1100 display has abnormal behavior?

If XBTGT1100 shows a dim display, unstable screen, missing image areas, or flickering, the power supply should be checked first to confirm that the panel is receiving stable 24 V DC power. The operating condition of the HMI should then be observed to determine whether the problem affects the entire display or only specific areas. Since the unit uses an STN LCD and LED backlight, long-term operation can result in changes in display performance or backlight brightness. If the entire screen remains blank, check the power input, system startup condition, and relevant connections. If only part of the display is abnormal, the issue may require further investigation of the LCD hardware or internal electronics. Excessive heat, vibration, or electrical interference can also accelerate component aging and should be considered when investigating recurring display problems.

8. How should XBTGT1100 be maintained for long-term operation?

For long-term operation, maintenance of XBTGT1100 should focus on the touchscreen, power supply, communication interfaces, display system, and HMI application. The touchscreen surface should be kept clean and free from oil, moisture, and dust, while sharp objects should not be used for operation. Power and communication terminals should be inspected periodically for loose connections, oxidation, or poor contact. If the panel develops random restarts, communication interruptions, touchscreen failures, or abnormal display behavior, the fault should be recorded and investigated before the condition becomes more serious. Because XBTGT1100 is an older Magelis HMI platform, maintaining a complete backup of the Vijeo Designer project and original communication configuration is particularly important. This allows the application to be restored more quickly if the HMI requires repair or replacement and helps preserve the existing automation system configuration during maintenance.
