1. What type of industrial HMI is XBTGT4330?

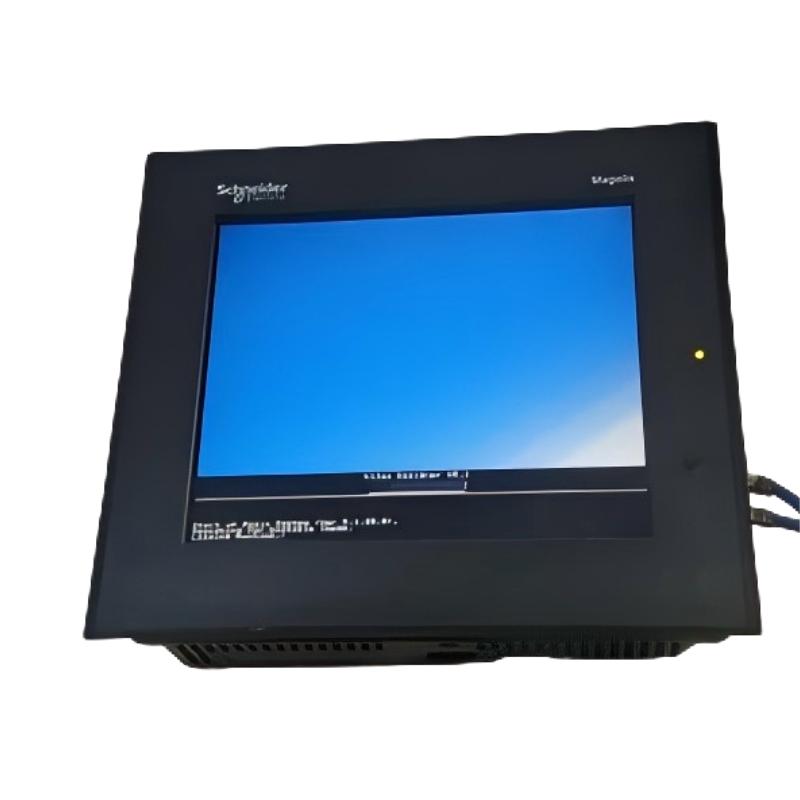

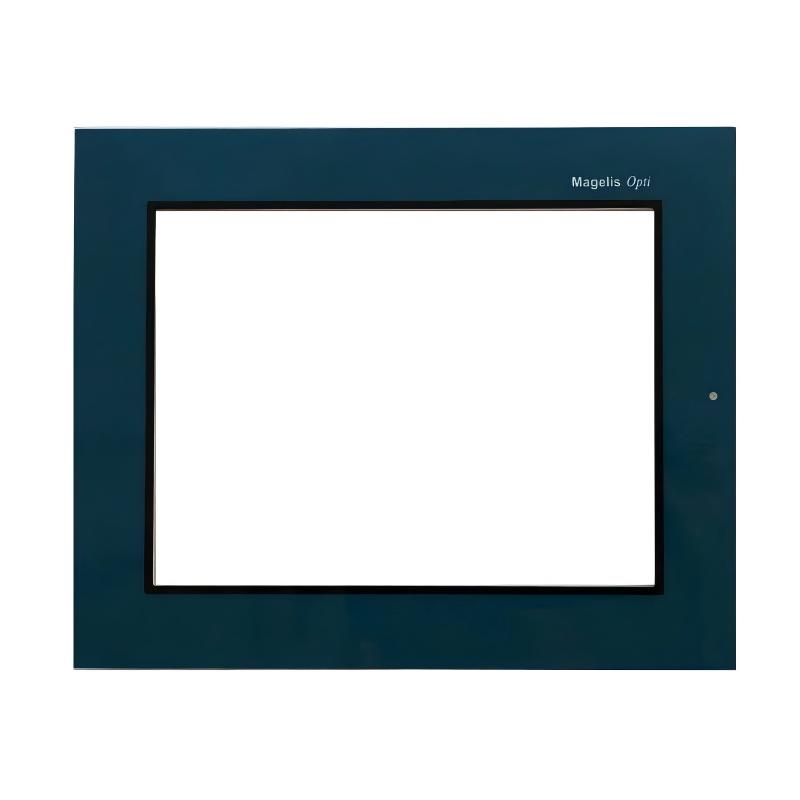

XBTGT4330 is an advanced touchscreen panel from the Magelis XBTGT series, designed for industrial machine operation, process monitoring, production data visualization, alarm management, and operator control. It features a 7.5-inch color TFT LCD display with a 640 × 480 VGA resolution and supports 65,536 colors. The analog resistive touchscreen allows operators to interact directly with buttons, numerical fields, alarm screens, and machine parameters. The panel can communicate with PLCs, controllers, and other automation equipment through its serial communication and Ethernet interfaces. It is suitable for production machinery, packaging equipment, conveyor systems, process-control applications, and industrial automation cabinets where reliable operator interaction is required.

2. What communication interfaces are available on XBTGT4330?

XBTGT4330 supports several communication interfaces for connection with PLCs, controllers, and other industrial automation devices. The panel supports RS232C, RS422, and RS485 serial communication and also provides an RJ45 Ethernet interface for TCP/IP communication. A USB Master interface is available for compatible peripheral and maintenance functions. When configuring the communication system, the selected interface must match the communication capability of the connected PLC or controller. Parameters such as baud rate, station address, parity, communication protocol, and network configuration must be correctly configured. If communication is unstable or unavailable, both the physical wiring and software configuration should be checked because incorrect protocol or communication settings can cause symptoms similar to a hardware communication failure.

3. What software is used to configure XBTGT4330?

XBTGT4330 is configured using Vijeo Designer. The software can be used to create graphical operator screens, control buttons, numerical displays, alarm pages, status indicators, trend displays, data-entry fields, and other HMI functions. Communication drivers can also be configured according to the PLC or controller connected to the panel. The XBTGT4330 provides 32 MB of Flash EPROM for application storage and 512 KB of battery-backed SRAM for data retention. A CompactFlash card slot is also available for supported storage and maintenance functions. For equipment already in operation, keeping a backup of the complete Vijeo Designer project and communication configuration is recommended. This makes it much easier to restore the original application if the HMI needs to be replaced or reconfigured.

4. How should XBTGT4330 be troubleshot if it cannot communicate with a PLC?

When XBTGT4330 cannot communicate with a PLC, troubleshooting should begin by identifying the communication interface and protocol being used. For RS232C, RS422, or RS485 communication, check the communication cable, terminal assignment, signal wiring, baud rate, data format, parity, station address, and other serial parameters. For Ethernet communication, check the network cable, RJ45 connection, IP address, subnet configuration, and PLC network settings. The communication driver selected in the Vijeo Designer project must also correspond to the actual PLC model and protocol. If all communication settings appear correct, verify that the PLC is operating normally and that there are no duplicate network addresses or conflicting serial station numbers. For intermittent communication problems, electrical interference, grounding, cable quality, and loose terminals should also be investigated.

5. What should be done if the XBTGT4330 touchscreen does not respond?

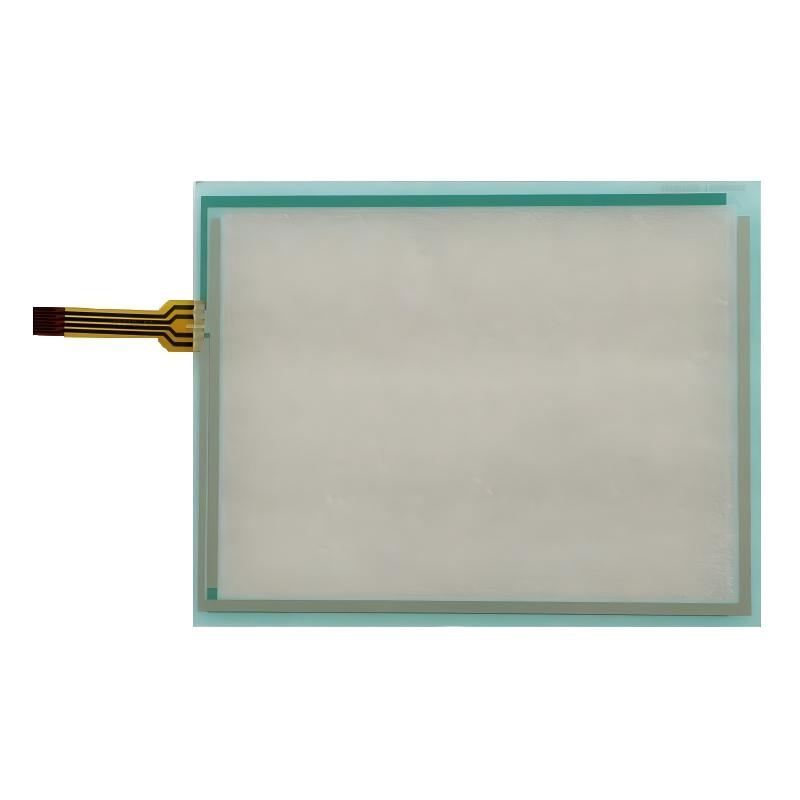

If the XBTGT4330 touchscreen becomes unresponsive, first determine whether the problem affects the entire touchscreen or only certain areas. If the display is functioning normally but individual buttons do not respond, the Vijeo Designer application should be checked to determine whether the relevant objects are correctly configured or disabled by application logic. If the entire touchscreen becomes unresponsive, the power supply, system status, and touchscreen hardware should be inspected. Since XBTGT4330 uses an analog resistive touchscreen, the front surface should be kept clean and free from oil, moisture, dust, or conductive contamination that could affect touch detection. If the touch position is inaccurate rather than completely inactive, the touchscreen calibration should also be checked. Sharp objects should not be used to operate the touchscreen because they can damage the touch surface and cause permanent response problems.

6. What should be considered when supplying 24 V DC power to XBTGT4330?

XBTGT4330 operates from a 24 V DC power supply, so a stable industrial control power source should be used during installation. The power supply must have sufficient capacity for the HMI and other equipment connected to the same control circuit. Power polarity should be verified before energizing the panel, and the wiring should be checked for loose connections, short circuits, and excessive voltage drop. If the HMI randomly restarts, the display flickers, communication is interrupted, or the system becomes unstable, the actual voltage at the HMI power terminals should be measured while the equipment is operating. Long power cables, undersized conductors, loose terminals, overloaded power supplies, and switching equipment can all contribute to voltage fluctuations. In control cabinets containing motors, contactors, drives, or other high-power equipment, power and signal wiring should also be arranged carefully to reduce electrical interference.

7. What functions are available through the auxiliary interfaces of XBTGT4330?

The auxiliary interfaces of XBTGT4330 can be used for functions such as alarm output, RUN status output, buzzer control, and remote reset. The auxiliary outputs use 24 V DC signals and have a rated current of 50 mA, while the remote reset input also uses a 24 V DC signal. These functions allow the HMI to interact with external control circuits, indicator devices, alarm systems, or PLC inputs. For example, an alarm output can be incorporated into a control cabinet to provide an external indication when an HMI alarm condition occurs. When designing these circuits, the voltage and current requirements of the connected load must be checked carefully. Loads exceeding the interface capacity should not be connected directly. An intermediate relay or suitable interface module should be used when higher-power external devices need to be controlled.

8. How should XBTGT4330 be maintained for long-term operation?

Long-term maintenance of XBTGT4330 should focus on the touchscreen, display, power connections, communication interfaces, memory system, and HMI application. The touchscreen surface should be cleaned regularly and kept free from oil, moisture, dust, and other contaminants. Sharp objects should be avoided when operating or cleaning the panel. Communication cables and connectors should be inspected periodically for loose connections, oxidation, mechanical damage, or intermittent contact. The CFL backlight has a defined service life, so gradual reduction in brightness, uneven illumination, or abnormal display behavior should be investigated as the equipment ages. Because the panel uses battery-backed SRAM, the backup battery should also be considered during long-term maintenance. For critical production systems, the Vijeo Designer project, communication parameters, and important application data should be backed up regularly so that the HMI can be restored quickly after a hardware failure, replacement, or software maintenance operation.
