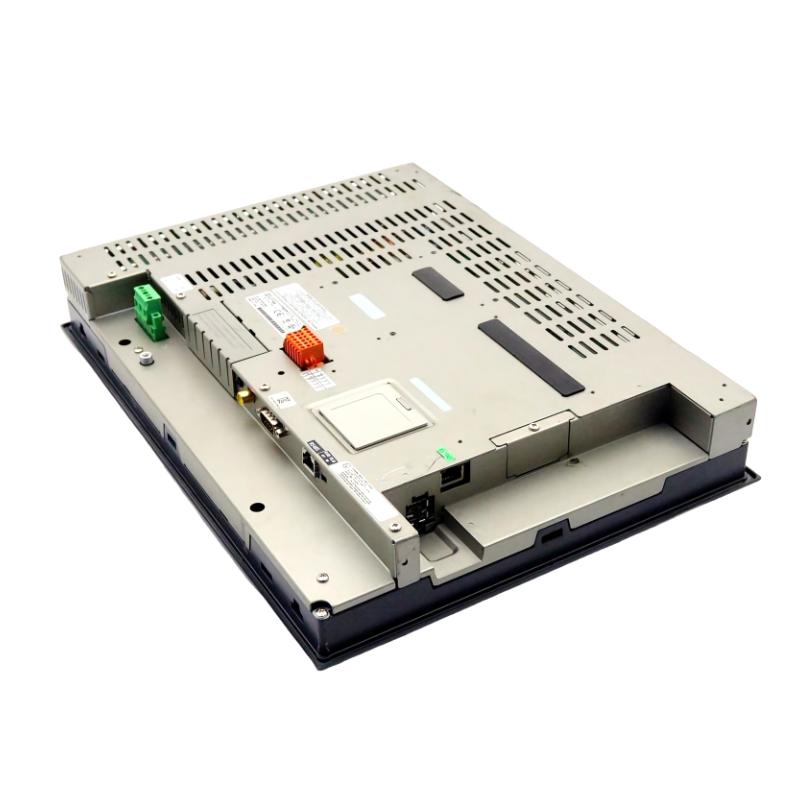

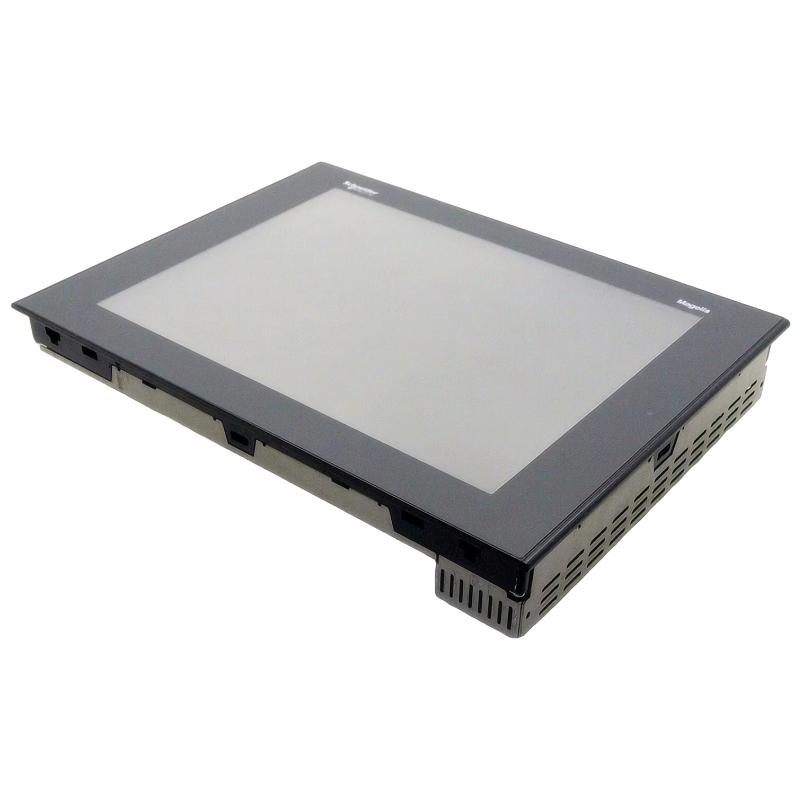

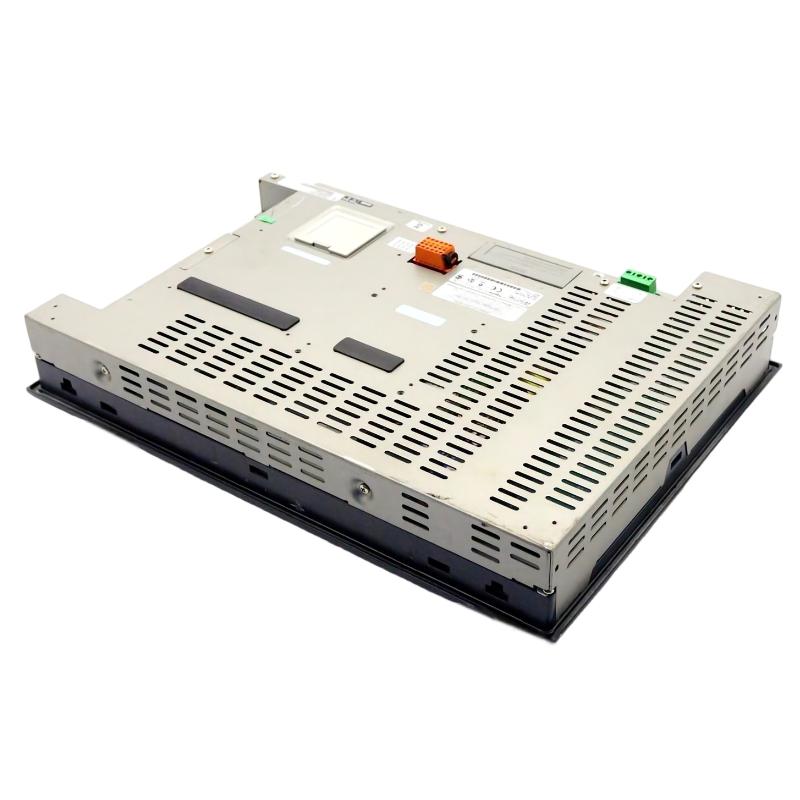

Q1. What is the main function of the Schneider XBTGT7340 HMI panel?
The XBTGT7340 is a large-format industrial Human-Machine Interface designed for centralized monitoring and control of complex industrial systems. It connects to PLC or DCS networks and provides real-time visualization of multiple process variables such as temperature, pressure, flow rate, equipment status, and alarm conditions. Operators can manage entire production sections from a single interface, making it ideal for high-density industrial environments where large volumes of data must be displayed and controlled efficiently.

Q2. What makes the XBTGT7340 suitable for large-scale industrial systems?
This model is designed for complex and large-scale automation environments where multiple processes must be monitored simultaneously. Its large display area and advanced interface capabilities allow operators to view multiple system segments at once, reducing the need to switch between screens and improving situational awareness. This makes it especially useful in centralized control rooms.

Q3. How does this HMI communicate with industrial controllers?
The XBTGT7340 supports widely used industrial communication protocols such as Modbus, allowing it to interface with most PLC and DCS systems. It continuously reads process data from controllers and sends operator commands back in real time. This ensures synchronized communication between the operator interface and the control system for accurate process management.

Q4. Why is a large HMI screen important in industrial control rooms?
A large HMI display allows operators to monitor multiple processes, alarms, and system statuses simultaneously without constantly switching views. This improves decision-making speed, reduces cognitive load, and helps operators respond faster to abnormal conditions. In complex plants, this can significantly improve overall operational safety and efficiency.

Q5. What ensures the reliability of the XBTGT7340 in harsh environments?
The device is built with industrial-grade hardware, EMC protection, and a rugged enclosure designed to withstand electrical noise, vibration, dust, and temperature variations. These features ensure stable performance even in demanding environments such as power plants, chemical facilities, and heavy manufacturing sites, where continuous operation is critical.

Q6. What are the key installation considerations for this model?
Installation requires a secure panel-mount setup with sufficient structural support due to its larger form factor. Proper cable management is essential, with shielded communication lines separated from power cables to minimize interference. Adequate ventilation and cooling within the control cabinet are also important to maintain long-term stability.

Q7. In which industries is the XBTGT7340 commonly used?
This HMI is widely used in industries such as oil and gas, petrochemical processing, power generation, metallurgy, water treatment, pharmaceuticals, and large-scale manufacturing. It is particularly valuable in environments that require centralized supervision of multiple production units or complex process lines.

Q8. How does this HMI improve operational efficiency in industrial plants?
By consolidating multiple process views into a single interface, the XBTGT7340 allows operators to make faster and more informed decisions. Real-time alarms, trend analysis, and system diagnostics help detect issues early, reducing downtime and maintenance costs. Overall, it enhances productivity, improves system stability, and supports more efficient plant operation.
