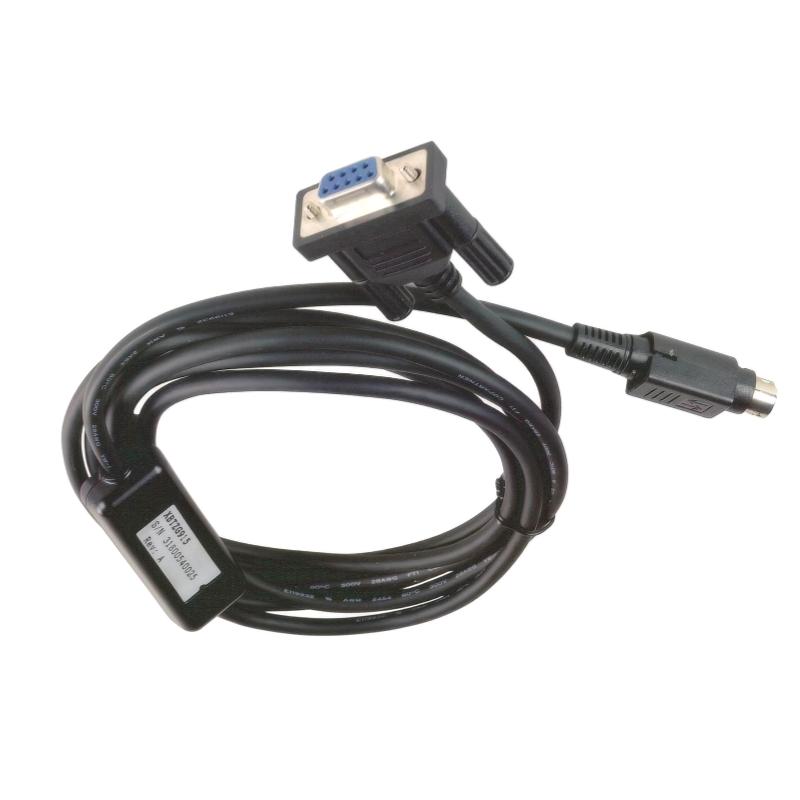

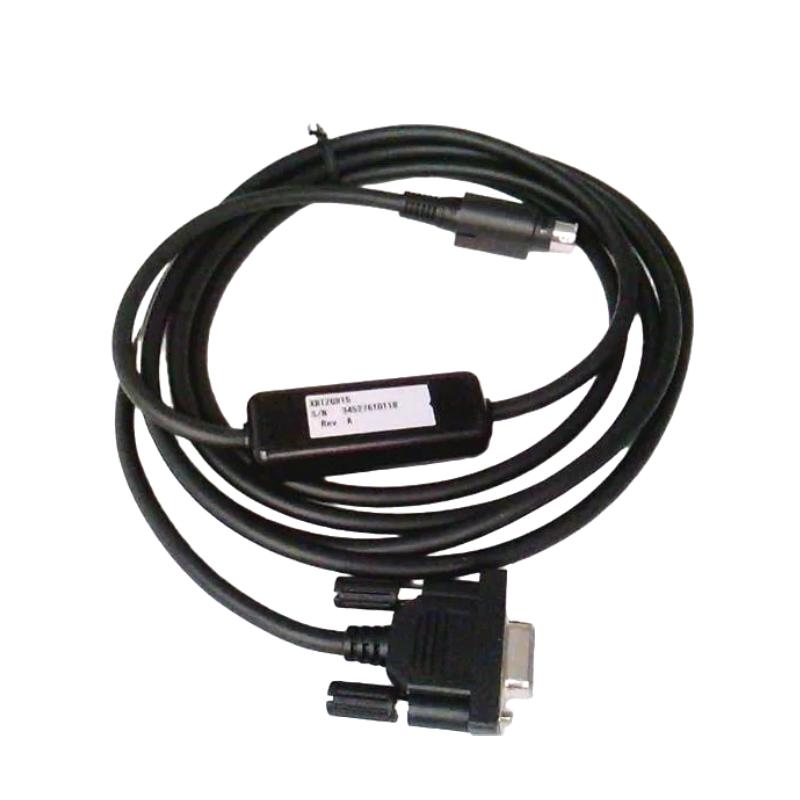

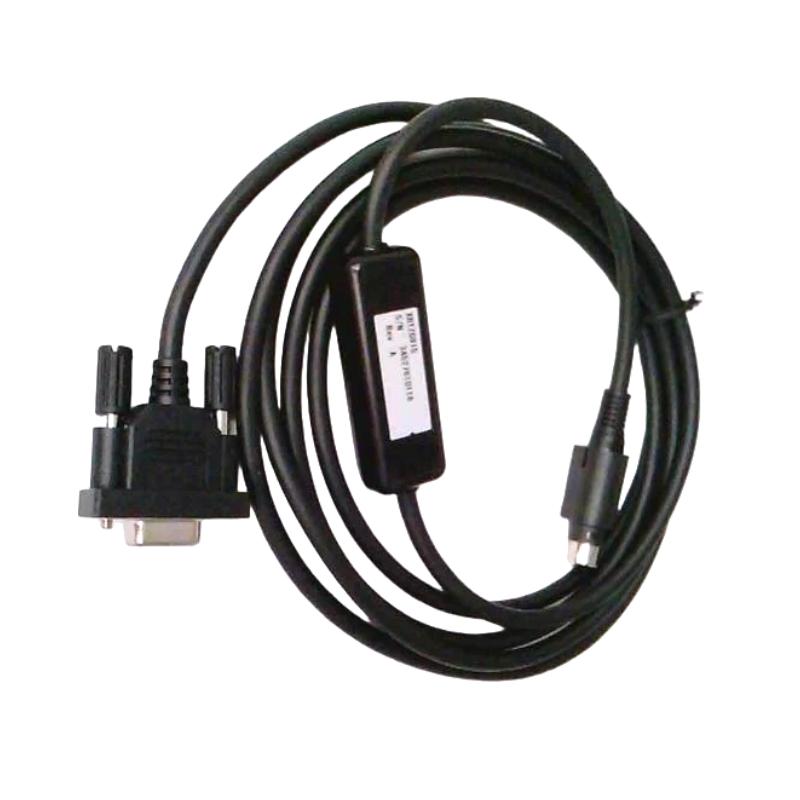

Schneider XBTZG915 XBT Terminal Adapter
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | XBT Terminal Adapter |
| Model | XBTZG915 |
| Manufacturer | Schneider Electric |
| Product Type | HMI Terminal Adapter Module |
| Primary Function | Communication interface adaptation between XBT HMI and control system |
| System Application | PLC / Industrial automation systems |
| Compatibility | Schneider XBT series terminals |
| Interface Type | Industrial communication interface module |
| Communication Role | Signal adaptation and data transmission support |
| Installation Type | Direct connection module |
| Operating Mode | Continuous industrial operation |
| Application Scenario | HMI-to-PLC communication integration |
| Structure | Compact industrial adapter module |
| Operating Environment | Control cabinet internal installation |
| Electrical Characteristics | Low-voltage industrial signal transmission |
| Cable Length | 0.2 m |
| Shipping Weight | 3 kg |
FAQ
Q1. What is the main function of the Schneider XBTZG915 terminal adapter?
The XBTZG915 is designed to serve as a communication interface adapter for Schneider XBT series HMI terminals. Its primary function is to ensure proper data exchange between the HMI and PLC or industrial control systems. It translates and adapts communication signals so that the HMI can reliably interact with different automation controllers without compatibility issues.
Q2. What role does this adapter play in an automation system architecture?
In an industrial automation system, the XBTZG915 acts as an interface layer between the operator terminal (HMI) and the control system (PLC). It does not perform control logic itself, but ensures that data requests from the HMI and responses from the controller are correctly transmitted, interpreted, and synchronized within the system.
Q3. Which devices is the XBTZG915 compatible with?
This adapter is specifically designed for Schneider XBT series HMI terminals and is used in conjunction with compatible PLC systems. It ensures proper communication alignment between Schneider HMI devices and industrial controllers within automation environments.
Q4. Why is a terminal adapter necessary in industrial systems?
Industrial devices often use different communication interfaces or electrical standards. A terminal adapter like the XBTZG915 resolves these compatibility differences, ensuring that the HMI can properly communicate with the PLC. Without it, communication errors, data mismatch, or connection failures could occur.
Q5. How does this adapter improve system reliability?
By standardizing and stabilizing communication between devices, the adapter reduces the risk of signal distortion or protocol mismatch. This leads to more reliable data transmission, fewer communication faults, and improved overall system stability in continuous industrial operation environments.
Q6. What should be considered during installation?
During installation, the adapter must be securely connected between the HMI terminal and the control system interface. Cable routing should avoid sharp bends and proximity to high-power cables to minimize electromagnetic interference. Proper grounding and secure fastening are also important for stable long-term operation.
Q7. Does the XBTZG915 require external power supply?
In most configurations, the adapter does not require a separate external power supply. It operates through the connected system interface. However, stable power supply to the overall HMI system is necessary to ensure correct communication performance.
Q8. How does this adapter improve industrial communication efficiency?
The XBTZG915 improves communication efficiency by ensuring seamless signal adaptation between different devices. It minimizes communication delays, reduces protocol mismatches, and ensures that data from the HMI is accurately and promptly delivered to the PLC system, enhancing overall operational responsiveness.
Schneider XBTZG915 XBT Terminal Adapter is in stock. Please contact us for a quick quote and competitive pricing.
