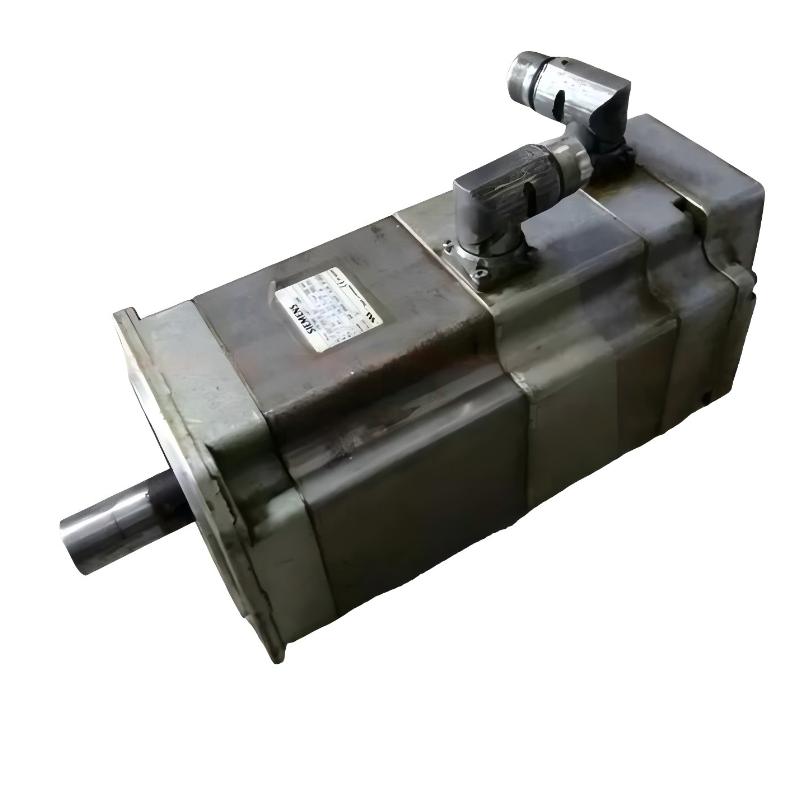

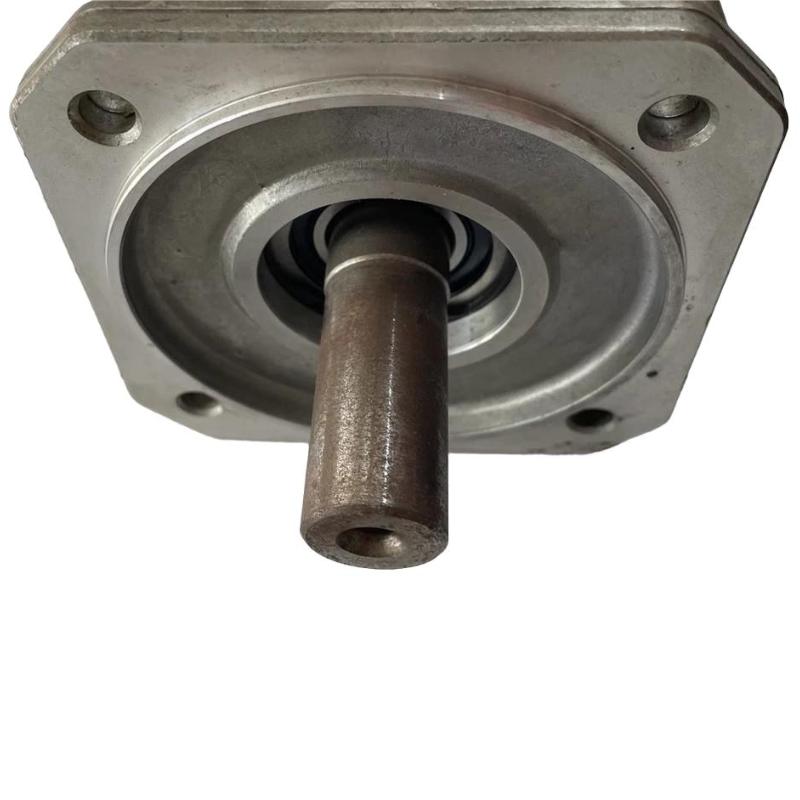

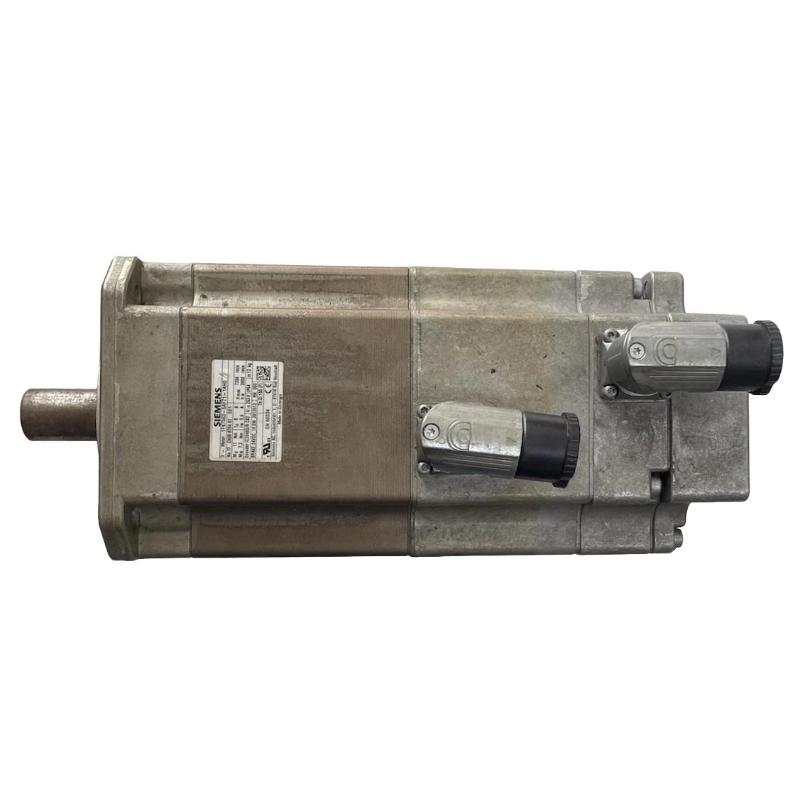

Siemens 1FK7063-5AF71-1AH0 Servo Motor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model | 1FK7063-5AF71-1AH0 |
| Product Type | Servo Motor |
| Product Family | SIMOTICS S 1FK7 |
| Motor Type | Permanent-Magnet Synchronous Motor |
| Design | Compact |
| Rated Power | 2.29 kW |
| Rated Speed | 3,000 rpm |
| Rated Torque | 7.3 Nm |
| Rated Current | 5.6 A |
| Static Torque at 60 K | 9.1 Nm |
| Static Torque at 100 K | 11.0 Nm |
| Stall Current at 60 K | 6.6 A |
| Stall Current at 100 K | 8.0 A |
| Maximum Mechanical Speed | 7,200 rpm |
| Maximum Torque | 35 Nm |
| Maximum Current | 28 A |
| Number of Poles | 8 |
| Torque Constant | 1.37 Nm/A |
| Voltage Constant at 20°C | 87.5 V/1000 rpm |
| Winding Resistance at 20°C | 0.65 Ω |
| Rotating Field Inductance | 7.7 mH |
| Electrical Time Constant | 11.8 ms |
| Mechanical Time Constant | 1.56 ms |
| Thermal Time Constant | 40 min |
| Rotor Moment of Inertia | 15.1 × 10⁻⁴ kg·m² |
| Shaft Torsional Stiffness | 35,000 Nm/rad |
| Cooling Method | Natural Cooling |
| Shaft Height | 63 mm |
| Dimensions | Shaft height: 63 mm |
| Mounting Design | IM B5 (IM V1, IM V3) |
| Degree of Protection | IP64 |
| Shaft End | Plain Shaft |
| Shaft Tolerance | N |
| Holding Brake | With Holding Brake |
| Holding Torque | 13 Nm |
| Brake Supply Voltage | 24 VDC ±10% |
| Brake Coil Current | 0.8 A |
| Encoder | Incremental Encoder |
| Encoder Type | Sin/Cos 1 Vpp |
| Encoder Resolution | 2048 pulses/revolution |
| Temperature Monitoring | Stator Winding Temperature Monitoring |
| Power Connector | Rotatable |
| Signal Connector | Rotatable |
| Connector Rotation | Up to 270° |
| Vibration Severity Grade | Grade A |
| Mechanical Design | Compact SIMOTICS S 1FK7 design |
| Weight | 12.802 kg |
FAQ
1. What is the rated power and rated speed of the Siemens 1FK7063-5AF71-1AH0 servo motor?
The 1FK7063-5AF71-1AH0 has a rated power of 2.29 kW and a rated speed of 3,000 rpm. Its rated torque is 7.3 Nm, making it suitable for industrial servo applications that require controlled speed, stable torque output and accurate positioning. The motor can be used for both continuous motion and dynamic positioning tasks when correctly matched with the drive system.
2. What type of motor is the Siemens 1FK7063-5AF71-1AH0?
This model is a compact permanent-magnet synchronous servo motor from the SIMOTICS S 1FK7 family. It uses permanent-magnet rotor technology and natural cooling. The motor is designed for closed-loop motion-control applications where precise speed, torque and position regulation are required, including automated machinery, production equipment and positioning systems.
3. What encoder is used on the 1FK7063-5AF71-1AH0?
The motor uses an incremental Sin/Cos 1 Vpp encoder with a resolution of 2048 pulses per revolution. The encoder provides feedback signals for speed and position control. During commissioning, the encoder type, resolution and feedback parameters should be correctly configured in the servo drive so that the controller can accurately determine motor position and maintain stable closed-loop operation.
4. Does the Siemens 1FK7063-5AF71-1AH0 have a holding brake?
Yes. The 1FK7063-5AF71-1AH0 is equipped with a permanent-magnet holding brake. The brake provides a holding torque of approximately 13 Nm and uses a 24 VDC ±10% supply with a coil current of approximately 0.8 A. The holding brake is mainly used to secure the motor shaft when the servo system is stopped or powered down and should not normally be treated as the primary dynamic braking device.
5. What is the maximum mechanical speed of the 1FK7063-5AF71-1AH0?
The maximum mechanical speed is 7,200 rpm. This value represents the upper mechanical speed limit and should not automatically be considered the recommended continuous operating speed. The actual speed must be determined according to the motor characteristic, servo drive configuration, load inertia, acceleration and deceleration profile, operating cycle and mechanical limitations of the connected machine.
6. What are the rated current and torque characteristics of this servo motor?
The rated current is 5.6 A and the rated torque is 7.3 Nm at 3,000 rpm. The static torque is 9.1 Nm at a 60 K temperature rise and 11.0 Nm at a 100 K temperature rise. The corresponding stall currents are 6.6 A and 8.0 A. The maximum specified torque is 35 Nm, providing additional torque capability for short-term acceleration and dynamic positioning when the drive and motor operating conditions are correctly configured.
7. What cooling method and mounting arrangement are used on the 1FK7063-5AF71-1AH0?
The motor uses natural cooling and an IM B5 mounting design, with IM V1 and IM V3 mounting positions supported. Natural cooling simplifies machine integration because an additional external cooling fan is generally not required under the specified operating conditions. However, sufficient clearance around the motor should be maintained to allow heat to dissipate effectively, particularly during continuous operation at higher loads.
8. What applications are suitable for the Siemens 1FK7063-5AF71-1AH0?
The motor is suitable for industrial motion-control applications requiring accurate speed, torque and position feedback. Typical applications include machine tools, packaging machinery, automated production lines, material handling systems, positioning axes and other servo-driven equipment. When selecting this motor for a complete system, the continuous and peak torque requirements, load inertia, operating speed, duty cycle, encoder compatibility and suitable Siemens drive configuration should all be considered together.
Siemens 1FK7063-5AF71-1AH0 Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
