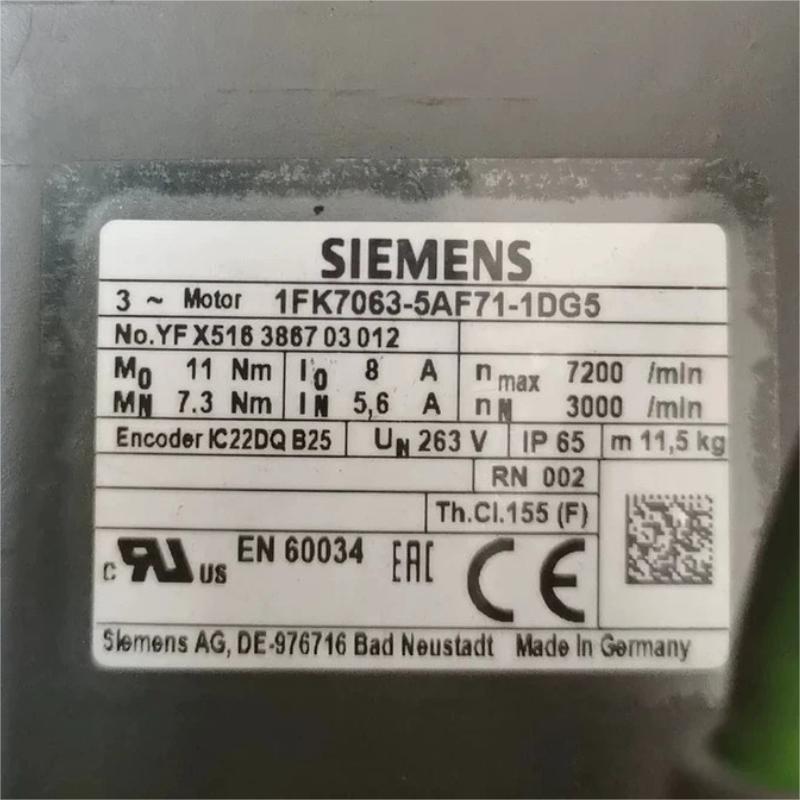

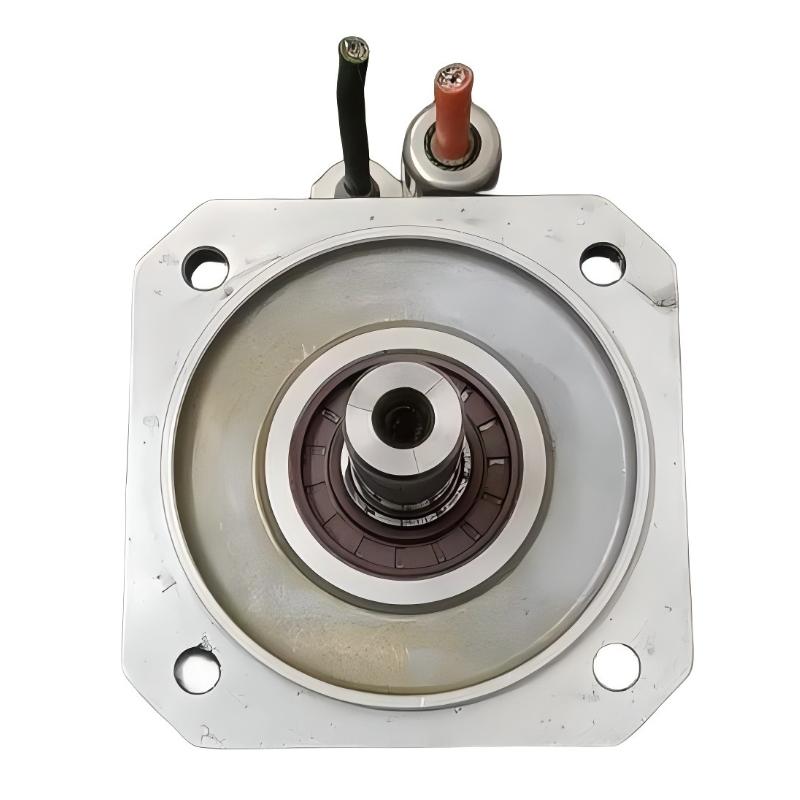

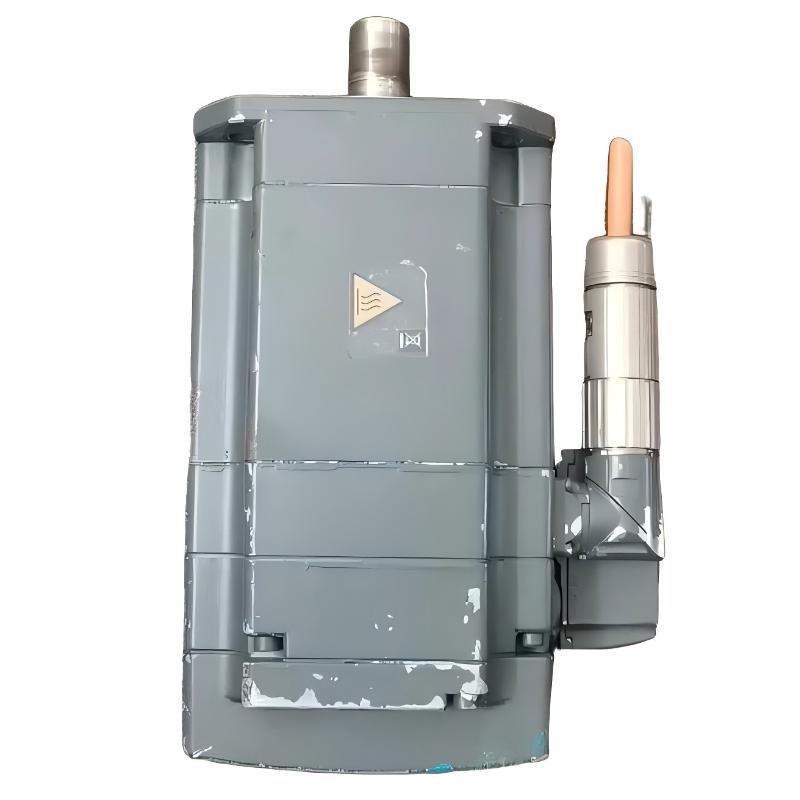

Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model | 1FK7063-5AF71-1DG5 |
| Product Type | Servo Motor |
| Product Family | SIMOTICS S 1FK7 |
| Motor Type | Permanent-Magnet Synchronous Servo Motor |
| Design | Compact |
| Rated Power | 2.29 kW |
| Rated Speed | 3,000 rpm |
| Rated Torque | 7.3 Nm |
| Rated Current | 5.6 A |
| Static Torque at 60 K | 9.1 Nm |
| Static Torque at 100 K | 11.0 Nm |
| Stall Current at 60 K | 6.6 A |
| Stall Current at 100 K | 8.0 A |
| Maximum Mechanical Speed | 7,200 rpm |
| Maximum Inverter Speed | 6,600 rpm |
| Maximum Torque | 35 Nm |
| Maximum Current | 28 A |
| Number of Poles | 8 |
| Torque Constant | 1.37 Nm/A |
| Voltage Constant at 20°C | 87.5 V/1000 rpm |
| Winding Resistance at 20°C | 0.65 Ω |
| Rotating Field Inductance | 7.7 mH |
| Electrical Time Constant | 11.8 ms |
| Mechanical Time Constant | 1.56 ms |
| Thermal Time Constant | 40 min |
| Rotor Moment of Inertia | 15.1 × 10⁻⁴ kg·m² |
| Shaft Torsional Stiffness | 35,000 Nm/rad |
| Cooling Method | Natural Cooling |
| Shaft Height | 63 mm |
| Mounting Design | IM B5 (IM V1, IM V3) |
| Degree of Protection | IP65; flange side IP67 |
| Shaft End | Plain Shaft |
| Shaft Tolerance | N |
| Holding Brake | Without Holding Brake |
| Encoder | Incremental Encoder |
| Encoder Type | Sin/Cos 1 Vpp, 2048 pulses/revolution |
| Encoder Interface | DRIVE-CLiQ |
| Temperature Monitoring | Stator Winding Temperature Monitoring |
| Power Connector | Rotatable |
| Signal Connector | Rotatable |
| Connector Rotation | Up to 270° |
| Housing Finish | RAL 7016 |
| Vibration Severity Grade | Grade A |
| Weight | 11.503 kg |
FAQ
1. What is the rated power and rated speed of the Siemens 1FK7063-5AF71-1DG5 servo motor?
The Siemens 1FK7063-5AF71-1DG5 has a rated power of 2.29 kW and a rated speed of 3,000 rpm. Its rated torque is 7.3 Nm with a rated current of 5.6 A. These characteristics make the motor suitable for industrial motion-control applications where stable speed regulation, controlled torque and accurate positioning are required. The actual operating point should be selected according to the load profile and the matched drive configuration.
2. What type of motor is the 1FK7063-5AF71-1DG5?
It is a permanent-magnet synchronous servo motor from the Siemens SIMOTICS S 1FK7 Compact family. The motor uses a permanent-magnet rotor and natural cooling, providing a compact solution for closed-loop motion control. Its 63 mm shaft-height frame is commonly used in automated machinery, machine tools, positioning systems and other applications requiring dynamic servo performance.
3. What encoder is installed on the 1FK7063-5AF71-1DG5?
The motor uses an incremental Sin/Cos 1 Vpp encoder with 2048 pulses per revolution. Unlike versions using a conventional encoder interface, this configuration includes a DRIVE-CLiQ interface for communication with compatible Siemens motion-control systems. Correct encoder selection and parameter configuration are important during commissioning to ensure accurate speed and position feedback.
4. Does the 1FK7063-5AF71-1DG5 have a holding brake?
No. This model is configured without a holding brake. It is therefore suitable for applications where the machine does not require the motor shaft to be mechanically held after the servo drive is disabled. For vertical axes or applications where the load must remain mechanically secured during power-off conditions, an appropriate external braking system or a compatible motor version with an integrated holding brake should be considered.
5. What is the maximum speed of the Siemens 1FK7063-5AF71-1DG5?
The maximum mechanical speed is 7,200 rpm, while the maximum inverter speed is 6,600 rpm. These values define important operating limits, but they should not be interpreted as the required continuous operating speed. The actual speed must be selected according to the motor characteristic, drive capability, load inertia, acceleration and deceleration requirements, duty cycle and mechanical limitations of the machine.
6. What are the torque and current characteristics of this servo motor?
The rated torque is 7.3 Nm at a rated current of 5.6 A. The static torque is 9.1 Nm at a 60 K temperature rise and 11.0 Nm at a 100 K temperature rise. The corresponding stall currents are 6.6 A and 8.0 A. The motor can reach a maximum torque of 35 Nm under the specified operating conditions. These values are important when sizing the servo drive and checking acceleration, deceleration and short-term overload requirements.
7. What cooling, mounting and protection features does the 1FK7063-5AF71-1DG5 provide?
The motor uses natural cooling and supports IM B5 mounting as well as IM V1 and IM V3 installation positions. The protection rating is IP65, with IP67 protection specified at the flange side. These characteristics allow the motor to be integrated into industrial machinery without requiring a dedicated external cooling fan under normal operating conditions. Proper mounting and sufficient heat dissipation should still be maintained during continuous high-load operation.
8. What applications are suitable for the Siemens 1FK7063-5AF71-1DG5?
The 1FK7063-5AF71-1DG5 is suitable for industrial servo applications requiring precise closed-loop speed and position control. Typical applications include CNC machine tools, automated production equipment, packaging machinery, material handling systems, positioning axes and other electrically driven mechanisms. Its incremental encoder with DRIVE-CLiQ interface makes it particularly suitable for integration into compatible Siemens motion-control architectures. Before installation, the motor, feedback system and drive parameters should be checked together to ensure proper compatibility and commissioning.
Siemens 1FK7063-5AF71-1DG5 Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
