1. What type of servo motor is 1FK7063-5AF71-1KG5?

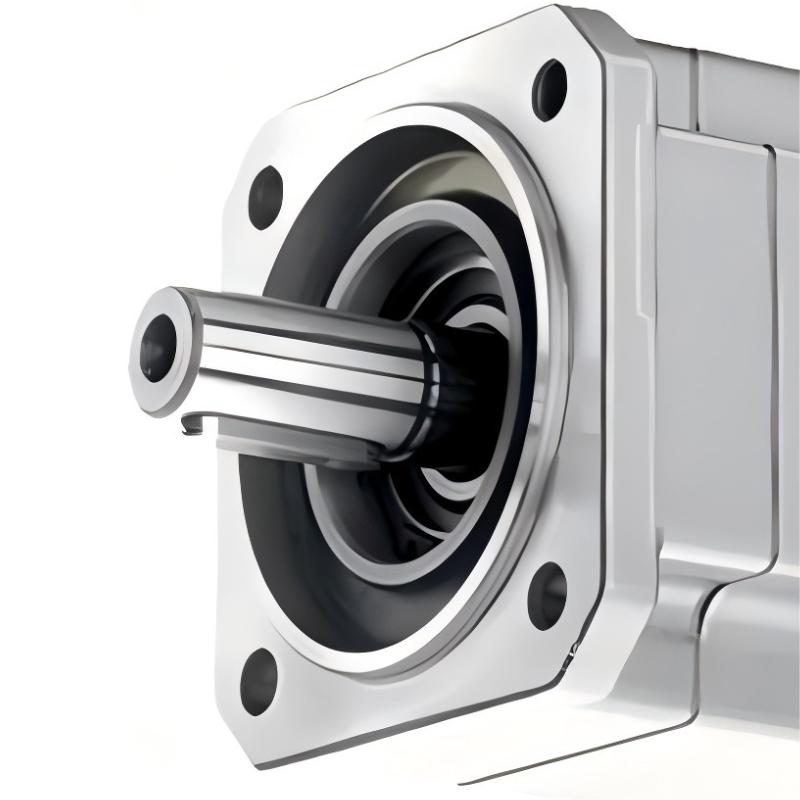

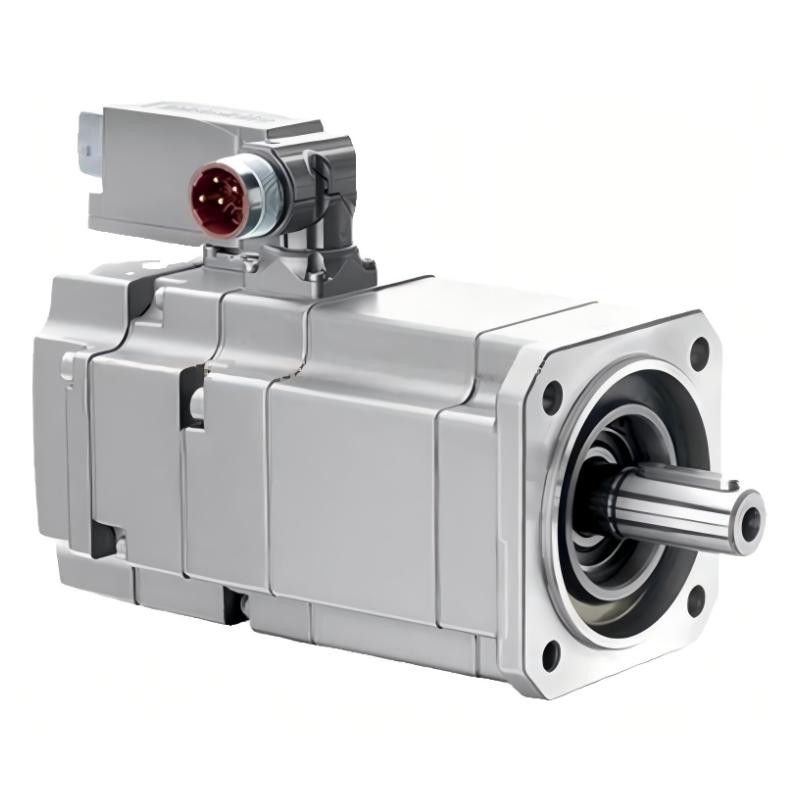

1FK7063-5AF71-1KG5 is a Siemens 1FK7 series permanent magnet synchronous servo motor designed for industrial motion control applications. It has a rated power of 2.29 kW, a rated speed of 3000 rpm, and a rated torque of 7.3 Nm. The motor is designed for applications requiring accurate positioning, stable speed control, and dynamic response. Typical applications include machine tools, packaging machinery, material handling systems, production equipment, and other automated machines.

2. What are the rated speed and rated torque of 1FK7063-5AF71-1KG5?
The rated speed of 1FK7063-5AF71-1KG5 is 3000 rpm, while the rated torque is 7.3 Nm. These values represent the motor’s standard rated operating conditions and should be considered together with the selected servo drive, load characteristics, acceleration and deceleration requirements, and duty cycle. For applications involving frequent acceleration, deceleration, or rapid positioning, the required peak torque and load inertia should also be checked to ensure that the motor and drive system are properly matched.

3. What cooling method does 1FK7063-5AF71-1KG5 use?
1FK7063-5AF71-1KG5 uses natural cooling and does not require an additional forced-air cooling system under its intended operating conditions. During installation, sufficient ventilation should be maintained around the motor to allow heat to dissipate effectively. The motor should not be installed in an enclosed location with excessive ambient temperature or restricted airflow. For continuous high-load applications, the actual thermal conditions and duty cycle should be evaluated to ensure reliable long-term operation.

4. Which drive systems can be used with 1FK7063-5AF71-1KG5?
This motor belongs to the Siemens 1FK7 servo motor family and is generally used with compatible Siemens SINAMICS servo drive systems. Drive selection should not be based only on motor power. The drive’s rated output current, peak current capability, motor feedback configuration, and motor identification parameters should also be verified. Correct motor and drive matching is important for achieving stable torque, speed, and position control. Before commissioning, the motor-specific data should be correctly configured in the drive system.

5. What type of encoder is used on 1FK7063-5AF71-1KG5?
1FK7063-5AF71-1KG5 is equipped with an incremental encoder that provides feedback about motor position and speed to the servo drive. Encoder feedback is essential for closed-loop motion control because the drive uses the feedback signal to compare the actual motor condition with the commanded value and continuously adjust motor operation. When replacing the motor, encoder, or feedback cable, the replacement components should be compatible with the original feedback configuration to prevent positioning errors or encoder-related faults.

6. What should be checked when installing 1FK7063-5AF71-1KG5?
Before installation, the mounting arrangement, shaft connection, coupling, and driven mechanism should be checked for compatibility. The motor shaft and load shaft should be properly aligned to minimize excessive radial and axial forces. Mechanical misalignment can increase bearing loads, vibration, and temperature and may shorten motor service life. Electrical installation should also be performed carefully, including correct power, feedback, and grounding connections. After installation, a low-speed test and rotation-direction check should be performed before the motor is operated under normal load conditions.

7. How should I troubleshoot 1FK7063-5AF71-1KG5 if the motor does not rotate?
If the motor does not rotate after power is applied, first check whether the servo drive has generated an alarm and whether the servo enable signal is active. Then verify the motor power supply, control signals, feedback cable, and connectors. The motor parameters configured in the drive should also be checked, including the motor identification, rated current, rated speed, and encoder configuration. If an encoder or feedback fault is displayed, inspect the feedback wiring and connectors carefully. The mechanical system should also be checked for locked mechanisms, excessive friction, or an overloaded condition.

8. How can vibration or positioning errors on 1FK7063-5AF71-1KG5 be diagnosed?
When excessive vibration, speed fluctuation, or positioning errors occur, troubleshooting should cover the mechanical system, feedback system, drive parameters, and motor itself. First check the coupling, mounting structure, and driven mechanism for looseness, misalignment, backlash, or abnormal mechanical resistance. Next, verify that the encoder feedback signal is stable and that the feedback connection is secure. The motor data and servo control parameters should then be reviewed in the drive. If the problem remains, inspect the motor windings, power cable, connectors, and operating temperature. Alarm history and changes in machine load can also provide useful information for identifying the cause of the problem.
