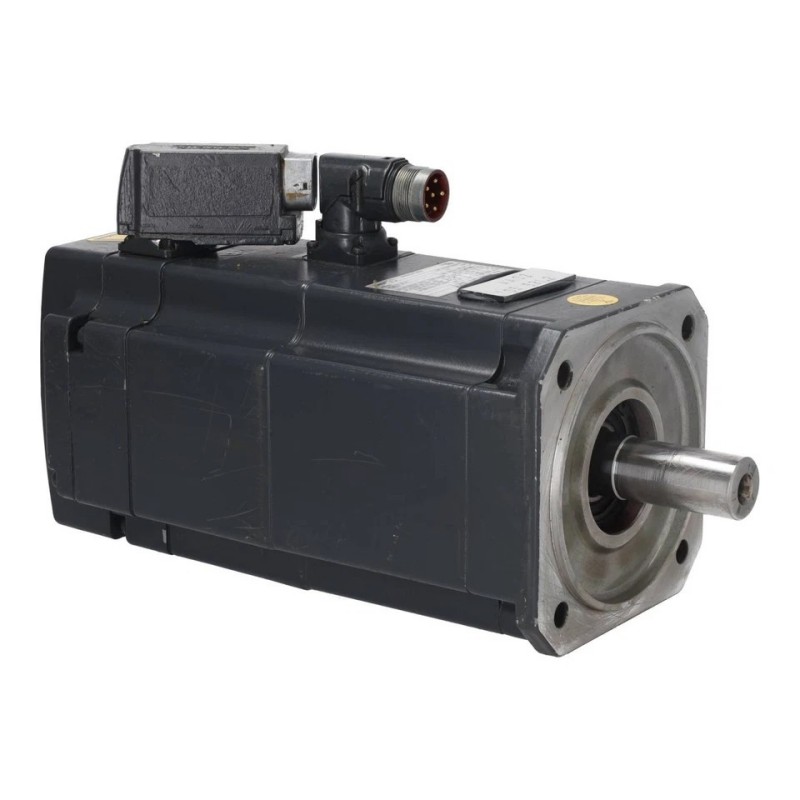

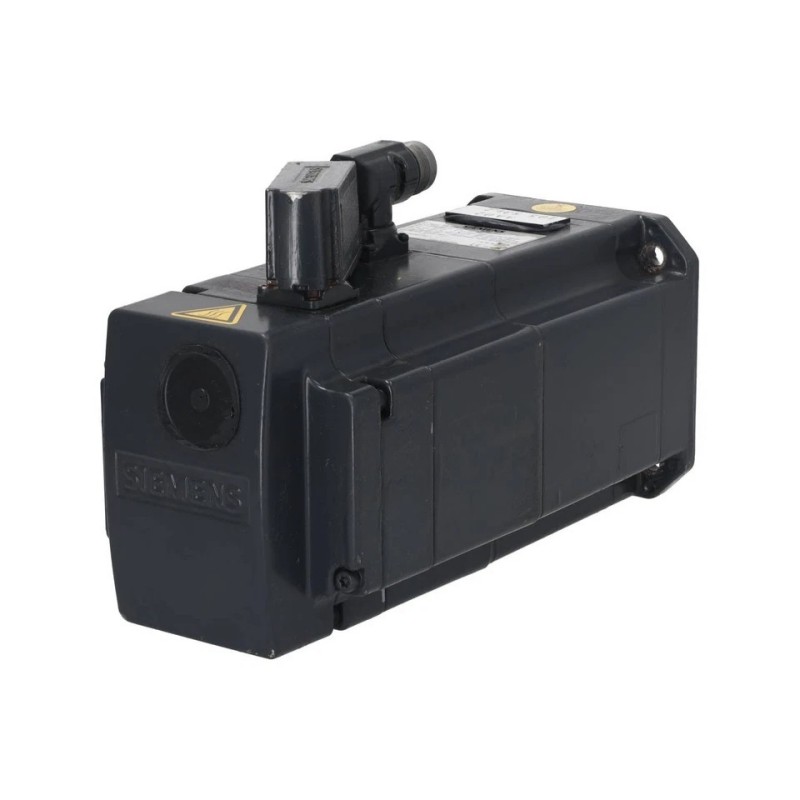

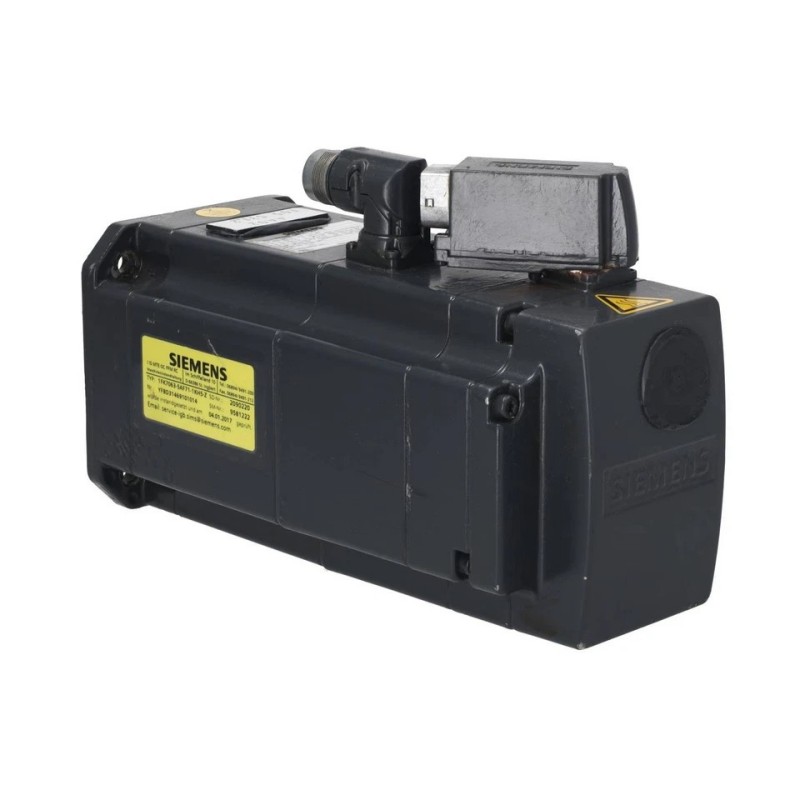

1. What type of servo motor is 1FK7063-5AF71-1KH5?
1FK7063-5AF71-1KH5 is a Siemens SIMOTICS S-1FK7 three-phase synchronous servo motor designed for industrial motion control. It has a rated power of 2.29 kW, rated speed of 3000 rpm, and rated torque of 11 Nm. The motor uses natural cooling and is designed for flange mounting. Its absolute encoder and integrated holding brake make it suitable for automated machinery requiring controlled speed, torque, and positioning.

2. What are the rated speed and rated torque of 1FK7063-5AF71-1KH5?
The rated speed is 3000 rpm and the rated torque is 11 Nm. These values should be considered together with the servo drive, load inertia, acceleration and deceleration requirements, and operating duty cycle. For applications involving frequent starts, stops, or rapid positioning, the required peak torque and current should also be checked to ensure that the motor and drive are correctly matched.

3. What encoder is used on 1FK7063-5AF71-1KH5?
This model uses a basic absolute encoder with a DRIVE-CLiQ interface and a resolution of 32 pulses per revolution. The encoder provides motor position feedback to the servo drive, allowing the control system to regulate motor movement accurately. During installation or replacement, the encoder cable and DRIVE-CLiQ connection should be checked carefully. A poor connection or incompatible feedback component can result in encoder alarms, positioning errors, or failure of the servo system to operate correctly.

4. Does 1FK7063-5AF71-1KH5 have a holding brake?
Yes. The motor is equipped with an integrated holding brake. The brake is primarily used to hold the motor shaft and load when the servo system is stopped or disabled. It is especially useful in applications where the load must remain stationary after motor torque is removed. The brake control sequence should be coordinated with the servo drive. In vertical-axis applications, the brake should not be released until the drive has established sufficient motor torque to safely support the load.

5. What cooling method does 1FK7063-5AF71-1KH5 use?
1FK7063-5AF71-1KH5 uses natural cooling, eliminating the need for a separate motor cooling fan under normal operating conditions. Adequate ventilation should be maintained around the motor to allow heat to dissipate effectively. High ambient temperature, restricted airflow, or continuous operation under heavy load can increase motor temperature. For demanding applications, the actual load profile and operating conditions should therefore be evaluated to ensure that the motor remains within its permissible thermal limits.

6. What mounting configurations are available for 1FK7063-5AF71-1KH5?
The motor is designed for IM B5 flange mounting and is also suitable for IM V1 and IM V3 mounting configurations. During installation, the mounting flange and driven mechanism should be properly aligned. The motor shaft should remain concentric with the connected machine shaft, and excessive radial or axial loads should be avoided. Correct mechanical alignment helps reduce vibration, bearing stress, and coupling wear, while also improving the overall operating stability of the servo system.

7. How should I troubleshoot 1FK7063-5AF71-1KH5 if the motor does not rotate?
First check the servo drive for active alarms and confirm that the required enable signals are present. Then inspect the motor power connection, control wiring, DRIVE-CLiQ feedback cable, and connectors. Verify that the motor identification and drive parameters correspond to the installed motor. If an encoder alarm is displayed, inspect the feedback connection and cable for loose contacts or damage. The holding brake should also be checked because an incorrect brake-control sequence can prevent shaft movement. Finally, make sure that the mechanical load is not locked, overloaded, or obstructed.

8. What should be checked if 1FK7063-5AF71-1KH5 has vibration or positioning errors?
Troubleshooting should begin with the mechanical system and then move to the encoder feedback and servo parameters. Check the coupling, shaft alignment, mounting bolts, mechanical backlash, and driven mechanism for abnormal conditions. Next, verify that the DRIVE-CLiQ encoder feedback is stable and that all connectors are securely installed. The motor data, current limits, speed-loop settings, and position-control parameters should then be reviewed. If the problem occurs mainly during acceleration or heavy loading, the actual load inertia and torque requirements should be compared with the motor and drive capabilities. Alarm history and motor temperature can provide additional information when identifying the cause.
