Technical Specifications

FAQ

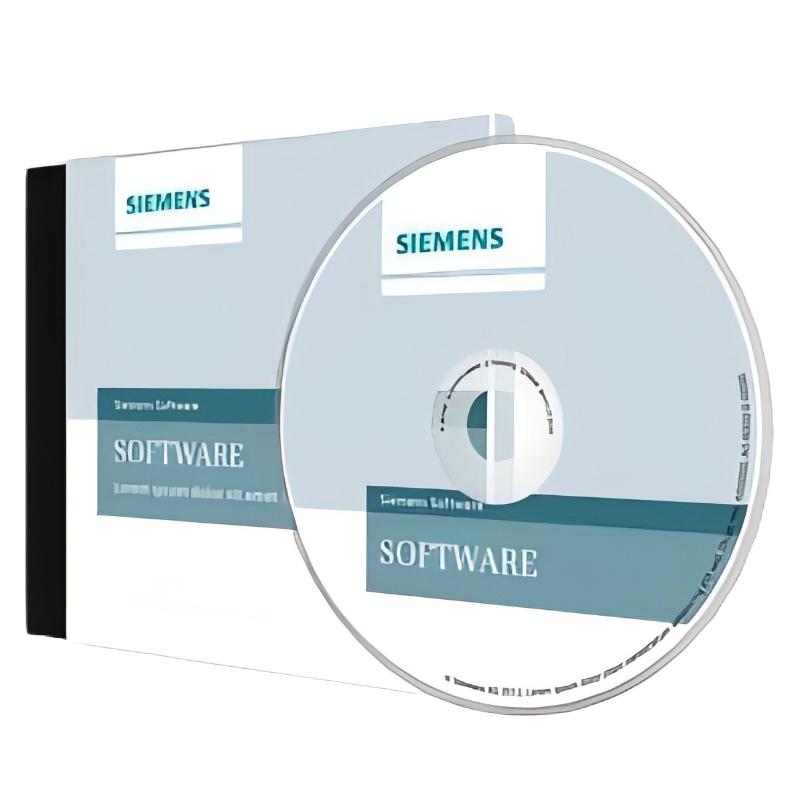

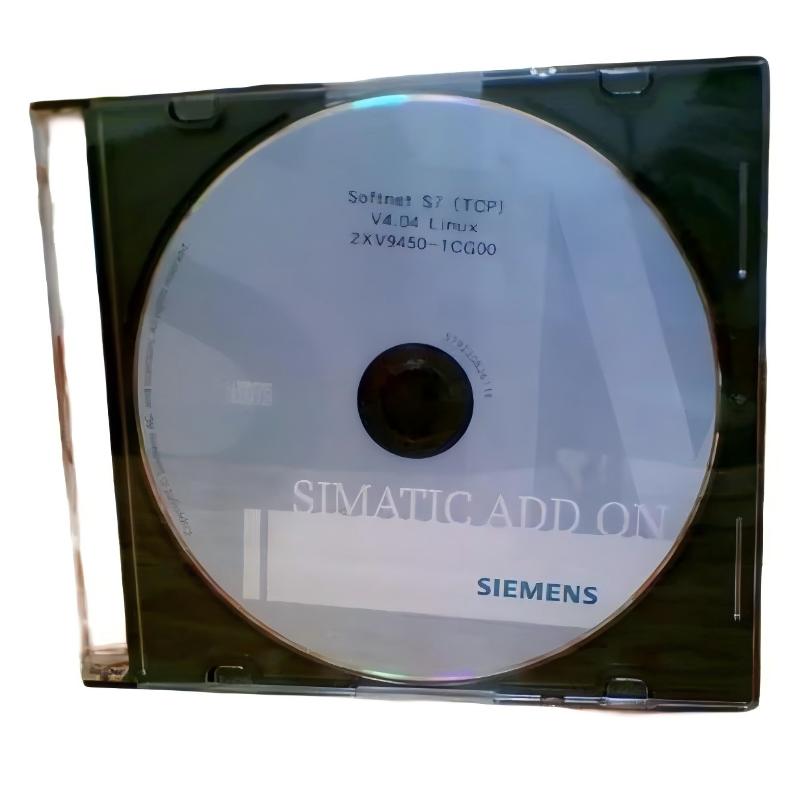

Q1: What is the main function of Siemens 2XV9450-2CG00-CG00 Communication Driver Software?

A: The 2XV9450-2CG00-CG00 is used for S7 communication between Linux-based PC systems and SIMATIC S7 automation systems. It provides a software communication interface that allows Linux applications or HMI systems to exchange data with compatible S7 controllers through Industrial Ethernet. The software is part of the SOFTNET-S7/Linux family and is intended for PC-based communication applications where a Linux system needs access to SIMATIC S7 data. It can be used as a communication layer for supervisory applications, process visualization, data acquisition, and other PC-based automation functions.

Q2: Which communication protocols are supported by this software?

A: The SOFTNET-S7/Linux communication environment supports S7 communication over Industrial Ethernet and provides communication through ISO as well as TCP/IP using RFC 1006. This allows the Linux-based application to communicate with compatible SIMATIC S7 systems using established Ethernet communication methods. The selected protocol depends on the configuration of the S7 connection and the capabilities of the target automation system. When commissioning the system, the network configuration, addressing, protocol selection, and communication parameters should be checked together to ensure that the Linux application and SIMATIC S7 controller use compatible communication settings.

Q3: How many simultaneous connections can 2XV9450-2CG00-CG00 support?

A: The Lean version supports up to eight communication connections. These connections can be used for communication with compatible SIMATIC S7 systems according to the requirements of the application. When multiple connections are configured, the available CPU resources of the Linux computer, network traffic, application data requirements, and response times should be considered. Each connection should be configured with the correct destination and communication parameters. For applications that require frequent data exchange across several PLCs, it is recommended to test the complete connection configuration under normal operating conditions to ensure that the communication load remains within the practical limits of the host system.

Q4: What Linux environment is required for this communication software?

A: The available technical information identifies Linux as the target operating system and lists kernel 2.6.X and GLIBC 2.4 as the relevant environment details for this software version. Because these are legacy software requirements, compatibility with a modern Linux distribution should not be assumed simply because the system is Linux-based. The kernel version, GLIBC version, processor architecture, installed libraries, and network interface support should all be checked before installation. For an existing industrial system, it is also important to preserve the original software environment where possible, since upgrading the Linux operating system can introduce compatibility issues with older communication components.

Q5: Can this software be used for communication between a Linux HMI or PC and a SIMATIC S7 PLC?

A: Yes. The software is designed for PC-based S7 communication and can provide an interface for data exchange between Linux applications, HMI systems, or other PC-based applications and compatible SIMATIC S7 controllers. The Linux application communicates through the SOFTNET-S7/Linux interface while the communication path uses Industrial Ethernet. This arrangement can be useful when a PC needs to collect PLC process data, provide visualization functions, or exchange information with a control system. The exact data access method depends on the application software and the configured S7 communication connection.

Q6: What should be checked if the Linux computer cannot communicate with the SIMATIC S7 PLC?

A: Troubleshooting should begin with the Ethernet connection and basic network communication. Confirm that the Linux computer has a supported and properly configured Ethernet interface and that the PLC is powered and connected to the same communication network or an appropriate routed network. Check the IP configuration, subnet settings, routing, and network accessibility between the two systems. Next, verify that the SOFTNET-S7/Linux components are correctly installed and that the configured communication parameters correspond to the target S7 system. If TCP/IP with RFC 1006 is being used, network and firewall settings should also be checked. Communication diagnostics and trace functions can then be used to identify connection attempts, protocol errors, or configuration problems.

Q7: Can the software operate with several Ethernet network cards at the same time?

A: The SOFTNET-S7/Linux communication architecture supports the simultaneous operation of several network cards, provided that the Linux operating environment correctly recognizes and manages the installed interfaces. This can be useful in systems where different communication networks are separated for control, monitoring, or system integration purposes. Each network interface should have an appropriate configuration, and routing should be planned carefully so that communication traffic reaches the intended PLC or automation station through the correct interface. When several interfaces are used, incorrect routing or overlapping network addresses can cause unexpected communication behavior, so network configuration should be tested before the system is placed into continuous operation.

Q8: How can communication problems be diagnosed during commissioning?

A: A structured diagnostic procedure can significantly reduce troubleshooting time. First, verify the physical Ethernet connection and confirm basic network reachability between the Linux computer and the SIMATIC S7 system. Then check the SOFTNET-S7/Linux configuration, connection parameters, protocol selection, and application settings. If the connection cannot be established, inspect available diagnostic information to determine whether the problem is related to addressing, protocol configuration, software compatibility, or the target PLC. The software environment provides diagnostic and trace capabilities that can be useful for analyzing communication activity. For intermittent problems, monitor the connection over an extended period and check for repeated connection attempts, communication interruptions, abnormal response times, or network errors. Testing one connection first and adding additional connections gradually is also an effective way to isolate configuration problems in multi-PLC applications.
