Q1: What is Siemens 6AG1124-1MC01-4AX0 used for?

A: Siemens 6AG1124-1MC01-4AX0 is a SIPLUS HMI KP1200 Comfort operator panel designed for industrial machine and process control applications. It provides an operator interface for displaying process values, monitoring equipment status, entering parameters, handling alarms, and controlling configured machine functions. The 12.1-inch TFT display provides a 1280 × 800 pixel resolution, while the programmable function keys allow operators to access frequently used commands directly. The panel can be integrated into industrial automation systems through its Ethernet, PROFINET, PROFIBUS, serial, and USB interfaces.

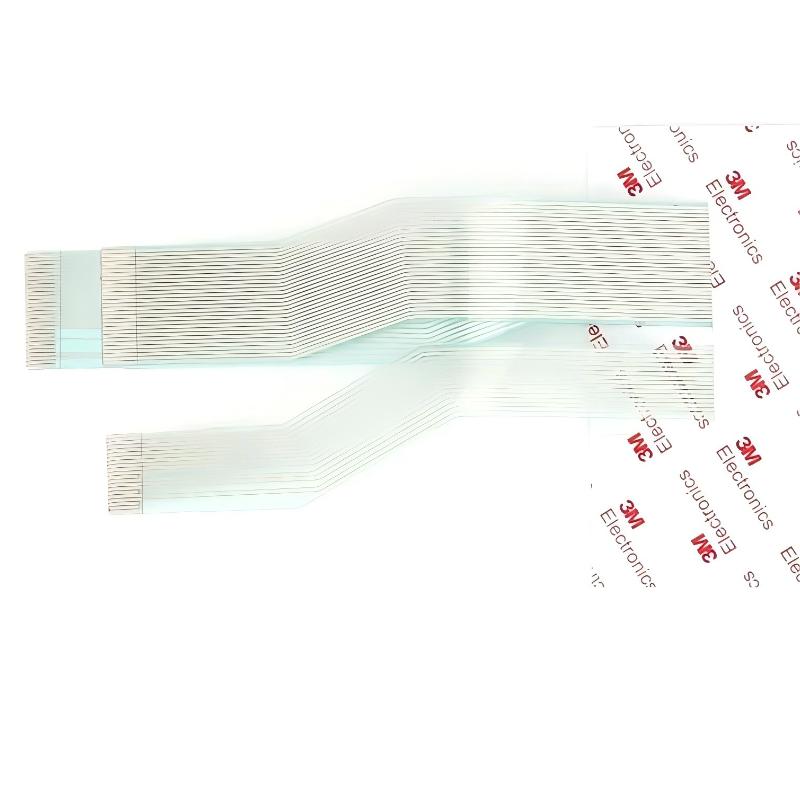

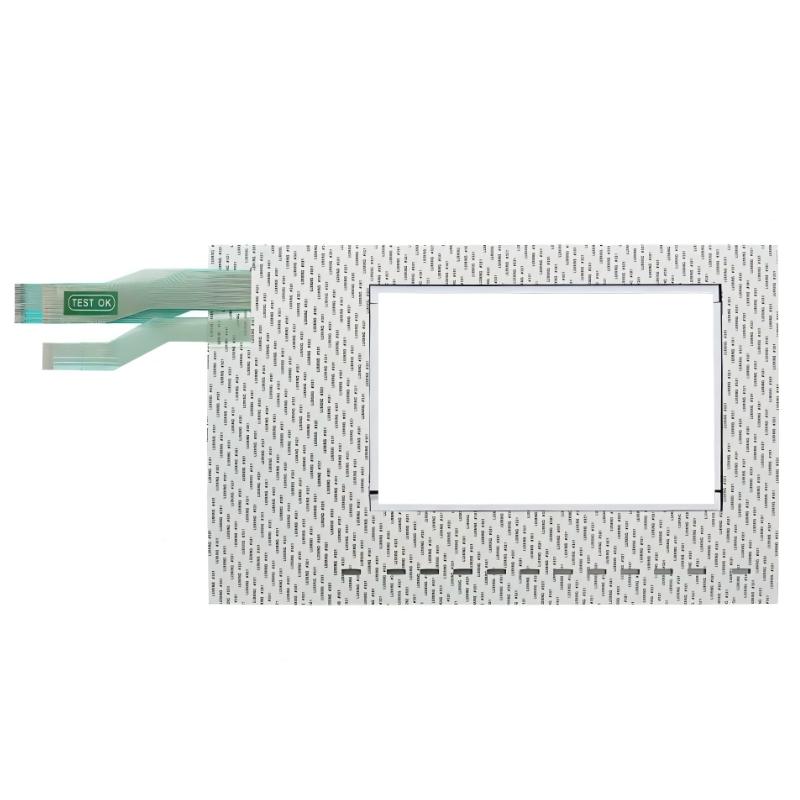

Q2: Does the 6AG1124-1MC01-4AX0 have a touch screen?

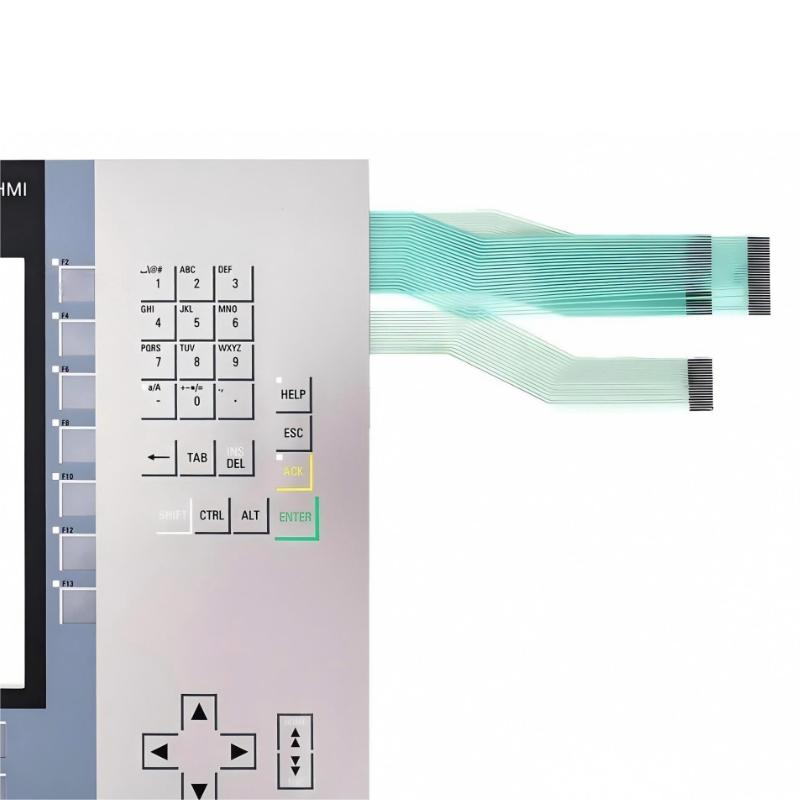

A: No. The 6AG1124-1MC01-4AX0 is a key-operated KP1200 Comfort HMI rather than a touch-operated panel. It uses 34 programmable function keys with integrated LEDs, together with system keys and numeric and alphanumeric keyboard functions. The physical keys can be assigned to specific machine operations, navigation commands, alarm handling functions, or other functions defined within the HMI project. This configuration is suitable for applications where operators require direct physical feedback and reliable key operation in an industrial environment.

Q3: Which communication interfaces are available on this HMI panel?

A: The 6AG1124-1MC01-4AX0 provides two Industrial Ethernet interfaces, two PROFINET interfaces, one RS-422 interface, one RS-485 interface, and two USB 2.0 interfaces. These interfaces allow the HMI to communicate with compatible PLCs, industrial networks, peripheral equipment, and other automation devices. The appropriate interface depends on the connected controller and the communication architecture of the application. During commissioning, the interface configuration, network parameters, cable connections, and communication settings should be checked carefully to ensure that the HMI and connected automation equipment can exchange data correctly.

Q4: Which communication protocols are supported by the 6AG1124-1MC01-4AX0?

A: The panel supports several commonly used industrial communication protocols, including PROFINET, PROFIBUS, EtherNet/IP, MPI, TCP/IP, and MODBUS. This allows the HMI to be integrated into different automation architectures depending on the PLC, controller, or other connected equipment. The actual communication configuration depends on the selected protocol, connected device, and HMI project. When commissioning the system, the PLC address, network parameters, communication driver, device configuration, and tag connections should all be verified. Incorrect protocol selection or mismatched communication parameters can prevent the HMI from accessing PLC data even when the physical network connection is working normally.

Q5: What power supply is required for Siemens 6AG1124-1MC01-4AX0?

A: The HMI operates from a nominal 24 V DC power supply, with a permissible supply voltage range of 19.2 to 28.8 V DC. The power source should provide stable voltage and sufficient capacity for the complete HMI installation. During wiring, the positive and negative supply connections must be correctly identified and connected according to the installation requirements. Before starting the panel, it is advisable to measure the actual supply voltage under the expected operating conditions. Voltage drops, unstable power supplies, or excessive electrical interference can result in startup problems, display interruptions, communication errors, or unexpected system behavior.

Q6: What functions can the KP1200 Comfort provide in a machine or process control system?

A: The KP1200 Comfort can be used for process visualization, operator input, alarm and message management, recipe handling, and machine operation. Its programmable function keys can be assigned to application-specific commands, allowing operators to perform frequently used functions without relying on a touch interface. The HMI can display process values and equipment conditions while providing controlled access to operating parameters and functions. Password protection can be used to restrict access to selected operations, while multilingual support allows the same project to be used by operators working with different languages. The exact functions available depend on the configured HMI project and connected automation system.

Q7: What should be checked if the HMI cannot communicate with the PLC?

A: Troubleshooting should begin with the physical connection and power status of both devices. Confirm that the HMI and PLC are operating normally and that the communication cable and network equipment are correctly connected. For Ethernet or PROFINET communication, check the IP address, subnet configuration, device name where applicable, and network topology. Verify that the communication driver and protocol selected in the HMI project match the PLC configuration. If a serial interface is being used, check the interface type, wiring, baud rate, parity, data bits, and other relevant communication parameters. The HMI diagnostic information and PLC diagnostic buffer should also be reviewed for communication errors. If the project was recently modified, confirm that the correct project version was transferred to the panel and that the configured PLC connections and tags match the current PLC program.

Q8: What should be considered when replacing an existing HMI with the 6AG1124-1MC01-4AX0?

A: Before replacing an existing HMI, verify the original panel model, HMI project version, PLC connection, communication protocol, power supply, mounting requirements, and operator functions. Particular attention should be given to the physical function keys because the KP1200 Comfort uses programmable keys rather than a touch interface. The existing project should be reviewed to confirm that screen layouts, tags, alarms, recipes, user permissions, and communication connections are compatible with the replacement panel. After installation, test the power supply, display, function keys, PLC communication, process values, alarms, user access, and other operator functions individually. A complete functional test should be completed before the replacement panel is returned to normal production service.
