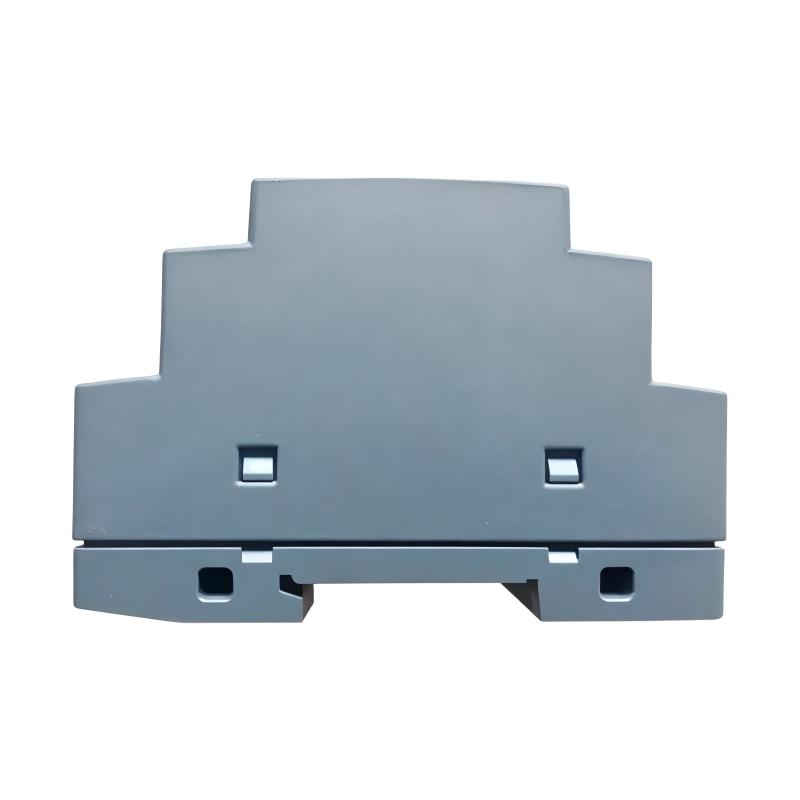

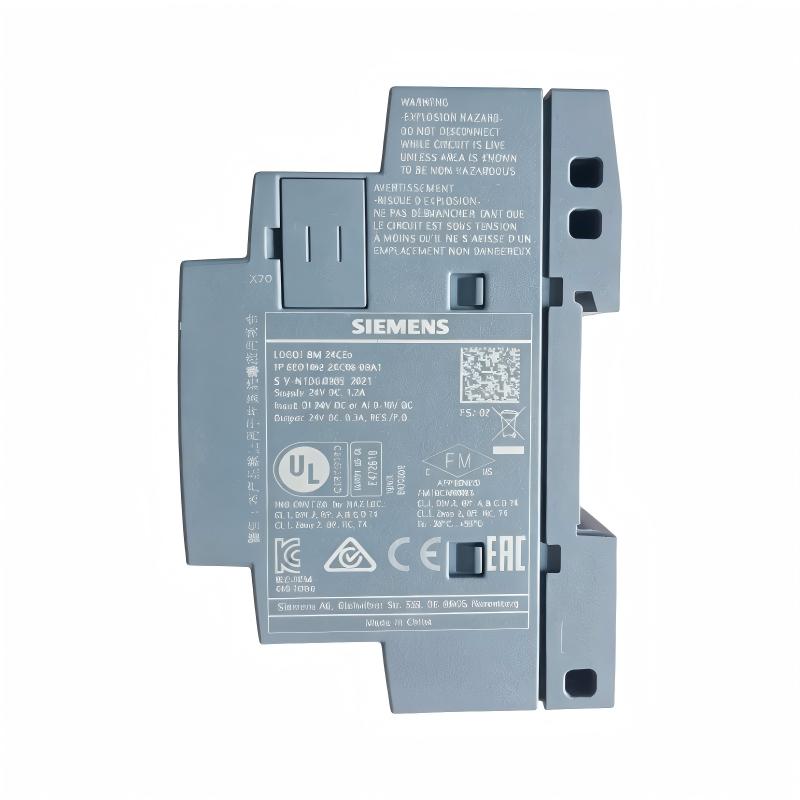

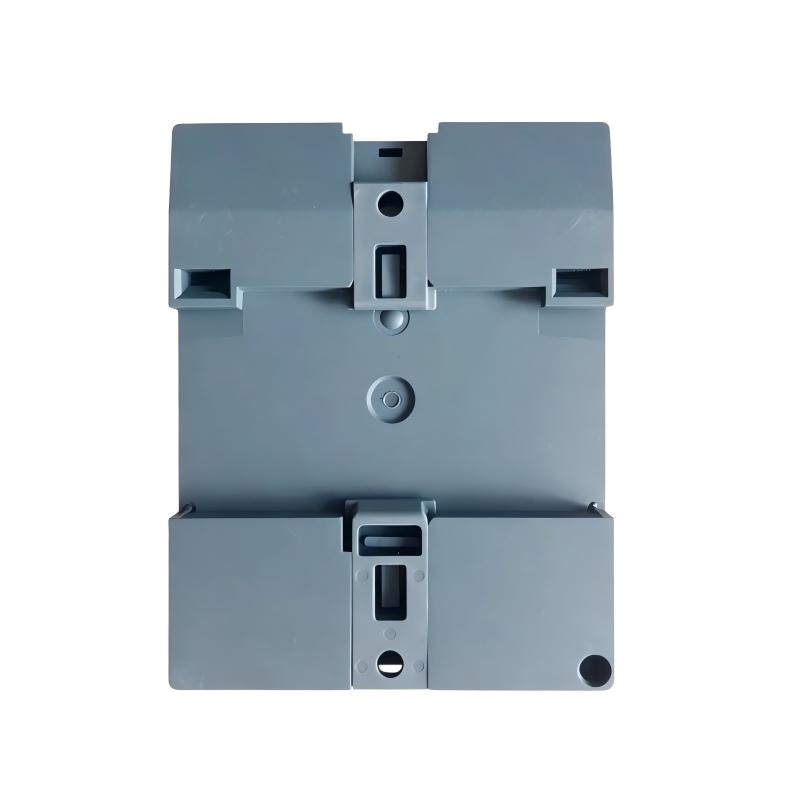

Siemens 6AG1052-2HB08-7BA0 Logic Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | 6AG1052-2HB08-7BA0 |
| Product Type | Logic Module |
| Product Family | SIPLUS LOGO! 8 |
| Base Model | 6ED1052-2HB00-0BA8 |
| Main Function | Programmable Logic Control |
| Power Supply | 24 V DC / 24 V AC |
| Digital Inputs | 8 |
| Digital Outputs | 4 relay outputs |
| Display | No display |
| Program Capacity | 400 function blocks |
| Expansion Capability | Modularly expandable |
| Communication Interface | Ethernet |
| Integrated Functions | Web server, data logging, user-defined web pages |
| Memory Card Support | Standard microSD card |
| Programming Software | LOGO! Soft Comfort V8 or later |
| Environmental Protection | Conformal coating |
| Operating Temperature | -40°C to +70°C |
| Minimum Startup Temperature | -25°C |
| Mounting Type | 35 mm DIN rail |
| Dimensions | 71.5 × 90 × 58 mm |
| Weight | 0.235 kg |
FAQ
1. What is the Siemens 6AG1052-2HB08-7BA0 Logic Module used for?
The Siemens 6AG1052-2HB08-7BA0 is a SIPLUS LOGO! logic module designed for compact machine automation and decentralized control applications. It processes input signals according to a user-defined program and controls connected equipment such as pumps, fans, contactors, valves, and indicator lights. It is suitable for small industrial machines, HVAC systems, utility equipment, and other applications that require dependable programmable control.
2. What is the difference between the 6AG1052-2HB08-7BA0 and a standard LOGO! module?
The 6AG1052-2HB08-7BA0 belongs to the SIPLUS product family and includes a conformal coating intended to improve resistance to demanding environmental conditions. It supports operation across an extended temperature range compared with many standard LOGO! modules. However, the power supply, I/O configuration, firmware compatibility, and environmental limits should still be checked against the exact model documentation before selecting it for a replacement or new installation.
3. What power supply does this logic module require?
The module is designed for a nominal 24 V DC or 24 V AC supply. The specified DC operating range is 20.4–28.8 V, and the AC supply operates within the documented voltage and frequency limits. Before energizing the unit, verify the supply type, voltage, wiring terminals, and grounding requirements. Applying an incompatible voltage or wiring the supply incorrectly may damage the module or cause unreliable operation.
4. How many input and output points are available?
The module provides eight digital inputs and four relay outputs. The inputs can be used to monitor compatible field signals, such as push buttons, limit switches, and sensor status signals. The relay outputs can switch suitable control loads, including contactors and solenoid valves, provided their electrical ratings are respected. External protection may be required, and inductive loads should be handled according to the manufacturer’s wiring recommendations.
5. Which software is used to program the 6AG1052-2HB08-7BA0?
The module is programmed using Siemens LOGO! Soft Comfort software. Engineers can create and edit logic programs, configure timers and counters, and test control sequences before commissioning. Because software versions and project compatibility can affect the engineering workflow, confirm that the installed software supports this module and the existing project. Keep a verified backup of the program before making changes to a running system.
6. Can the module communicate with other automation equipment?
Yes. The module includes an Ethernet interface and an integrated web server for supported monitoring and communication functions. Depending on the system configuration, Ethernet can be used to connect compatible engineering computers and automation devices. Before connecting it to an existing network, check IP settings, network access permissions, and the requirements of the other devices. Network configuration should also follow the site’s security policies.
7. Can the 6AG1052-2HB08-7BA0 operate in harsh industrial environments?
The SIPLUS version uses conformal coating and is specified for an operating temperature range of -40°C to +70°C, with startup permitted from -25°C under the stated conditions. This makes it suitable for certain applications exposed to temperature variation and environmental stress. It does not eliminate the need for proper cabinet design, wiring protection, ventilation, and compliance with installation restrictions. Check the applicable environmental specifications before use in condensation-prone or chemically aggressive locations.
8. What should be checked if the module fails to control connected equipment?
Start by checking the power supply and module status, then verify input signals, output wiring, and the connected loads. Review the control program to confirm that the logic conditions required to activate the output are being met. For communication-related issues, inspect Ethernet cabling and network settings. Also check relay load ratings and external protective devices. If the fault persists, back up the program and configuration before considering module replacement, and confirm compatibility with the replacement part.
Siemens 6AG1052-2HB08-7BA0 Logic Module is in stock. Please contact us for a quick quote and competitive pricing.
