1. What are the main applications of the 6AG1052-2FB08-7BA1 logic module?

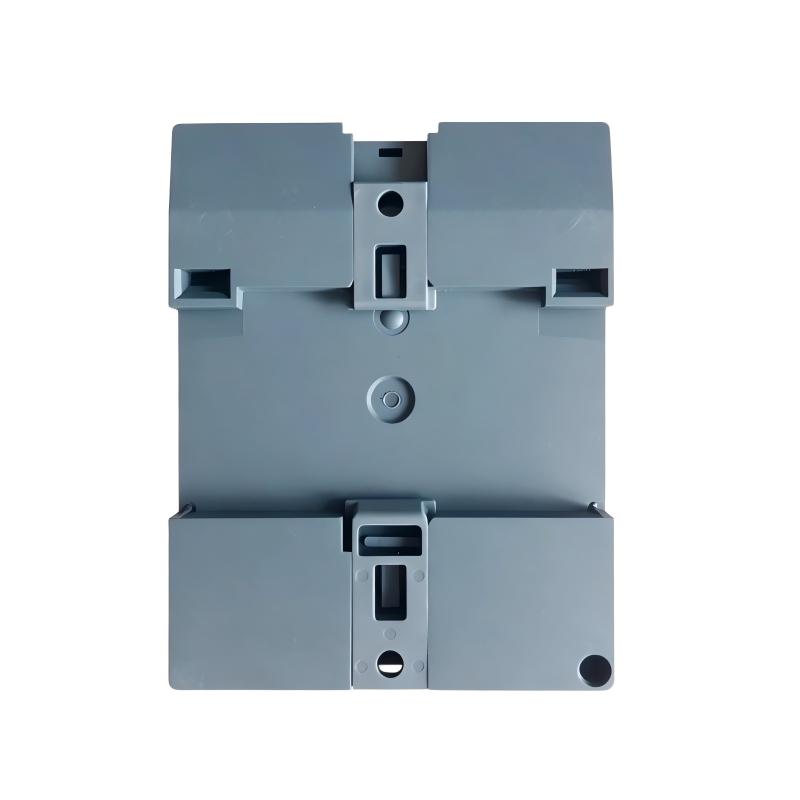

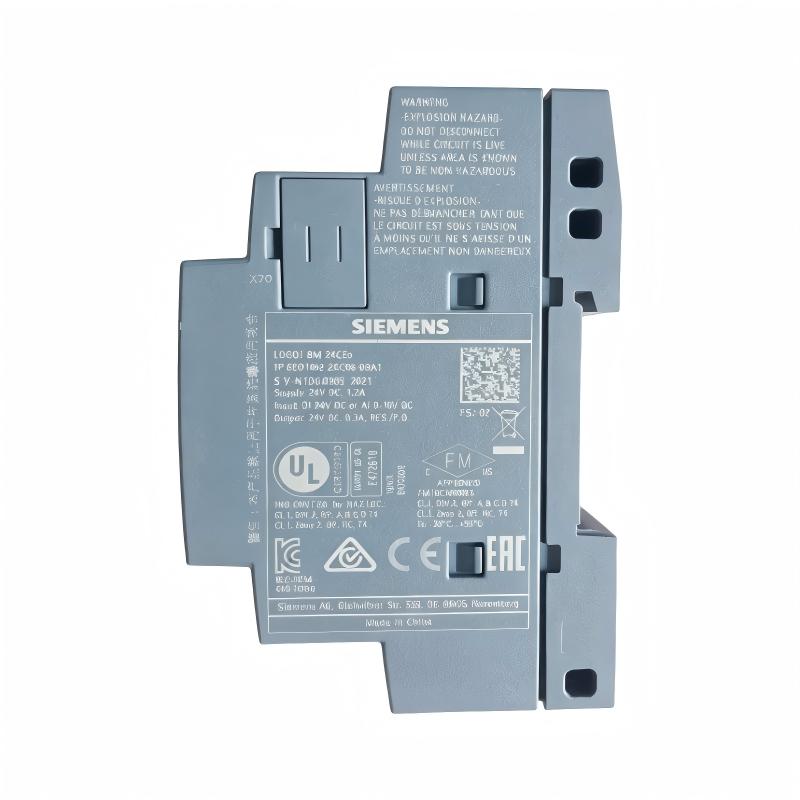

The 6AG1052-2FB08-7BA1 is a Siemens SIPLUS LOGO! 230RCEO logic module designed for compact automation and control applications. It can process input signals, execute programmed logic, and operate external equipment through relay outputs. Typical applications include pump control, ventilation systems, lighting automation, small conveyor systems, and auxiliary machine control. Its integrated Ethernet interface also supports communication with compatible automation devices. For applications requiring complex motion control, extensive I/O, or advanced process control, engineers should evaluate whether a higher-performance PLC is more suitable.

2. What input and output capabilities does this module provide?

This model provides eight digital inputs and four relay outputs. The digital inputs can receive signals from switches, push buttons, limit switches, and other compatible devices. The relay outputs can control external loads such as contactor coils, indicator lamps, and small actuators, provided that the electrical ratings are respected. Before wiring, verify the input voltage requirements, terminal assignments, and relay contact ratings. For inductive loads, appropriate suppression and external circuit protection should be considered to reduce contact wear and electrical interference. The actual configuration should be checked against the module’s technical documentation before commissioning.

3. What power supply requirements should be considered during installation?

The module is designed for 115/230 V AC/DC applications, with the exact supply requirements determined by the product’s specified electrical configuration. Before installation, confirm the available supply voltage, wiring diagram, terminal assignments, and protective devices. Incorrect connections may damage the module or cause unreliable operation. All electrical work should be performed with the relevant power sources isolated. After wiring, inspect terminal connections and verify that the input signals and relay outputs operate correctly. Initial commissioning should begin with controlled functional tests before the module is connected to operating machinery.

4. How does the SIPLUS protective coating improve environmental resistance?

The SIPLUS version includes a conformal protective coating designed to improve the resistance of electronic assemblies to certain environmental contaminants. Its specified operating temperature range is -40 to +70 °C, with a minimum startup temperature of -25 °C. These characteristics make it suitable for industrial installations exposed to wider temperature variations and certain chemically or mechanically challenging environmental conditions. However, the coating does not eliminate the need for proper enclosure protection or suitable installation practices. Unused interfaces must retain their supplied protective covers during operation, as required by the product documentation. The actual environment must remain within the specified operating limits.

5. Which software is required to program this logic module?

The 6AG1052-2FB08-7BA1 is designed for programming with Siemens LOGO! Soft Comfort V8.3 or a compatible later version. The software allows users to create and edit logic programs, configure timers and counters, define input/output relationships, and test control sequences. Before downloading a program, confirm that the software version supports the specific hardware and that the project configuration matches the installed module. Save a backup of the original program before making changes. After downloading, test the logic under controlled conditions and verify normal operation, fault responses, and recovery following a power interruption.

6. Does this module support Ethernet communication and remote monitoring?

Yes. The module includes an Ethernet interface and an integrated web server. Depending on the software version and configuration, these functions can support communication with compatible automation devices, web-based status monitoring, data logging, and user-defined web pages. Network setup requires appropriate IP configuration and verification of connectivity between the logic module and the connected devices. If remote access fails, check the network cable, IP address, subnet settings, and relevant software configuration. For industrial applications, access permissions and network security should be configured carefully to prevent unauthorized access to control functions.

7. Can the module be expanded to accommodate additional inputs and outputs?

The module supports modular expansion, allowing compatible expansion modules to be added when the application requires more I/O points. The final configuration depends on the supported expansion modules, the system’s hardware limits, and the functions required by the control program. Before expanding the system, verify module compatibility, available installation space, power requirements, and supported I/O capacity. Update the program to include the additional signals, then test each input and output individually. Expansion should be planned carefully to avoid exceeding system limits or introducing wiring and configuration errors.

8. What should be considered when replacing or maintaining this discontinued module?

The 6AG1052-2FB08-7BA1 is listed as discontinued, so availability and replacement options should be confirmed before planning maintenance. The corresponding base model is 6ED1052-2FB08-0BA1, but a replacement must be evaluated for hardware compatibility, environmental ratings, software support, and functional requirements. Before removing the existing unit, back up the control program and document the wiring, network configuration, and connected expansion modules. After replacement, verify the supply voltage, input signals, relay outputs, Ethernet communication, and program operation. Complete functional testing before returning the equipment to service, especially when the module controls critical production processes.
