1. What are the main industrial applications of this logic module?

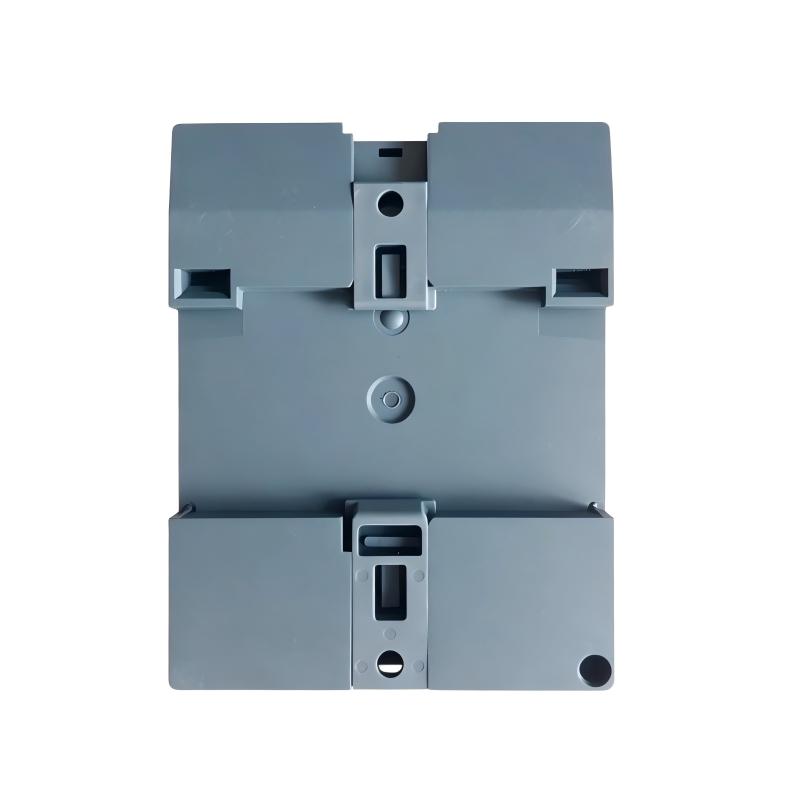

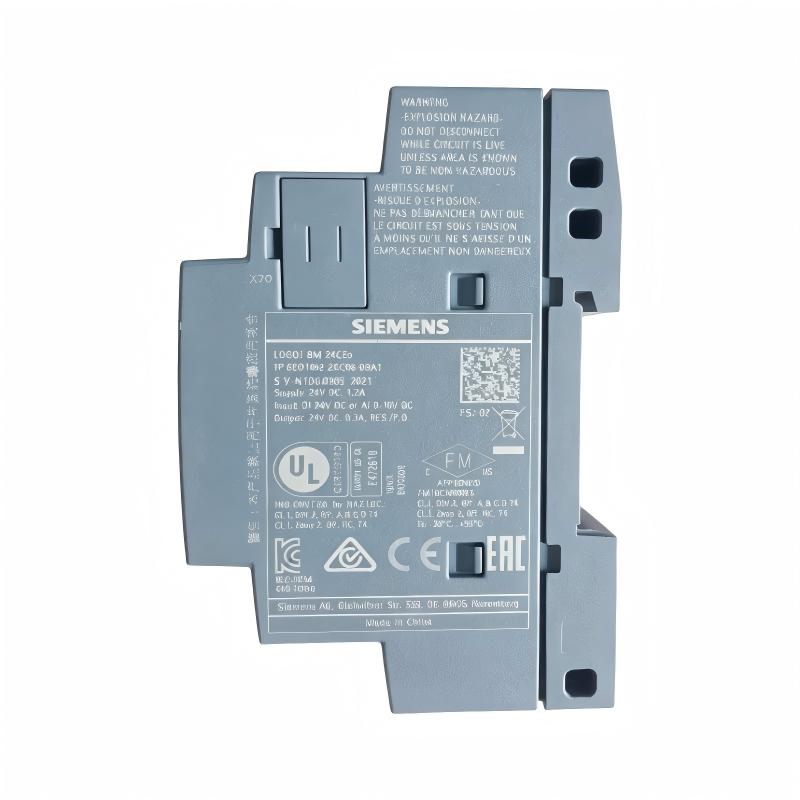

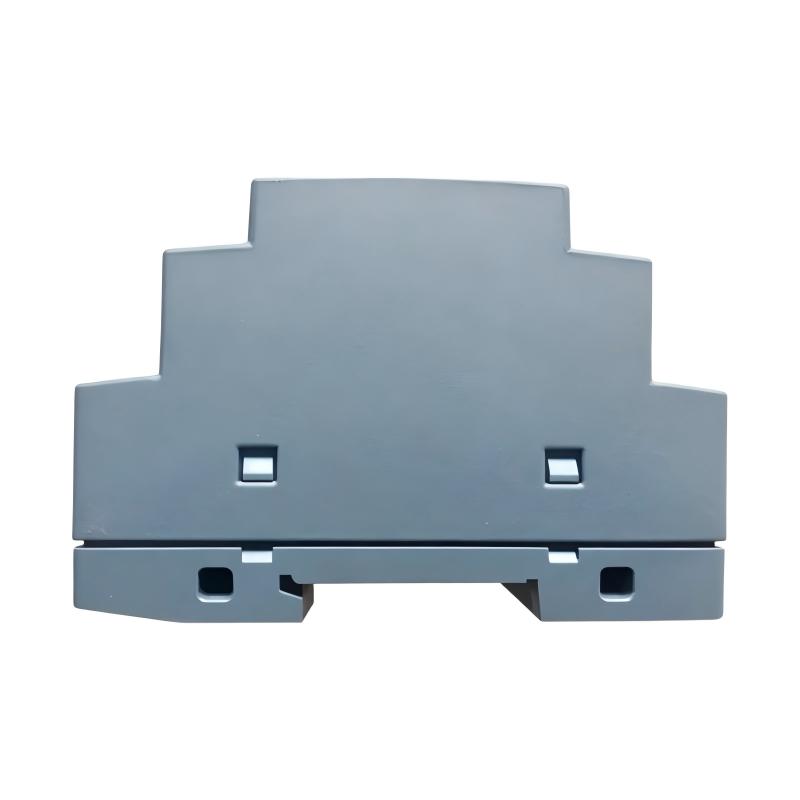

The 6AG1052-2FB08-7BA0 belongs to the Siemens SIPLUS LOGO! 230RCEO product family. It is a compact logic controller designed for small automation systems and auxiliary machine control. The module processes digital input signals, executes programmed logic, and controls external loads through relay outputs. Typical applications include pump control, fan operation, lighting automation, simple conveyor systems, and auxiliary interlocking functions. For projects requiring extensive I/O, advanced motion control, or complex process automation, engineers should evaluate whether a higher-capacity PLC would be more appropriate.

2. What input and output functions does this module provide?

This model is specified with eight digital inputs and four relay outputs. The digital inputs can receive signals from switches, push buttons, limit switches, and other compatible devices. Depending on the exact hardware configuration and input characteristics, selected inputs may also support analog signal functions. The relay outputs can control contactor coils, indicator lamps, and other loads within the applicable electrical ratings. Before wiring, verify the terminal assignments, signal voltage requirements, and load characteristics. Inductive loads require particular attention to surge suppression and contact protection to reduce electrical arcing and premature relay wear.

3. What power supply and wiring requirements should be considered?

This model is intended for 115/230 V power applications, but the exact permissible AC/DC voltage ranges and terminal arrangements must be confirmed against the technical documentation for the specific hardware version. Before installation, verify the supply type, rated voltage, terminal assignments, and required circuit protection. Disconnect the power supply before performing electrical work and follow appropriate electrical safety procedures. After wiring, inspect terminal tightness, input signal connections, and relay output circuits. During initial commissioning, test the basic logic and I/O responses under controlled conditions before connecting the actual machine actuators.

4. Which loads can the relay outputs control directly?

The relay outputs can switch loads that remain within the applicable contact voltage and current ratings, including contactor coils, signal lamps, and certain small actuators. For this product family, reference specifications may list maximum contact currents of up to 10 A for resistive loads and 3 A for inductive loads. These figures must be verified against the exact model documentation, supply voltage, load category, and switching conditions before use. Relay contacts do not provide short-circuit protection, so suitable external fuses or protective devices are required. For high-inrush loads, frequent switching, or demanding applications, an appropriately rated interposing relay or contactor may be preferable.

5. What are the benefits of the SIPLUS protective coating and extended temperature range?

The SIPLUS version features a protective coating and a specified operating temperature range of -40 to +70 °C, with a minimum startup temperature of -25 °C. These characteristics help the module operate in certain industrial environments where temperature fluctuations and environmental contaminants may affect electronic components. The coating can improve resistance to selected environmental influences, but it does not make the module waterproof or suitable for unrestricted exposure to condensation or liquids. Installation conditions must remain within the specified environmental limits, and the enclosure should provide appropriate electrical protection and ventilation.

6. How can this module be programmed and configured?

The module can be programmed using a compatible version of Siemens LOGO! Soft Comfort. Engineers can create logic programs using function blocks, timers, counters, conditional operations, and input/output relationships. Before transferring a program, verify software compatibility with the hardware and firmware version. Save the original project file and confirm the module type and I/O assignments to avoid overwriting the wrong configuration. After downloading the program, test the control sequence, input responses, output behavior, and recovery after a power interruption. A structured commissioning process helps identify logic errors before the controller is connected to production equipment.

7. Does this module support Ethernet, a web server, and data logging?

The model is specified with an Ethernet interface and an integrated web server, allowing supported network access, status monitoring, and related data functions. Data logging and user-defined web pages may also be available, depending on the hardware, firmware, software version, and project configuration. During setup, assign the appropriate network parameters and verify communication with the engineering workstation or supervisory system. If web access or data retrieval fails, inspect the network connection, IP configuration, software settings, and enabled functions. Industrial network access should be restricted through appropriate security measures to reduce the risk of unauthorized changes to the control system.

8. What should be considered when maintaining or replacing this discontinued model?

Before purchasing or replacing the 6AG1052-2FB08-7BA0, verify availability, supply conditions, and compatibility with the existing installation. A potential replacement may differ in software support, communication functions, firmware requirements, expansion capabilities, or I/O behavior. Physical similarity and an equivalent number of inputs and outputs do not guarantee compatibility. Before removal, back up the program, parameters, and network configuration, and document the existing wiring and expansion arrangement. After installation, verify the power supply, I/O assignments, relay load ratings, and communication settings. Complete functional testing before returning the equipment to production, and prepare a recovery plan for applications where unexpected downtime would affect operations.
