1. What are the main functions of the 6AG1040-1LA01-2AA0 control unit?

The 6AG1040-1LA01-2AA0 belongs to the Siemens SIPLUS S120 product series and uses the CU310-2 PN design. It is primarily intended for single-axis drive applications within compatible SINAMICS S120 systems. Its functions include processing drive commands, handling control signals, and exchanging data with higher-level automation systems through PROFINET. Typical applications include industrial machinery, motor-driven equipment, and automated production systems that require coordinated operation between a PLC and a drive. Proper integration requires checking compatibility with the power module, motor, communication configuration, and application-specific control requirements.

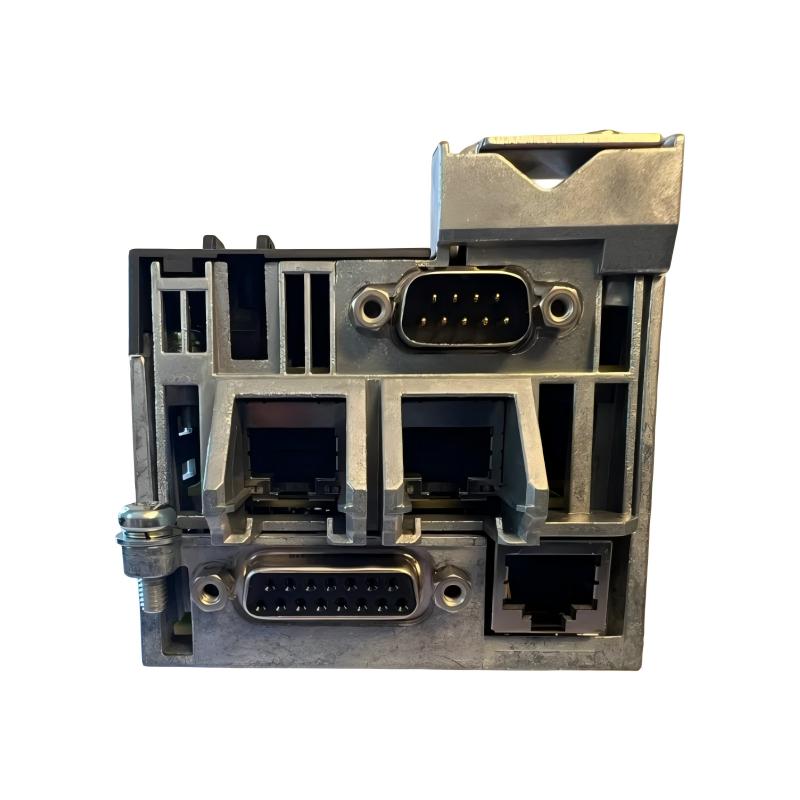

2. Which industrial communication protocols does this control unit support?

This model provides two PROFINET interfaces for communication with compatible PLCs and other industrial automation devices. Unlike the CU310-2 DP version, which uses PROFIBUS, the CU310-2 PN is designed for PROFINET communication and does not support PROFIBUS or provide an RS485 interface. During commissioning, the device name, IP address, and PLC hardware configuration must be assigned correctly. Network cabling, switch configuration, and communication status should also be verified. If communication is interrupted, inspect the Ethernet cables, interface indicators, device name assignment, and communication settings in the PLC project.

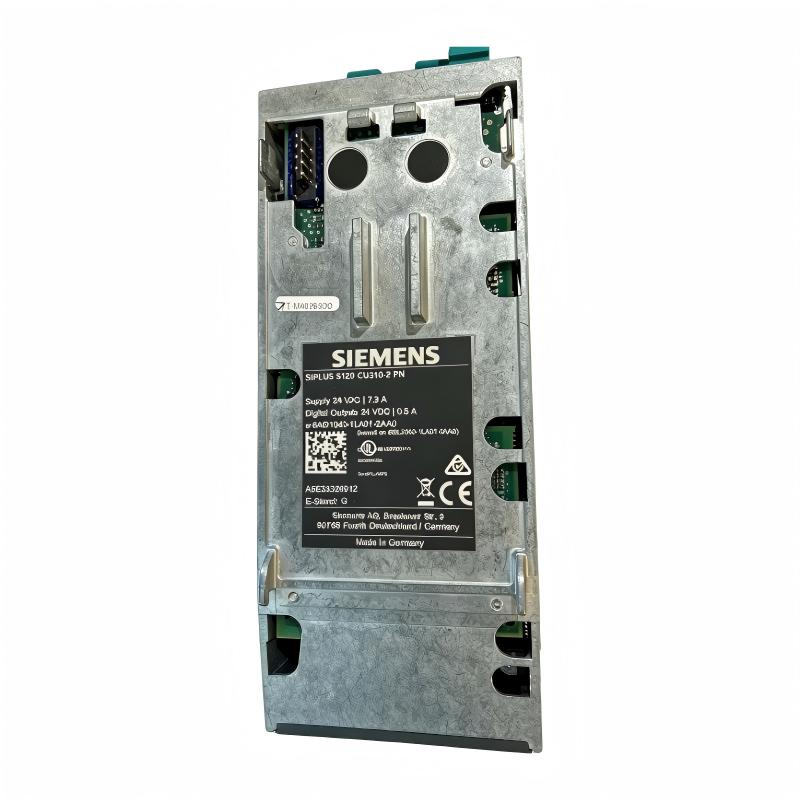

3. What are the power supply requirements for this control unit?

The control unit can receive its 24 V DC operating supply through the power module or use an external DC supply, depending on the system configuration. The specified external supply voltage range is 20.4–28.8 V DC, with a maximum current consumption of 0.3 A and maximum power consumption of 20 W. During installation, verify the permitted supply arrangement, polarity, wiring integrity, and voltage stability. If the unit fails to start, resets unexpectedly, or displays abnormal status indications, check the power supply and electrical connections first. Further troubleshooting should be based on the device diagnostics and the applicable technical documentation.

4. How does the SIPLUS protective coating improve operating reliability?

The SIPLUS version features a protective coating designed to improve the resistance of electronic components to certain environmental contaminants and corrosive influences. Its specified operating temperature range is -20 to +55 °C, making it suitable for industrial environments that meet the product’s environmental requirements. However, the coating does not make the unit waterproof or guarantee operation under continuous condensation, direct liquid exposure, or unrestricted corrosive conditions. Before installation, assess the actual temperature, humidity, and contamination levels. The control cabinet must also provide suitable protection, ventilation, and heat dissipation to maintain reliable operation.

5. Does this control unit support sensorless vector control?

This model supports sensorless vector control, which estimates motor operating conditions without relying on an encoder for speed feedback. This approach can reduce dependence on encoder hardware and associated wiring in applications that do not require precise position feedback. Actual performance depends on motor parameters, load characteristics, operating speed, and controller settings. During commissioning, enter the correct motor nameplate data and complete the required parameter configuration and operational tests. Applications involving precise positioning or demanding dynamic performance should be evaluated carefully to determine whether sensorless control meets the required accuracy and response characteristics.

6. Is a CompactFlash card included with this control unit?

A CompactFlash card is not included in the standard configuration specified for this model. Before installation or commissioning, confirm the storage, parameter management, and configuration requirements of the complete drive system. These requirements may vary according to the hardware configuration, software version, and engineering tools used. When replacing an existing unit, back up the available drive parameters and verify the complete order number, hardware compatibility, and applicable configuration requirements. After installation, restore the necessary settings according to the relevant technical documentation, then verify communication, drive enable conditions, and diagnostic functions before returning the equipment to service.

7. How can PROFINET communication faults be diagnosed?

Begin by checking the control unit’s status indicators, power supply, and network connections. Inspect the PROFINET cables, connectors, switch ports, and network topology for loose connections or physical damage. Next, verify that the assigned device name, IP address, and PLC hardware configuration match the actual installation. If the device is visible on the network but data exchange fails, review the PLC program, communication configuration, and available diagnostic information. Following a control unit replacement, confirm that the new device has been assigned the correct network settings. Record fault codes and operating conditions to help distinguish network problems from configuration errors or hardware faults.

8. What should be checked when replacing this control unit?

Before replacement, verify the complete model number, 6AG1040-1LA01-2AA0, and confirm compatibility with the existing drive architecture, communication interfaces, and hardware configuration. This model belongs to the SIPLUS S120 series and uses the CU310-2 PN design with PROFINET communication. It should not be replaced solely on the basis of physical similarity with a CU310-2 DP or another control unit. Follow the site’s electrical safety procedures, isolate the relevant power sources, and back up available drive parameters and network settings. After installation, inspect the wiring, verify PROFINET communication, restore the required parameters, and test drive enable conditions and diagnostic functions. Conduct a controlled commissioning test before returning the equipment to normal production.
