1. What are the main industrial applications of this control unit?

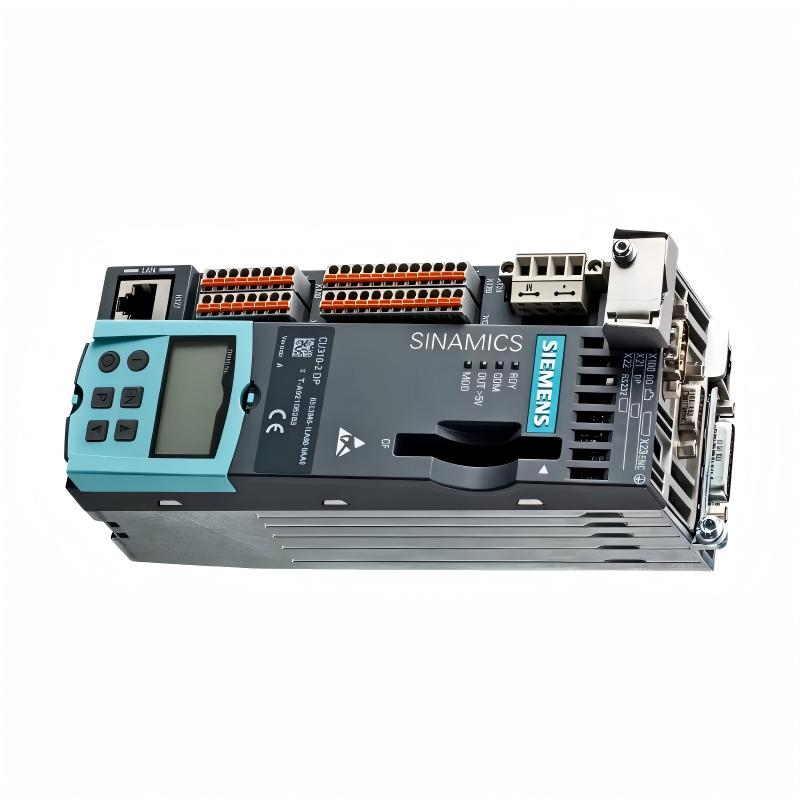

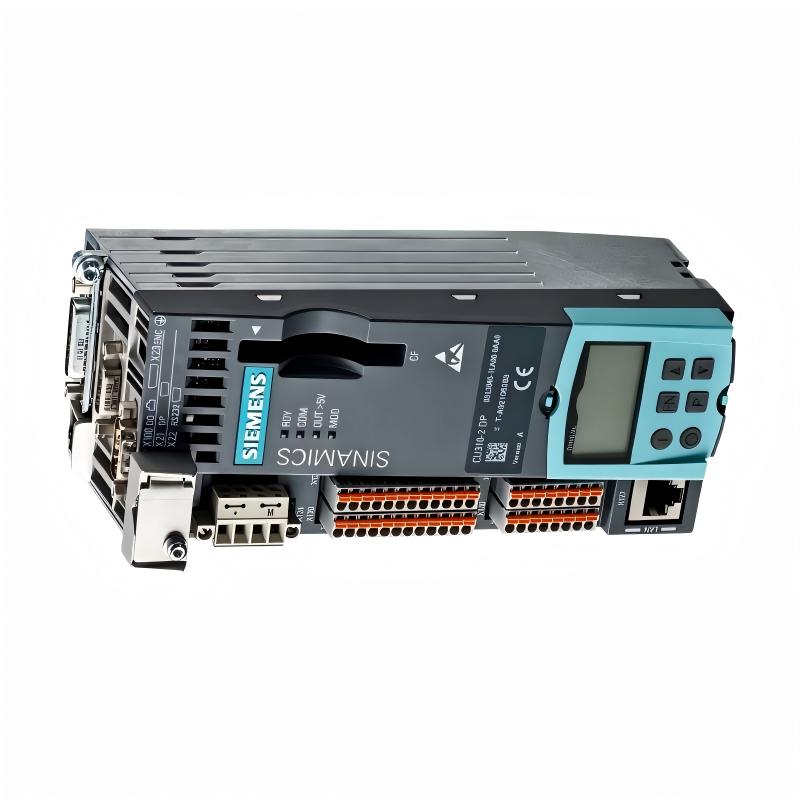

The 6AG1040-1LA00-2AA0 belongs to the Siemens SIPLUS S120 product series and is based on the CU310-2 DP control unit design. It is primarily intended for single-axis drive applications within compatible SINAMICS S120 systems. Its main functions include processing drive control commands, handling relevant control signals, and exchanging data with higher-level automation systems through PROFIBUS. Typical applications include motor-driven machinery, industrial production equipment, and automated systems requiring coordinated operation between a PLC and a drive. Before installation, users should verify compatibility with the selected power module, motor, communication network, and required control functions.

2. What is the difference between this SIPLUS control unit and the standard CU310-2 DP?

This model is based on the 6SL3040-1LA00-0AA0 platform and belongs to the SIPLUS range, which is designed for applications requiring enhanced environmental resistance. It features a protective coating and a specified operating temperature range of -20 to +55 °C. These characteristics make it suitable for certain industrial environments where temperature variations and environmental contaminants may affect conventional electronic equipment. However, the protective coating does not make the unit waterproof or suitable for unrestricted exposure to condensation, liquids, or corrosive substances. Installation conditions must remain within the manufacturer’s specified limits.

3. Which communication functions does this control unit support?

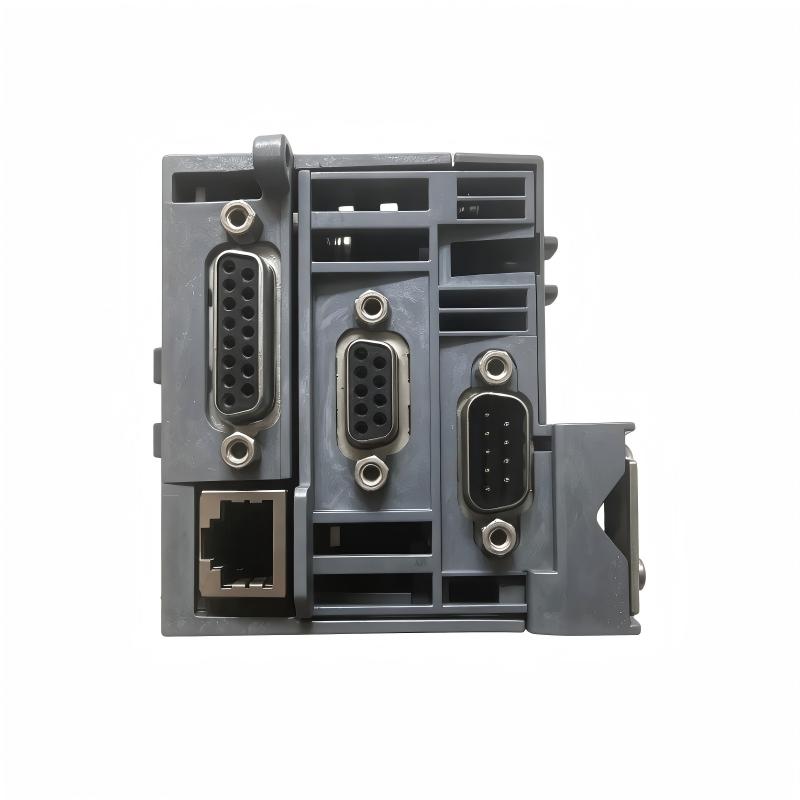

The control unit is equipped with a PROFIBUS communication interface for exchanging data with compatible PLCs, drive systems, and other industrial automation devices. During configuration, the PROFIBUS address, communication parameters, network topology, and bus termination must be set correctly. Cable shielding and grounding should also follow the requirements of the installation. If communication fails, technicians should inspect the bus cable, connectors, address settings, and diagnostic information from both the control unit and the PLC. Because this model is a CU310-2 DP version, users should not assume that it supports PROFINET in the same way as a corresponding PN version.

4. What power supply and wiring requirements should be considered during installation?

Before wiring, technicians should consult the technical documentation corresponding to the exact hardware version to confirm the power supply arrangement, terminal assignments, and electrical requirements. The specified signal wire cross-section is 0.05–1.5 mm², subject to the applicable terminal and installation requirements. All relevant power sources must be isolated before electrical work begins, and the equipment must be confirmed safe to handle. After wiring, inspect terminal connections, grounding, signal polarity where applicable, and cable routing. Proper wiring practices help reduce electrical interference, intermittent connections, unexpected alarms, and commissioning delays.

5. Can this control unit drive a motor independently?

The control unit performs drive-control and signal-processing functions but does not independently provide the main power required to operate a motor. It is normally used with compatible SINAMICS S120 power modules, a suitable motor, and the necessary connection components. Before commissioning, verify that the control unit and power module are compatible and configure the motor data, control mode, operating limits, and required feedback signals. Initial testing should follow the approved commissioning procedure, beginning with controlled operating conditions. Motor direction, speed response, enable signals, and protective functions should all be checked before the machine is released for normal operation.

6. How does the absence of a CompactFlash card affect commissioning?

The standard configuration of this model does not include a CompactFlash card. Before commissioning, users should therefore confirm the required parameter storage, startup, and backup arrangements for the specific drive configuration. The exact requirements depend on the hardware configuration, software version, and engineering tools used in the project. When replacing an existing control unit, back up the available drive parameters and verify that the replacement hardware is compatible with the original installation. After installation, restore the required configuration according to the applicable manual, verify communication, and test the drive functions. Successful power-up alone does not confirm that the system is fully configured or ready for operation.

7. How should communication failures or drive alarms be diagnosed?

Start by recording the alarm code, status indicators, and operating conditions present when the fault occurred. Check the control unit’s power supply, connectors, communication cables, and relevant electrical connections. For PROFIBUS communication problems, inspect the bus address, communication settings, cable shielding, grounding, and termination resistors. If communication is normal but the drive cannot start, investigate enable signals, power module status, motor parameters, and system interlocks. Once the underlying cause has been identified, follow the manufacturer’s fault-handling procedure and perform a controlled operational test. If the alarm recurs, retain the diagnostic records for further analysis rather than replacing components without confirming the cause.

8. What compatibility checks are necessary when replacing this control unit?

Before replacement, verify the complete order number, 6AG1040-1LA00-2AA0, and confirm compatibility with the existing drive architecture, communication interface, and hardware configuration. This model belongs to the SIPLUS S120 series and uses the CU310-2 DP design with PROFIBUS communication and a protective coating. Similar appearance or identical mounting arrangements do not guarantee functional compatibility with another control unit. Check the associated power module, signal wiring, parameter backup, firmware requirements, and available commissioning tools. After replacement, verify communication, drive enable conditions, parameter settings, and diagnostic functions. Complete the prescribed commissioning and safety checks before returning the equipment to normal service.
