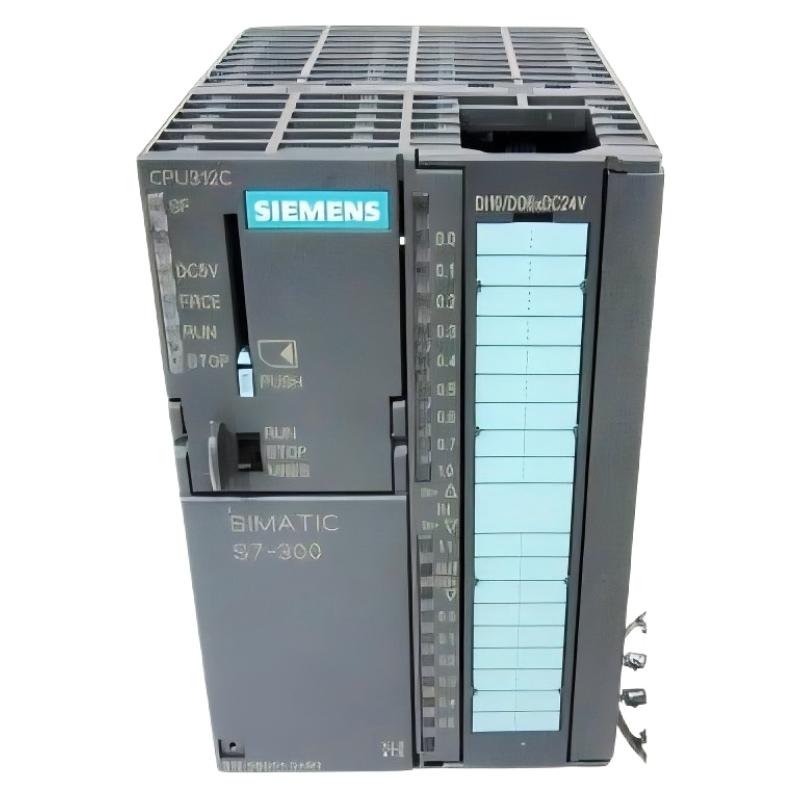

1. What is the main function of the Siemens 6AG1313-6CG04-7AB0 Compact CPU?

The Siemens 6AG1313-6CG04-7AB0 is a CPU 313C-2DP compact programmable logic controller in the SIPLUS S7-300 series. It combines control processing, integrated digital I/O, and PROFIBUS DP communication in one unit. The CPU is suitable for industrial machine control, production equipment, and automation systems that require communication with distributed field devices. Its integrated I/O can simplify hardware design in applications that do not require a large number of external signal modules. The SIPLUS version features conformal coating and an extended specified operating temperature range, making it suitable for certain demanding industrial environments when installed according to the applicable technical requirements.

2. What communication functions are supported by the MPI and PROFIBUS DP interfaces?

The MPI interface supports communication with compatible Siemens programming devices and automation equipment, particularly for program downloads, online monitoring, and diagnostics. The integrated PROFIBUS DP interface allows the CPU to exchange process data with compatible distributed I/O stations and other field devices. When configuring the network, engineers must verify station addresses, communication parameters, bus termination, and the hardware configuration in STEP 7. Incorrect addressing or wiring can prevent devices from communicating even when the CPU itself is functioning correctly. During commissioning, check the communication status and diagnostic information of each connected station before testing the complete control sequence.

3. How can the integrated digital inputs and outputs be used?

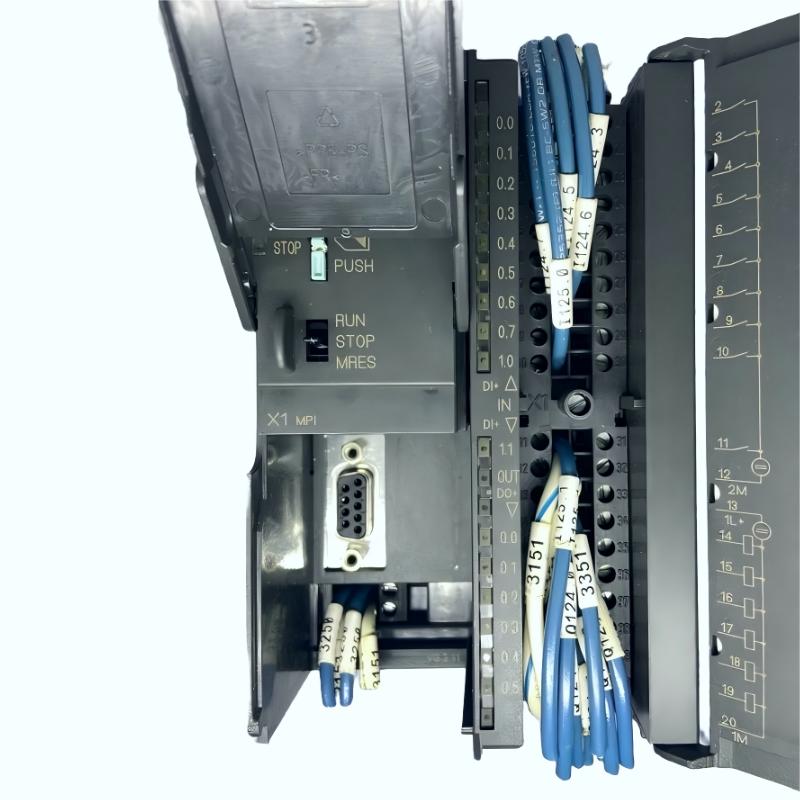

The CPU provides 16 digital inputs and 16 digital outputs for discrete control tasks. Inputs can monitor signals from push buttons, limit switches, proximity sensors, and other compatible field devices. Outputs can control suitable relays, indicator lamps, and actuators within the specified electrical limits. These channels are useful for machine sequencing, interlocking logic, and equipment status monitoring. Before connecting field wiring, confirm the electrical characteristics, terminal assignments, and permissible load ratings. Loads that exceed the output capability may require interposing relays or external switching devices. After installation, test each input and output individually and verify that the program responds correctly to actual field signals.

4. What are the main applications of the three high-speed counters?

The CPU includes three high-speed counters with a maximum counting frequency of 30 kHz. They can support applications such as pulse counting, shaft-speed monitoring, throughput measurement, and other tasks involving rapidly changing signals. Depending on the configured function, high-speed channels may also support frequency or period measurement and related signal-processing tasks. Correct operation depends on sensor compatibility, input signal quality, counter configuration, and the application program. During commissioning, compare the measured values with a known reference and check for missed pulses or unstable readings. If results are inconsistent, inspect the signal wiring, grounding, electrical interference, and configured operating mode before replacing hardware.

5. Why is a Siemens Micro Memory Card required?

The Siemens 6AG1313-6CG04-7AB0 requires a compatible Micro Memory Card (MMC) for its specified load-memory functions. The card stores the user program and associated data needed by the CPU, while working memory supports program execution. Before installing or replacing an MMC, verify compatibility and ensure that a valid copy of the user program and hardware configuration is available. If the CPU reports a memory-related diagnostic fault, check that the card is properly seated and that its contents are suitable for the installed CPU. Keep an independent backup of the STEP 7 project so that the application can be restored if the card becomes damaged or its contents are lost.

6. Which engineering software and programming languages can be used with this CPU?

The CPU can be configured using Siemens STEP 7. The specified software requirements include STEP 7 V5.5 SP1 or later, or STEP 7 V5.3 SP2 or later with the appropriate HSP 203 hardware support package. Supported programming languages include LAD, FBD, STL, SCL, CFC, GRAPH, and HiGraph, subject to the installed software version and available functionality. Before downloading a program, confirm that the engineering software recognizes the correct CPU type and that the hardware configuration matches the physical installation. Compile the project and review any warnings or errors before transferring it to the controller. For an existing production system, back up the original project before making program or configuration changes.

7. What environmental conditions should be considered when installing the SIPLUS CPU?

The SIPLUS version uses conformal coating to provide additional protection for its electronic circuitry. Its specified operating temperature range is -25°C to +70°C. However, the coating does not make the CPU waterproof or eliminate all risks associated with condensation, corrosive substances, or conductive contamination. The installation must still provide appropriate enclosure protection, ventilation, thermal management, and protection against electrical interference. Before using the controller in a railway or other specialized environment, verify the exact environmental qualifications and applicable standards for the complete order number. Following the manufacturer’s installation instructions helps prevent premature component degradation and improves long-term operating reliability.

8. How should common faults on the Siemens 6AG1313-6CG04-7AB0 be diagnosed?

Start by checking the 24 V DC power supply, CPU status indicators, diagnostic information, and memory card. If the CPU does not start correctly, verify the supply voltage, MMC installation, and compatibility of the user program with the hardware configuration. For digital I/O faults, inspect field wiring, signal levels, terminal assignments, and program logic. If PROFIBUS DP communication fails, check the bus cable, connectors, station addresses, termination, and diagnostic status of connected devices. For intermittent operation, investigate loose connections, voltage fluctuations, and electrical interference. Record the fault symptoms before changing parameters or replacing components. Back up the project before making significant changes, then test communications, I/O functions, and the complete control sequence before returning the equipment to service.
