Siemens 6AG1123-2GA03-2AX0 VDC Logic I/O Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | 6AG1123-2GA03-2AX0 |

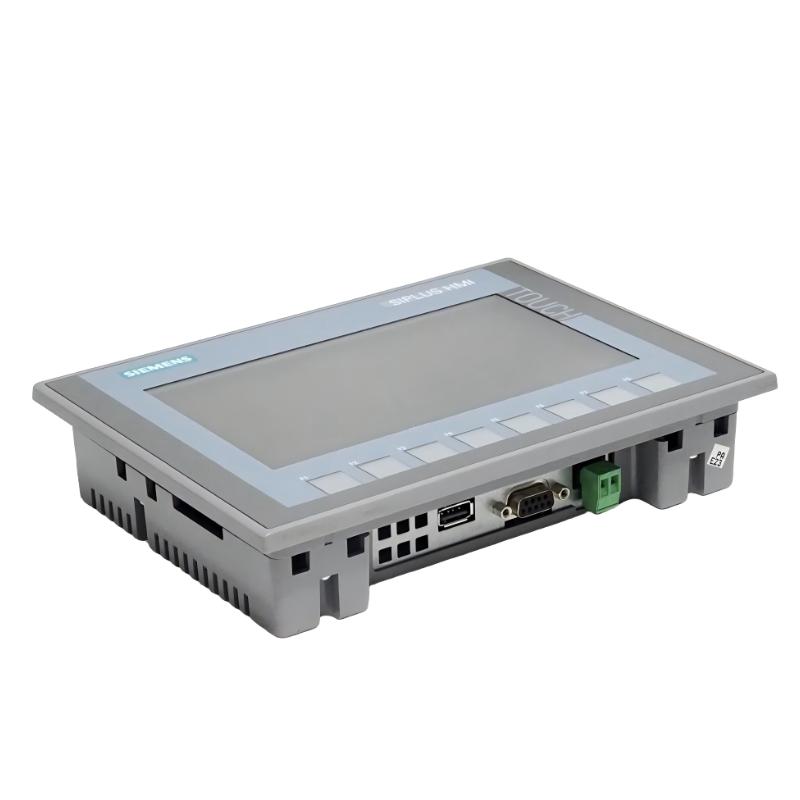

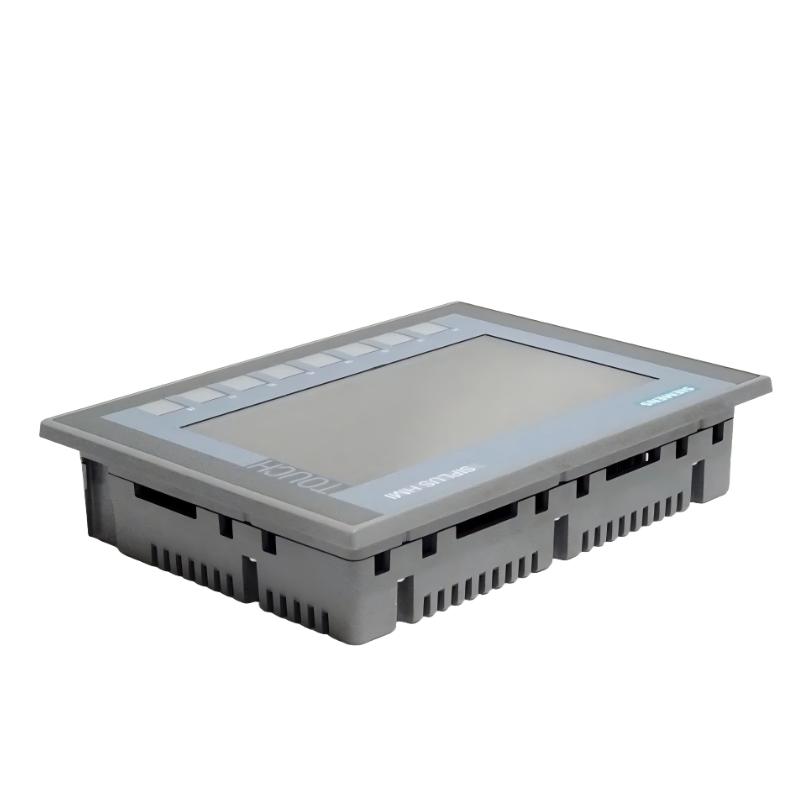

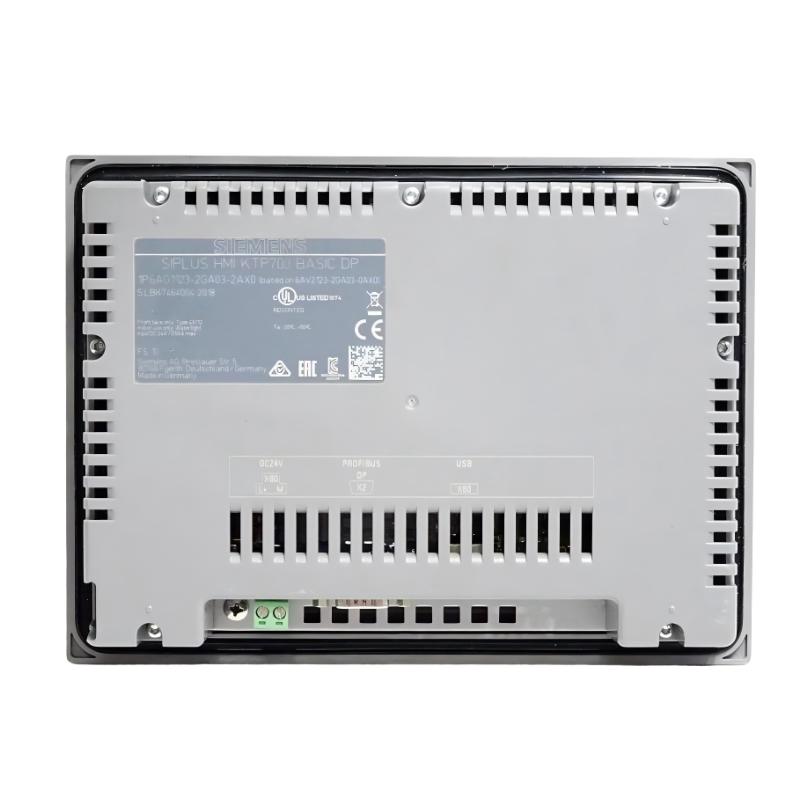

| Product Type | SIPLUS HMI KTP700 Basic DP Operator Interface |
| Product Family | SIPLUS Basic Panels, 2nd Generation |
| Base Model | 6AV2123-2GA03-0AX0 |
| Display Size | 7 inches |
| Display Type | TFT widescreen display with LED backlight |
| Display Resolution | 800 × 480 pixels |
| Display Colors | 65,536 colors |
| Touchscreen | Analog resistive touchscreen |
| Operation | Touchscreen and function keys |
| Programmable Function Keys | 8 |
| Communication Interface | PROFIBUS DP |
| RS-485 Interface | 1 |
| RS-422 Interface | 1, shared with RS-485 |
| USB Interface | 1, for USB storage devices |
| Supported Protocols | PROFIBUS, MPI, Modbus RTU |
| Power Supply | 24 V DC |
| Permitted Supply Range | 19.2–28.8 V DC |
| Rated Current | 230 mA |
| Typical Power Consumption | 5.5 W |
| User Memory | 10 MB |
| Real-Time Clock | Hardware and software clock supported |
| Front Protection Rating | IP65 |
| Rear Protection Rating | IP20 |
| Operating Temperature | -20 to +50 °C |
| Installation | Vertical or horizontal installation |
| Configuration Software | WinCC Basic V13 / STEP 7 Basic V13 or later |
| Applications | Process visualization, machine operation, alarm management, recipe handling and equipment monitoring |
| Special Design | SIPLUS conformal coating for demanding industrial environments |
| Dimensions | 261 × 189 × 63 mm |
| Weight | 0.8 kg |
FAQ
1. What type of product is the Siemens 6AG1123-2GA03-2AX0?
The Siemens 6AG1123-2GA03-2AX0 is a SIPLUS HMI KTP700 Basic DP operator panel designed for industrial human-machine interaction, process visualization and machine control. It is based on the KTP700 Basic DP platform and features SIPLUS conformal coating for improved suitability in demanding industrial environments.
2. What communication interfaces are available on the 6AG1123-2GA03-2AX0?
The 6AG1123-2GA03-2AX0 primarily uses PROFIBUS DP for communication with PLCs, controllers and other automation devices. It also provides an RS-485/RS-422 interface, allowing communication with compatible industrial systems. Depending on the configured communication driver, protocols such as MPI and Modbus RTU can also be supported.
3. Can the 6AG1123-2GA03-2AX0 communicate with Siemens S7 PLCs?
Yes. The HMI can be integrated with Siemens SIMATIC PLC systems through PROFIBUS DP or supported MPI communication. Engineers can configure PLC connections and assign process tags to HMI objects such as buttons, status indicators, input fields and alarm displays, enabling bidirectional data exchange between the PLC and operator panel.
4. Which software is used to configure the 6AG1123-2GA03-2AX0?
The panel can be configured using Siemens engineering software such as WinCC Basic V13 and STEP 7 Basic V13 or compatible versions. The HMI project can contain screen layouts, PLC tags, alarm messages, recipes, user permissions, input fields and control buttons. After configuration, the project can be transferred to the HMI for operation.
5. Does the 6AG1123-2GA03-2AX0 support both touchscreen operation and physical function keys?
Yes. The panel combines a resistive touchscreen with eight programmable function keys. The touchscreen can be used for screen navigation, parameter entry and operation of graphical controls, while the function keys can be assigned to frequently used machine functions such as start, stop, confirmation or screen switching.
6. Can the 6AG1123-2GA03-2AX0 display alarms and machine status information?
Yes. The HMI supports alarm and message handling for displaying machine status, process alarms and operator information. Alarm conditions can be configured within the WinCC project, allowing operators to identify abnormal process conditions and acknowledge messages directly from the HMI.
7. What is the purpose of the SIPLUS conformal coating on the 6AG1123-2GA03-2AX0?
The SIPLUS version uses conformal coating to provide enhanced protection for electronic components against environmental influences such as increased humidity, condensation and certain corrosive conditions. This makes the panel suitable for industrial applications where environmental conditions may be more demanding than those found in standard indoor installations.
8. Does the 6AG1123-2GA03-2AX0 support USB storage devices?
Yes. The HMI includes a USB interface that can be used with compatible USB storage devices for supported data transfer, backup and maintenance operations. During commissioning or service work, USB-based data handling can simplify project management and certain maintenance procedures.
